Introduction to RTT Viewer

SEGGER’s Real-Time Transfer (RTT) is a new technology for user I/O interaction in embedded applications. The J-Link RTT Viewer is a Windows GUI application that utilizes the RTT functionality on the debugging host, combining the advantages of SWO and semihosting, offering high performance. Using RTT, information can be output from the target microcontroller and input can be sent to the application at very high speeds without affecting the real-time nature of the target.

When there is no excess serial printf output required, and only a small amount of debug status information needs to be output, SEGGER-RTT can be used for development and debugging.

1.1

Features

Bidirectional communication with the target application
Very high transmission speed without affecting real-time behavior
Communication via the debug channel
No additional hardware or pins required on the target
Supports any J-Link
Supports Arm Cortex-M0/M0+/M1/M3/M4/M7/M23/M33
Provides functional and free complete implementation code

1.2

Main Functions of RTT Viewer

Terminal output on channel 0
Send text input to channel 0
Up to 16 virtual terminals with only one target channel
Control text output: colored text, clear console
Log data on channel 1

…

RTT supports multiple channels in both directions, up to the host and down to the target board, which can be used for different targets and provides users with as much freedom of choice as possible. The default implementation uses one channel for each direction, meaning multiple printable terminal inputs and outputs. With the J-Link RTT Viewer, this channel can be used for multiple ‘virtual’ terminals, allowing printing to multiple windows with just one target buffer (for example, one for standard output, one for error output, and one for debug output). For example, another up (to host) channel can be used to send analysis or event tracking data.

Data Preparation

2.1

Download and Install

Download link:

https://www.segger.com/downloads/jlink/#JLinkSoftwareAndDocumentationPack

The complete package includes the installation of J-Flash related software, and further details on downloading and installation will not be elaborated here.

2.2

Get the RTT Viewer Source Code

After installing the J-Link complete package, the source code for RTT_Viewer is stored in the folder C:\Program Files (x86)\SEGGER\JLink\Samples\RTT on your computer. Unzip the SEGGER_RTT_Vxxxx.zip file from this folder into your project folder.

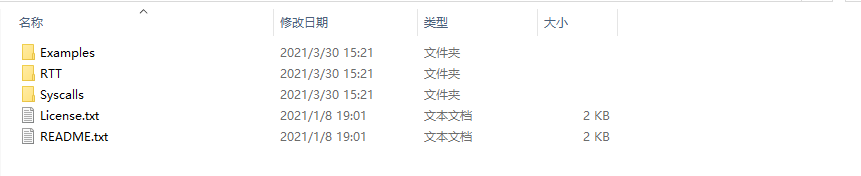

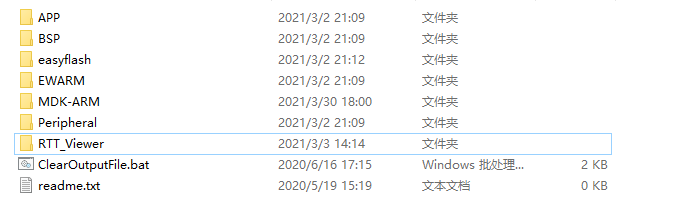

Now you can see the unzipping is complete. Open the RTT folder to find three folders; the source code for RTT Viewer is stored in the RTT folder, which you should copy to your project path.

Project Configuration

3.1

Adding RTT Viewer to the Keil Project

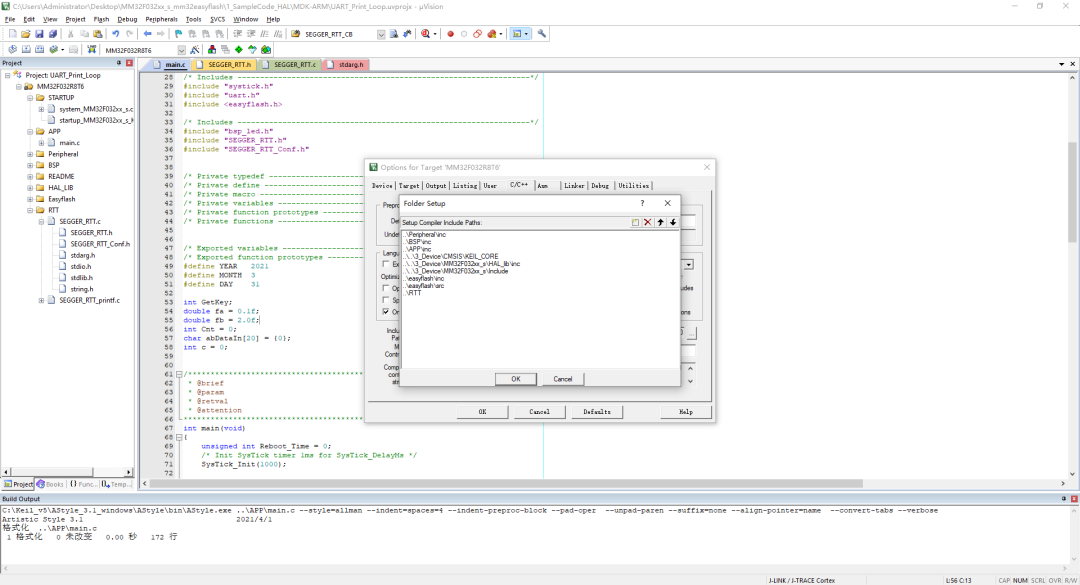

Add the files SEGGER_RTT.c and SEGGER_RTT_printf.c from the folder to your project files, and include the header files SEGGER_RTT.h and SEGGER_RTT_printf.h with the relevant paths.

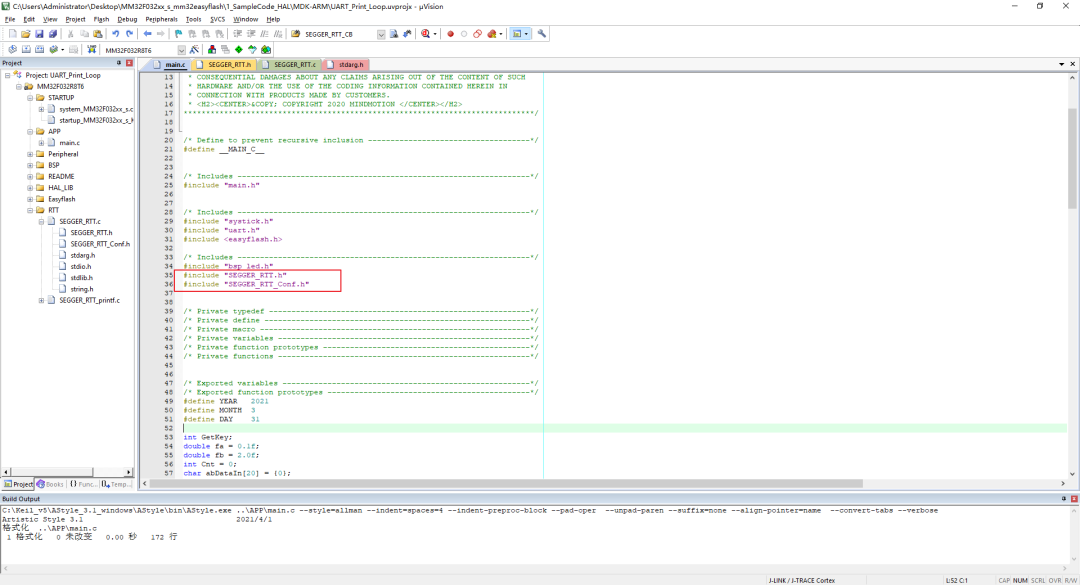

Include the relevant RTT Viewer header files in the main.c file.

#include "SEGGER_RTT.h"
#include "SEGGER_RTT_Conf.h"

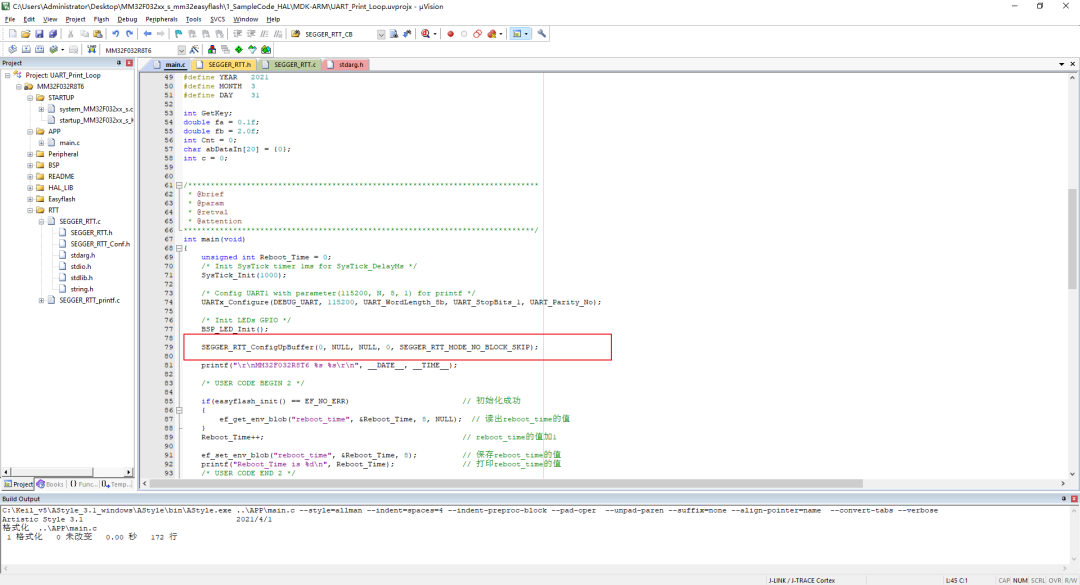

Then, in the main function, add the SEGGER_RTT_ConfigUpBuffer function to initialize the RTT Viewer.

SEGGER_RTT_ConfigUpBuffer(0, NULL, NULL, 0, SEGGER_RTT_MODE_NO_BLOCK_SKIP);

At this point, the RTT Viewer has been added to the project and the relevant initialization is complete.

3.2

RTT Viewer Log Printing

Call the LOG printing function SEGGER_RTT_printf to print the power-up LOG:

SEGGER_RTT_printf(0, "SEGGER RTT Sample. Uptime: %.10dms.", /*OS_Time*/ 890912);
// Formatted output on channel 0: SEGGER RTT Sample. Uptime: 890912ms.

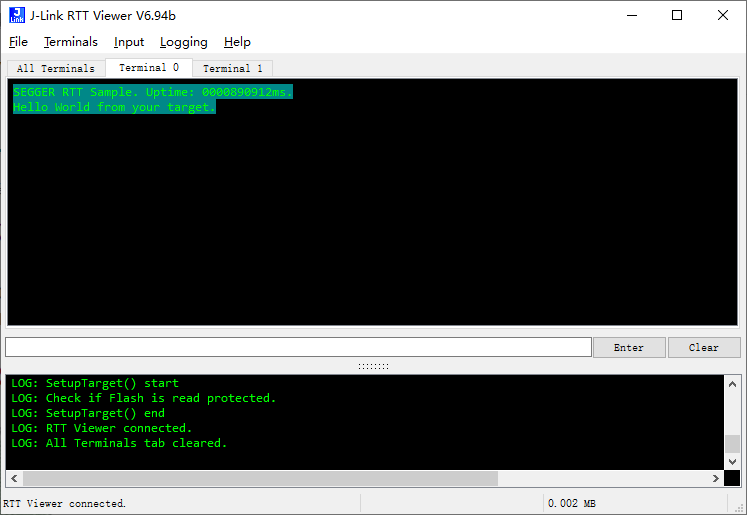

Connect to the host computer and check if the log printing is successful on the host side.

3.3

Sending Commands to the MCU from the Console

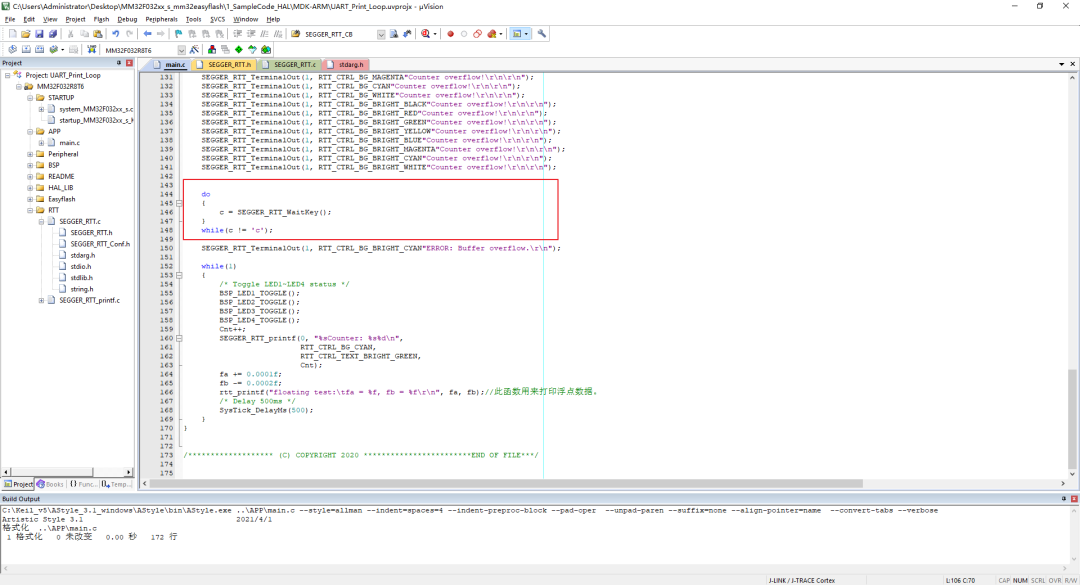

RTT_Viewer can also be used as a console to send commands to the MCU. The specific function to call is SEGGER_RTT_WaitKey(); below is a test where the RTT_Viewer host sends data to the MCU. The test code is as follows; just add the code below after the initialization in the main function.

 do
{
    c = SEGGER_RTT_WaitKey();// Get the data sent from the RTT_Viewer host
}
while (c != 'c');

3.4

MCU Controls Host to Print Colored Logs

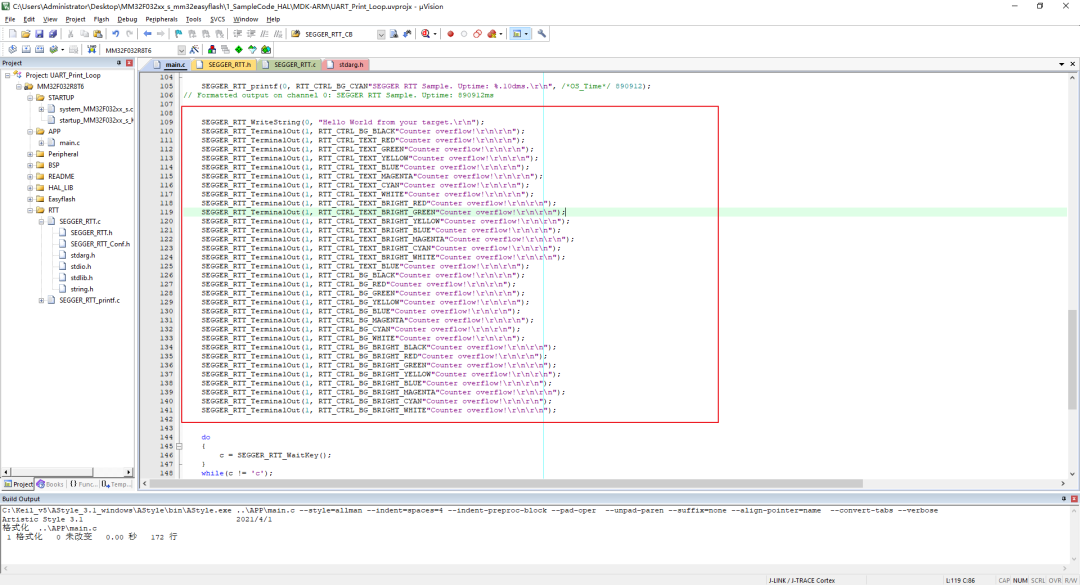

The MCU can control RTT_Viewer to print colored logs using the SEGGER_RTT_TerminalOut function; below is the specific implementation method.

SEGGER_RTT_WriteString(0, "Hello World from your target.\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BLACK"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_RED"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_GREEN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_YELLOW"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BLUE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_MAGENTA"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_CYAN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_WHITE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_RED"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_GREEN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_YELLOW"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_BLUE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_MAGENTA"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_CYAN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BRIGHT_WHITE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_TEXT_BLUE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BLACK"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_RED"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_GREEN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_YELLOW"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BLUE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_MAGENTA"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_CYAN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_WHITE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_BLACK"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_RED"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_GREEN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_YELLOW"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_BLUE"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_MAGENTA"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_CYAN"Counter overflow!\r\n\r\n");
SEGGER_RTT_TerminalOut(1, RTT_CTRL_BG_BRIGHT_WHITE"Counter overflow!\r\n\r\n");

3.5

RTT Viewer Printing Floating Point Numbers

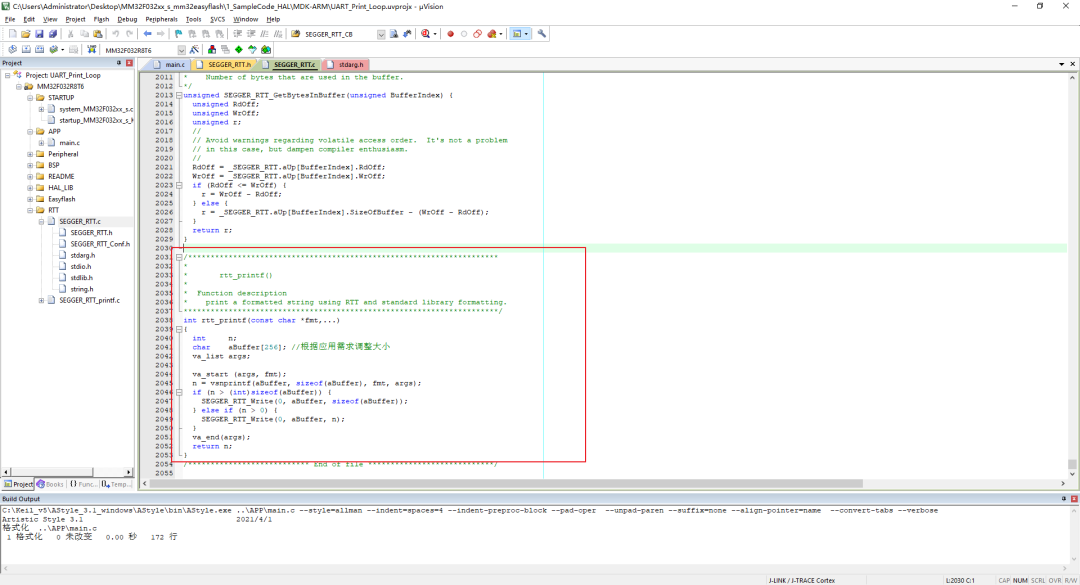

Add the following function in the SEGGER_RTT.c file:

/*********************************************************************
*
*       rtt_printf()
*
*  Function description
*    print a formatted string using RTT and standard library formatting.
**********************************************************************/
int rtt_printf(const char *fmt,...)
{
  int     n;
  char    aBuffer[256]; // Adjust size based on application needs
  va_list args;

  va_start (args, fmt);
  n = vsnprintf(aBuffer, sizeof(aBuffer), fmt, args);
  if (n > (int)sizeof(aBuffer)) {
    SEGGER_RTT_Write(0, aBuffer, sizeof(aBuffer));
  } else if (n > 0) {
    SEGGER_RTT_Write(0, aBuffer, n);
  }
  va_end(args);
  return n;
}

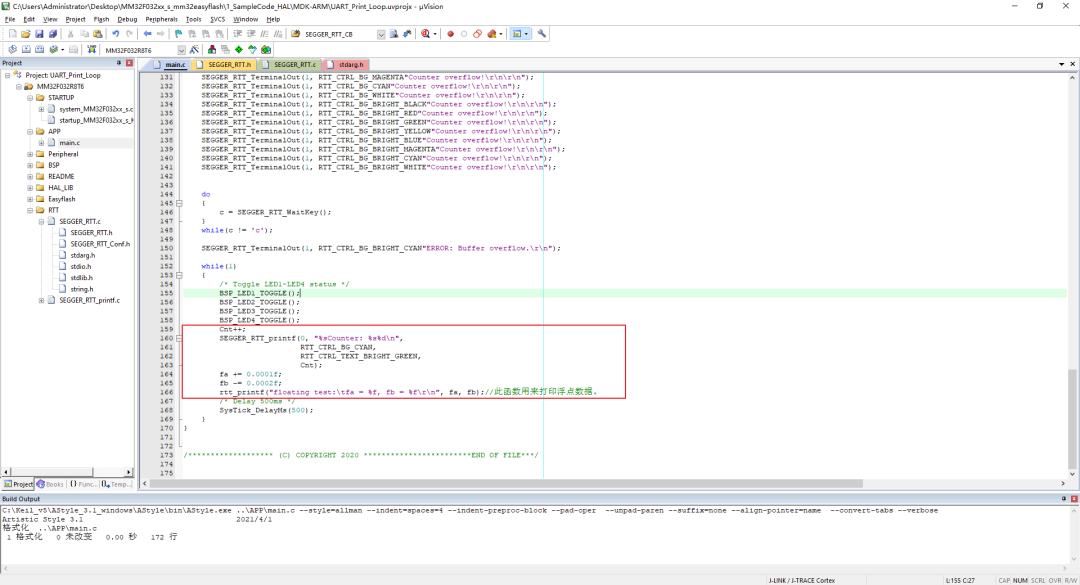

In the main function loop, add the following test code:

Cnt++;
        SEGGER_RTT_printf(0, "%sCounter: %s%d\n",
                          RTT_CTRL_BG_CYAN,
                          RTT_CTRL_TEXT_BRIGHT_GREEN,
                          Cnt);
            fa += 0.0001f;
            fb -= 0.0002f;
            rtt_printf("floating test:\tfa = %f, fb = %f\r\n", fa, fb);// This function is used to print floating point numbers

At this point, the relevant code is complete, then compile and download to check the relevant phenomena.

Function Verification

4.1

MCU Controls Host to Print Colored Logs

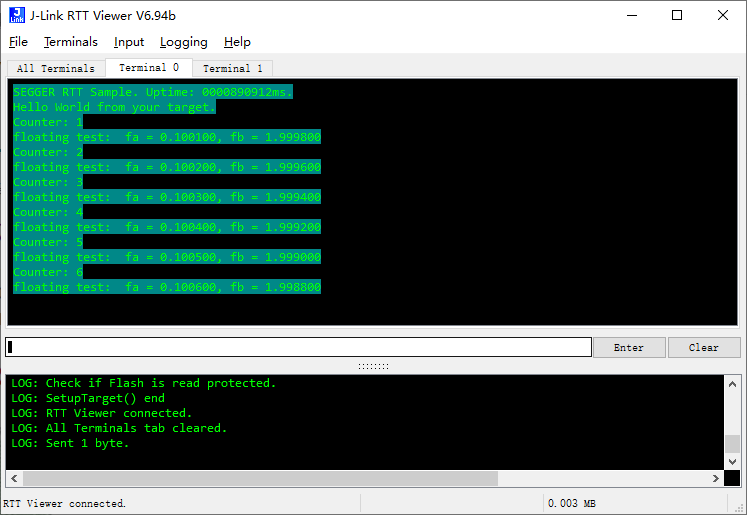

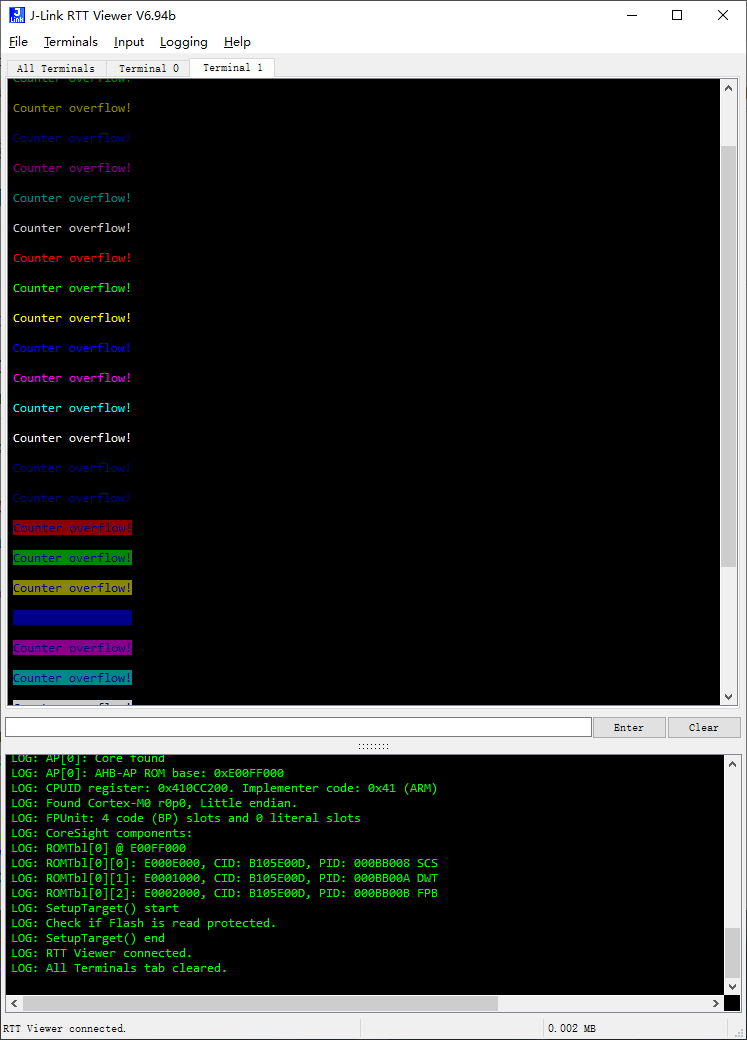

Connect with the RTT Viewer host computer and you can see the printed log data, showing different data printed on channel 0 and channel 1.

4.2

Sending Commands to the MCU from the Console

After entering the lowercase character ‘c’, you can see the console output LOG: Sent 1 byte, indicating that the data was sent successfully, and you can see that the counter data is incrementing, and the program is running correctly, with the floating-point data changing normally; thus, the verification code is correct.

Reference code link:

https://github.com/Samplecode-MM32/MM32MCU_Code
