Singleton Pattern: The Guardian of Global State Consistency in Embedded Systems

1. Singleton Pattern

The Singleton Pattern ensures that a class has only one instance and provides a global access point.

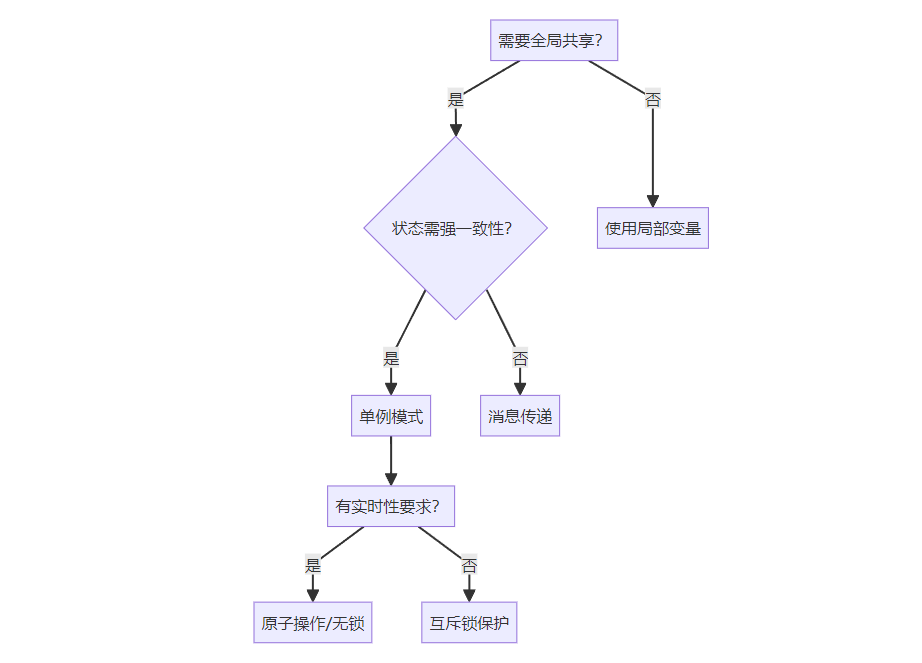

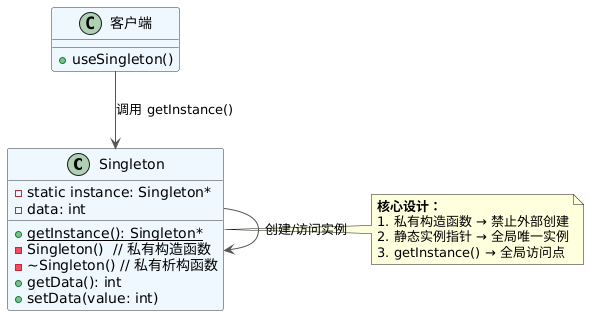

Core structure diagram of the Singleton Pattern:

Singleton Pattern: The Guardian of Global State Consistency in Embedded Systems

The structure typically includes:

A private static instance (pointer to itself)
A private constructor (to prevent external instantiation)
A public static method (to get the unique instance)

In embedded systems, this pattern is particularly suitable for:

Global State: System configuration, error logs
Hardware Peripheral Management: SPI/I2C controllers
Resource Pool: Memory pool, connection pool
Core Manager: Power management, security controllers

Key points in embedded design:

Thread Safety: Critical sections must be protected by disabling interrupts or using mutexes (especially in RTOS).
No Dynamic Memory: Prefer static allocation of instances to avoid heap memory fragmentation.

2. Embedded Application Case

Maintaining system state in a remote monitoring system.

Non-Singleton Pattern: Each module (sensor module, control module, communication module) maintains its own system state, leading to:

The temperature sensor believes the system is normal
But the control module detects a fault
Inconsistent states lead to dangerous operations

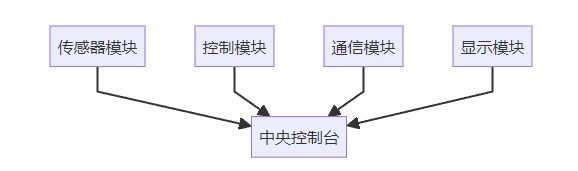

Singleton Pattern: Establish a central console (the unique instance), all modules access the system state through it, ensuring global decision consistency.

1. Code Implementation:

In C language:

#include <stdio.h>
#include <pthread.h>

// Global state structure
typedef struct {
    int system_mode;
    int error_code;
    unsigned long operation_count;
} SystemState;

// Singleton state manager
typedef struct {
    SystemState state;
    pthread_mutex_t lock;
} StateManager;

// Global singleton instance
static StateManager* instance = NULL;

// Get singleton instance (thread-safe)
StateManager* get_state_manager() {
    if (instance == NULL) {
        // Create mutex
        static pthread_mutex_t init_lock = PTHREAD_MUTEX_INITIALIZER;
        pthread_mutex_lock(&init_lock);

        if (instance == NULL) {
            static StateManager manager;
            manager.state.system_mode = 0;
            manager.state.error_code = 0;
            manager.state.operation_count = 0;
            pthread_mutex_init(&manager.lock, NULL);
            instance = &manager;
        }

        pthread_mutex_unlock(&init_lock);
    }
    return instance;
}

// Set system mode
void set_system_mode(int mode) {
    StateManager* manager = get_state_manager();
    pthread_mutex_lock(&manager->lock);
    manager->state.system_mode = mode;
    pthread_mutex_unlock(&manager->lock);
}

// Get system mode
int get_system_mode() {
    StateManager* manager = get_state_manager();
    pthread_mutex_lock(&manager->lock);
    int mode = manager->state.system_mode;
    pthread_mutex_unlock(&manager->lock);
    return mode;
}

// Report error
void report_error(int error_code) {
    StateManager* manager = get_state_manager();
    pthread_mutex_lock(&manager->lock);
    manager->state.error_code = error_code;
    pthread_mutex_unlock(&manager->lock);
}

// Increment operation count
void increment_operation_count() {
    StateManager* manager = get_state_manager();
    pthread_mutex_lock(&manager->lock);
    manager->state.operation_count++;
    pthread_mutex_unlock(&manager->lock);
}

// Print system state
void print_system_state() {
    StateManager* manager = get_state_manager();
    pthread_mutex_lock(&manager->lock);

    printf("\n=== System State ===\n");
    printf("Current Mode: %s\n",
           manager->state.system_mode == 0 ? "Normal Mode" :
           manager->state.system_mode == 1 ? "Maintenance Mode" : "Emergency Mode");
    printf("Error Code: 0x%04X\n", manager->state.error_code);
    printf("Operation Count: %lu\n", manager->state.operation_count);

    pthread_mutex_unlock(&manager->lock);
}

// Simulate sensor module
void* sensor_module(void* arg) {
    printf("Sensor starting...\n");
    for (int i = 0; i < 3; i++) {
        increment_operation_count();
        printf("Sensor detecting...\n");
        sleep(1);
    }
    return NULL;
}

// Simulate control module
void* control_module(void* arg) {
    printf("Controller starting...\n");
    sleep(1);

    // Simulate error detection
    report_error(0xE1A2);
    set_system_mode(2);  // Enter emergency mode

    printf("Controller detected a serious error!\n");
    return NULL;
}

int main() {
    printf("=== Control System Starting ===\n");

    // Initialize state manager
    get_state_manager();
    print_system_state();

    // Create simulation threads
    pthread_t sensor_thread, control_thread;
    pthread_create(&sensor_thread, NULL, sensor_module, NULL);
    pthread_create(&control_thread, NULL, control_module, NULL);

    // Wait for threads to finish
    pthread_join(sensor_thread, NULL);
    pthread_join(control_thread, NULL);

    // Print final state
    print_system_state();

    printf("\n=== System Shutdown ===\n");
    return 0;
}

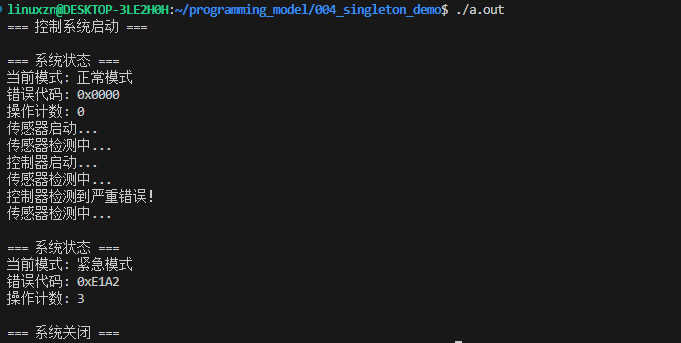

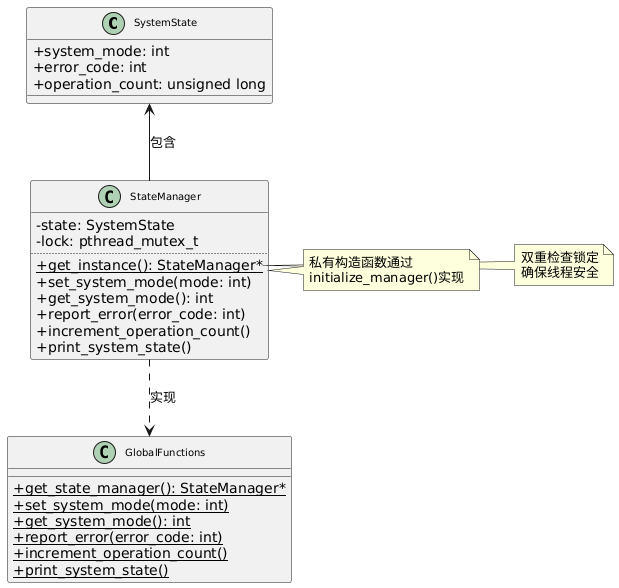

In C language, there is no concept of classes, so we simulate the Singleton Pattern using static global variables and functions.

Private Static Instance: A static global pointer static StateManager* instance = NULL; points to the unique instance. The instance itself is created using a static local variable static StateManager manager; within the getter function. This way, the instance is initialized only once during the program’s execution and returned via a pointer.
Private Constructor: In C, this is achieved through static initialization or initialization within the getter function. In the get_state_manager() function, the instance is created using a static local variable and initialized only once.
Public Static Method: This is the get_state_manager() function, which returns a pointer to the singleton instance. We also provide other functions to operate on the state, such as set_system_mode(), get_system_mode(), etc., which internally call get_state_manager() to get the singleton instance.

In C++:

#include <iostream>
#include <mutex>
#include <thread>
#include <vector>

class StateManager {
private:
    struct State {
        int system_mode = 0;
        int error_code = 0;
        unsigned long operation_count = 0;
    } state;

    std::mutex mtx;  // Non-static member lock, protects instance state

    StateManager() = default;  // Private constructor

public:
    // Delete copy constructor and assignment operator
    StateManager(const StateManager&) = delete;
    void operator=(const StateManager&) = delete;

    // Use local static variable to implement thread-safe singleton
    static StateManager& getInstance() {
        static StateManager instance;
        return instance;
    }

    void setSystemMode(int mode) {
        std::lock_guard<std::mutex> lock(mtx);
        state.system_mode = mode;
        state.operation_count++;
    }

    int getSystemMode() {
        std::lock_guard<std::mutex> lock(mtx);
        return state.system_mode;
    }

    void printState() {
        std::lock_guard<std::mutex> lock(mtx);
        std::cout << "Mode: " << state.system_mode
                  << " | Errors: 0x" << std::hex << state.error_code
                  << " | Operations: " << std::dec << state.operation_count << "\n";
    }
};

// Test function
void threadTask(int mode) {
    StateManager& manager = StateManager::getInstance();
    manager.setSystemMode(mode);
    std::this_thread::sleep_for(std::chrono::milliseconds(10));
    manager.printState();
}

int main() {
    std::vector<std::thread> threads;

    // Create multiple threads to test thread safety
    for (int i = 1; i <= 5; ++i) {
        threads.emplace_back(threadTask, i);
    }

    // Wait for all threads to finish
    for (auto& t : threads) {
        t.join();
    }

    // Main thread access
    StateManager::getInstance().printState();
    return 0;
}

2. Advantages and Disadvantages

Advantages:

(1) Resource Efficiency:

Memory Savings: Only one instance, reducing RAM occupied by duplicate objects (critical for resource-constrained MCUs).
Performance Improvement: Avoid frequent creation/destruction of objects (e.g., communication protocol stacks), reducing CPU overhead.

(2) Behavioral Consistency:

Prevents hardware state conflicts (e.g., multiple tasks configuring UART baud rates simultaneously).
Ensures global data (e.g., calibration parameters) is uniquely reliable.

Disadvantages:

(1) Poor Scalability: Lack of abstraction layer makes it difficult to extend functionality through inheritance (violating the Open/Closed Principle).

(2) Lifecycle Issues: Static instances occupy memory for a long time, wasting resources if not utilized.

3. Summary of Applicability in Embedded Scenarios

Scenario	Reason
Hardware Peripheral Management (SPI/UART)	Prevent multi-task conflicts
Global Configuration Manager	Ensure parameter consistency
High-frequency Object Creation/Destruction	Reduce CPU overhead
Shared Utility Classes Across Modules	Simplify access but increase coupling
