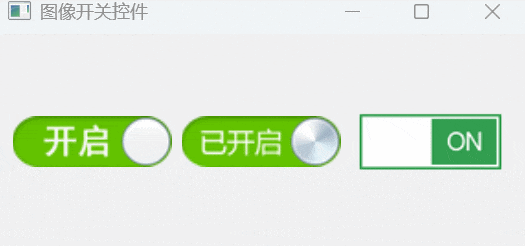

The implementation effect is as follows:
🧩 Function Overview
1. Switch State Control
-
Supports two states: On (checked) and Off (unchecked).
-
Can toggle state by clicking.
-
Supports immediate state setting without animation (
<span>setChecked</span>) and state switching with animation (<span>setCheckedWithAnimation</span>).
2. Multiple Built-in Styles
-
Provides three built-in styles (
<span>ButtonStyleOne</span>,<span>ButtonStyleTwo</span>,<span>ButtonStyleThree</span>), each style uses different switch images. -
Supports custom styles (
<span>ButtonStyleCustom</span>), allowing users to set their own switch images.
3. Smooth Animation Effects
-
Uses
<span>QPropertyAnimation</span>to implement fade-in and fade-out animations during state transitions. -
The animation progress is controlled by the
<span>animationProgress</span>property, ranging from<span>0.0</span>to<span>1.0</span>. -
Automatically updates the currently displayed image after the animation ends.
4. Image Path Management
-
Can set the image paths for off and on states using
<span>setOffImagePath</span>and<span>setOnImagePath</span>, respectively. -
Provides the
<span>setCustomImages</span>method to set custom image paths at once and automatically switch to custom style.
5. Adaptive Size
-
Overrides
<span>sizeHint</span>and<span>minimumSizeHint</span>to return appropriate default sizes based on the current style. -
Images are automatically centered and maintain aspect ratio during drawing.
The core code is as follows:
// imageswitch.h#ifndef IMAGESWITCH_H#define IMAGESWITCH_H
#include <QWidget>
#include <QPropertyAnimation>
class ImageSwitch : public QWidget{ Q_OBJECT Q_ENUMS(ButtonStyle)
Q_PROPERTY(bool bChecked READ getChecked WRITE setChecked) Q_PROPERTY(ButtonStyle pButtonStyle READ getButtonStyle WRITE setButtonStyle) Q_PROPERTY(QString offImagePath READ getOffImagePath WRITE setOffImagePath) Q_PROPERTY(QString onImagePath READ getOnImagePath WRITE setOnImagePath) Q_PROPERTY(double animationProgress READ getAnimationProgress WRITE setAnimationProgress)
public: enum ButtonStyle { ButtonStyleOne = 0, // Switch Style 1 ButtonStyleTwo = 1, // Switch Style 2 ButtonStyleThree = 2, // Switch Style 3 ButtonStyleCustom = 3 // Custom Style };
explicit ImageSwitch(QWidget *parent = 0);
protected: void mousePressEvent(QMouseEvent *); void paintEvent(QPaintEvent *event);
private: bool bChecked; // Is checked ButtonStyle pButtonStyle; // Button style
QString sImgOffFile; // Off image QString sImgOnFile; // On image QString sImgCurFile; // Current image
double animationProgress; // Animation progress (0.0 - 1.0) QPropertyAnimation *animation; // Animation object
void updateAnimation();
public: // Default size and minimum size QSize sizeHint() const; QSize minimumSizeHint() const;
// Get and set checked state bool getChecked() const; void setChecked(bool isChecked); void setCheckedWithAnimation(bool isChecked); // Set with animation
// Get and set button style ButtonStyle getButtonStyle() const; void setButtonStyle(const ImageSwitch::ButtonStyle &buttonStyle);
// Get and set custom image paths QString getOffImagePath() const; void setOffImagePath(const QString &path); QString getOnImagePath() const; void setOnImagePath(const QString &path);
// Animation progress control double getAnimationProgress() const; void setAnimationProgress(double progress);
// Set custom images void setCustomImages(const QString &offImage, const QString &onImage);
Q_SIGNALS: void checkedChanged(bool checked);};
#endif // IMAGESWITCH_H
// imageswitch.cpp#include "imageswitch.h"
#include <QPainter>
#include <QEasingCurve>
ImageSwitch::ImageSwitch(QWidget *parent) : QWidget(parent){ bChecked = false; pButtonStyle = ButtonStyleTwo; animationProgress = 0.0;
sImgOffFile = ":/image/imageswitch/btncheckoff2.png"; sImgOnFile = ":/image/imageswitch/btncheckon2.png"; sImgCurFile = sImgOffFile;
// Initialize animation animation = new QPropertyAnimation(this, "animationProgress"); animation->setDuration(300); // 300 milliseconds animation duration animation->setEasingCurve(QEasingCurve::InOutQuad);
connect(animation, &QPropertyAnimation::finished, this, [this]() { // Update current image file after animation ends sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; update(); });}
void ImageSwitch::mousePressEvent(QMouseEvent *){ setCheckedWithAnimation(!bChecked);}
void ImageSwitch::paintEvent(QPaintEvent *){ QPainter painter(this); painter.setRenderHints(QPainter::SmoothPixmapTransform | QPainter::Antialiasing);
// If animating, draw transition effect if (animation->state() == QAbstractAnimation::Running) { QImage currentImage;
if (bChecked) { // Animation from off to on: show on image, adjust position or opacity based on progress currentImage = QImage(sImgOnFile); } else { // Animation from on to off: show off image, adjust position or opacity based on progress currentImage = QImage(sImgOffFile); }
currentImage = currentImage.scaled(this->size(), Qt::KeepAspectRatio, Qt::SmoothTransformation);
// Center draw based on ratio int pixX = rect().center().x() - currentImage.width() / 2; int pixY = rect().center().y() - currentImage.height() / 2; QPoint point(pixX, pixY);
// Control opacity or position based on animation progress if (bChecked) { // From off to on: gradually show painter.setOpacity(animationProgress); } else { // From on to off: gradually hide painter.setOpacity(1.0 - animationProgress); }
painter.drawImage(point, currentImage);
} else { // Non-animation state, normal drawing QImage img(sImgCurFile); img = img.scaled(this->size(), Qt::KeepAspectRatio, Qt::SmoothTransformation);
// Center draw based on ratio int pixX = rect().center().x() - img.width() / 2; int pixY = rect().center().y() - img.height() / 2; QPoint point(pixX, pixY); painter.drawImage(point, img);
}}
QSize ImageSwitch::sizeHint() const{ switch (pButtonStyle) { case ButtonStyleOne: case ButtonStyleTwo: return QSize(87, 28); case ButtonStyleThree: return QSize(96, 38); case ButtonStyleCustom: // For custom style, return a reasonable default size return QSize(87, 28); } return QSize(87, 28);}
QSize ImageSwitch::minimumSizeHint() const{ return sizeHint();}
bool ImageSwitch::getChecked() const{ return bChecked;}
void ImageSwitch::setChecked(bool isChecked){ if (this->bChecked != isChecked) { this->bChecked = isChecked; sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; animationProgress = bChecked ? 1.0 : 0.0; this->update(); }}
void ImageSwitch::setCheckedWithAnimation(bool isChecked){ if (this->bChecked != isChecked) { //bool oldState = this->bChecked; this->bChecked = isChecked;
// Start animation updateAnimation(); Q_EMIT checkedChanged(bChecked); }}
ImageSwitch::ButtonStyle ImageSwitch::getButtonStyle() const{ return this->pButtonStyle;}
void ImageSwitch::setButtonStyle(const ImageSwitch::ButtonStyle &buttonStyle){ if (this->pButtonStyle != buttonStyle) { this->pButtonStyle = buttonStyle;
if (buttonStyle == ButtonStyleOne) { sImgOffFile = ":/image/imageswitch/btncheckoff1.png"; sImgOnFile = ":/image/imageswitch/btncheckon1.png"; } else if (buttonStyle == ButtonStyleTwo) { sImgOffFile = ":/image/imageswitch/btncheckoff2.png"; sImgOnFile = ":/image/imageswitch/btncheckon2.png"; } else if (buttonStyle == ButtonStyleThree) { sImgOffFile = ":/image/imageswitch/btncheckoff3.png"; sImgOnFile = ":/image/imageswitch/btncheckon3.png"; } // ButtonStyleCustom does not modify image paths, uses user-defined paths
sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; this->update(); updateGeometry(); }}
QString ImageSwitch::getOffImagePath() const{ return sImgOffFile;}
void ImageSwitch::setOffImagePath(const QString &path){ if (sImgOffFile != path) { sImgOffFile = path; if (pButtonStyle == ButtonStyleCustom) { sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; this->update(); } }}
QString ImageSwitch::getOnImagePath() const{ return sImgOnFile;}
void ImageSwitch::setOnImagePath(const QString &path){ if (sImgOnFile != path) { sImgOnFile = path; if (pButtonStyle == ButtonStyleCustom) { sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; this->update(); } }}
void ImageSwitch::setCustomImages(const QString &offImage, const QString &onImage){ setOffImagePath(offImage); setOnImagePath(onImage); pButtonStyle = ButtonStyleCustom; sImgCurFile = bChecked ? sImgOnFile : sImgOffFile; this->update();}
double ImageSwitch::getAnimationProgress() const{ return animationProgress;}
void ImageSwitch::setAnimationProgress(double progress){ if (animationProgress != progress) { animationProgress = progress; this->update(); }}
void ImageSwitch::updateAnimation(){ if (animation->state() == QAbstractAnimation::Running) { animation->stop(); }
// Set animation direction if (bChecked) { // Animation from off to on: from 0 to 1 animation->setStartValue(0.0); animation->setEndValue(1.0); } else { // Animation from on to off: from 1 to 0 animation->setStartValue(1.0); animation->setEndValue(0.0); }
animation->start();}
