Introduction

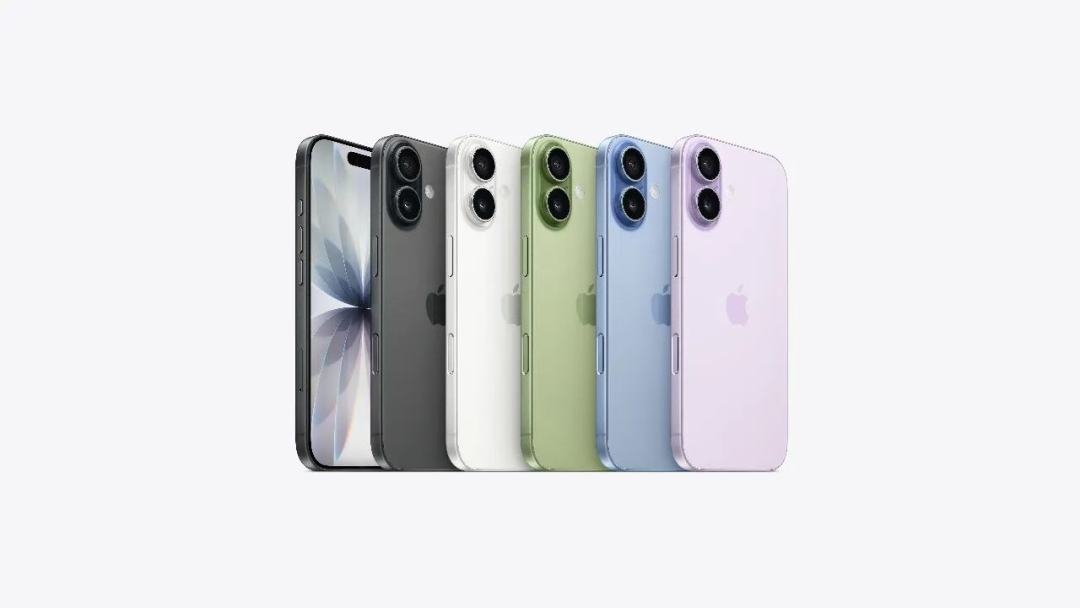

On September 10, 2025, Apple held its 2025 Fall New Product Launch event, unveiling the iPhone 17 series along with a series of major new products.

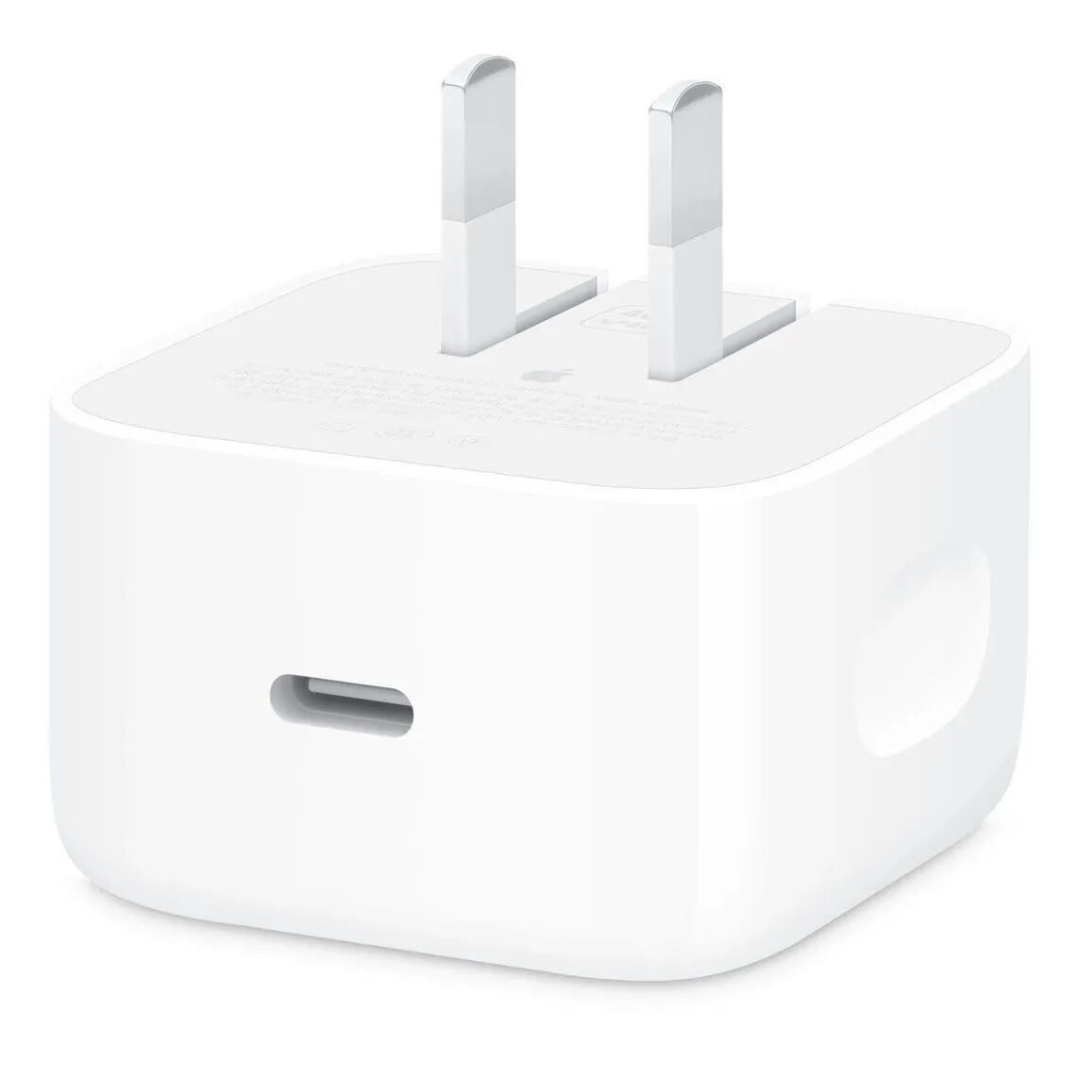

At the same time, Apple launched a 40W dynamic power adapter on its official website, which supports fast charging and is fully compatible. Its peak power can reach 60W, dynamically adjusting the output power according to the device’s needs to enhance charging speed.
Online leaks have already disclosed the parameters of this adapter, showing that it can achieve 40W wired fast charging through AVS technology.

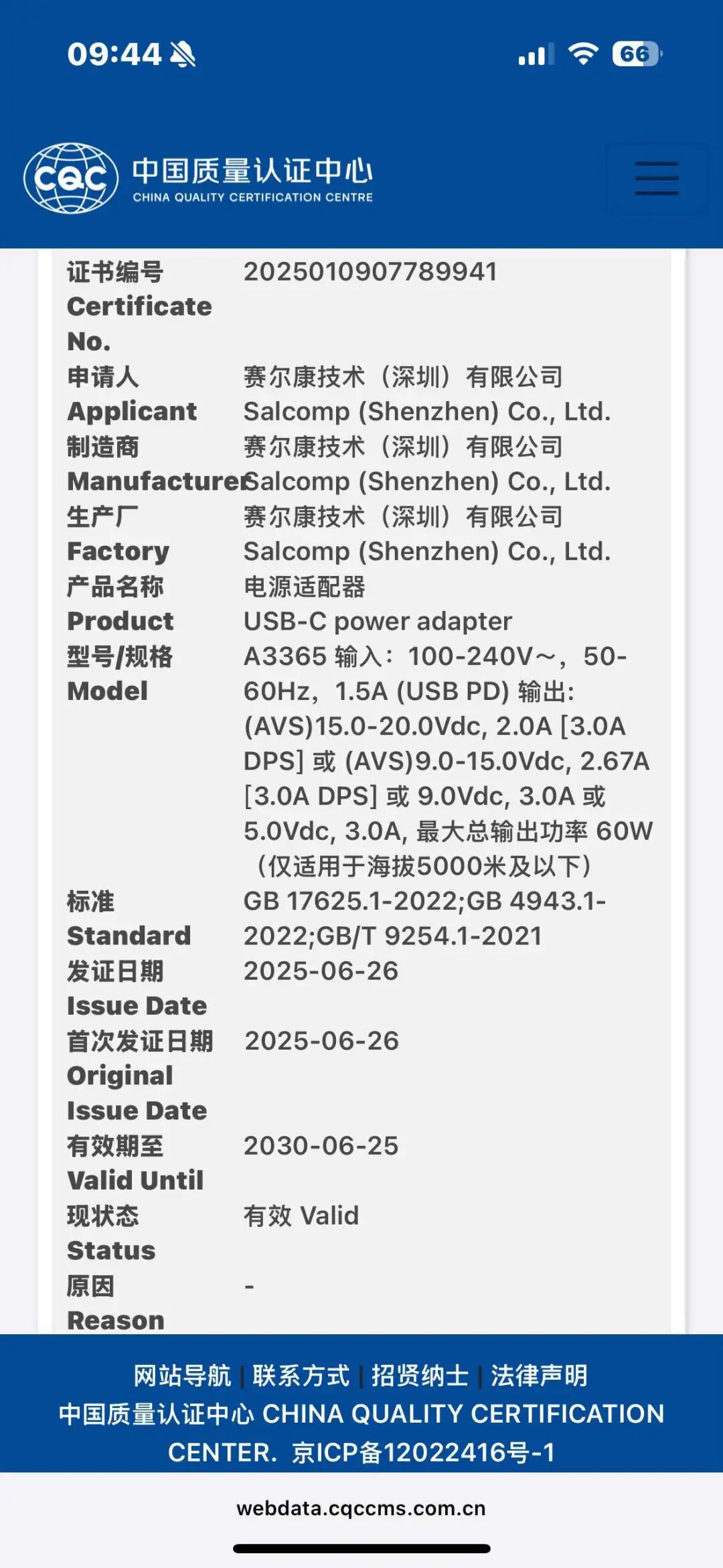

The specific parameters obtained from the CQC China Quality Certification Center are as follows:
Model: A3365
Input: 100-240V~, 50-60Hz, 1.5A (USB PD)
Output:
(AVS) 15.0-20.0Vdc, 2.0A [3.0A DPS]
or (AVS) 9.0-15.0Vdc, 2.67A [3.0A DPS]
or 9.0Vdc, 3.0A
or 5.0Vdc, 3.0A
Maximum total output power 60W
(Only applicable below 5000 meters altitude)
Apple claims that with this charger, the iPhone 17 series models can charge up to 50% in about 20 minutes. This suggests that the new iPhone continues to support fixed voltage levels of USB-PD and has likely added compatibility for AVS.

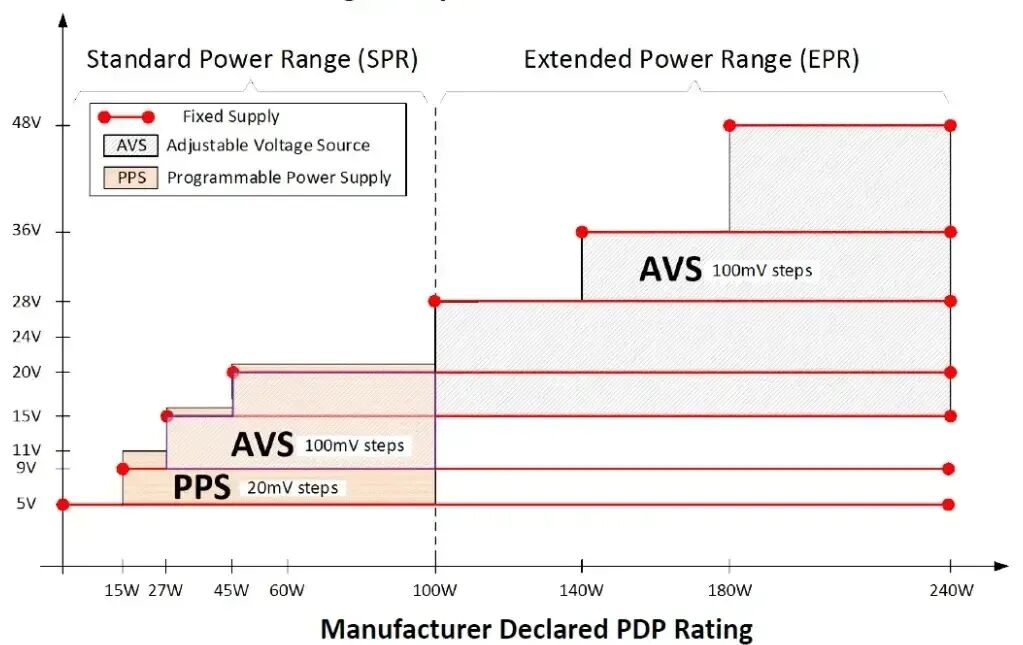

AVS is a new adjustable voltage feature added to USB-PD since the PD3.1 standard, previously mainly used in high voltage/high power scenarios (EPR), specifically for power levels of 140W and above.
However, since the update of the PD3.2 standard in October 2024, the AVS mechanism has also been extended to the SPR standard power range (27W–100W), allowing devices to precisely match various terminal charging needs with a minimum step of 100mV between 9V and 20V, effectively improving energy conversion efficiency and reducing heat loss.

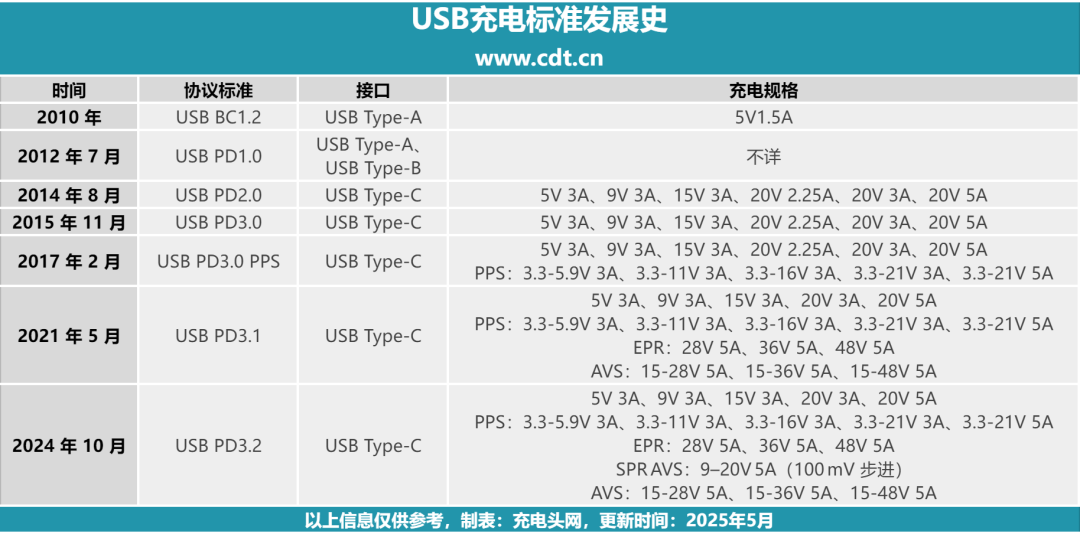

Charging Head Network has previously compiled a history of the development of USB-PD charging standards, which can provide a better understanding.
Next, Charging Head Network will recommend several AVS-supported protocol chips available on the market. Using these AVS-supported chips will allow chargers to accurately adjust output voltage and power according to the real-time needs of terminals such as the iPhone 17 series, thereby improving charging efficiency, reducing heat, and enhancing the charging experience.

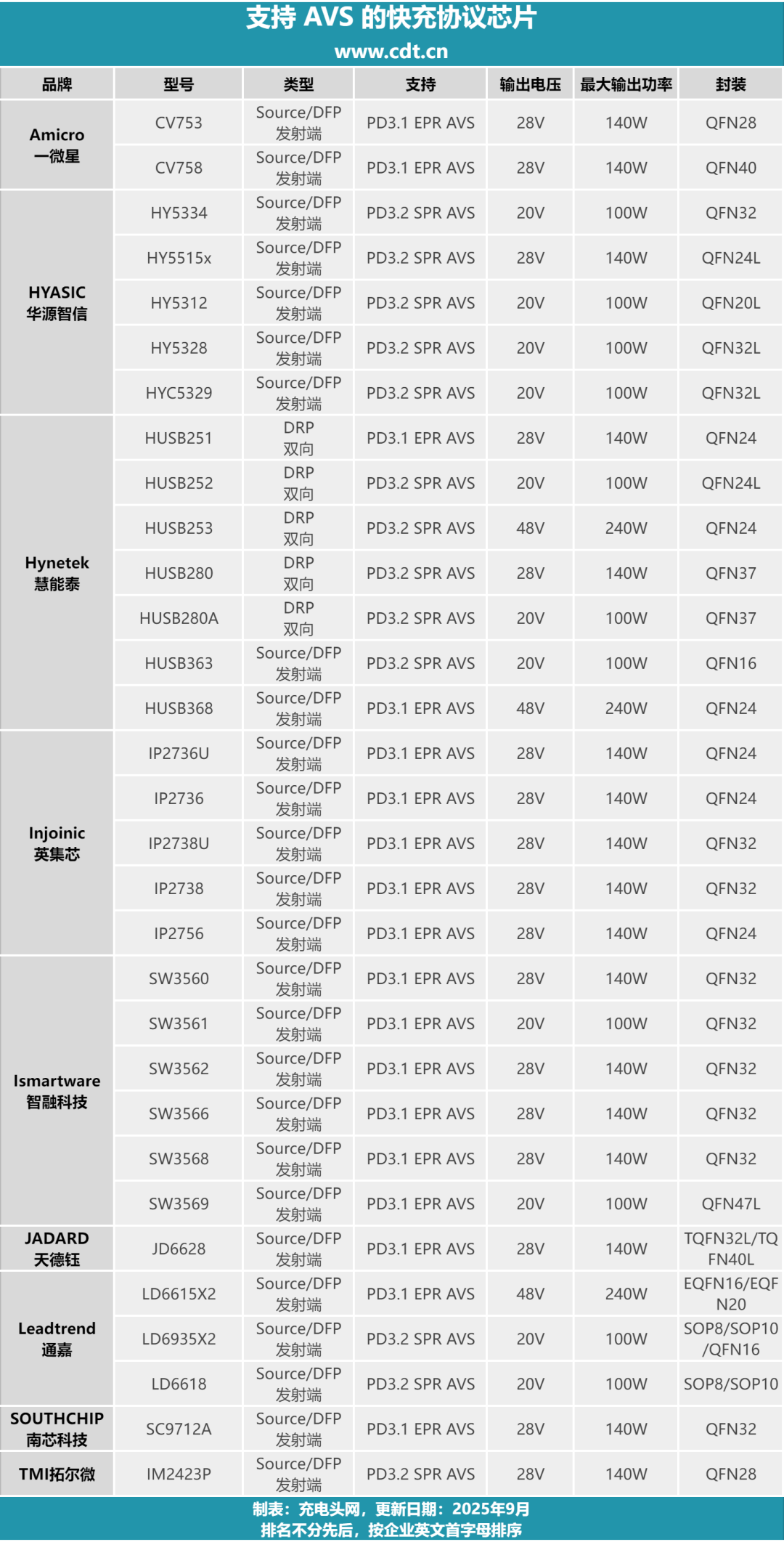

AVS Supported Protocol Chips
Next, Charging Head Network will provide detailed introductions of these AVS-supported protocol chips.
Amicro Microstar

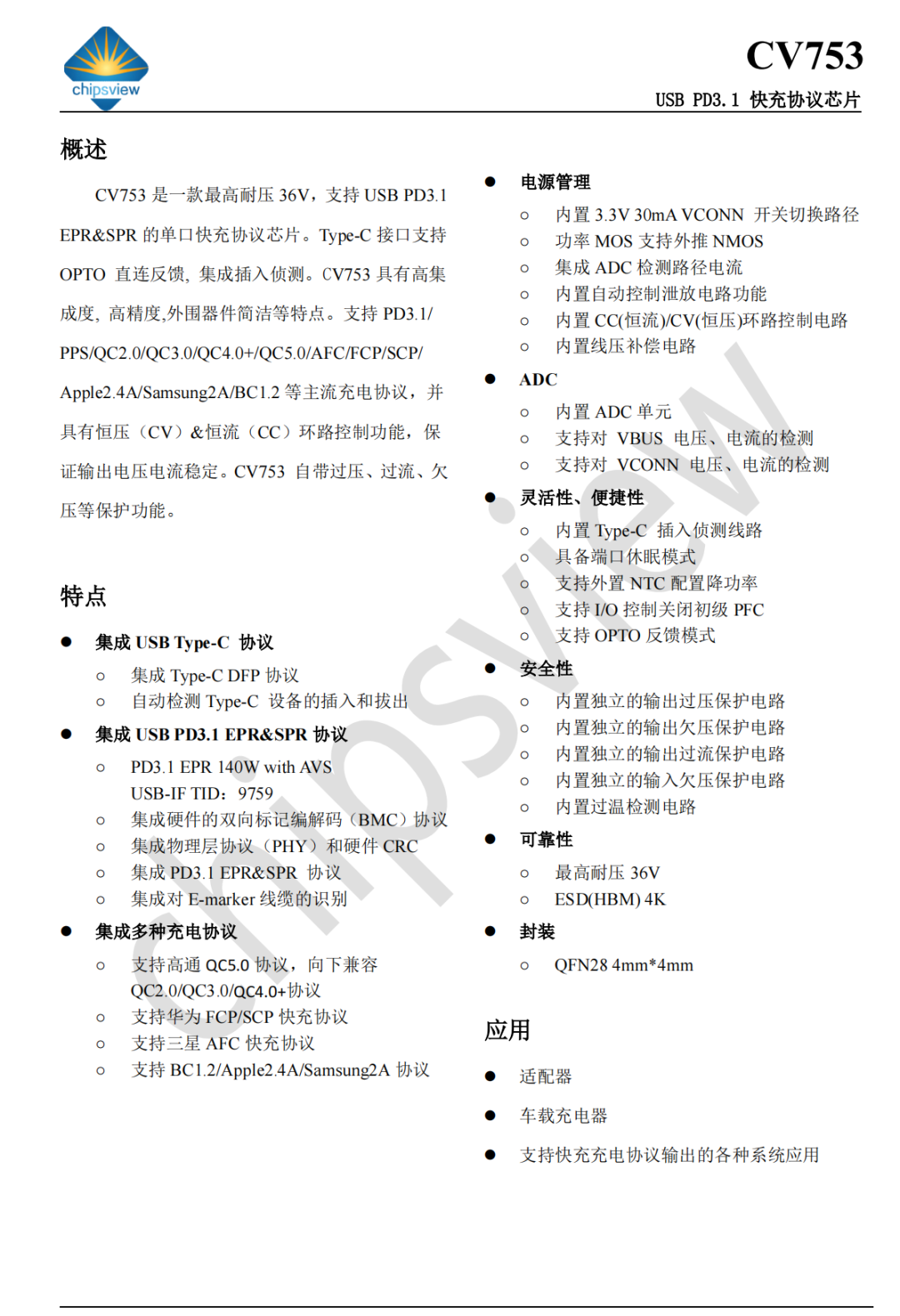

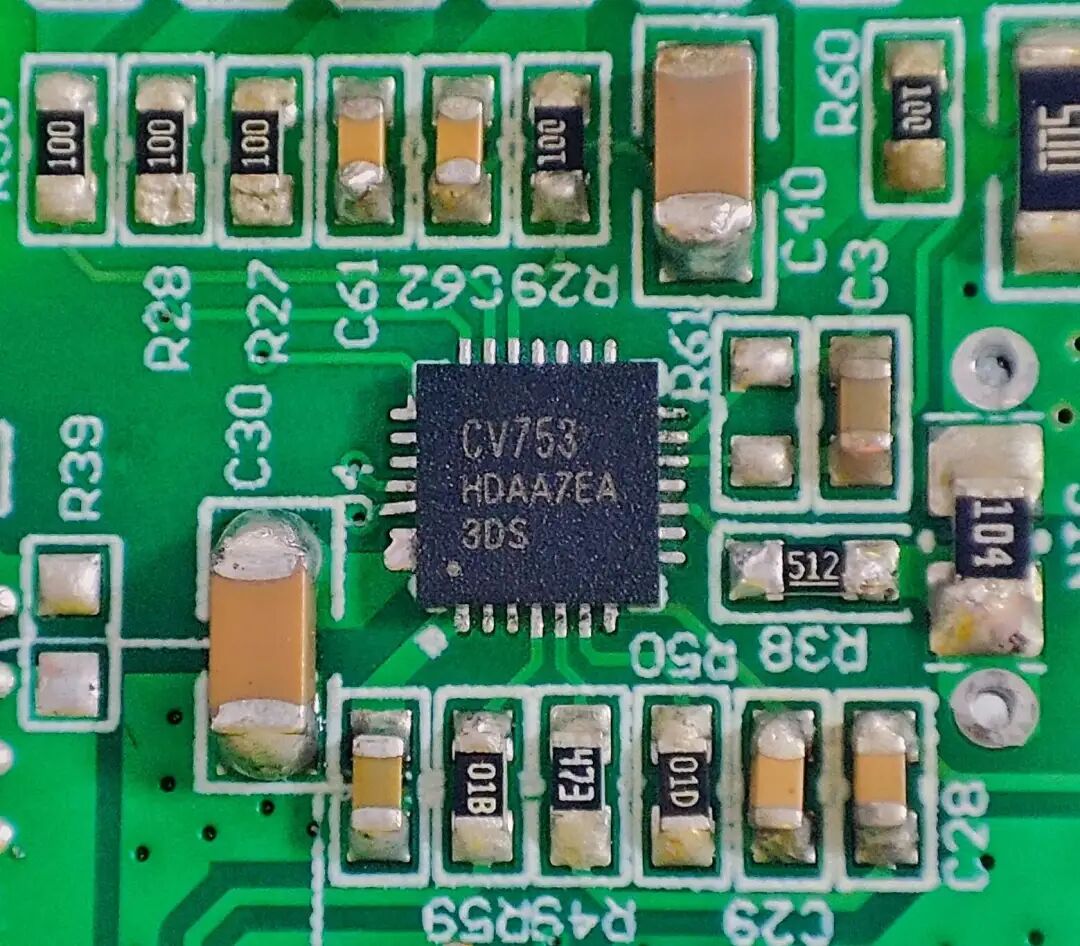

Microstar CV753
CV753 is a product launched by Microstar in 2022 and is currently in mass production for clients. CV753 is a single-port fast charging protocol chip with a maximum withstand voltage of 36V, supporting USB PD3.1 EPR & SPR and mainstream fast charging protocols, while also featuring port sleep, multiple protection functions, and multiple I/O reserved for users to provide an efficient, intelligent, and reliable charging experience.
In addition to integrating the PD3.1 fast charging protocol, CV753 can achieve a maximum charging power of 140W (28V/5A) and supports mainstream fast charging protocols on the market, including Qualcomm QC5.0 and previous protocols, Huawei FCP/SCP protocols, Samsung AFC protocol, as well as BC1.2/Apple 2.4A/Samsung 2A protocols, making it compatible with a wider range of devices. Thanks to the high voltage withstand characteristic of CV753 at 36V VIN, users can directly connect VIN to the IC power supply terminal when designing a 28V/5A system. Moreover, CV753 supports direct driving of NMOS and OPTO direct feedback functions, resulting in a very simple peripheral design.
CV753 supports multiple I/O controls to meet various usage scenarios for customers. For example, during light load, the primary PFC can be turned off through I/O control to improve system standby power consumption and light load efficiency; additionally, it supports NTC detection function, and once it detects that the local temperature is too high, CV753 can enter a power reduction mode, and after the temperature drops, it can automatically return to full power mode.
CV753 adopts a QFN-28 4mm*4mm package, which is very compact and can be used in various charging adapters, car chargers, and various system applications that support fast charging protocol output.
Related Reading:
1、Microstar Technology CV753 Passes PD3.1 EPR 28V/5A Certification

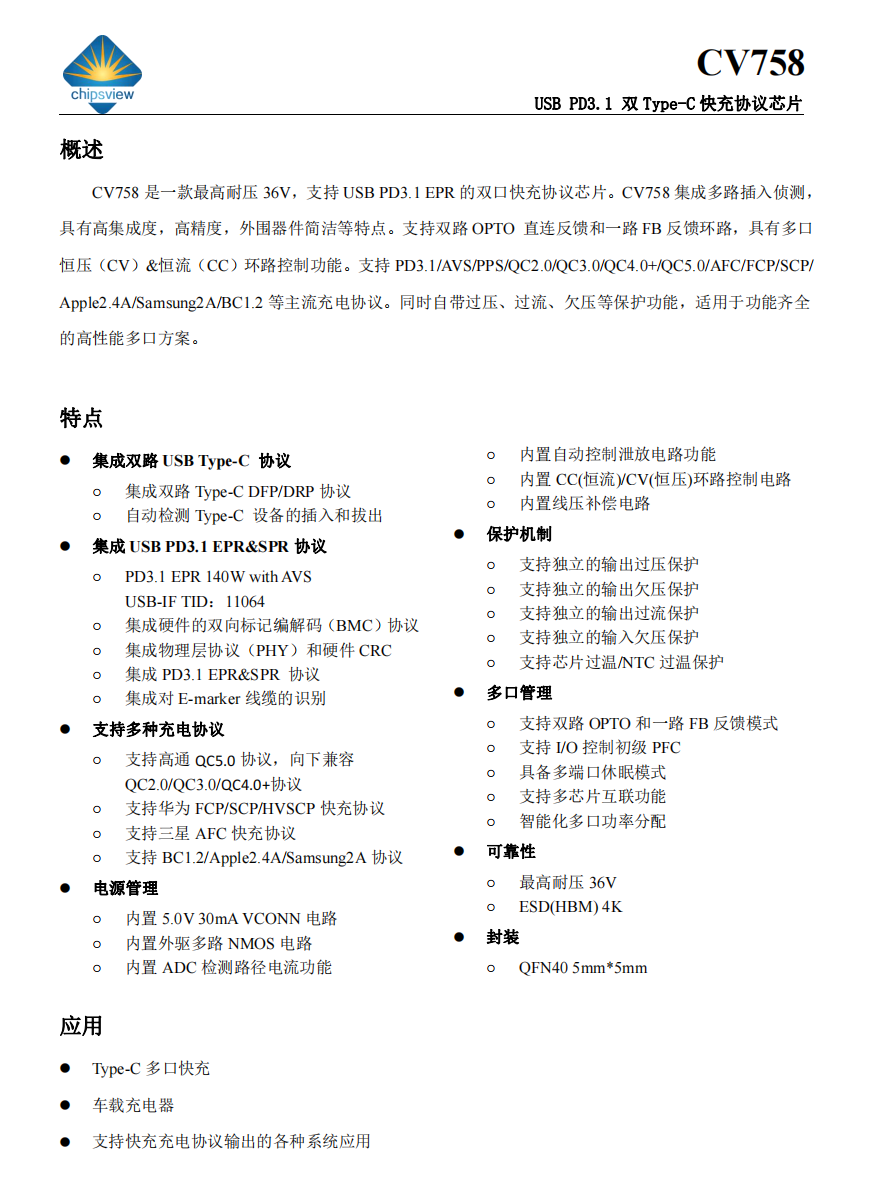

Microstar CV758
CV758 is a dual-port fast charging protocol chip launched by Microstar, supporting USB PD3.1 EPR, with a maximum charging power of 140W, and has recently passed USB-IF PD3.1 certification, certification TID: 11064.
CV758 has a maximum withstand voltage of 36V, integrates multiple insertion detection, can automatically detect the insertion and removal of Type-C devices, supports dual OPTO direct feedback and one FB feedback loop, and has multi-port constant voltage (CV) & constant current (CC) loop control functions.
CV758 supports PD3.1/AVS/PPS/QC2.0/QC3.0/QC4.0+/QC5.0/AFC/FCP/SCP/Apple2.4A/Samsung2A/BC1.2 and other mainstream charging protocols. It also has built-in over-voltage, over-current, under-voltage protection functions, and adopts QFN40 5mm*5mm package, suitable for fully functional high-performance multi-port solutions.
HYASIC Huayuan Zhixin

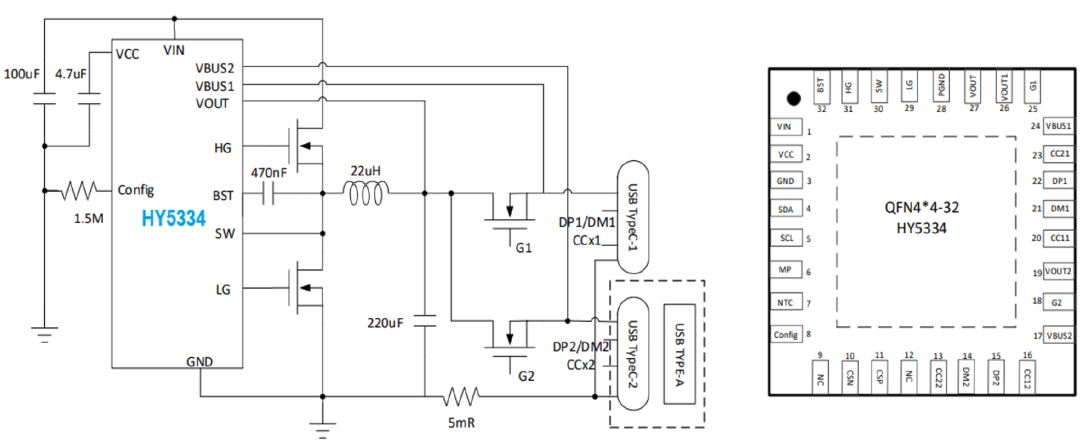

Huayuan HY5334
HY5334 is a product that integrates a synchronous buck converter controller and a protocol controller, supporting both A+C/2C product forms. This product integrates H-Side/L-Side MOSFET drivers, with a maximum power of up to 100W, supporting a maximum output of 21V/5A; it has a programmable switching frequency of 100KHz~500KHz, with a maximum duty cycle of 99%. It also supports an input voltage of 4.8V~35V, with a high voltage withstand of 40V, and a standby power consumption as low as 500uA at 12V input, complying with PD3.2 SPR standards, integrating E-marker detection, and supporting UFCS. Additionally, it supports dual-chip cascading power reduction, over-temperature power reduction, and dynamic adjustment of PDO through I2C communication, reading voltage and current information.

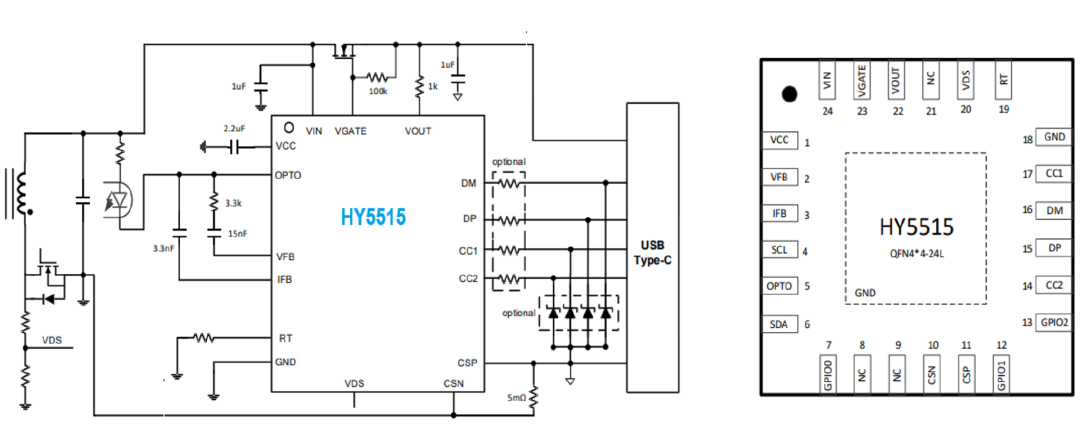

Huayuan HY5515x
HY5515x is a series of MCU protocol products, including models HY5515A, HY5515M, and HY5515E. This series of products is equipped with a 16M 32-bit ARM core, with 32kB Flash and 4kB SRAM, providing sufficient storage space to support the code volume of multi-protocol, multi-port applications; it supports input voltage detection, and when paired with Huayuan ACDC solutions, it can achieve zero-watt standby power consumption.
In terms of characteristics, HY5515E supports 140W (28V/5A) and has obtained PD3.2 EPR certification (TID13767); HY5515M integrates Xiaomi’s proprietary protocol, covering 33W~120W Xiaomi Surge fast charging power; HY5515A supports PD SPR applications of 100W and below (TID 9887). In addition, the HY5515 series products have P2P compatibility, full series support for UFCS, can be upgraded online, and support I2C and serial communication.

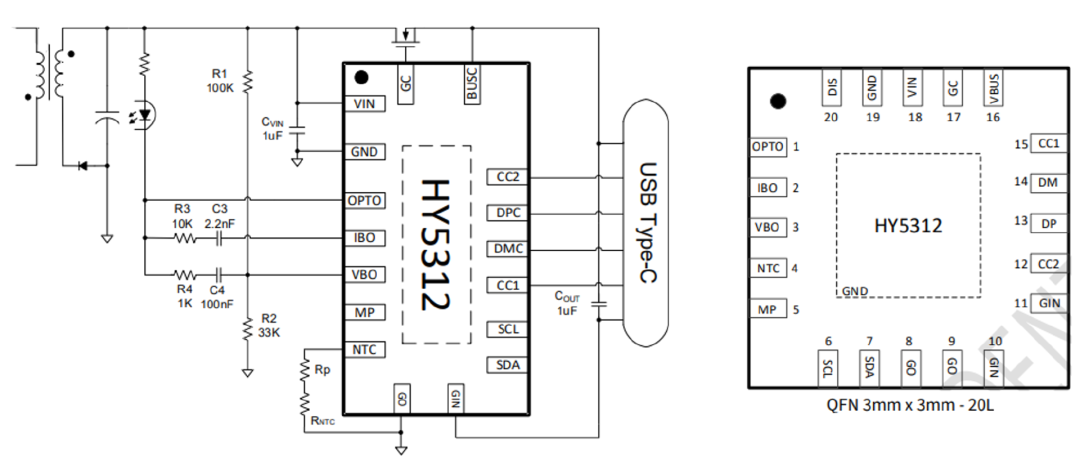

Huayuan HY5312
HY5312 is a cost-effective single C protocol product, supporting 100W power. This product is designed in accordance with PD3.2 standards (TID 13491), supporting E-marker cable identification, and can broadcast up to 100W; it is compatible with various protocols, including UFCS, QC2.0/3.0/3.0+, FCP/SCP, AFC, PE+1.1/2.0, etc. In addition, it integrates an I2C interface, which can be directly controlled by the MCU protocol to dynamically adjust PDO, and integrates a sampling resistor; it also supports dual-chip cascading power reduction, temperature control power reduction, and bus voltage regulation functions.

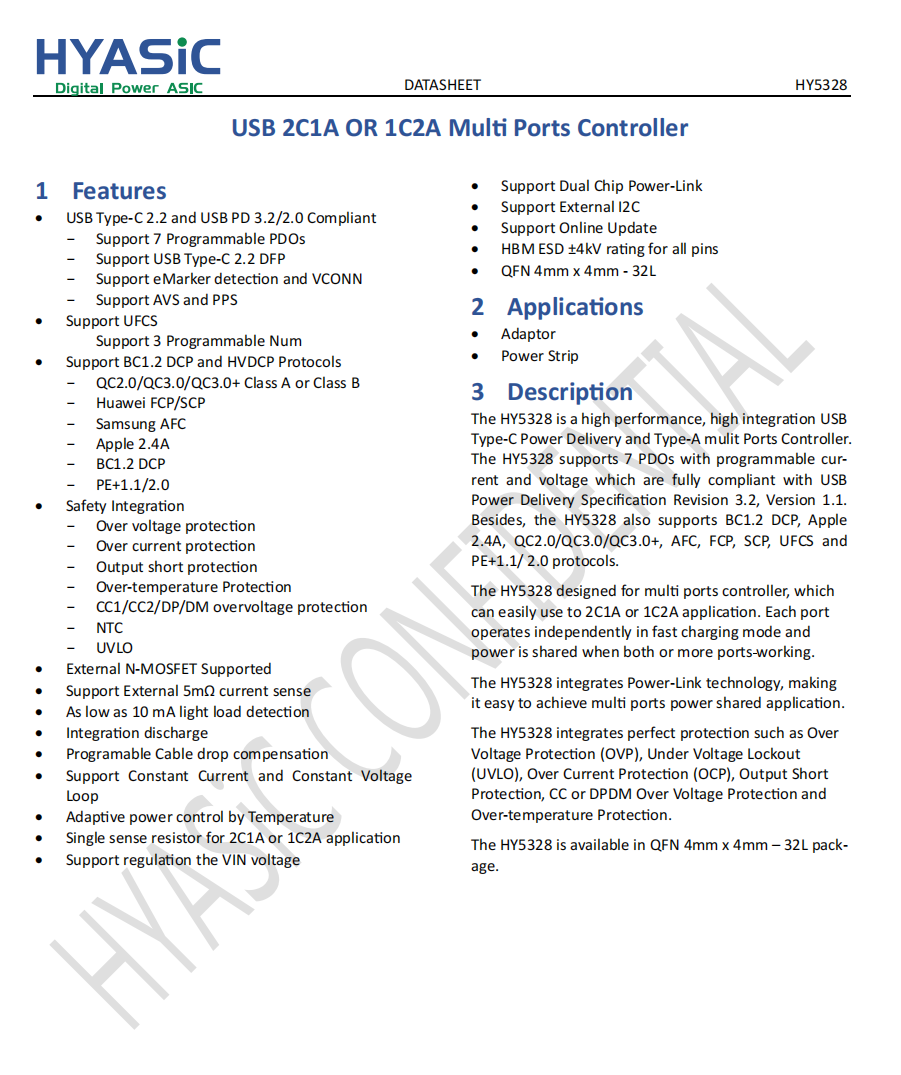

Huayuan HY5328
HY5328 is a digital power ASIC launched by Huayuan Zhixin, designed for USB Type-C and Type-A multi-port controllers, supporting 2C1A or 1C2A applications, compliant with USB PD 3.2/2.0 standards, compatible with various fast charging protocols, integrating CV/CC control and over-voltage, over-current protection functions, and adopting QFN 4mm×4mm-32L package.

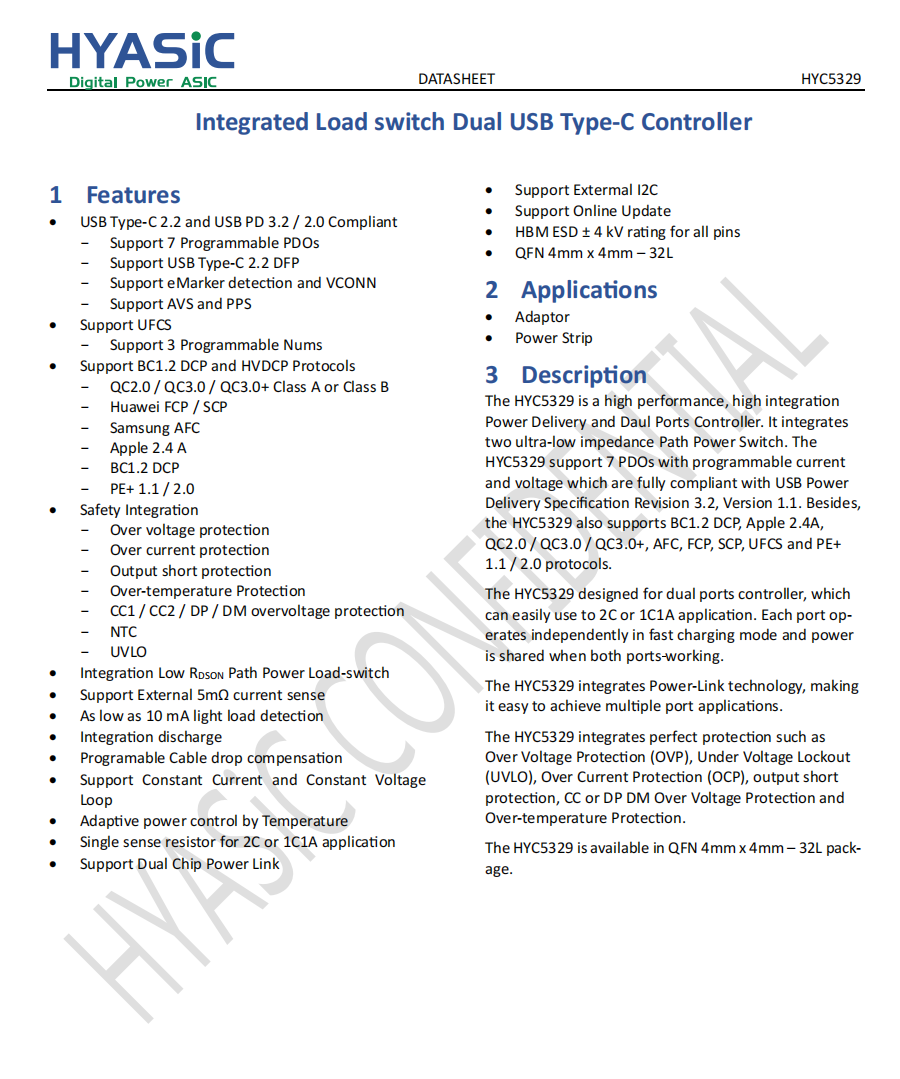

Huayuan HYC5329
HYC5329 is a digital power ASIC from Huayuan Zhixin, designed for dual-port USB Type-C and Type-A controllers, compliant with USB Type-C 2.2 and USB PD 3.2/2.0 standards, supporting various fast charging protocols, suitable for adapters and other devices, configurable for 2C or 1C1A applications, integrating CV/CC control and over-voltage, over-current protection functions, adopting QFN 4mm×4mm-32L package.

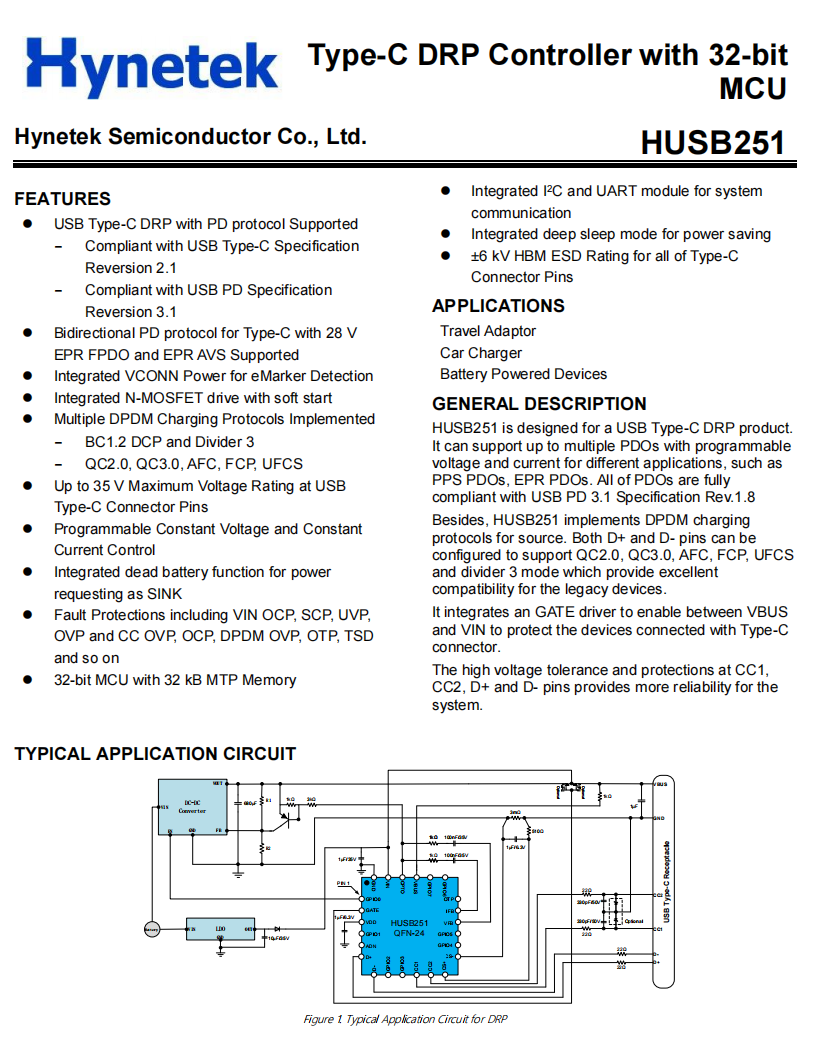

Hynetek HUSB251
Hynetek HUSB251 is a PD protocol chip that supports USB Type-C DRP, supporting PPS PDO and EPR PDO, all PDOs fully comply with USB PD 3.1 Rev.1.8 specifications, supporting 28V EPR FPDO and EPR AVS. HUSB251 supports QC2.0, QC3.0, AFC, FCP, UFCS fast charging modes, with excellent fast charging compatibility. The chip has a built-in NMOS driver, allowing NMOS to be used for power control.
The chip also integrates Vconn power supply for E-Marker chip detection, with a pin withstand voltage of 35V, supporting programmable constant voltage and constant current control, with built-in input over-current protection, short-circuit protection, under-voltage protection, over-voltage protection, CC pin and DPDM pin over-voltage protection, and chip over-temperature protection. HUSB251 integrates a 32-bit RISC-V MCU and 32KB MTP memory, with I2C and UART interfaces.

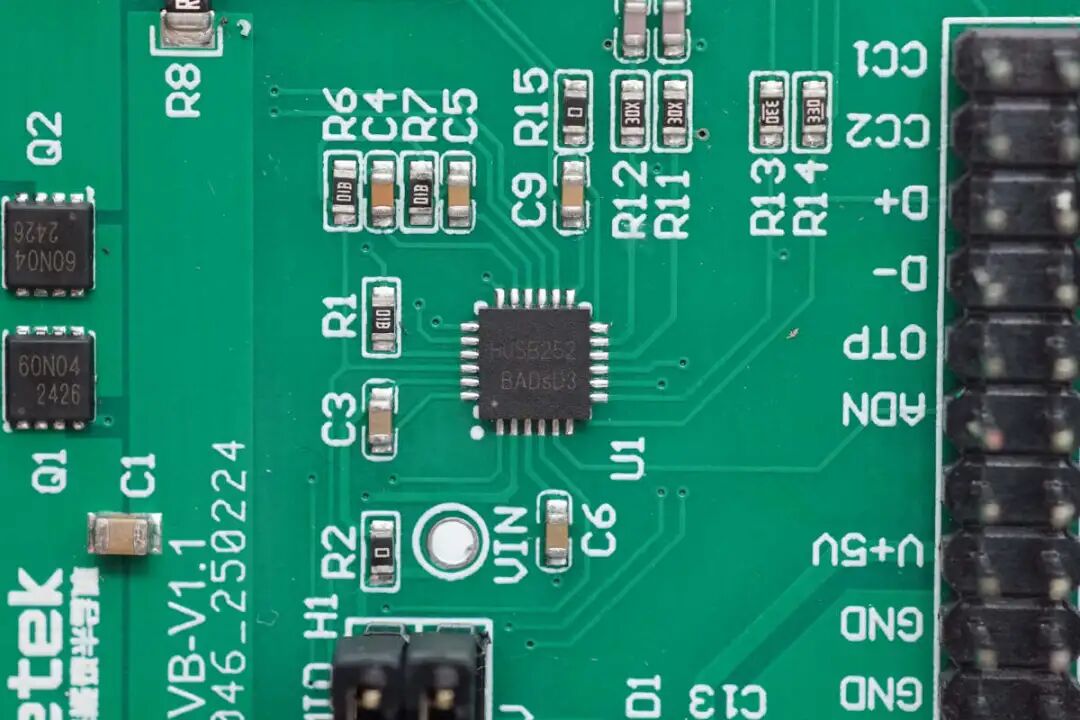

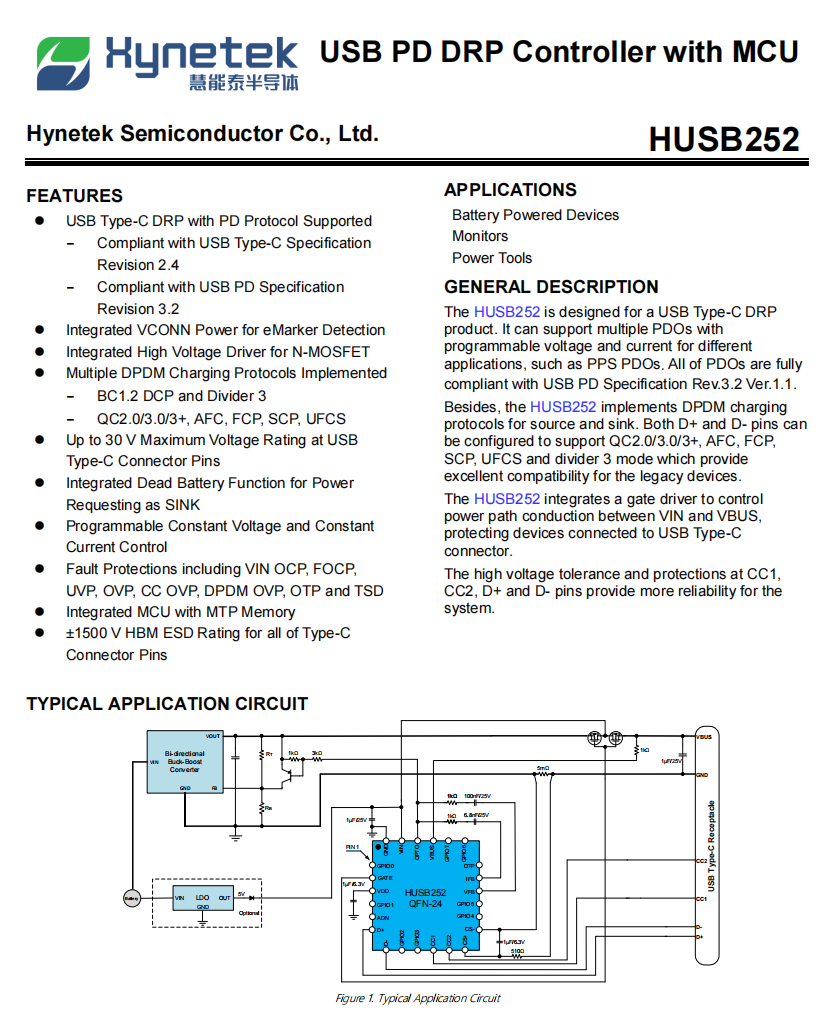

Hynetek HUSB252
HUSB252 is a highly integrated USB Type-C dual-role port (DRP) controller chip, fully compatible with USB Type-C 2.4 specifications and USB PD 3.2 standards. This chip adopts advanced architecture design, with built-in DPDM interface supporting multi-protocol charging, automatically recognizing QC2.0/3.0/3+, AFC, FCP, SCP, UFCS, and Divider 3 fast charging protocols, achieving compatibility with various traditional devices.
This device adopts an intelligent power path management architecture, achieving PD protocol communication through integrated BMC physical layer, with a built-in ADC module for real-time monitoring of key node parameters. The unique control loop compensation design supports opto-isolator feedback interface, combined with external current detection resistors to achieve precise closed-loop control. Its dual CC pin detection circuit supports automatic role switching, and the VCONN power supply function can activate the cable eMarker chip.
HUSB252 integrates a high-voltage N-MOSFET driver circuit supporting a maximum working voltage of 30V, equipped with programmable constant voltage and constant current control functions, allowing flexible configuration through built-in MCU and MTP memory, supporting multiple PDO parameter settings. The chip has comprehensive protection mechanisms, including input over-voltage, multiple over-current protection, temperature protection, and bus discharge functions, with a specially designed dead battery mode to request power from the receiving end without auxiliary power. ±1500V HBM ESD protection level ensures interface reliability, adopting QFN4x4-24L package, mainly applied in intelligent power management systems for portable devices, displays, and power tools.
HUSB252’s configured I²C interface supports external communication expansion, and GPIO ports have multiple reuse functions. It supports building efficient power paths through external N-MOSFETs, combined with internal 3.5V LDO and charge pump driver circuits, maintaining stable operation within a junction temperature range of -40℃ to 125℃, providing a complete end-to-end solution for Type-C power supply systems.

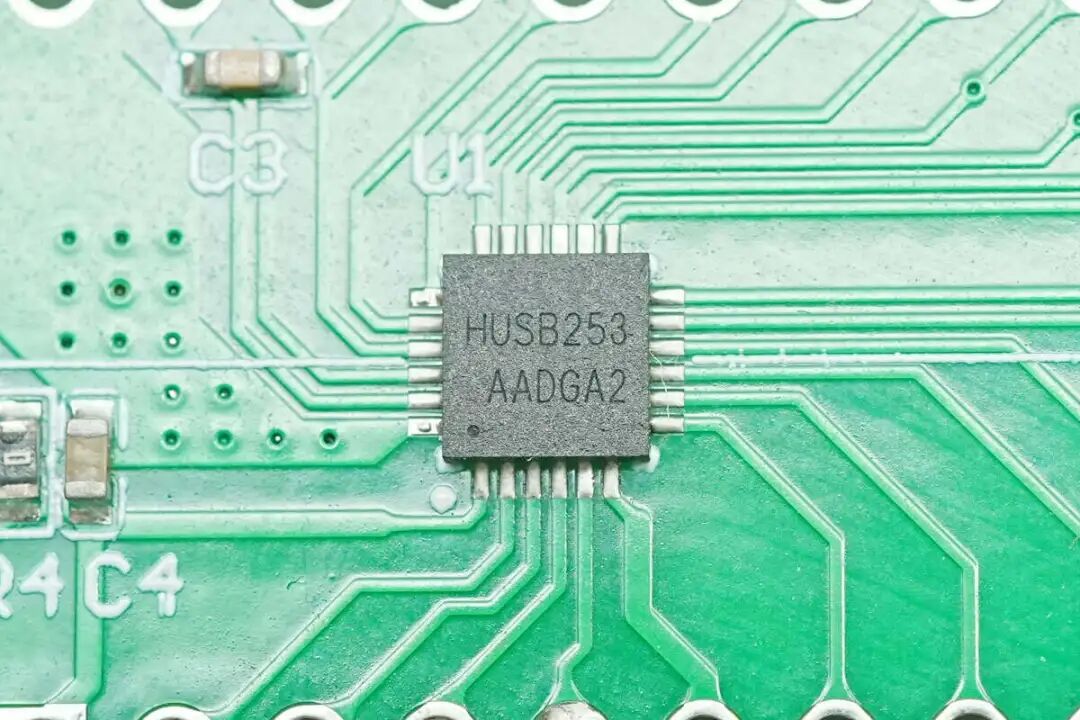

Hynetek HUSB253
HUSB253 is a highly integrated power transmission controller designed for USB Type-C dual-direction power supply (DRP) and 48V EPR applications. As a PD control chip compliant with USB PD 3.2 specifications, this chip can seamlessly switch between charging and power supply, with a maximum voltage rating of 54V on the VIN and VBUS pins, supporting input and output voltages of up to 48V, maximizing the charging and discharging needs of next-generation high-power devices.
In terms of protocol support, HUSB253 has a complete USB PD protocol engine built-in, capable of managing up to 7 programmable voltage outputs (PDOs), and supports the latest EPR mode, achieving efficient EPR communication through message chunking. In addition, its programmable DPDM PHY module can be compatible with various proprietary fast charging protocols, including QC 2.0/3.0/3+, AFC, FCP, SCP, UFCS, and Divider 3 modes, providing seamless interoperability solutions for various traditional and emerging charging standards.
HUSB253 integrates various hardware protection functions, including over-current protection (OCP), over-voltage protection (OVP), over-temperature protection (OTP), and thermal shutdown (TSD). In addition, the chip has a built-in soft-start N-MOSFET driver, allowing smooth control of the power path conduction; the built-in 11-bit resolution ADC can monitor voltage and current status in real-time, combined with the built-in dead battery function, ensuring that the device can still request power under low battery conditions.
Hynetek HUSB280
HUSB280 is a highly integrated USB Type-C dual-role port (DRP) controller chip, fully compatible with USB Type-C 2.4 standards and USB PD 3.2 protocols. This chip is equipped with a 32-bit MCU architecture, with 32KB programmable storage unit, supporting configurable PDO parameter settings, including PPS and EPR extended power range protocols, while integrating BC1.2 DCP, QC2.0/3.0/3+, AFC, FCP, SCP, UFCS, and other mainstream charging protocols, achieving a fully compatible fast charging solution.
This chip integrates two 30V withstand voltage, series conduction resistance of 12mΩ N-MOSFET designs, effectively reducing system BOM costs, supporting VCONN power supply and eMarker cable detection functions. The chip has a programmable CV/CC control loop, supporting power requests in dead battery mode, and integrates multiple protection mechanisms, including input over-voltage, over-current, under-voltage, CC line over-voltage, DPDM over-voltage, and temperature protection, suitable for displays, power tools, and other wide voltage input scenarios.
HUSB280 adopts QFN5x5-37L package, with a working temperature range covering -40℃ to 125℃, integrating a 1.5V LDO voltage regulator and I²C/UART communication module, supporting firmware-level function customization, internally integrating two 30V withstand voltage, series conduction resistance of 12mΩ conduction switch tubes for VBUS, supporting dynamic voltage adjustment and active discharge functions through the VBUS pin, combined with built-in ADC for NTC temperature monitoring and precise voltage sampling.

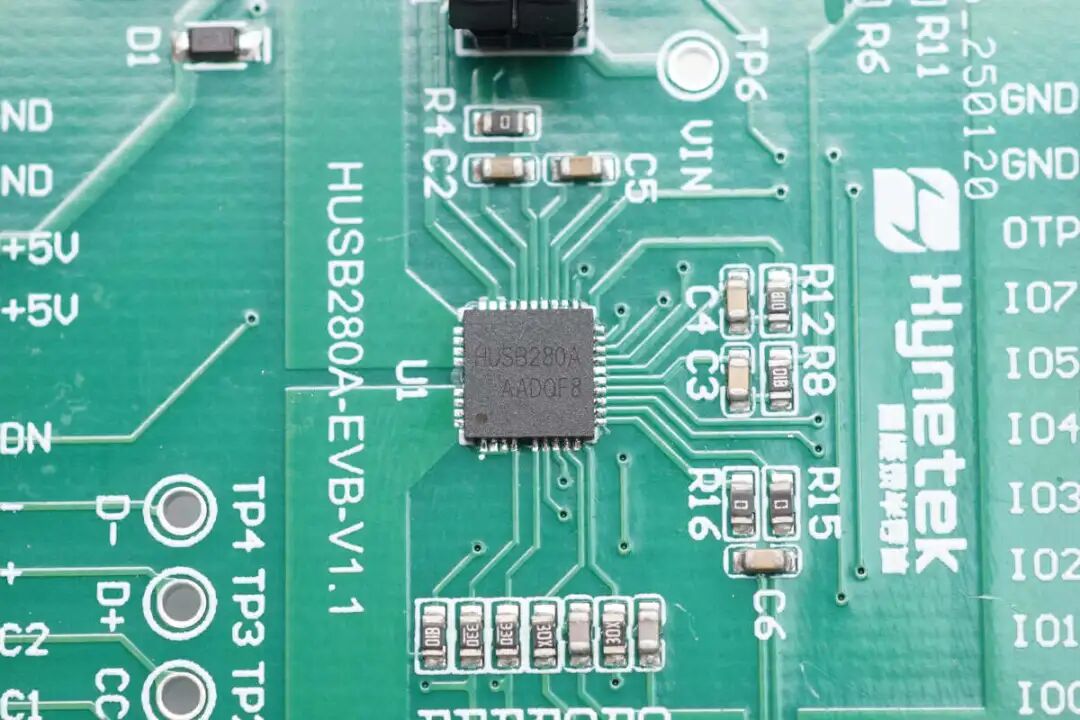

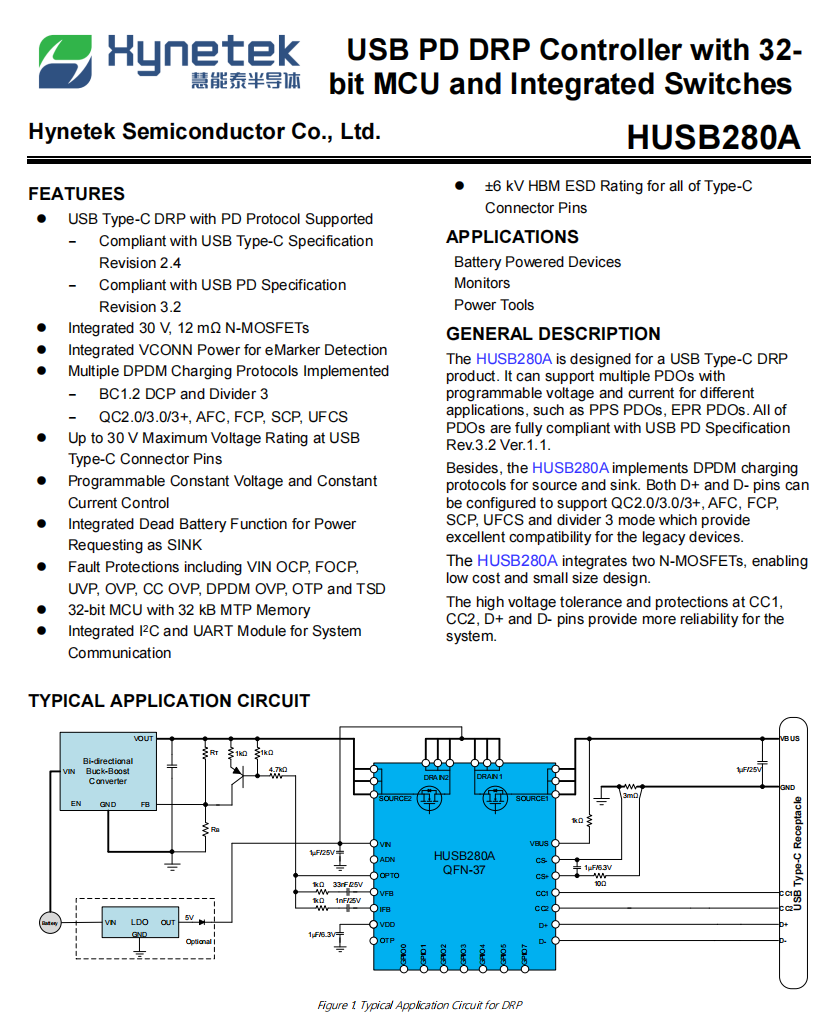

Hynetek HUSB280A
HUSB280A is a highly integrated USB Type-C dual-role port (DRP) controller chip, fully compatible with USB Type-C 2.4 specifications and USB PD 3.2 protocols. This chip integrates a 32-bit MCU core, equipped with a 32KB programmable storage unit, supporting configurable PDO parameter settings, including PPS and EPR extended power range protocols, while integrating BC1.2 DCP, QC2.0/3.0/3+, AFC, FCP, SCP, UFCS, and other mainstream charging protocols, achieving a fully compatible fast charging solution.
This chip integrates two 30V withstand voltage, series conduction resistance of 12mΩ N-MOSFET designs, effectively reducing system BOM costs, supporting VCONN power supply and eMarker cable detection functions. The chip has a programmable CV/CC control loop, supporting power requests in dead battery mode, and integrates multiple protection mechanisms, including input over-voltage, over-current, under-voltage, CC line over-voltage, DPDM over-voltage, and temperature protection, suitable for displays, power tools, and other wide voltage input scenarios.
HUSB280A adopts QFN5x5-37L package, with a working temperature range covering -40℃ to 125℃, integrating a 1.5V LDO voltage regulator and I²C/UART communication module, supporting firmware-level function customization, internally integrating two 30V withstand voltage, series conduction resistance of 12mΩ conduction switch tubes for VBUS, supporting dynamic voltage adjustment and active discharge functions through the VBUS pin, combined with built-in ADC for NTC temperature monitoring and precise voltage sampling.

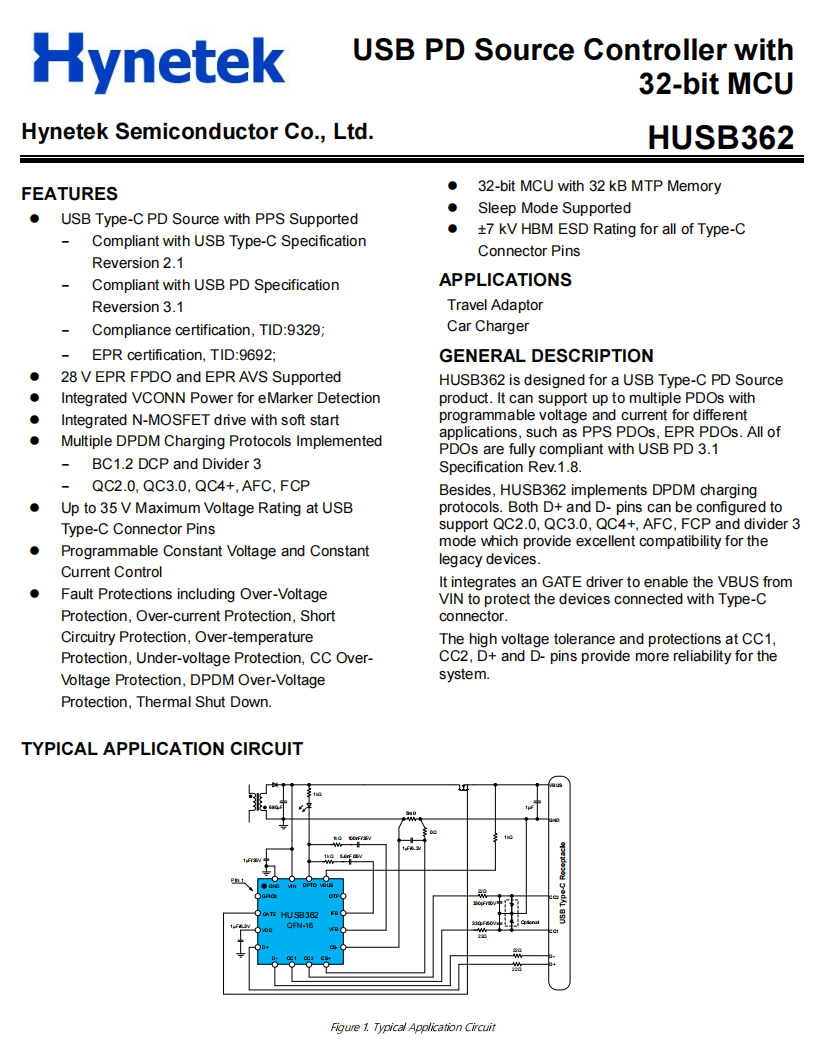

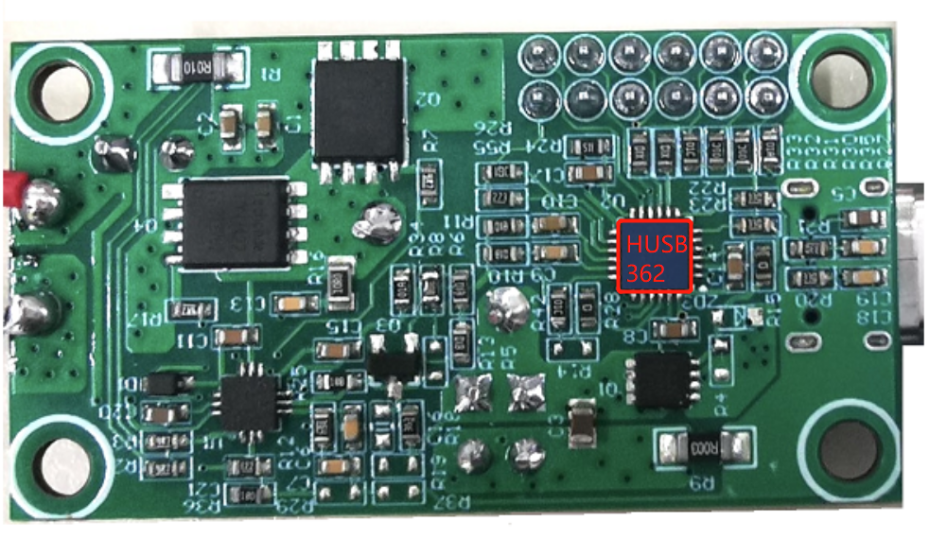

Hynetek HUSB362
HUSB362 is a high-performance PD protocol chip that supports PD3.1 EPR and integrates an MCU, supporting multiple programmable voltage and current PDOs, such as PPS PDO, EPR PDO, all PDOs fully comply with USB PD 3.1 V1.7 specifications. It supports EPR mode 140W (28V5A), PPS supports from 18W to 100W, and AVS supports from 100W to 140W. Currently, HUSB362 has passed the USB-IF association’s PD3.1 compliance test, TID 9329.
HUSB362 also implements a programmable DPDM PHY, with D+ and D- pins configurable to support QC2.0, QC3.0, AFC, FCP, and Divider 3 modes, providing excellent compatibility for traditional devices.
HUSB362 integrates an N-MOS driver, which can control whether VIN and VBUS are conductive, thus protecting devices connected to the Type-C connector. In addition, its CC1, CC2, D+, and D- pins have high voltage tolerance and protection, providing more reliability for the system. Furthermore, for LPS (limited power supply), HUSB362 has also made sufficient protection designs.
HUSB362 integrates high-quality constant voltage control loop (CV) and constant current control loop (CC), while also integrating FB voltage regulation mode, applicable to both ACDC and DCDC. HUSB362 also integrates a dual-loop design that allows users to achieve application design with minimal peripheral components, improving space utilization and design difficulty while reducing BOM costs.
Related Reading:
1、140W (28V5A) + Multi-port Fast Charging! Hynetek’s New PD3.1 EPR Protocol Chip HUSB362 Launched

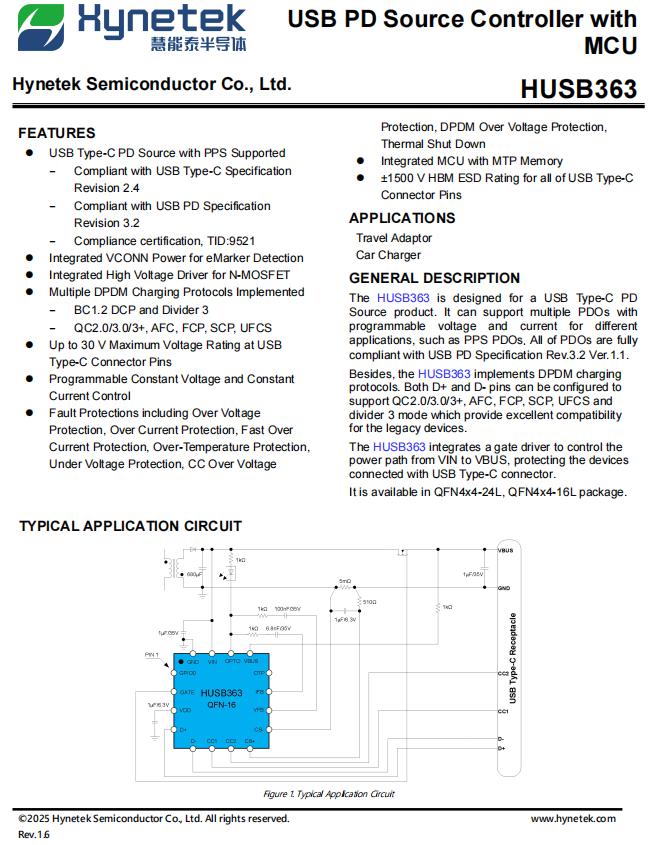

Hynetek HUSB363
HUSB363 supports multiple programmable voltage and current PDOs to meet different application needs, including support for PPS PDO. All PDOs fully comply with USB PD 3.2. In addition, HUSB363 also implements the DPDM charging protocol. The D+ and D- pins can be configured to support QC2.0, QC3.0, AFC, FCP, and Divider 3 modes, providing excellent compatibility for traditional devices.
This chip also integrates a GATE driver, which can enable voltage from VIN to VBUS, protecting devices connected to the Type-C connector. The high voltage tolerance and protection functions of the CC1, CC2, D+, and D- pins provide higher reliability for the system.
HUSB363 detailed information.
Related Reading:
1、Hynetek Releases DPS Reference Solution Based on HUSB363

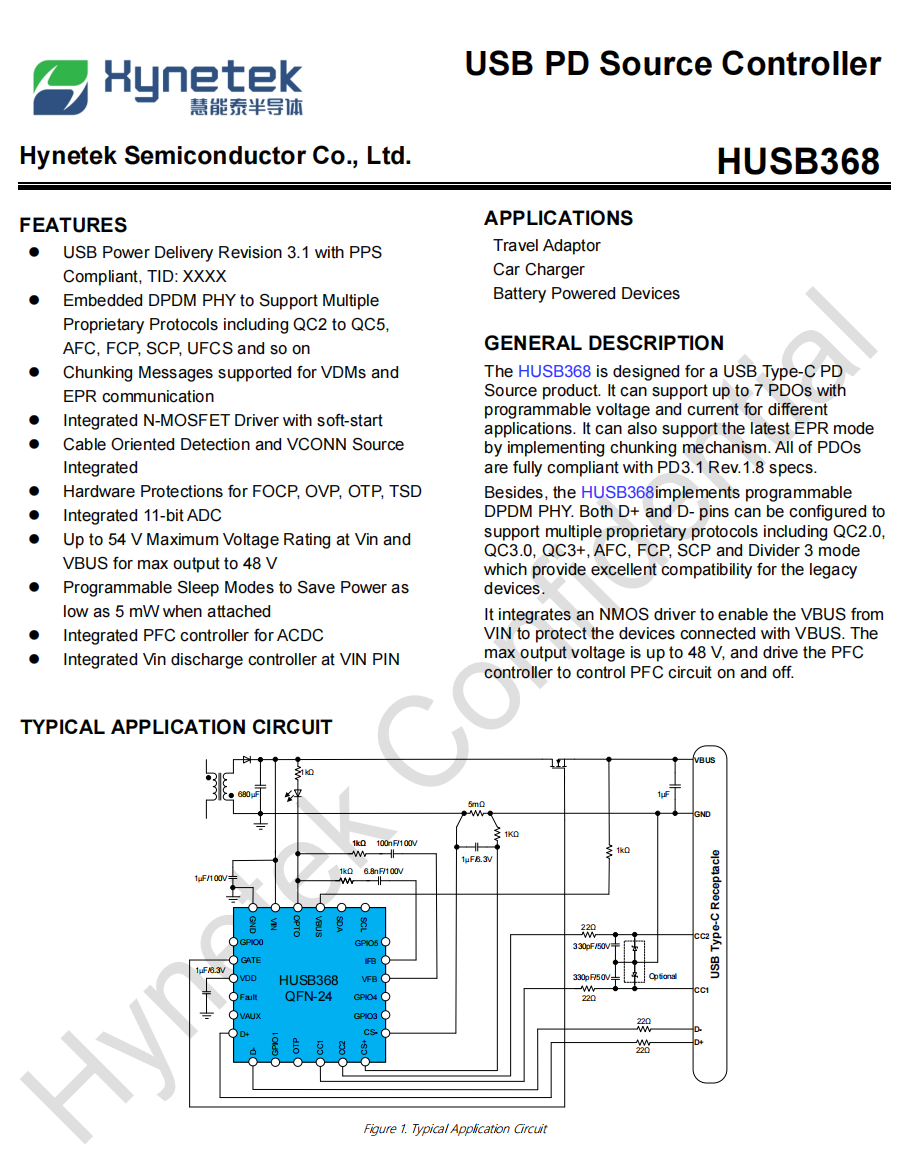

Hynetek HUSB368
HUSB368 is a high-performance controller designed for USB Type-C PD source applications, fully supporting USB PD3.1 (including PPS) and EPR modes, achieving a maximum output voltage of 48V with a single chip. It not only has up to 7 programmable PDOs but also integrates NMOS drivers, PFC controllers, VCONN power supply, and multiple hardware protection functions, significantly reducing the complexity of peripheral design while ensuring high efficiency and compatibility. Its power consumption optimization performance is also excellent, with the lowest standby power consumption in connection state dropping to 5mW, adapting to current energy-saving and miniaturization needs.
At the same time, this chip has a built-in programmable DPDM PHY, supporting various mainstream fast charging protocols such as QC2.0~QC5, AFC, FCP, SCP, UFCS, providing strong backward compatibility for adapters, car chargers, and portable devices. This high level of integration and protocol compatibility advantage allows HUSB368 to help manufacturers achieve faster product mass production in the rapidly evolving fast charging market, meeting fast charging needs across multiple scenarios and devices.
INJOINIC YJ Technology

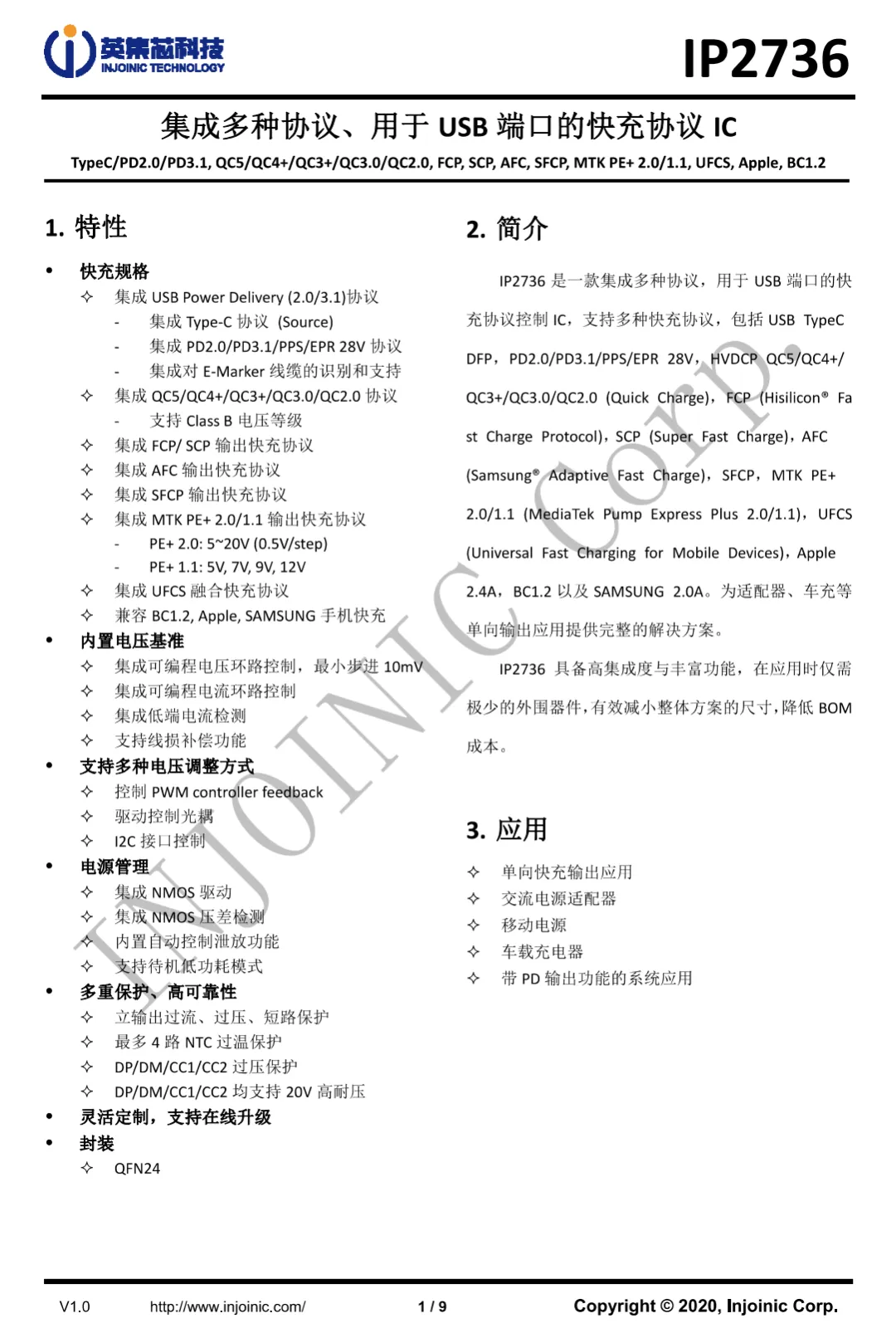

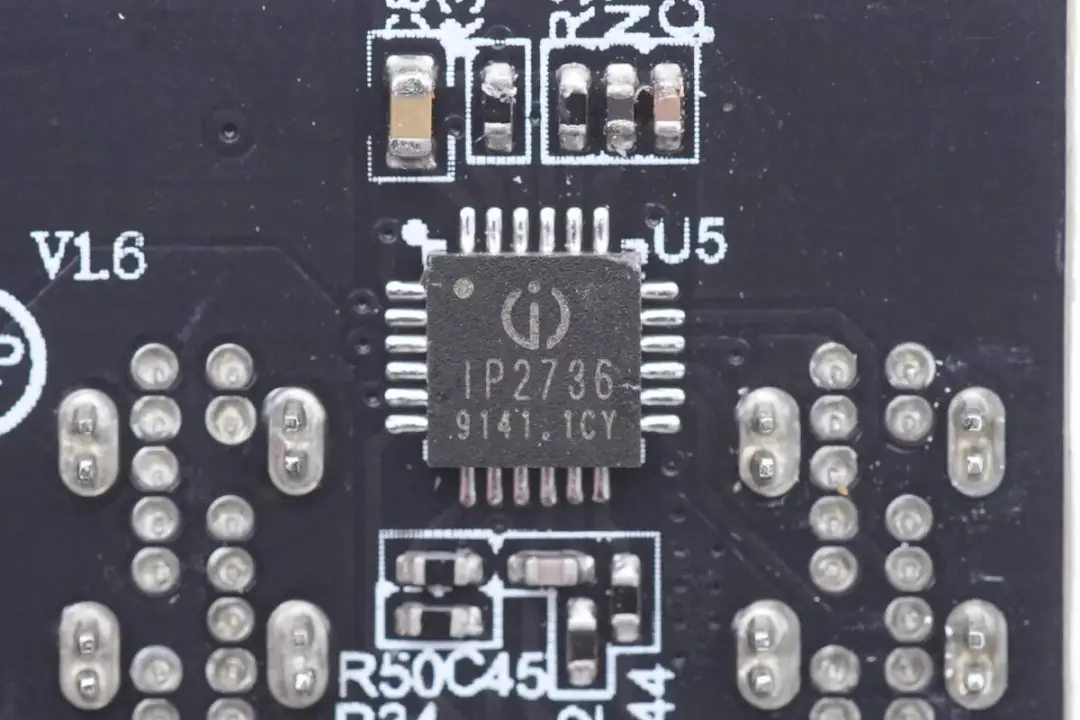

YJ Technology IP2736
YJ Technology IP2736 protocol chip integrates a voltage reference, programmable voltage/current loop control, and low-side current detection, supporting line loss compensation. It supports optical feedback for power adapter applications, allowing DC-DC output voltage changes controlled via I2C and FB, suitable for car chargers, energy storage power supplies, chargers, power banks, power tools, and other applications.
Thanks to the support of various feedback forms, IP2736 can be paired with QR, ACF, LLC, and other circuit architectures for PD fast charging, and can also be paired with boost and buck circuits for high-power fast charging car chargers and power banks.
Application Cases:
1、Disassembly Report: Baseus 140W 2C1A GaN Charger
2、Disassembly Report: Avalon Nano 3 140W Power Adapter
3、Disassembly Report: Momax 140W 2C1A GaN Charger
4、Disassembly Report: Jin Hong Tai 140W 2C1A Three-port GaN Charger
5、Disassembly Report: Baseus 160W 2C1A GaN Charger
6、Disassembly Report: Ugreen 2200W Star Mobile Energy Storage Power GS2200
7、Disassembly Report: Dione 150W Universal GaN Charger PA0228
8、Disassembly Report: Kovo 140W 1A1C GaN Charger
9、Disassembly Report: Kovo 140W Dual USB-C GaN Charger
10、Disassembly Report: Ugreen 140W 2C1A GaN Charger

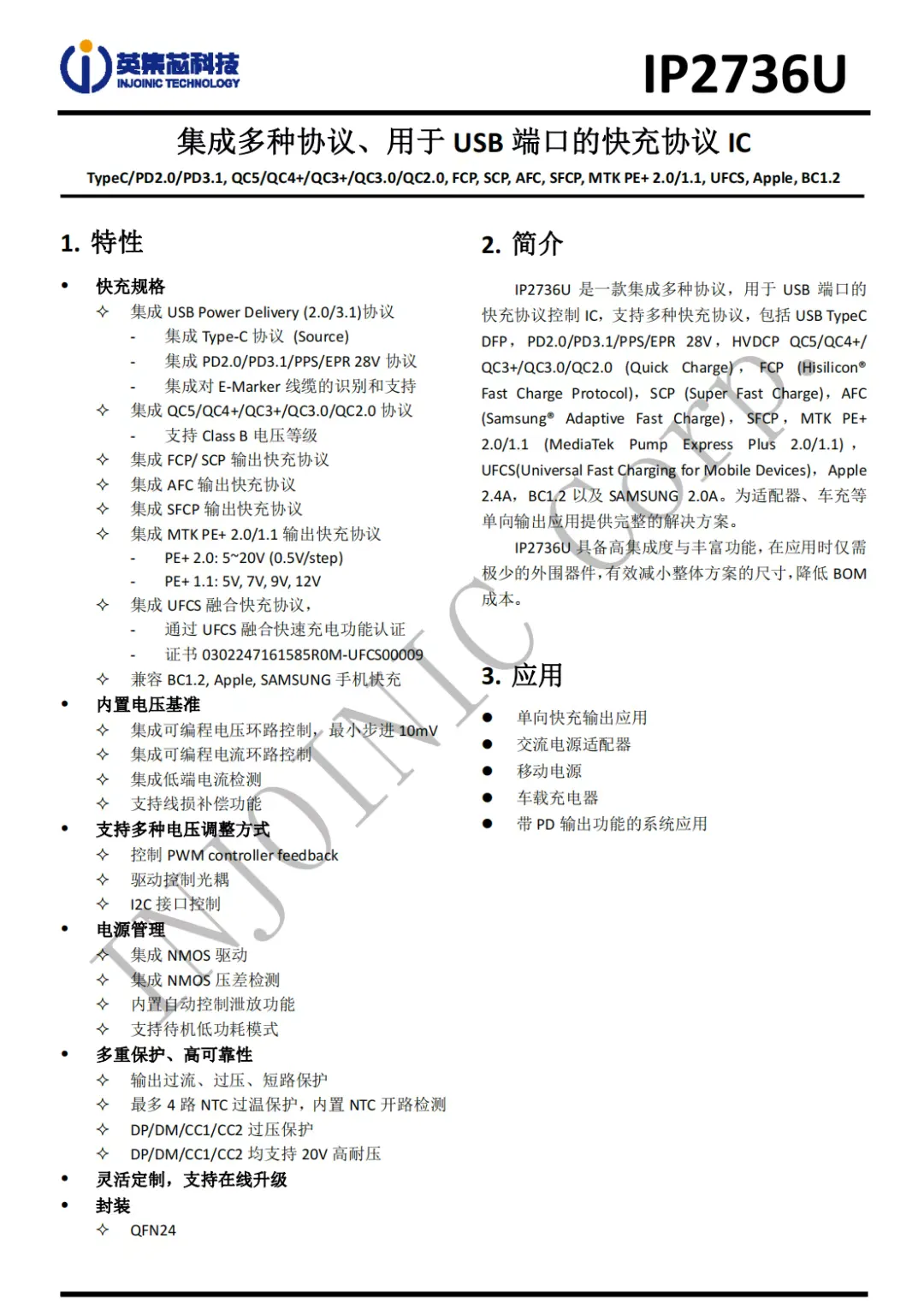

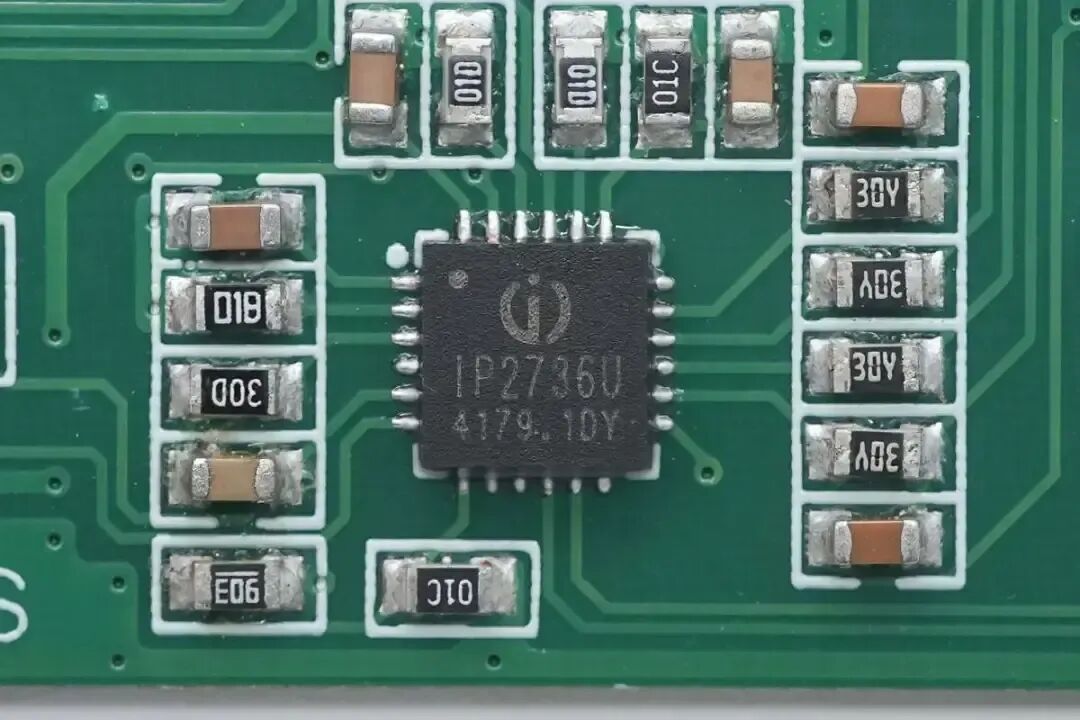

YJ Technology IP2736U
YJ Technology IP2736U is a protocol chip that integrates multiple protocols for fast charging control IC for USB ports. IP2736U supports various fast charging protocols including USB TypeC DFP, PD2.0/PD3.1/PPS/EPR 28V, HVDCP QC5/4+/3+/3.0/2.0, FCP, SCP, AFC, SFCP, MTK PE+2.0/1.1, UFCS, Apple 2.4A, BC1.2, and SAMSUNG 2.0A, providing a complete solution for adapters, car chargers, and other unidirectional output applications.
YJ Technology IP2736U has high integration and rich functions, requiring very few peripheral components during application, effectively reducing the overall solution size and lowering BOM costs.
Application Cases:
1、PowerPi D140C Fast Charging Solution Analysis

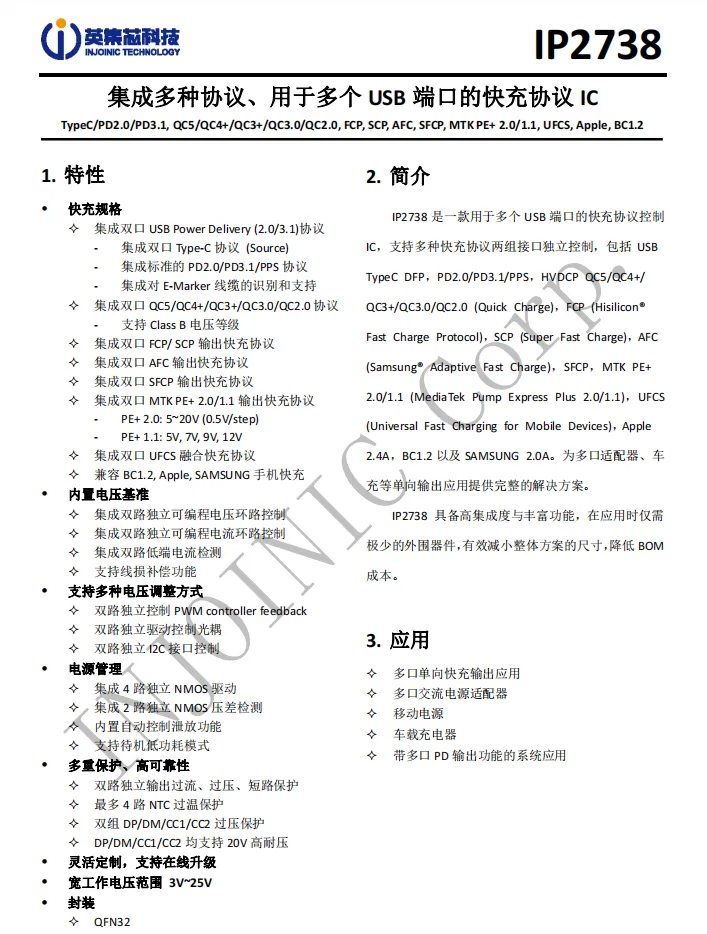

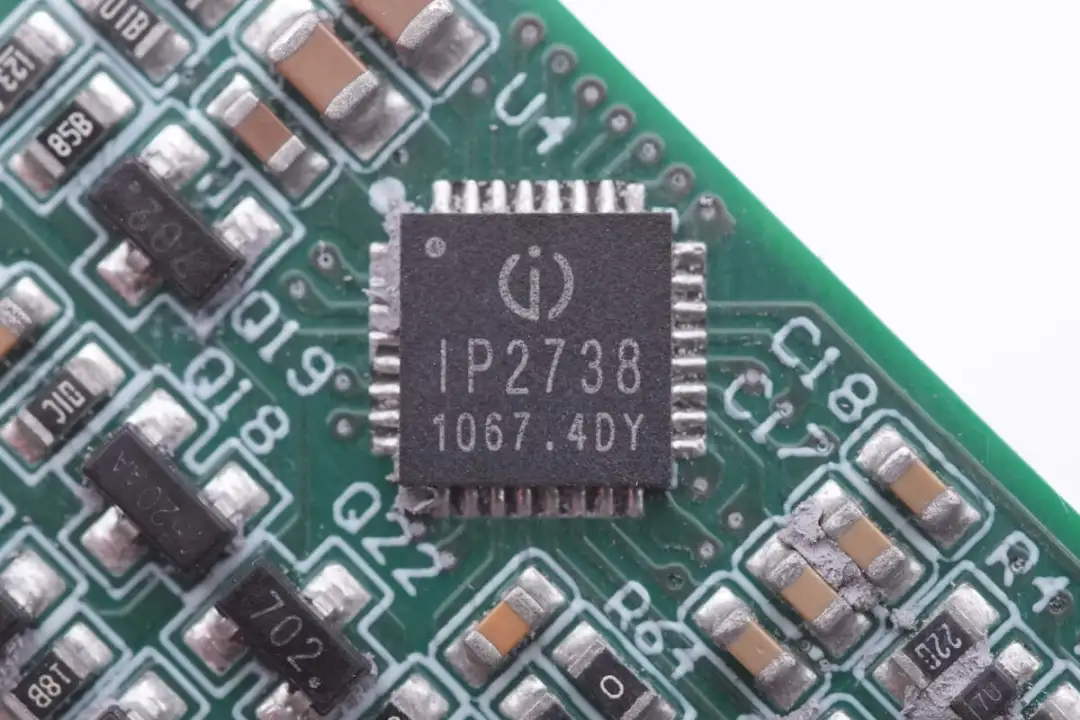

YJ Technology IP2738
YJ Technology IP2738 is a dual-port fast charging protocol chip, supporting dual-port 18-140W fast charging applications, with independent feedback control, and independent USB PD control, equivalent to integrating two IP2736 chips into one chip, with the same fast charging specifications as IP2736. It supports USB PD3.1 28V EPR level and rich and comprehensive fast charging protocols such as PD3.0/PPS, with excellent compatibility.
YJ Technology IP2738 detailed information.
Application Cases:
1、Disassembly Report: Aohi MAGCUBE 140W 2C1A GaN Charger
2、Disassembly Report: L Lab Ailanbo 140W 2C1A GaN Charger
3、Disassembly Report: Ruijiada 140W Three USB-C Port GaN Charger
4、Disassembly Report: Bull 140W 3C1A GaN Fast Charging Socket
5、Disassembly Report: Dione 150W Universal GaN Charger PA0228
6、Disassembly Report: Lifeme Meilan 140W 2C1A GaN Charger

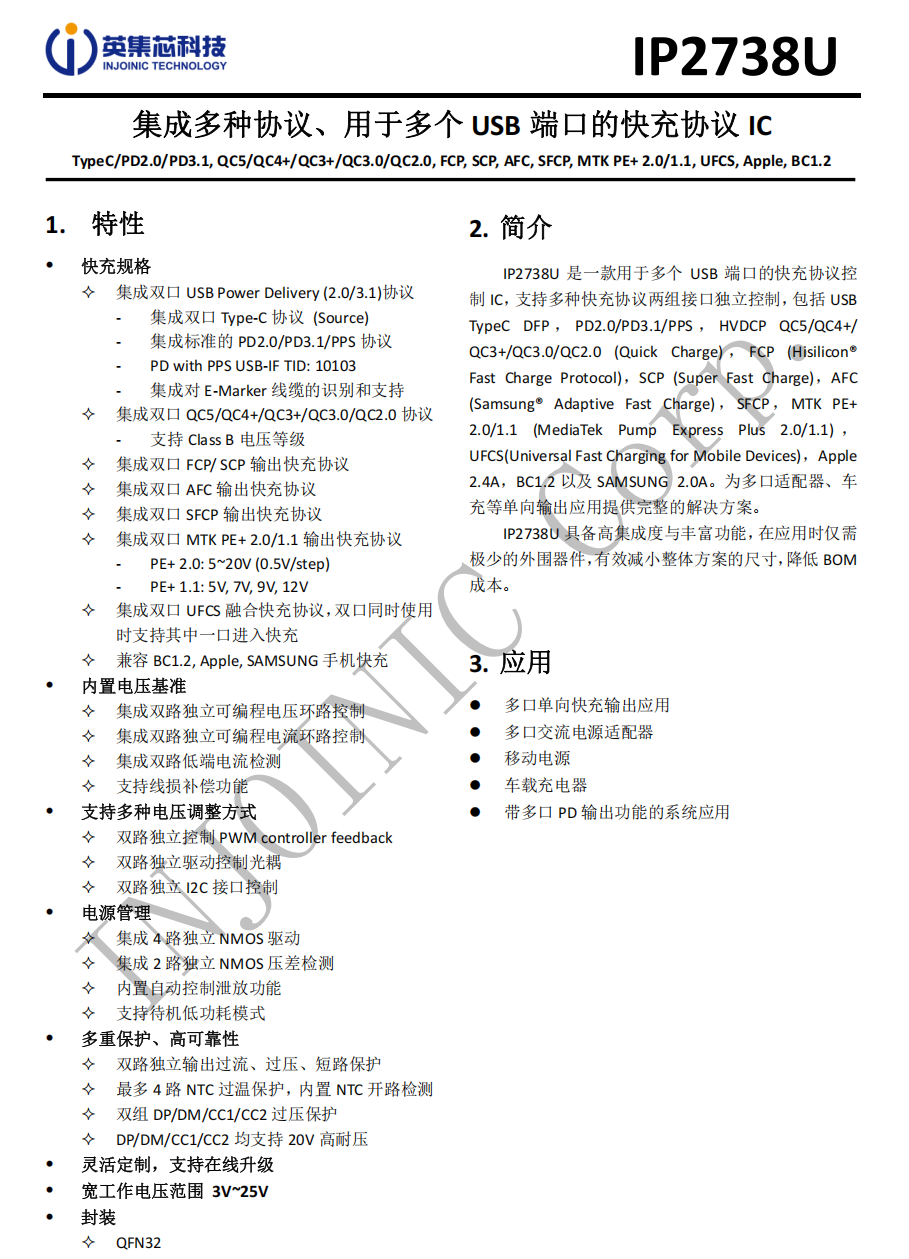

YJ Technology IP2738U
YJ Technology IP2738U is a protocol chip that supports multiple USB interfaces, suitable for dual-port 18-140W fast charging applications, with independent feedback control and independent USB PD control, equivalent to integrating two IP2736 chips into one chip, with the same fast charging specifications as IP2736. It supports USB PD3.1 28V EPR level, supports UFCS fusion fast charging, and supports rich and comprehensive fast charging protocols such as PD3.0/PPS, with excellent compatibility.
YJ Technology IP2738U has four independent NMOS drivers built-in, which can be used for multiple interface output control, controlling multiple VBUS switch tubes for output port switching and dual power parallel control, and supports dual independent over-current, over-voltage, and short-circuit protection, ensuring safe use.
Application Cases:
1、Disassembly Report: Bull 140W 3C1A Mountain Series GaN Fast Charging Socket
2、Disassembly Report: Aohi 140W 2C1A GaN Charger (Youth Version)
3、Disassembly Report: Belkin 200W Four USB-C Port GaN Desktop Charger
4、Disassembly Report: RICOMM 370W GaN Desktop Charging Station

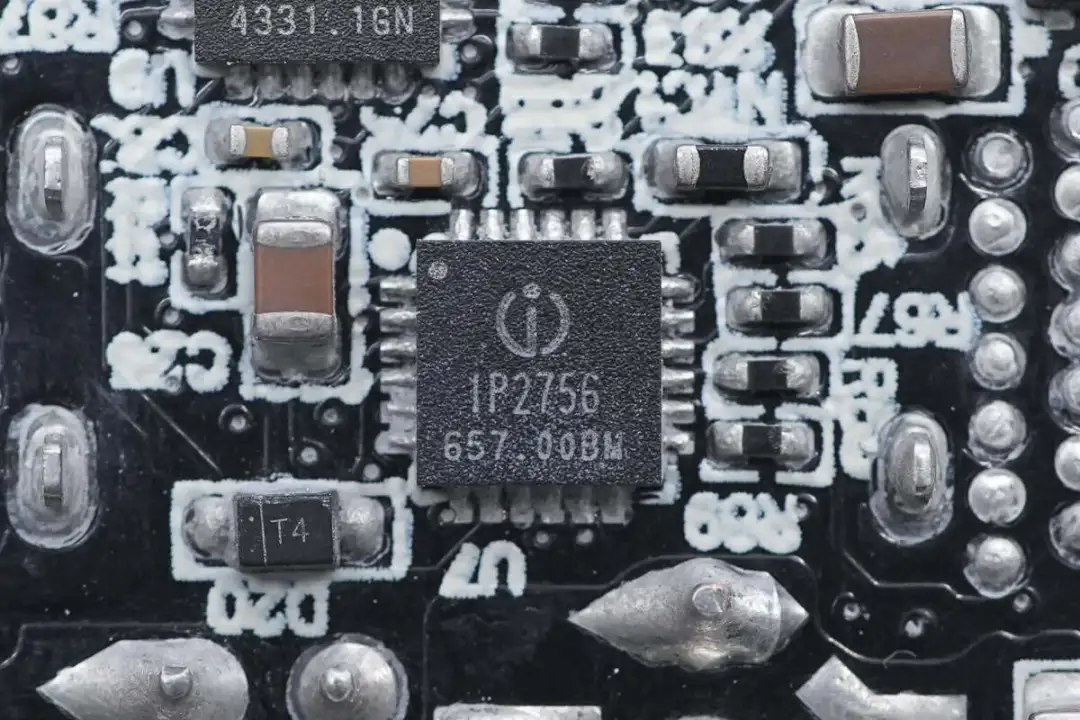

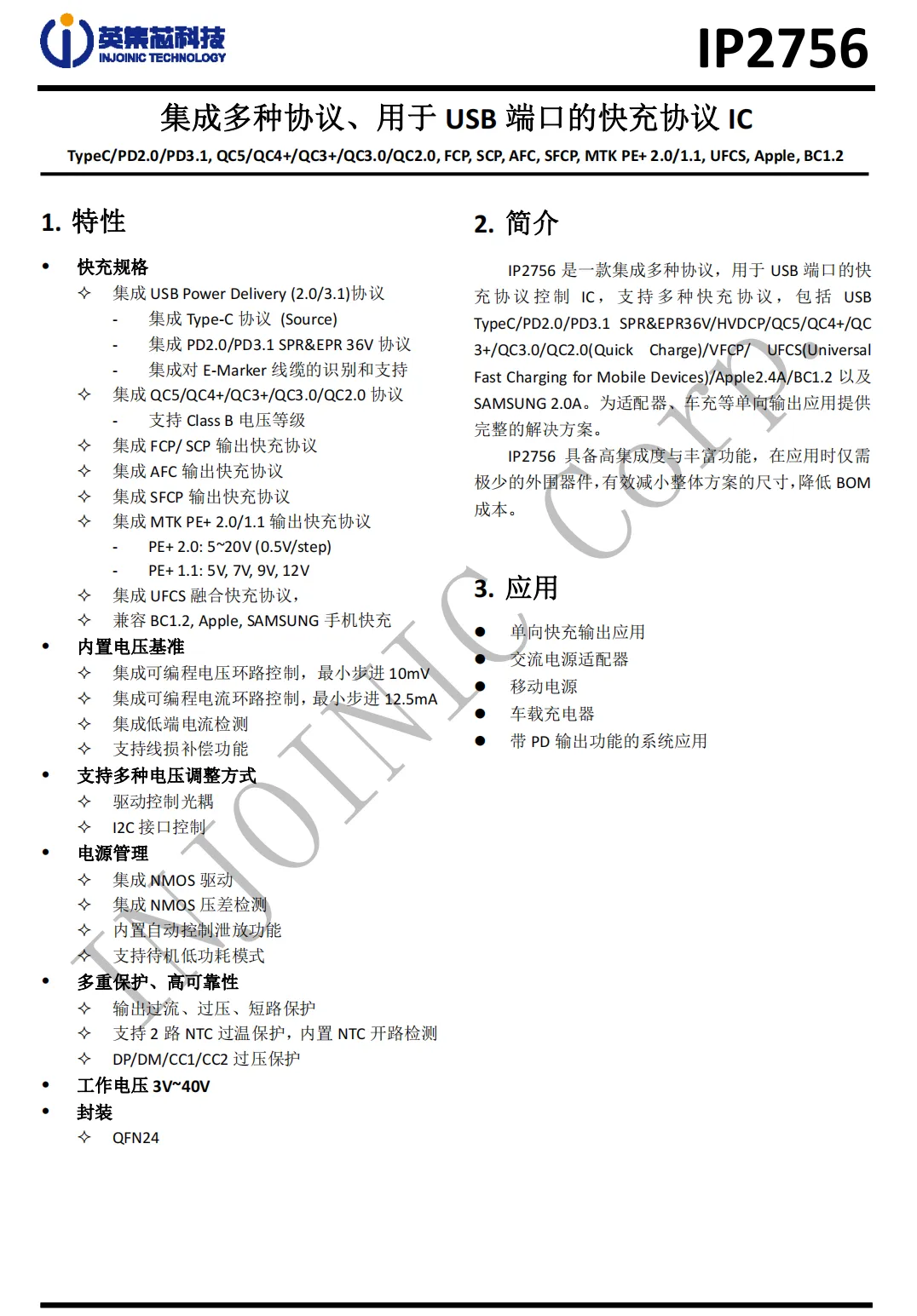

YJ Technology IP2756
YJ Technology IP2756 is a protocol control IC for fast charging that integrates multiple protocols, supporting various fast charging protocols, including PD2.0/PD3.1 SPR & EPR36V, HVDCP, QC5/4+/3+/3.0/2.0, VFCP, UFCS, Apple 2.4A, BC1.2, and SAMSUNG 2.0A. It provides a complete solution for adapters, car chargers, and other unidirectional output applications.
IP2756 has high integration and rich functions, requiring very few peripheral components during application, effectively reducing the overall solution size and lowering BOM costs.
Application Cases:
1、Disassembly Report: Lenovo thinkplus 140W 2C1A Multi-port Charger
2、Disassembly Report: Hanguang 240W 3USB-C GaN Charger
3、Shunuo Xinxin 140W PD3.1 2C1A Car Charger Solution Analysis
Ismartware Zhirong

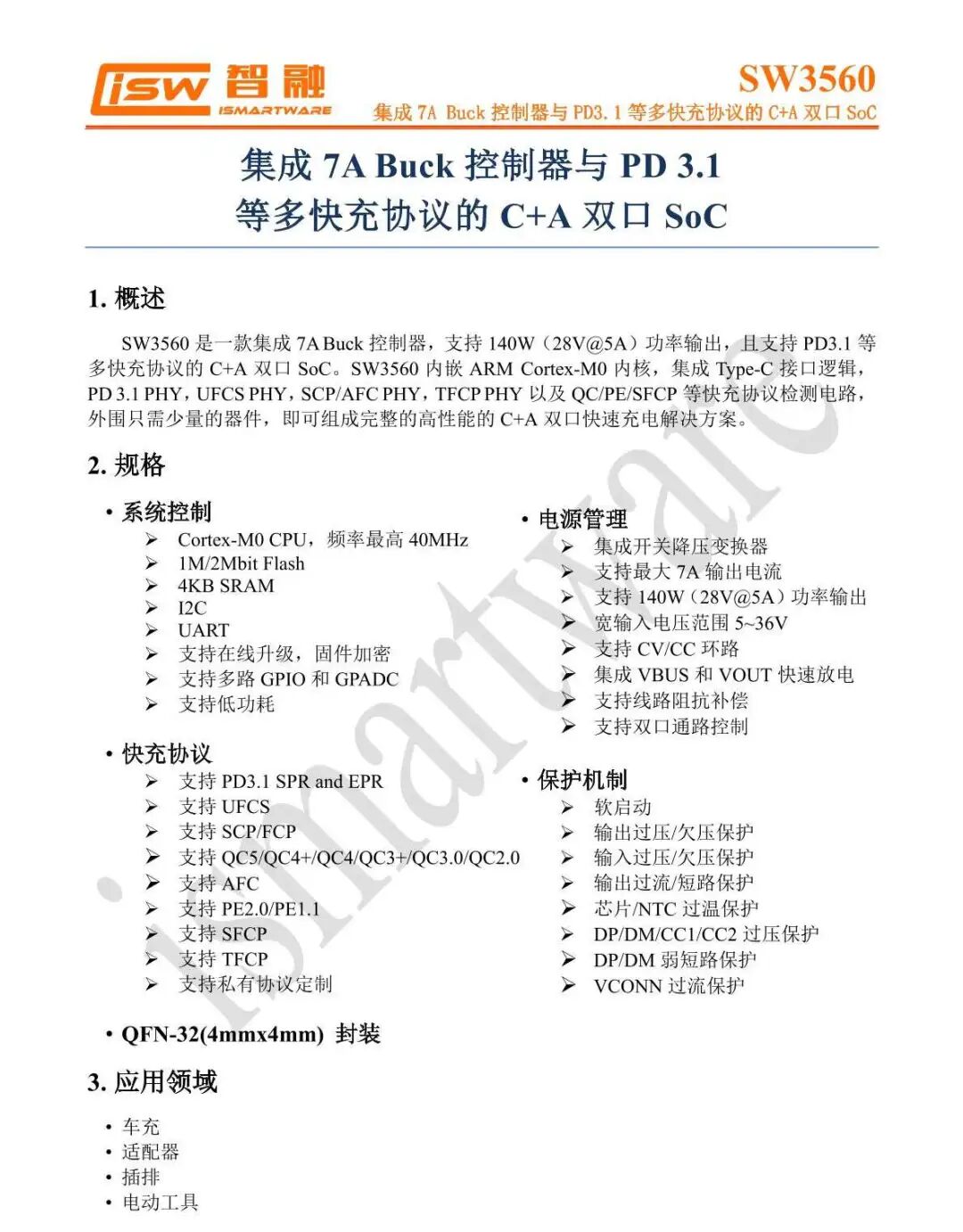

Zhirong SW3560
SW3560 is a highly integrated 7A Buck controller, supporting 140W (28V@5A) power output, and supports PD3.1 and other fast charging protocols for C+A dual-port SoC.
SW3560 embeds an ARM Cortex-M0 core, integrating Type-C interface logic, PD 3.1 PHY, UFCS PHY, SCP/AFC PHY, TFCP PHY, and QC/PE/SFCP fast charging protocol detection circuits, requiring only a few peripheral components to form a complete high-performance C+A dual-port fast charging solution.

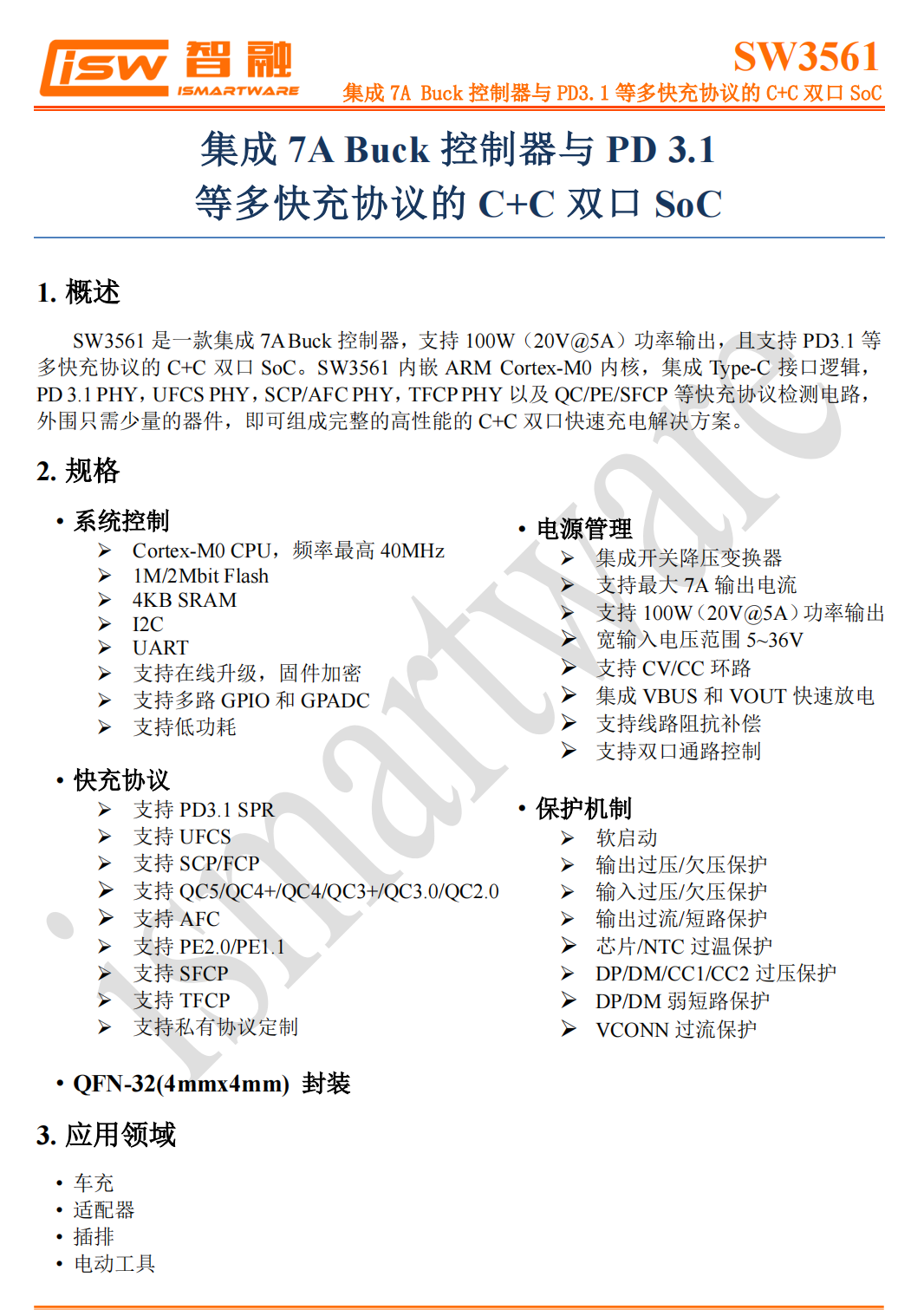

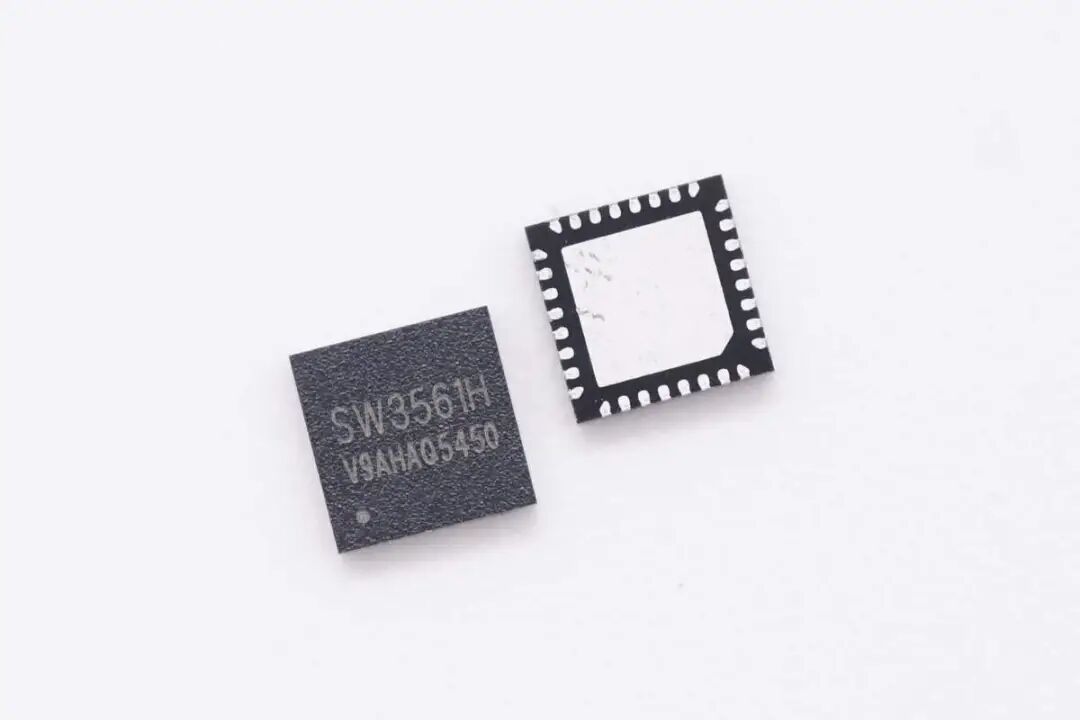

Zhirong SW3561
Zhirong SW3561 is a buck SoC chip that supports dual USB-C output, with a built-in high-efficiency synchronous buck controller, supporting 20V 5A power output, and supporting USB PD3.1 SPR.
The chip integrates an ARM Cortex-M0 core, Type-C logic, supporting PD3.1/QC/SCP/UFCS fusion fast charging and other fast charging protocols, supporting fast charging protocol customization, and supporting 100W power output.
The Zhirong SW3561 integrates a buck converter, dual USB-C port path control, bus voltage detection, and can achieve dual-port buck output with two synchronous buck switch tubes and VBUS switch tubes. The built-in buck converter has a default operating frequency of 180KHz, supporting customized operating frequencies to meet compact design requirements.
The chip has an I2C interface, and the output current, line loss compensation, and other protection thresholds can be set via the I2C interface. The built-in ADC can sample data from nine channels, including input and output voltage, output current, and chip temperature, supporting external MCU for parameter display. The built-in MCU of SW3561 supports automatic power control, eliminating the need for an external MCU in multi-port buck fast charging applications, simplifying the circuit.
Related Reading:
1、Built-in MCU without external components, Zhirong Technology Launches New PD3.1 Fast Charging SOC Chip SW3561

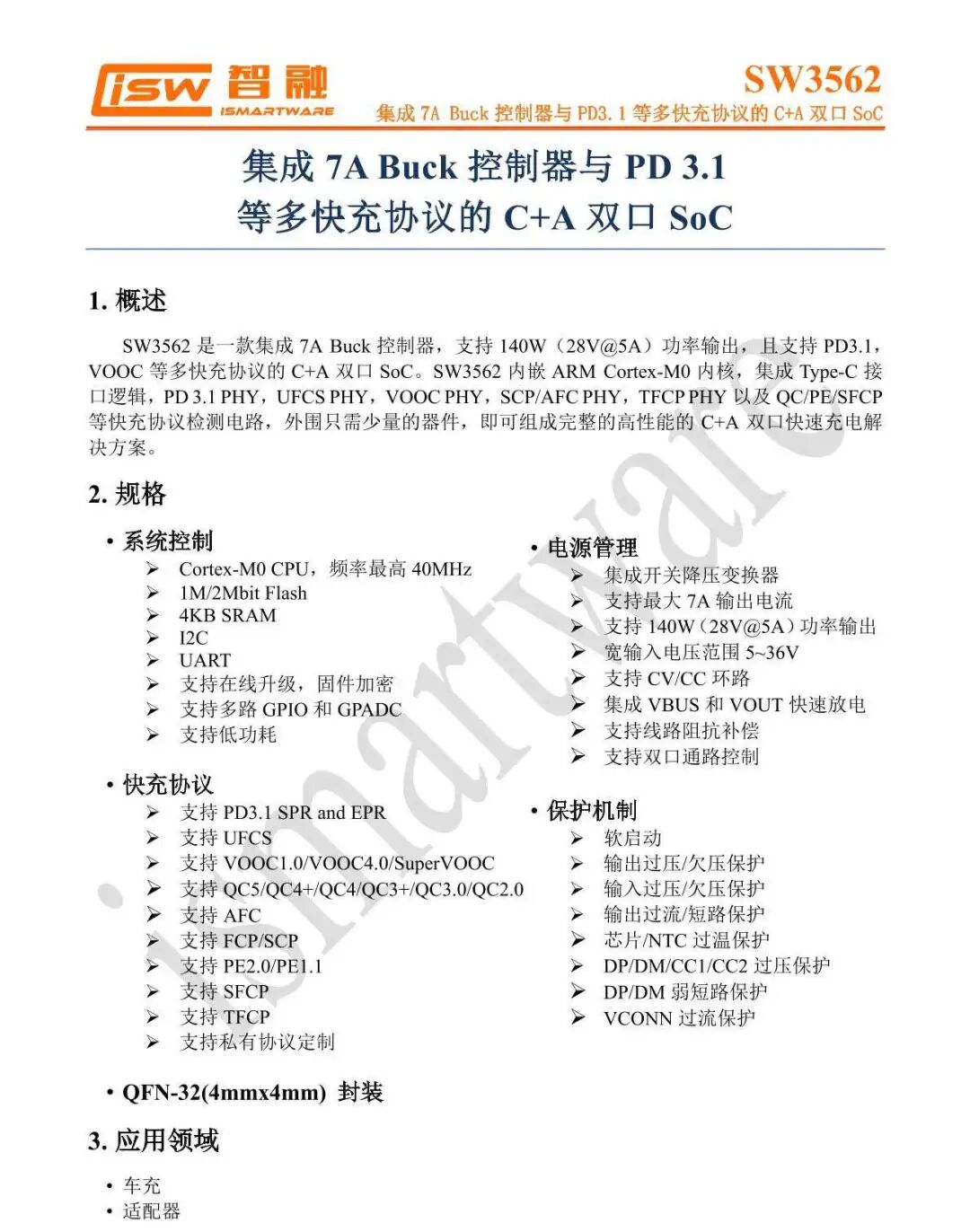

Zhirong SW3562
SW3562 is a highly integrated 7A Buck controller, supporting 140W (28V@5A) power output, and supports PD3.1, VOOC, and other fast charging protocols for C+A dual-port SoC.
SW3562 embeds an ARM Cortex-M0 core, integrating Type-C interface logic, PD 3.1 PHY, UFCS PHY, VOOC PHY, SCP/AFC PHY, TFCP PHY, and QC/PE/SFCP fast charging protocol detection circuits, requiring only a few peripheral components to form a complete high-performance C+A dual-port fast charging solution.

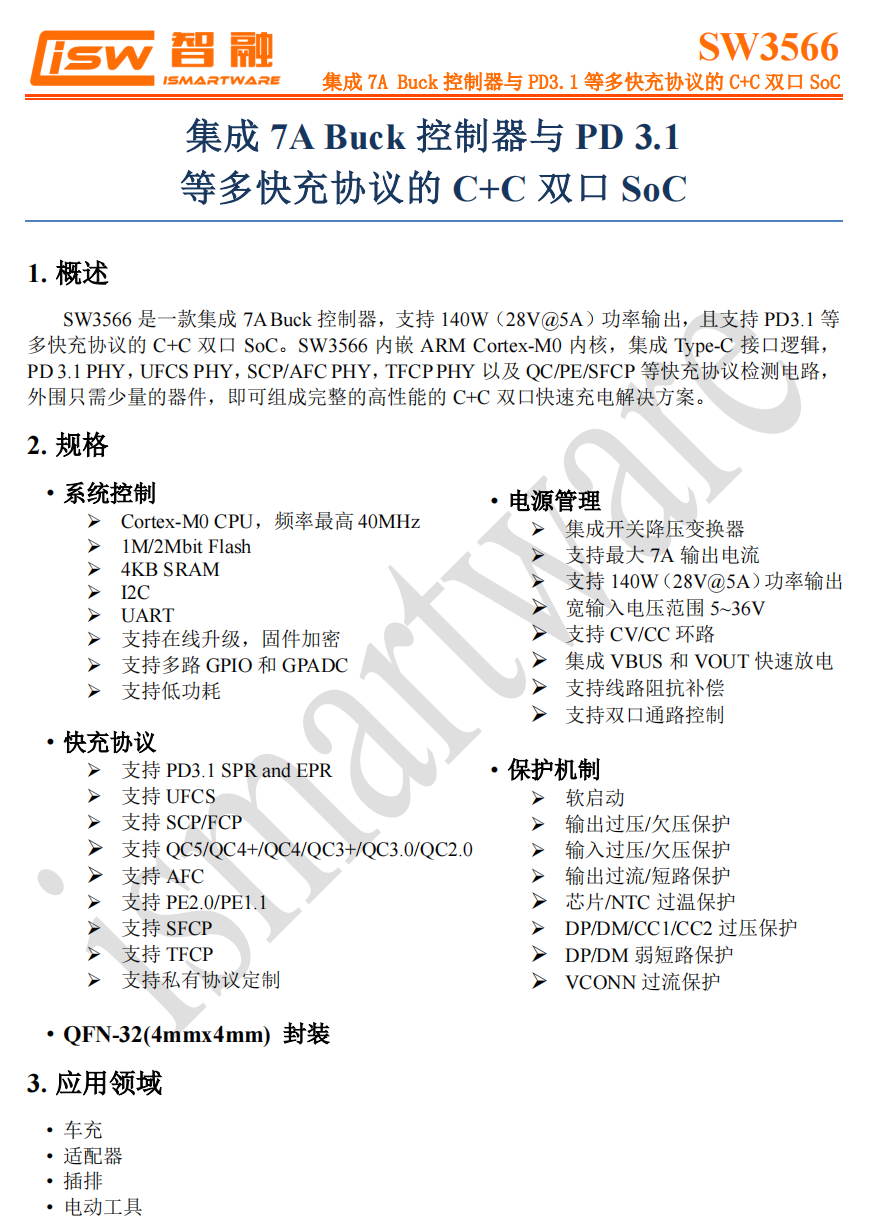

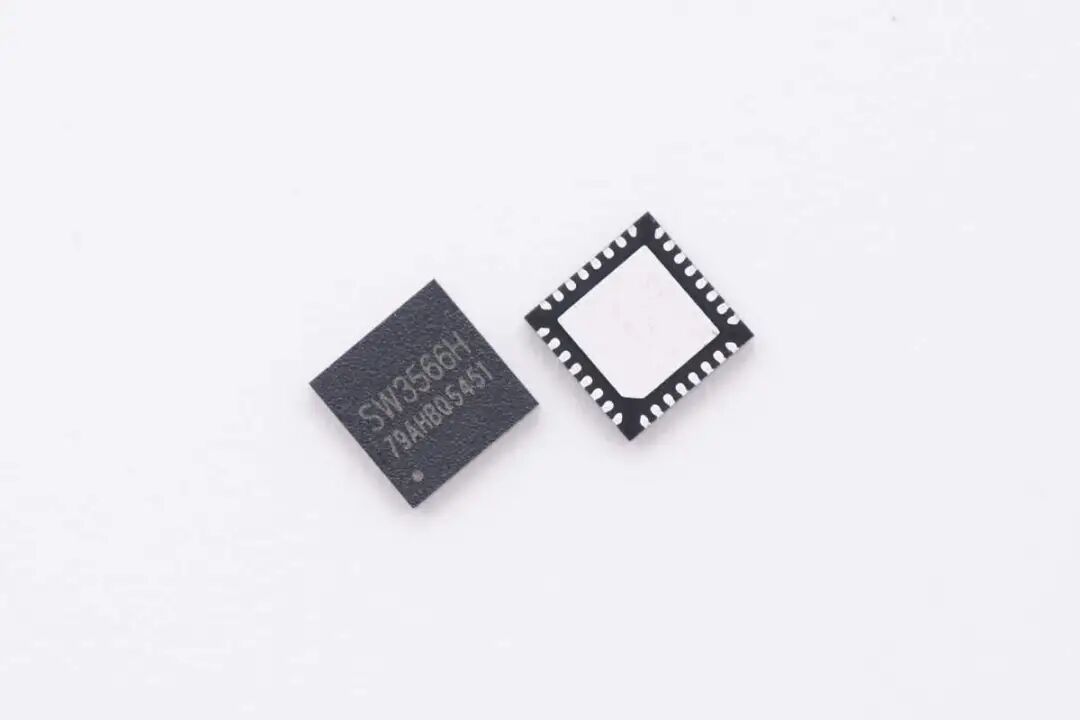

Zhirong SW3566
Zhirong SW3566 is a highly integrated dual-port fast charging SOC chip that supports multiple fast charging protocols, supporting I²C communication, enabling various logic control and power switching, integrating a 7A high-efficiency synchronous buck converter, supporting a maximum output power of 140W (28V/5A).
SW3566 supports PD3.1, PPS, QC3.0, SCP, UFCS, and other fast charging protocols, with input/output over-voltage, under-voltage, over-temperature protection, LPS protection, and other protection mechanisms, with high integration, requiring only a few peripheral components to form a complete high-performance multi-fast charging protocol dual-port charging solution.
SW3566 integrates CC/CV mode, dual-port management logic, and bus voltage detection, and the built-in Cortex-M0 CPU meets fast charging protocol customization needs, with multiple protection mechanisms to ensure the safety of terminal products.
SW3566 adopts QFN32 4x4mm package, suitable for car chargers, fast charging adapters, power strips, and other fields.
Related Reading:
1、Zhirong Launches Dual C Fast Charging SOC Chip SW3566 Supporting 28V5A Fast Charging, 140W Power
2、High Power PD3.1 140W Zhirong SW3566 Dual USB-C Fast Charging Solution Analysis

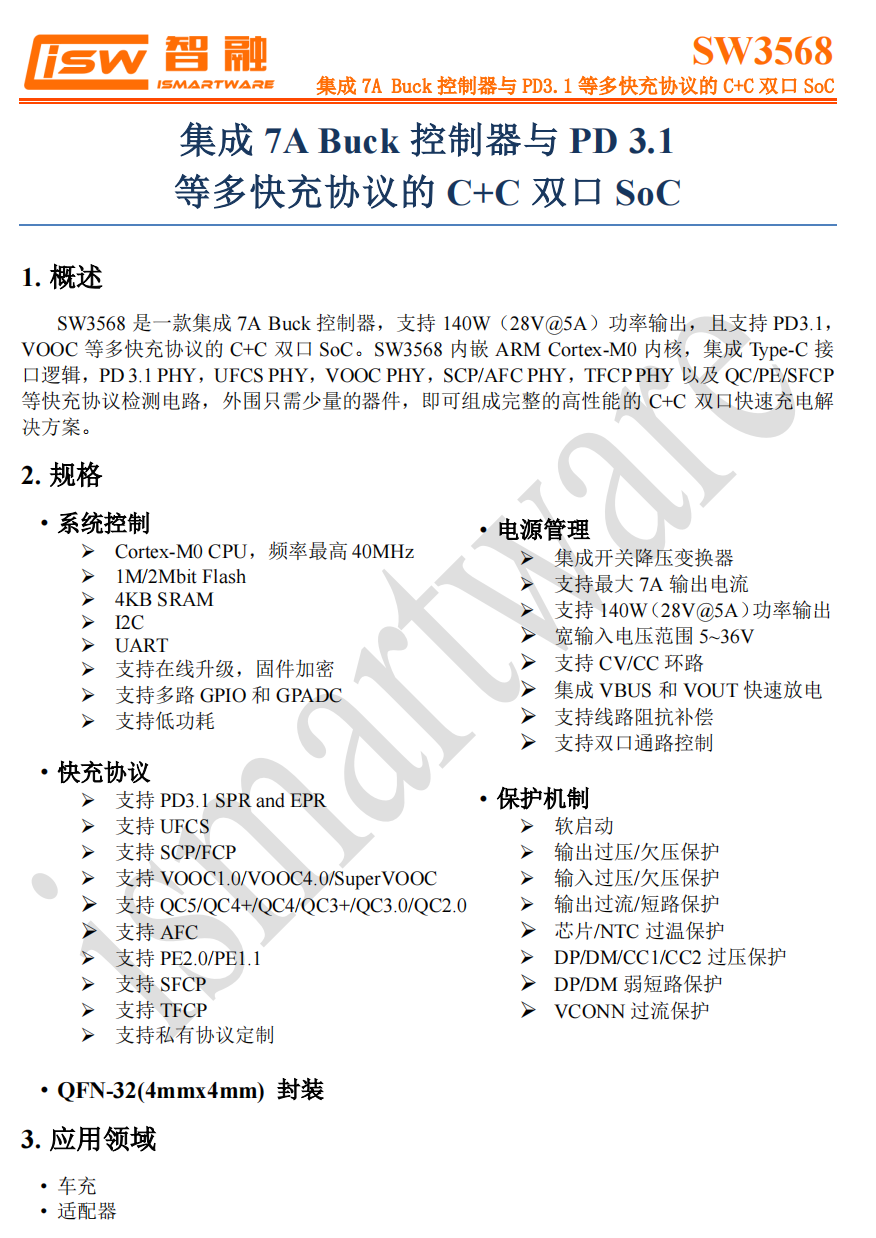

Zhirong SW3568
SW3568 is a dual-port SoC chip that integrates a 7A buck converter and supports multiple mainstream fast charging protocols such as PD3.1, supporting 140W power output, embedding an ARM Cortex-M0 core, integrating Type-C interface logic, requiring only a few peripheral components to form a complete high-performance C+C dual-port fast charging solution.
SW3568 has various protection mechanisms such as soft start, output over-voltage/under-voltage, input over-voltage/under-voltage, adopting QFN32 4x4mm package, suitable for car chargers, fast charging adapters, and other application fields.

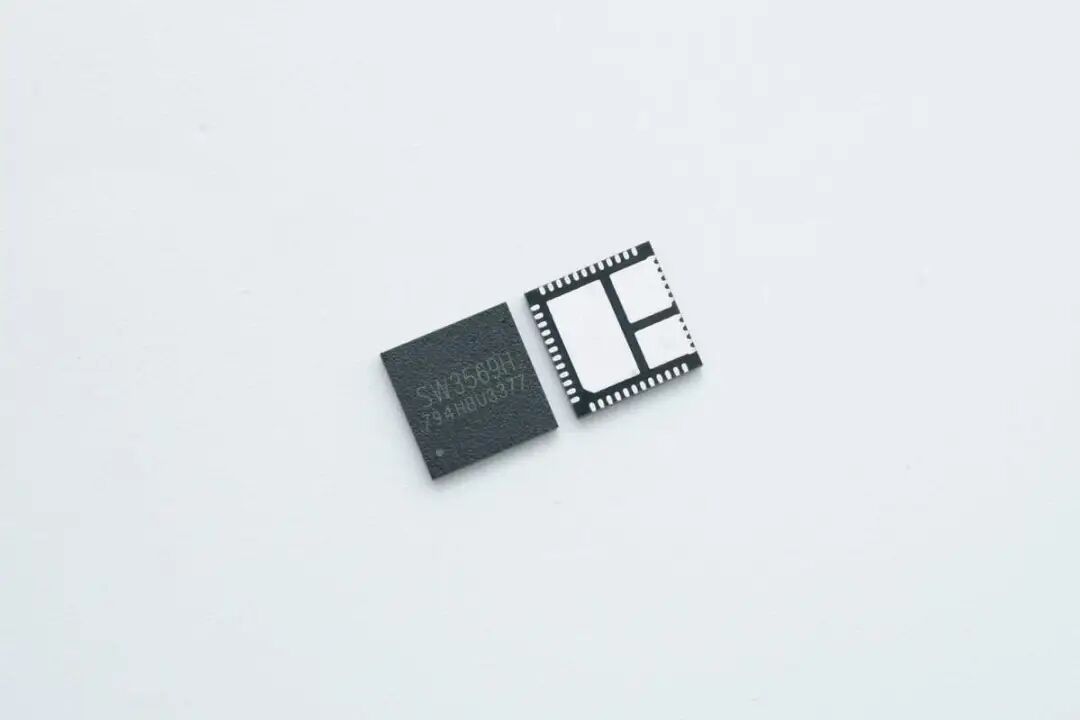

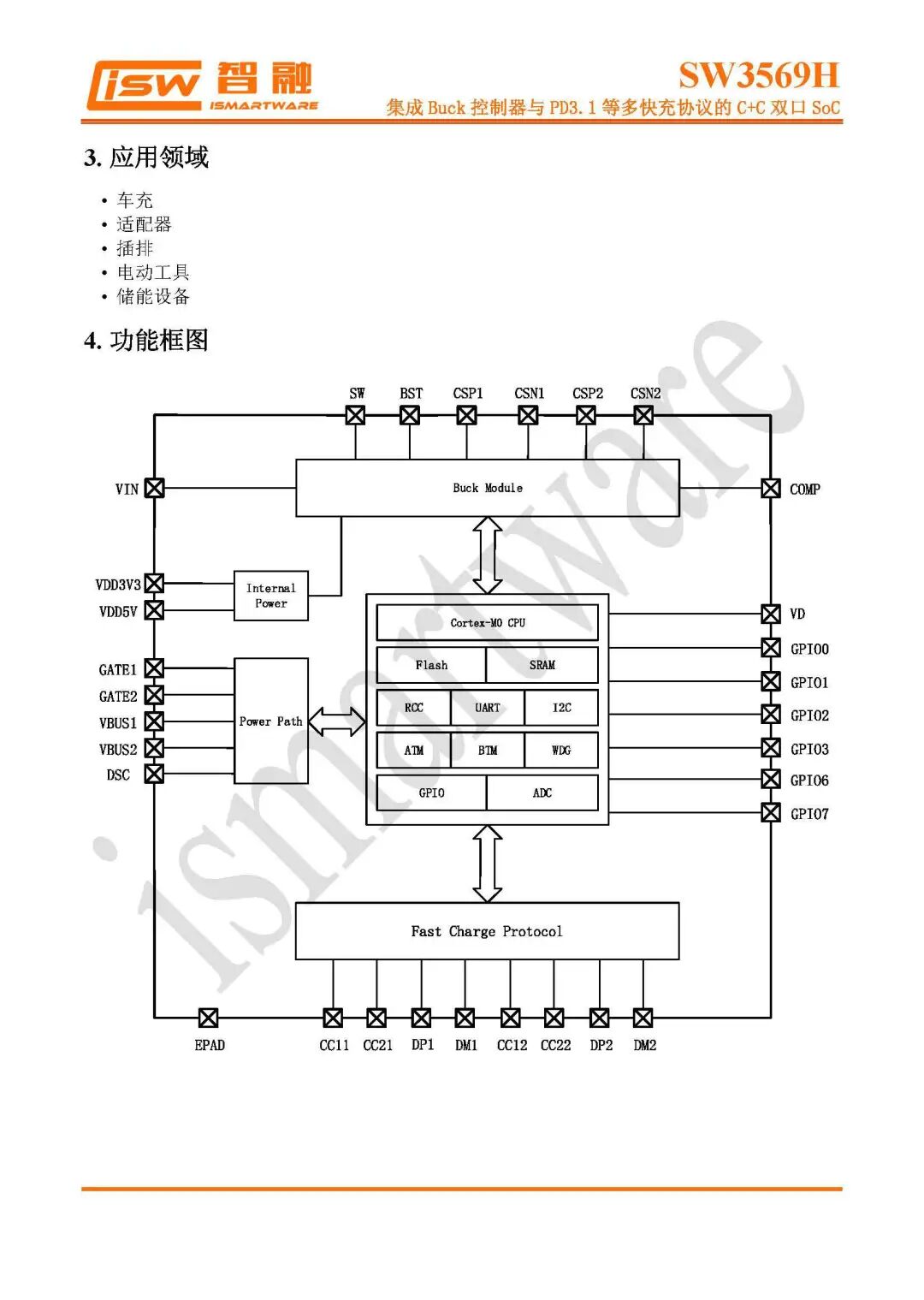

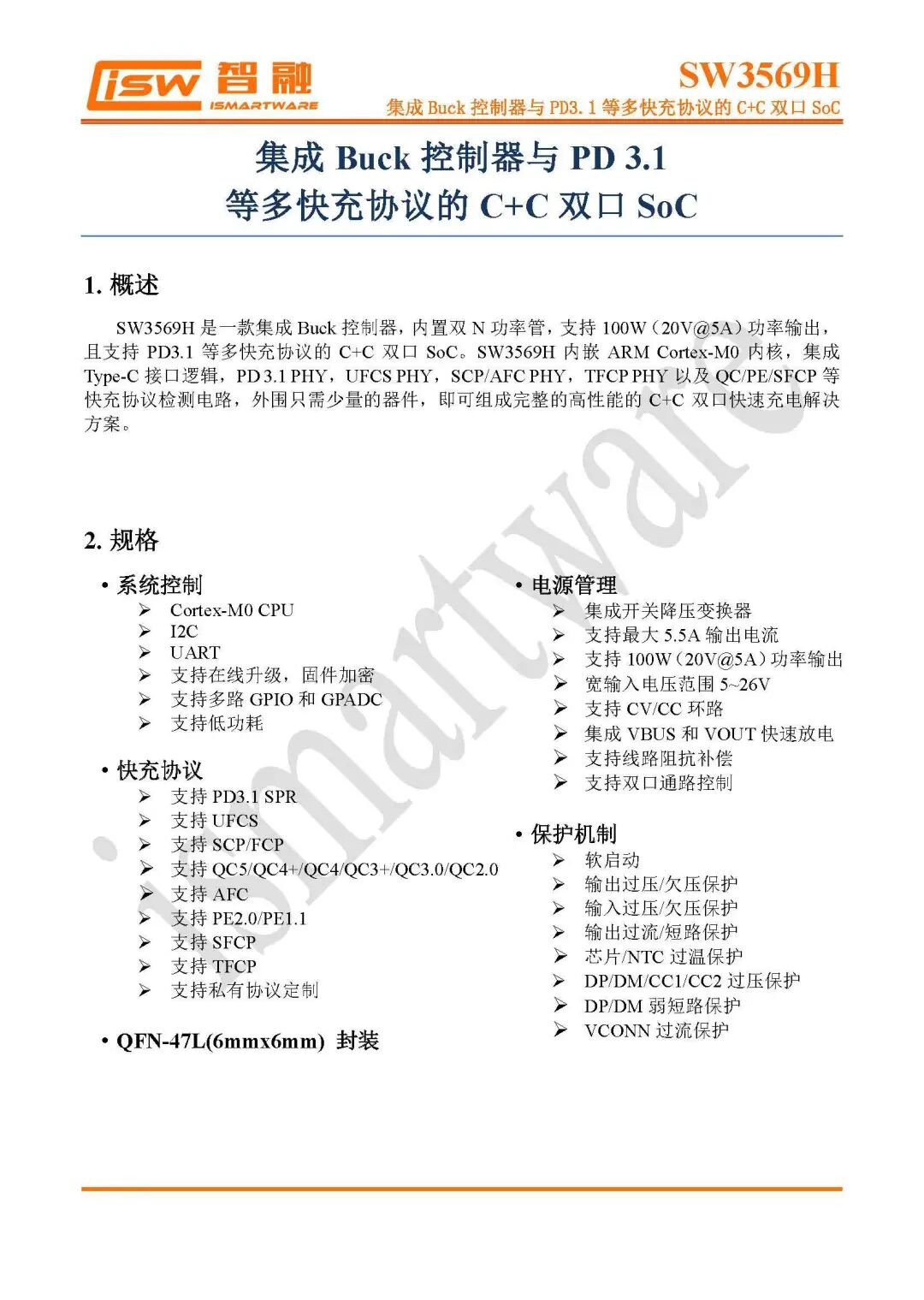

Zhirong SW3569
SW3569H is a highly integrated C+C dual-port fast charging SoC, integrating a buck controller, built-in N power tube, supporting up to 100W power output, meeting the dual demands of high-speed charging devices for power and protocols.
SW3569H uses an ARM Cortex-M0 core as the system control unit, supporting I2C and UART communication protocols, with online upgrade and firmware encryption functions. In addition, this chip supports multiple GPIO and GPADC expansion interfaces, with low power consumption characteristics. In terms of charging protocol support, SW3569H is compatible with PD3.1 SPR, UFCS, SCP, FCP, QC2.0 to QC5, AFC, PE2.0/PE1.1, SFCP, and TFCP, as well as supporting customer-customized proprietary protocols.
SW3569H integrates a buck converter, supporting input voltages from 5V to 26V, with output currents up to 5.5A. Meanwhile, the chip has built-in rapid discharge functions for VBUS and VOUT, supporting cable impedance compensation and dual-port path control.
This chip also has a very comprehensive protection mechanism, including soft start, output over-voltage/under-voltage protection, input over-voltage/under-voltage protection, output over-current/short-circuit protection, chip and NTC over-temperature protection, DP/DM/CC1/CC2 short-circuit protection, and VCONN over-current protection, adopting QFN-47L package.
TMI Tuoerwei

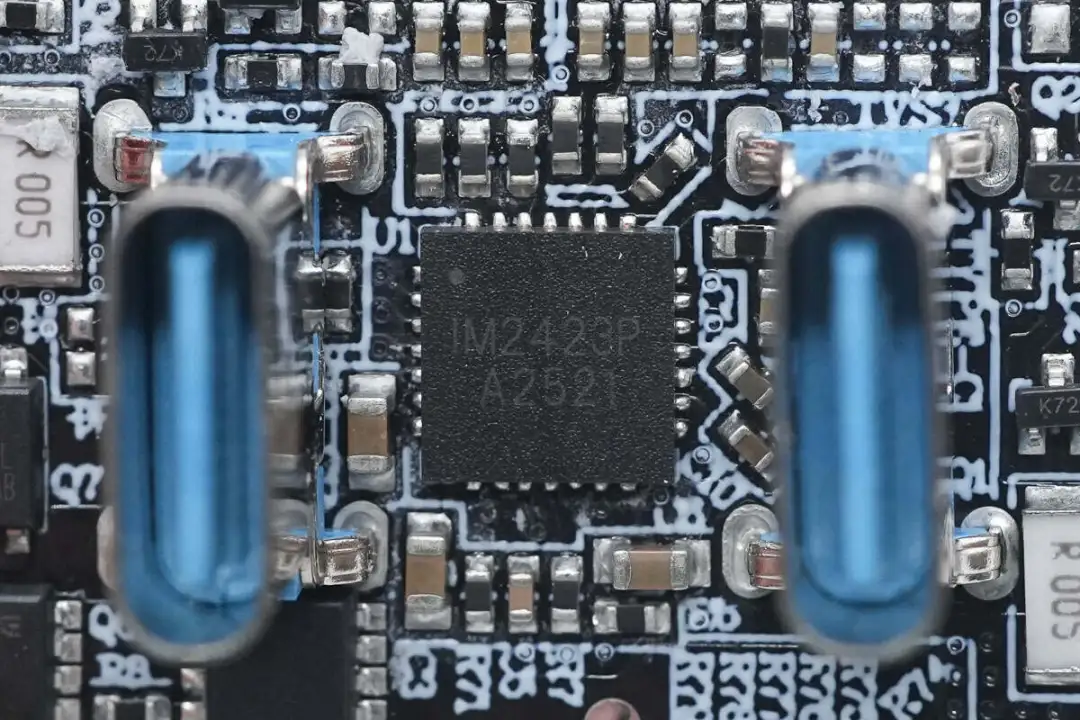

Tuoerwei IM2423P
Tuoerwei IM2423P is a highly integrated USB Type-C dual-port fast charging controller chip, fully supporting PD3.2/PPS/QC4.0+/QC4/QC3.0/QC2.0 and other universal fast charging protocols, while also compatible with SCP/SuperVOOC/AFC/PE and other mainstream proprietary fast charging solutions, designed for power adapters, car chargers, and other application scenarios. It adopts QFN28 package.
Application Cases:
1、Disassembly Report: Anker Nano 70W 2C1A GaN Charger
Charging Head Network Summary
Apple’s 40W dynamic power adapter launched with the iPhone 17 series clearly lists the adjustable voltage range in its specifications and enhances short-term power through a dynamic output mechanism, which highly aligns with the AVS feature introduced in USB-PD. This technology announces the adjustable voltage range at the source end and initiates precise voltage requests as needed at the sink end, allowing the charger to supply power at a voltage closer to the system’s optimal point, thereby reducing conversion losses and improving heat and efficiency, which is one of the underlying supports for Apple’s emphasis on a faster wired charging experience.
The release of this charger and the compatibility of the iPhone 17 series with AVS will undoubtedly drive the industry chain. In the past, many compact chargers positioned in the 20–45W range relied more on fixed PDO or PPS in their solution selection, and protocol chips and reference designs did not universally consider AVS as a default feature. The compatibility of the iPhone 17 series with AVS also means that future protocol chips, control firmware, and testing items will have to upgrade to support AVS, prompting chip manufacturers, OEMs, and the supply chain to reassess their solutions and cost structures.
