1. PLC End IP Configuration and Query

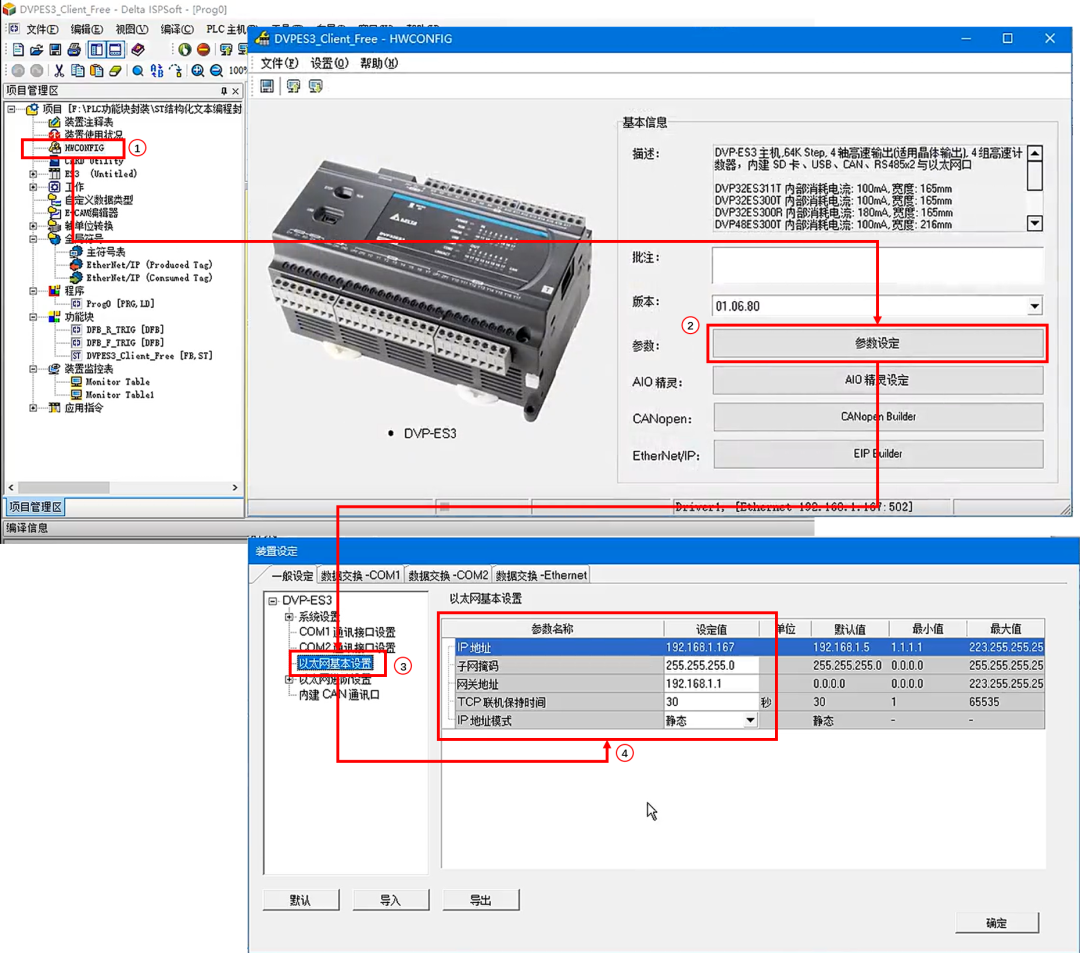

1. DVP Series

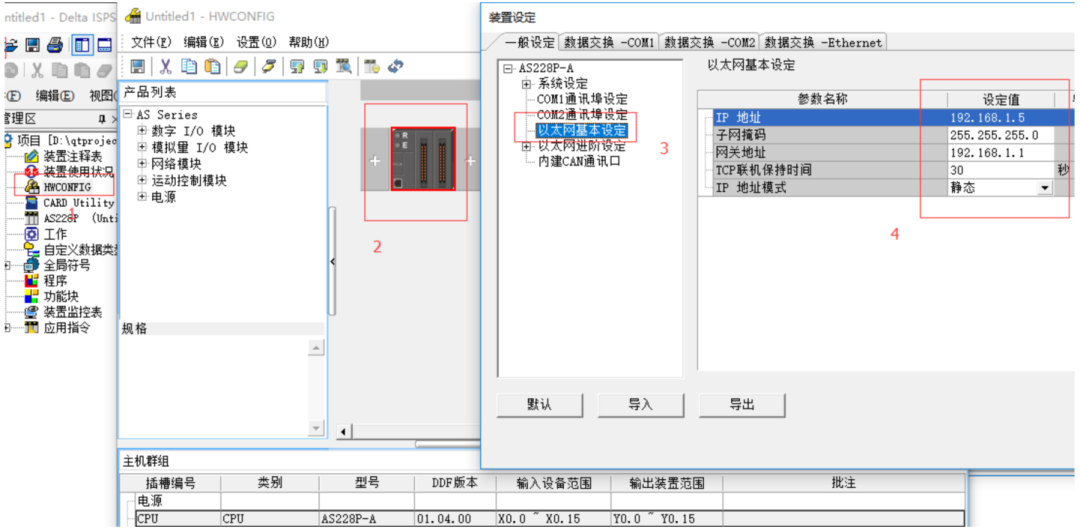

2. AS/AH Series
3. Notes The ISPSoft network configuration must use the network configuration software COMMGR.
2. PLC-Recorder Configuration (DVP Series Example)
1. IO Management

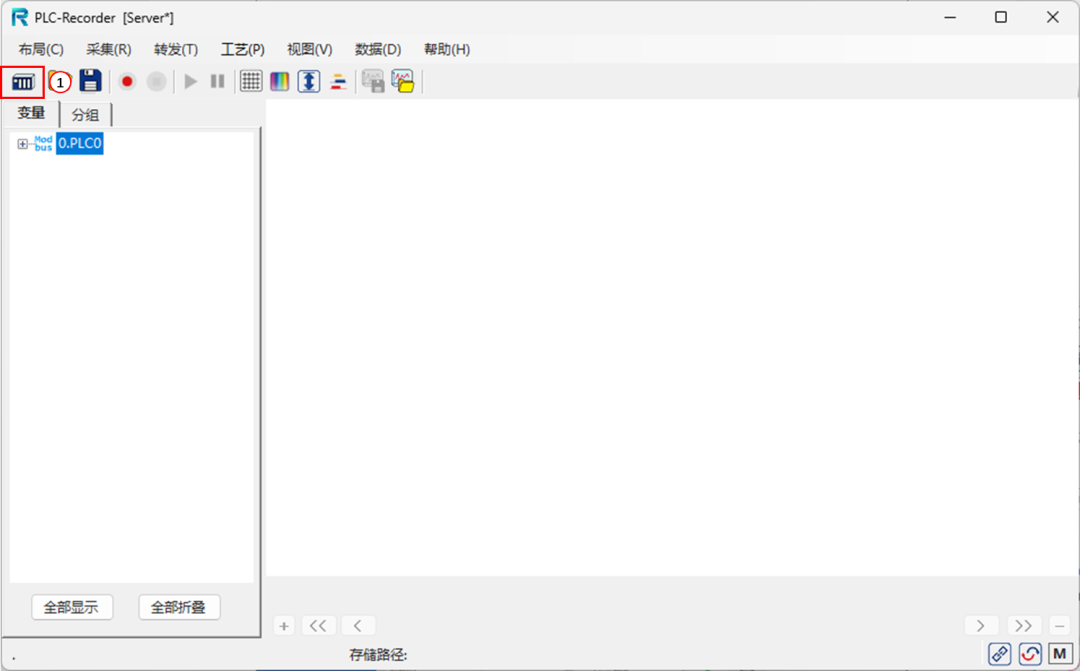

Start I/O Management

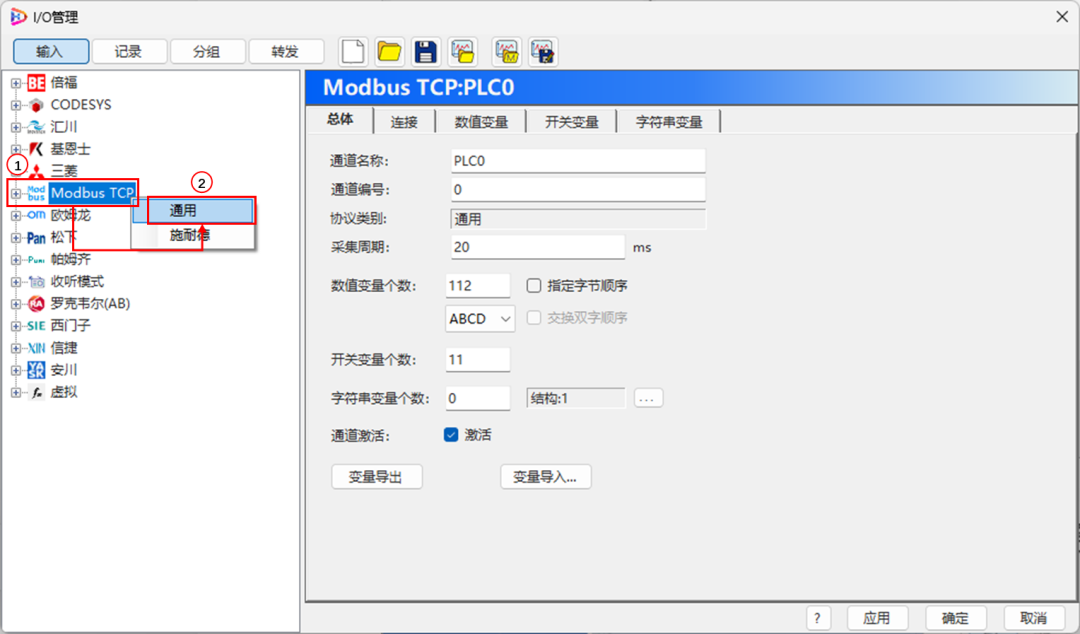

2. Add Connection Parameters1) Modbus TCP –> General

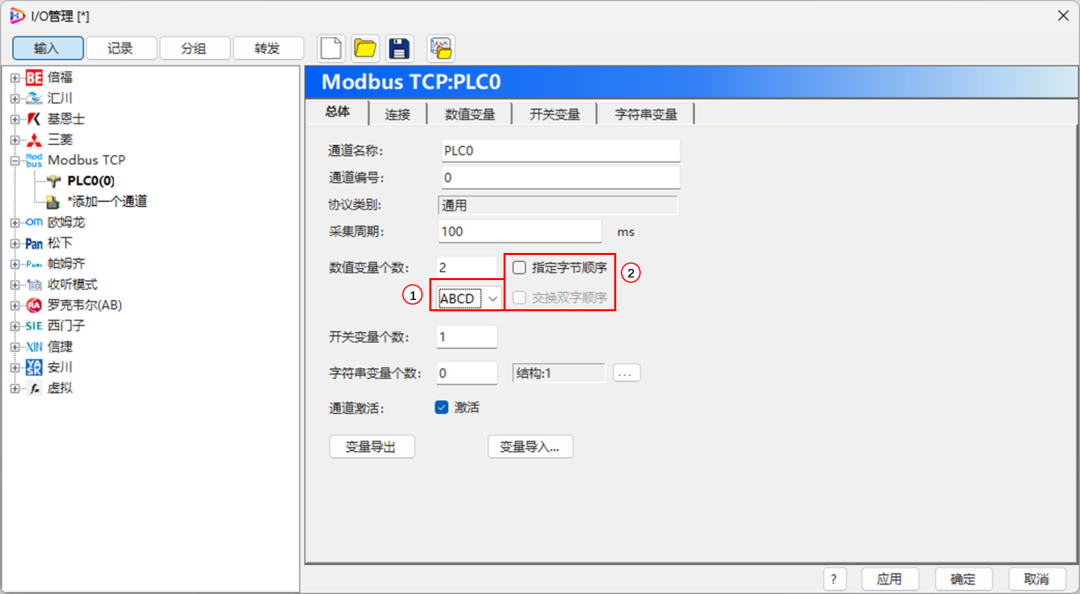

* If the data display is abnormal, please check☑ “Specify Byte Order”, to adjust the byte order.

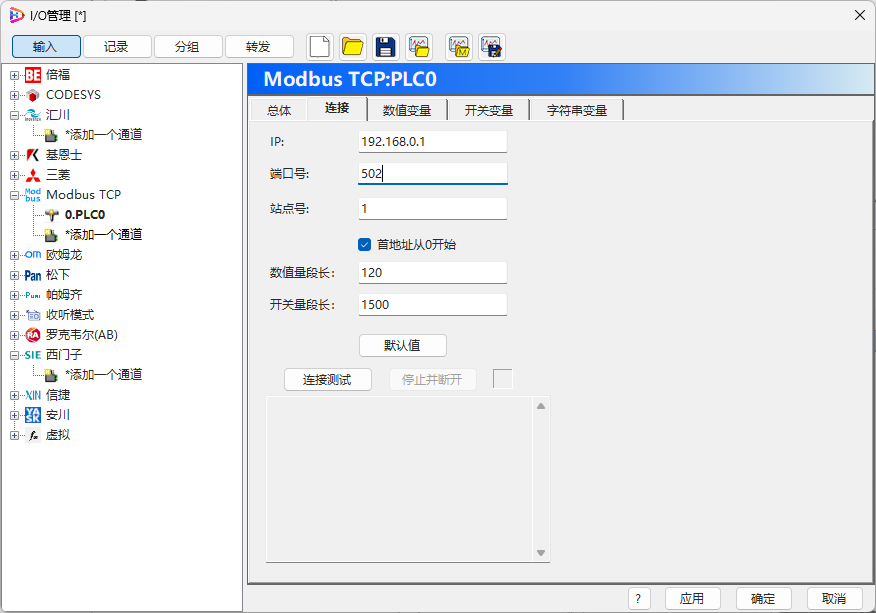

2) Fill in IP and Port Number

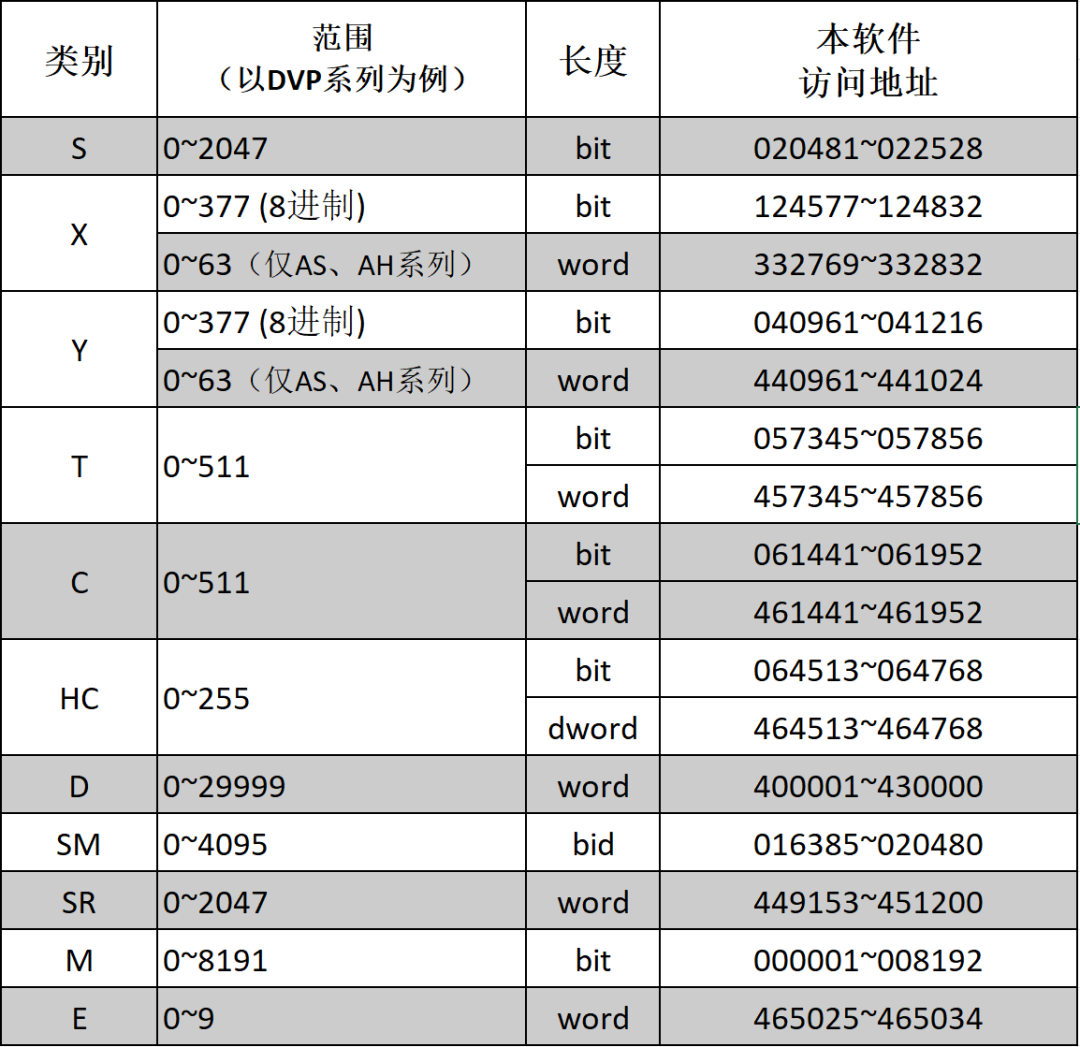

3. Modbus Address Mapping

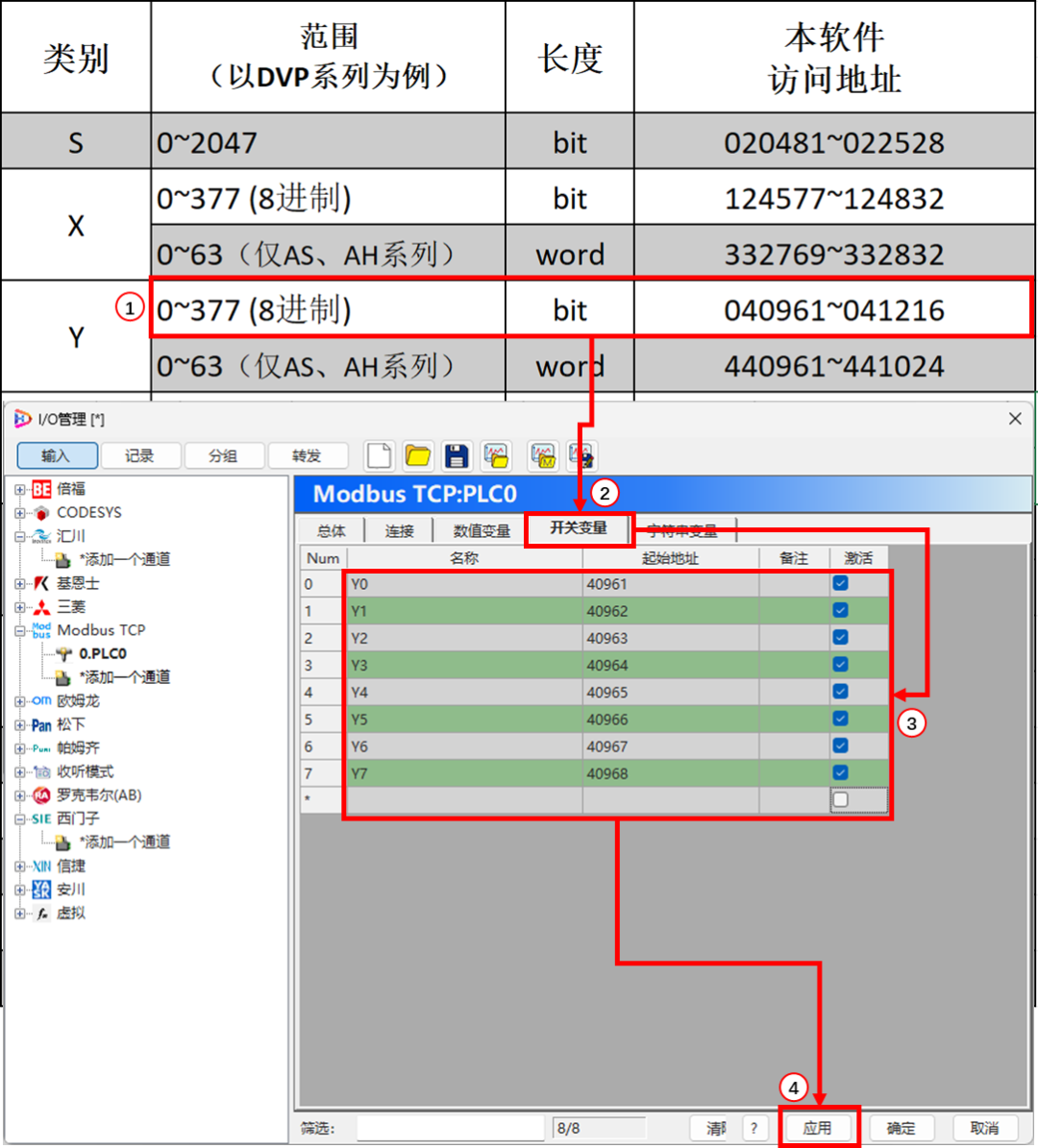

4. IO Configuration Example (Y0-Y7) Fill in Address –> Application IO Configuration
3. Start Data Collection

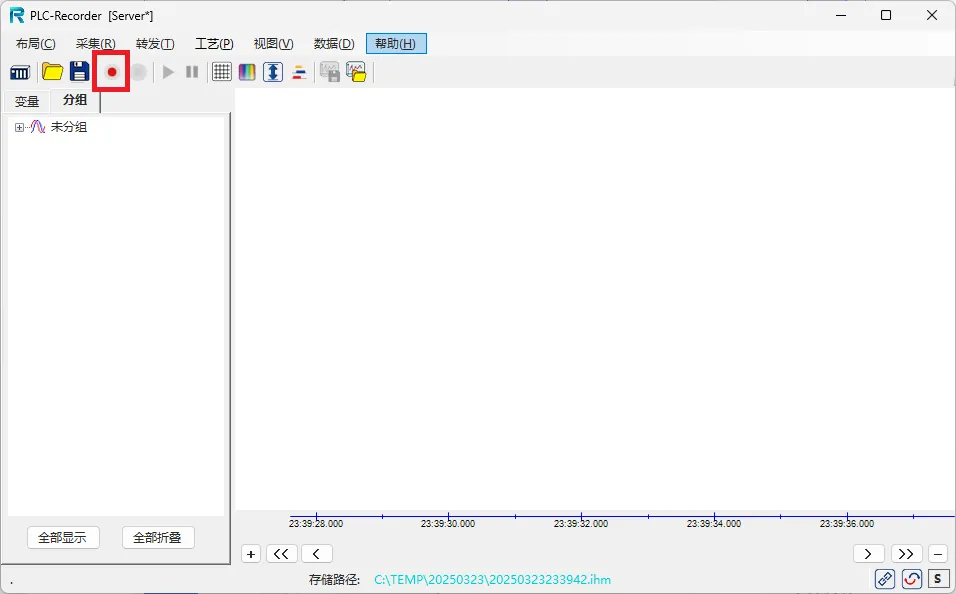

1. Click “Start Collection”

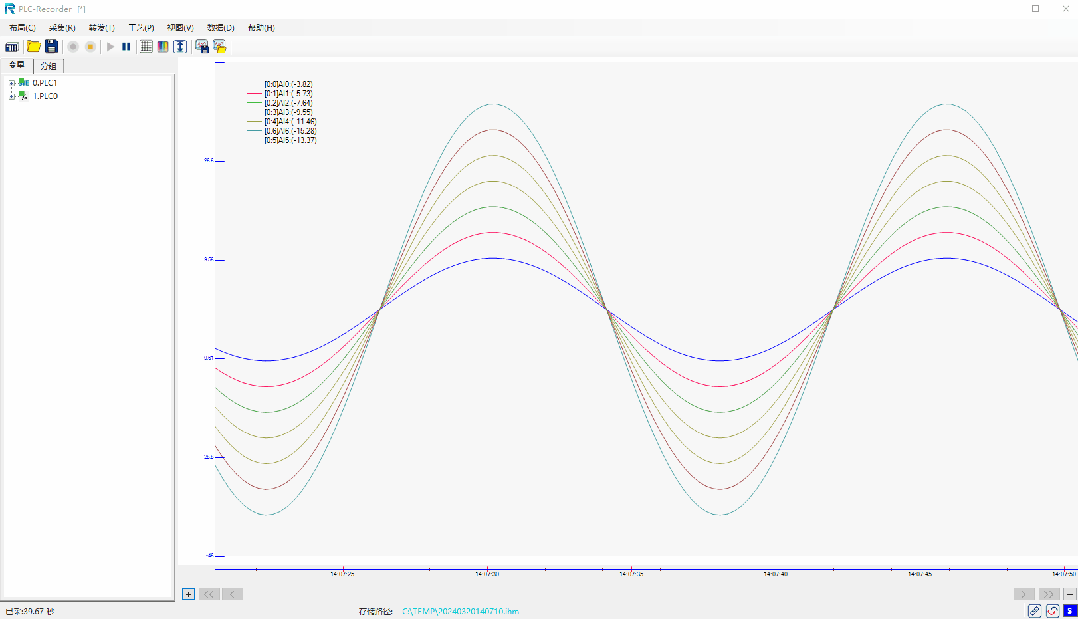

2. Variable Operations
4. Notes

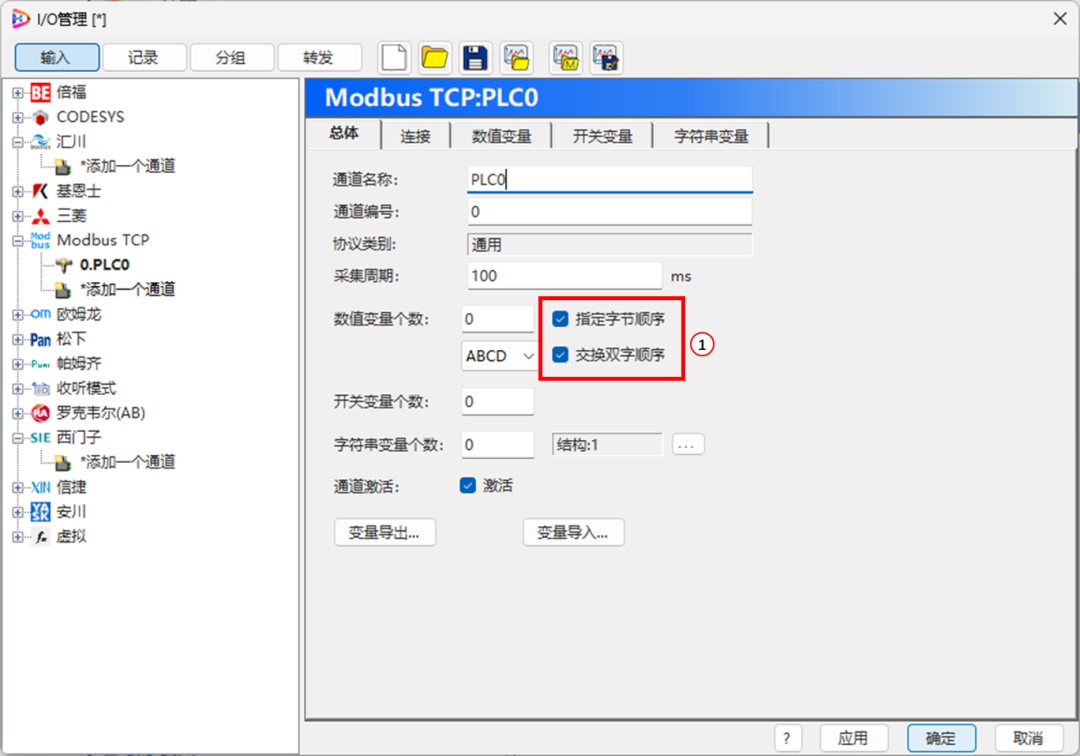

1) If the address is correct but the variable value is abnormal, you can specify the byte order to display the variable value correctly.
2) For more notes, please refer to the article below
PLC-Recorder FAQ: Summary of Modbus TCP Channel Issues
Software Deployment Methods OthersVarious tips and case studies, please follow this public account to view articles.
Extended Knowledge: The PLC-Recorder professional data collection and analysis software can collect string variables as conveniently as numeric variables.
In the future, we will periodically provide more PLC engineering tips. Follow us to stay updated.
