A low-cost 8 x 8 infrared sensor designed by a prominent figure in the school, who has been working on MEMS devices for many years. Recently, he started a company, and after half a year, the samples are finally available for me to play with:

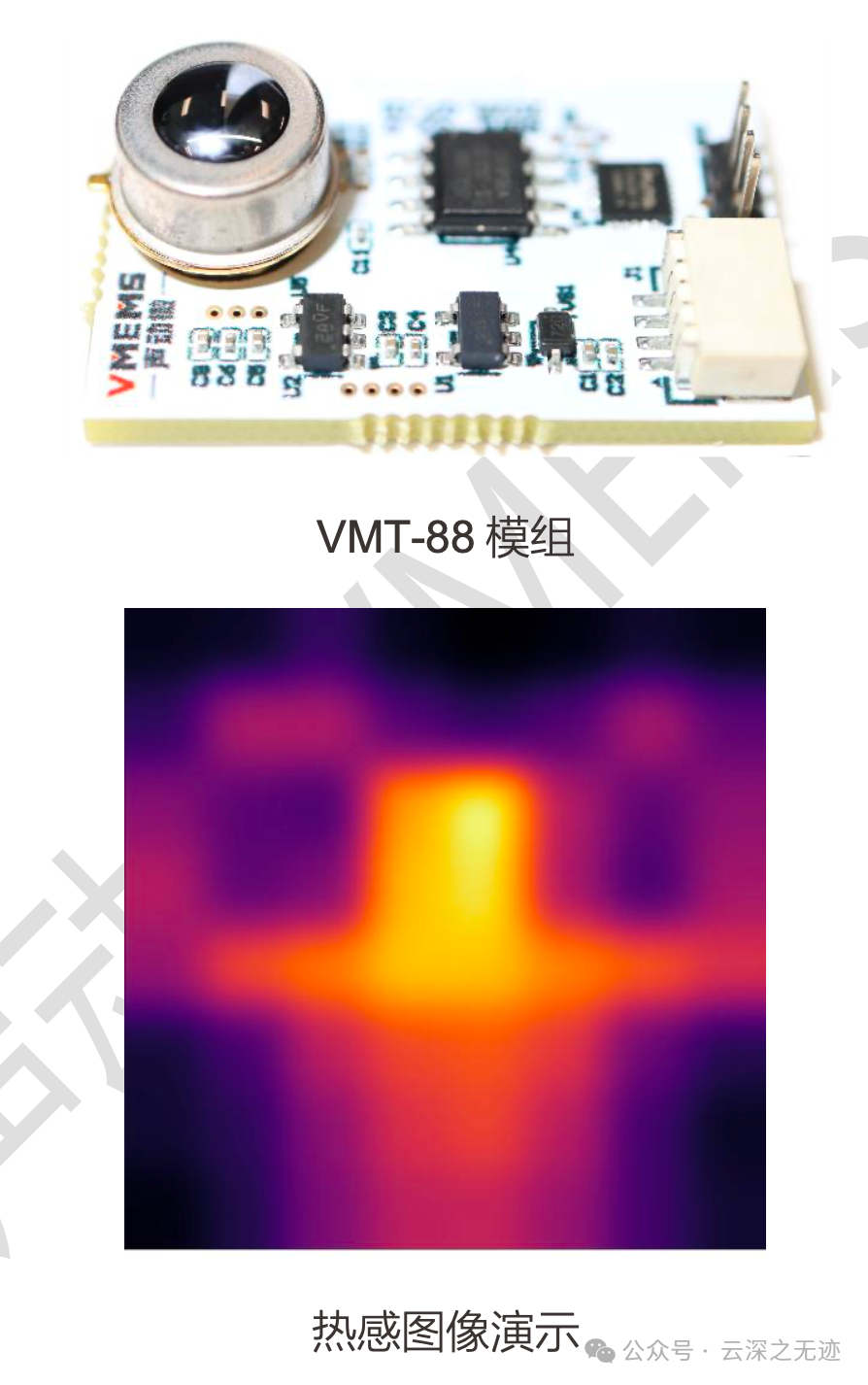

The VMT-88 belongs to the THERMOChip™ series, which is an 8×8 infrared thermal sensing pixel array module.
Main function: Capture infrared radiation signals in a specified area → Convert to electrical signals → Output high-sensitivity digital signals.
Application value: Achieve pixel-level intelligent thermal sensing for low-resolution thermal imaging in consumer and industrial scenarios.
Core Features
Pixel Array: 8×8 (64 points), low cost but with basic thermal imaging capabilities.
Power Supply: 5 V, typical current approximately 4.2 mA.
Output: Factory calibrated, digital signal output.
Interface: USART serial communication.

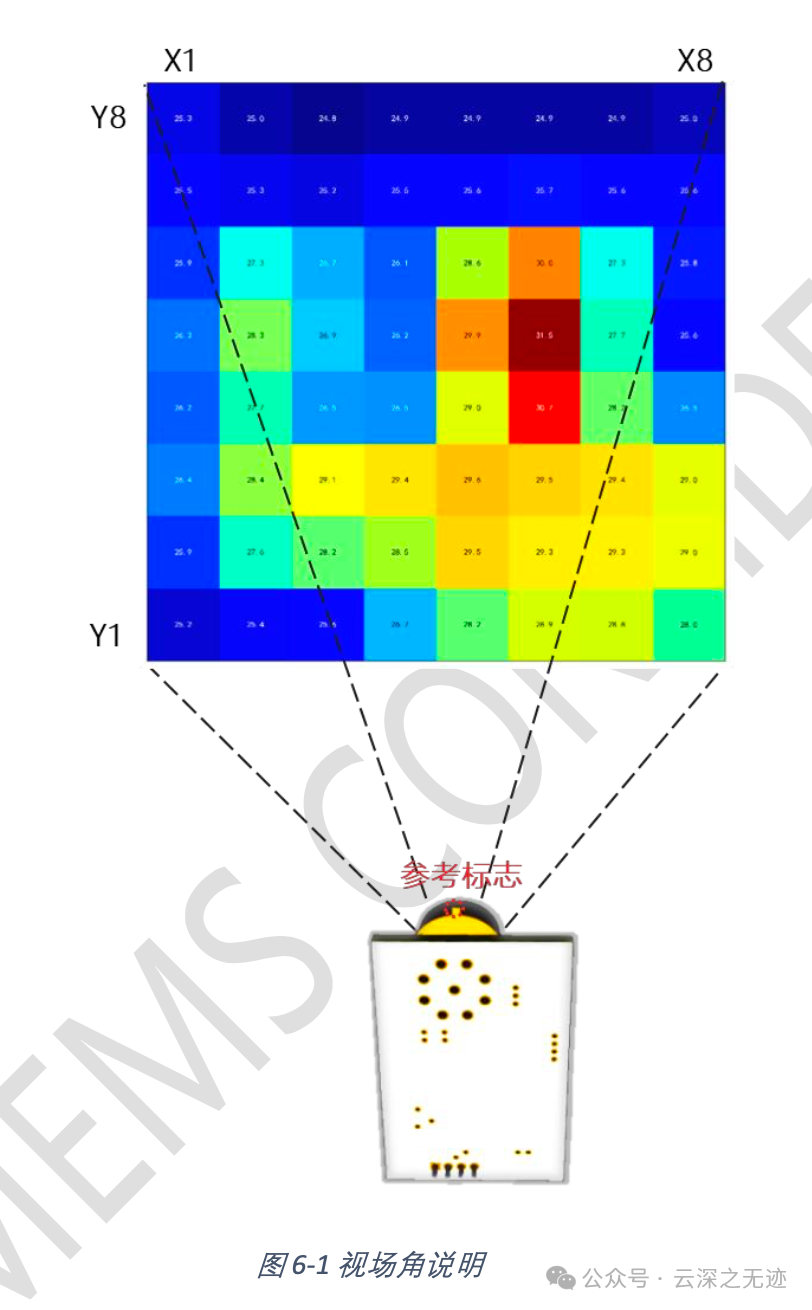

FOV (Field of View): 58° × 58°.
Frame Rate: 1–5 Hz, low-speed refresh, suitable for detection applications rather than dynamic imaging.
Temperature Range:
Operating temperature: -20 ℃ ~ 85 ℃
Target object: -20 ℃ ~ 150 ℃
Detection Distance: ≤ 7 m.

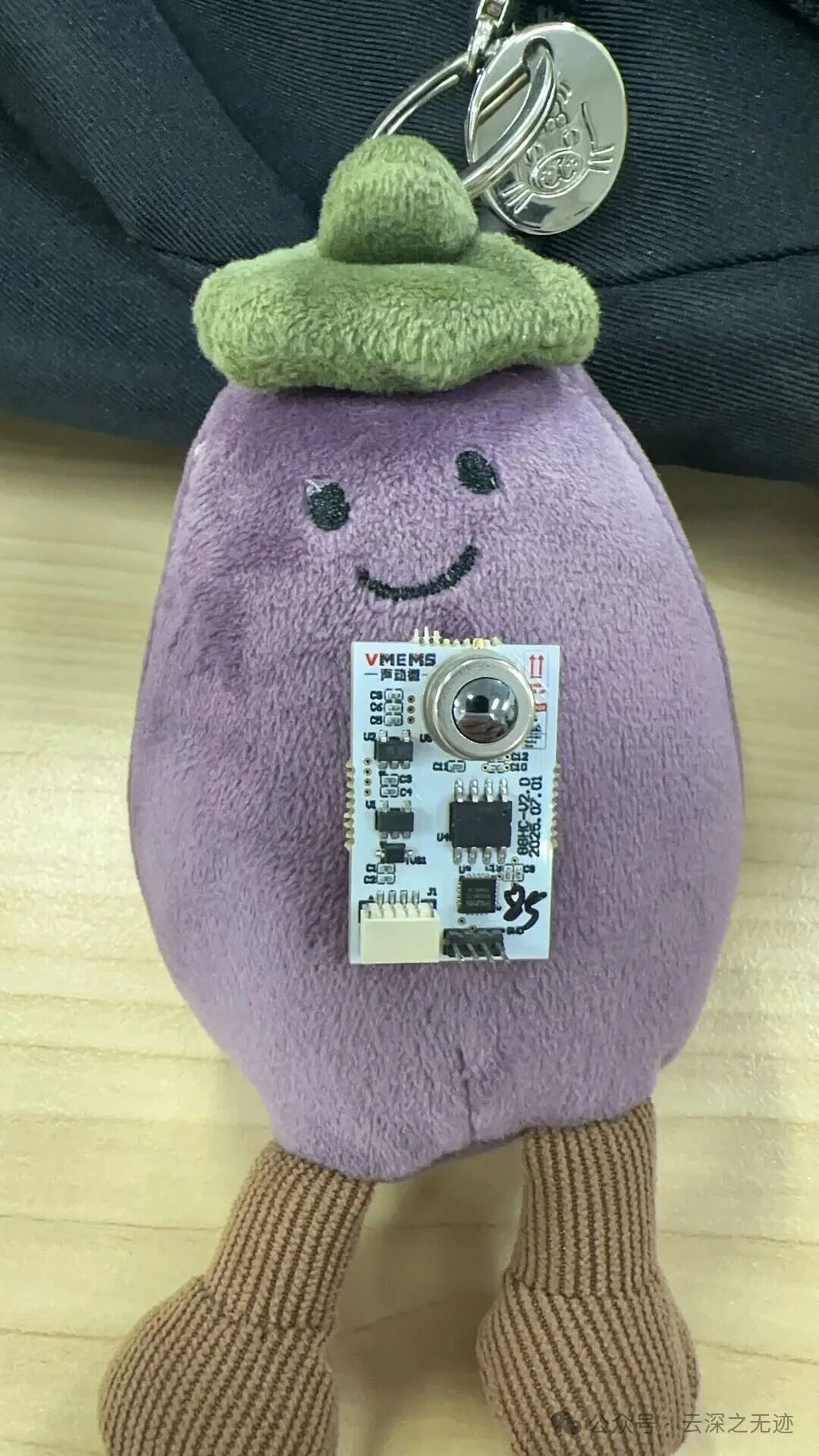

Currently, it is made into such a small module that can be directly connected via serial port. In the future, sensors will also be sold directly, allowing customers to design the subsequent parts themselves.
Pin Description
| Pin Number | Name | Function |
|---|---|---|
| 1 | GND | Ground |
| 2 | RX | Serial Receive |
| 3 | TX | Serial Transmit |
| 4 | VDD | 5 V Power Supply |
Absolute Maximum Ratings
VDD: Typical 5 V, maximum 6 V.
Operating current: 4.2 mA.
Operating temperature: -20 ~ 85 ℃.
Storage temperature: -40 ~ 85 ℃.
ESD: 2 kV (HBM).
Note: Exceeding the maximum ratings may cause permanent damage.

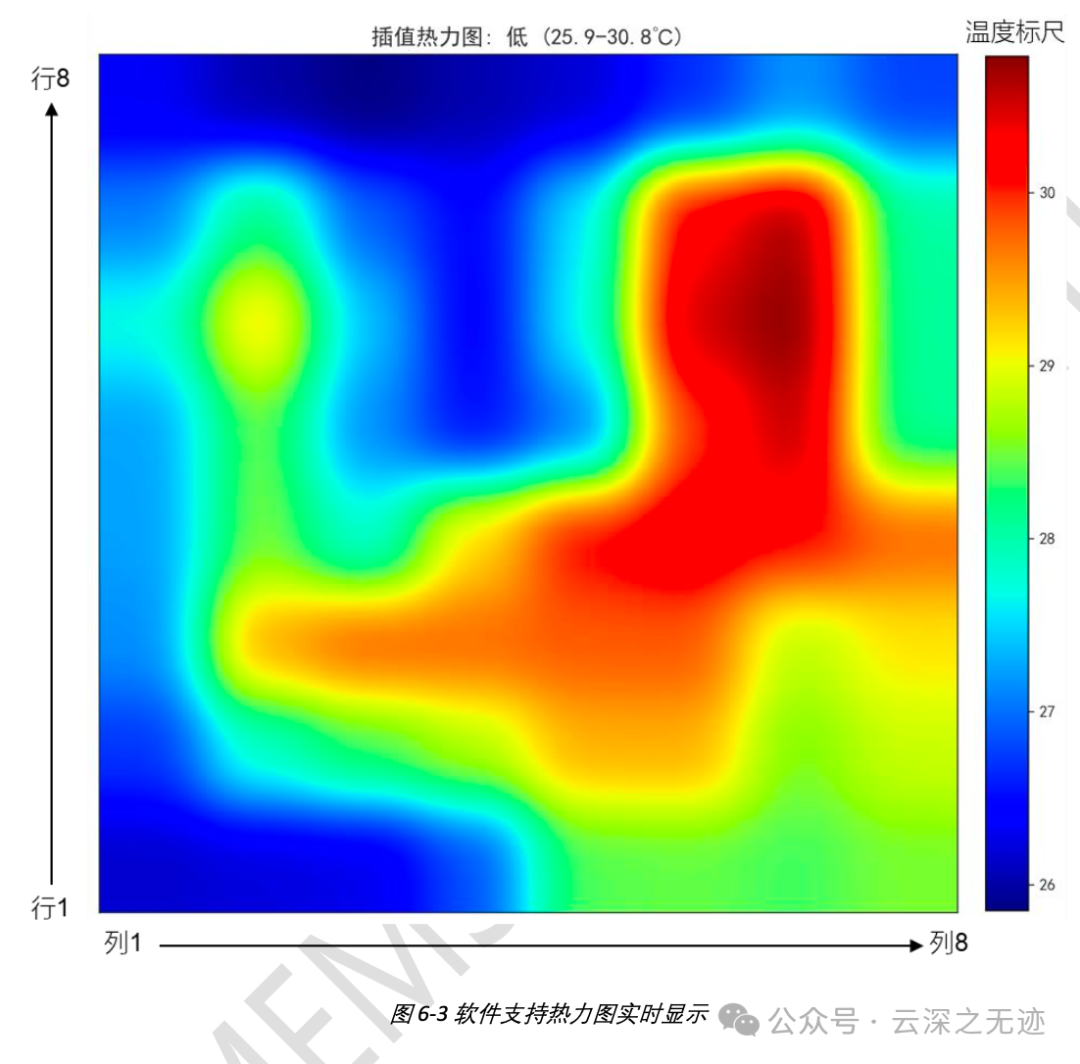

The host computer supports thermal imaging, but I can also write it, depending on whether there is a need.
As a professor at this school, I will definitely have the advantage of being close to the source:

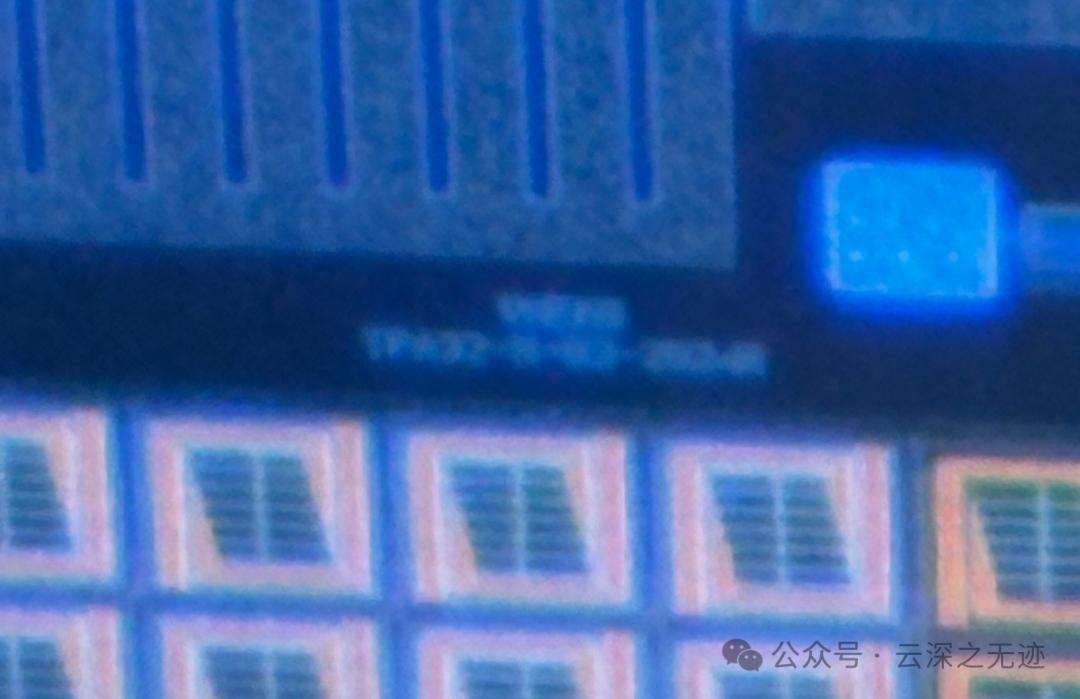

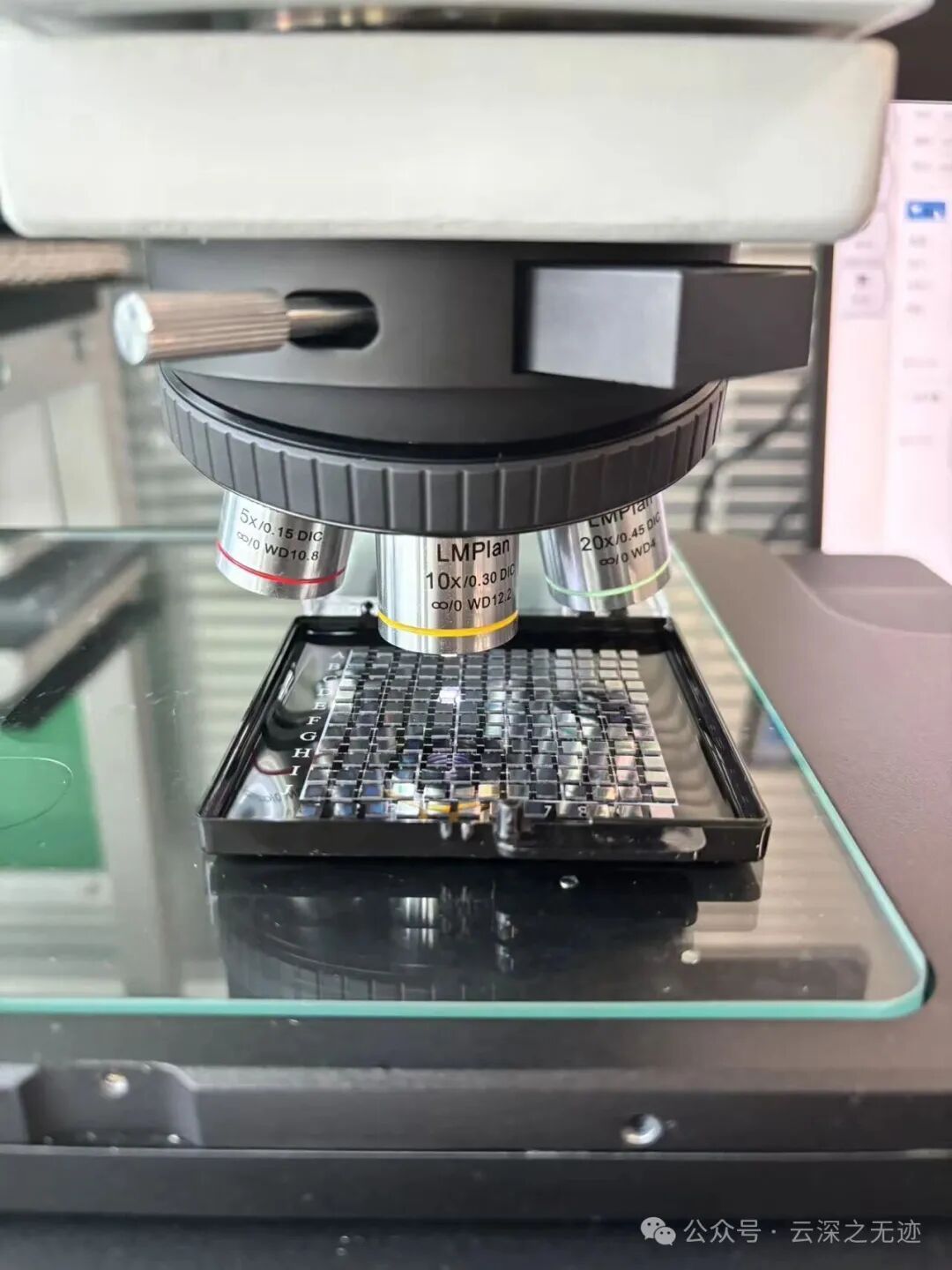

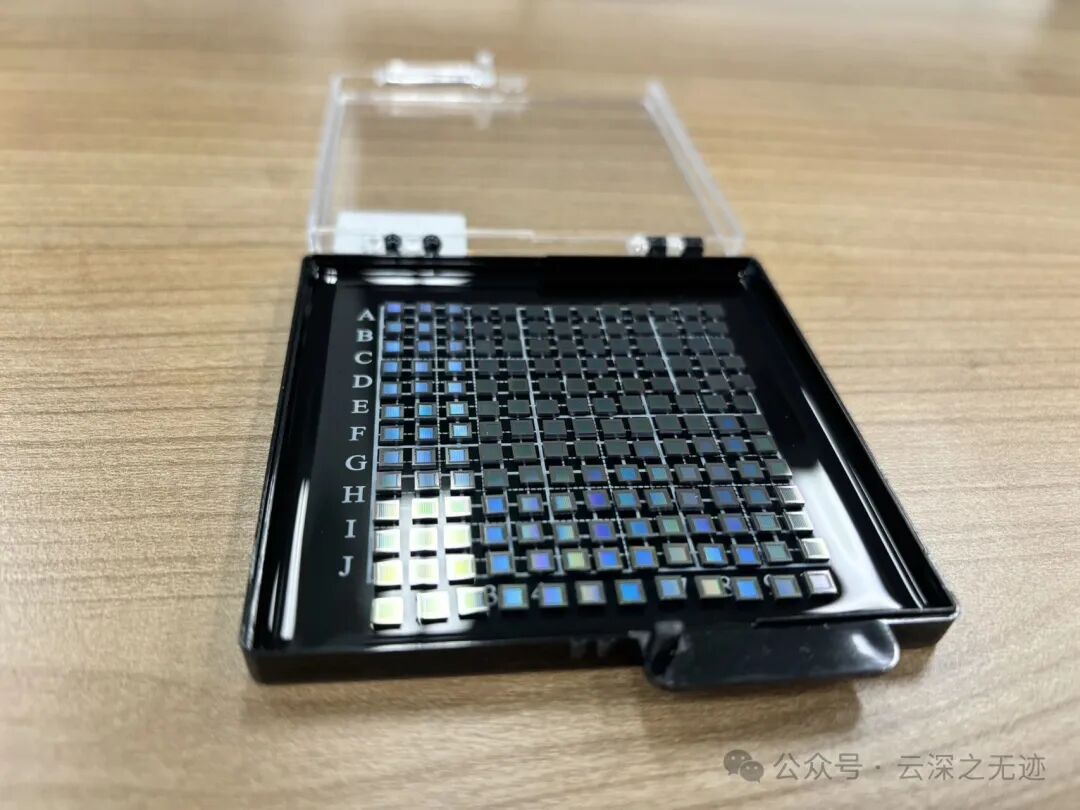

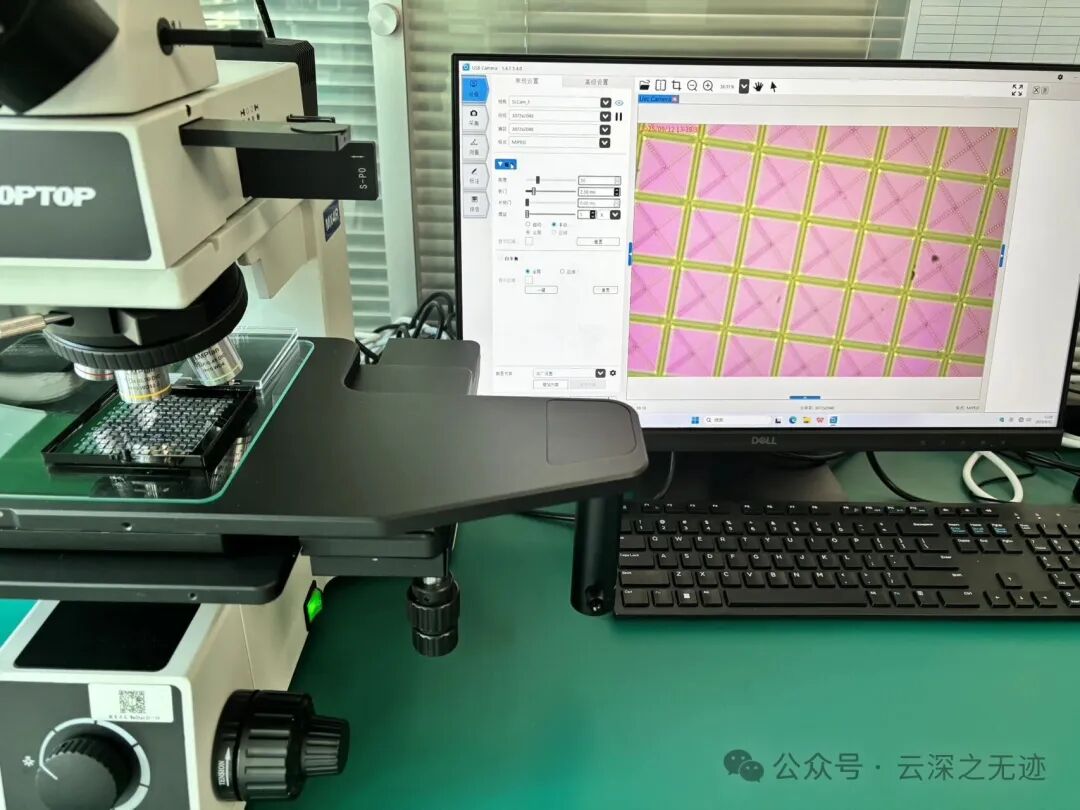

In fact, MEMS devices are also a type of semiconductor design:

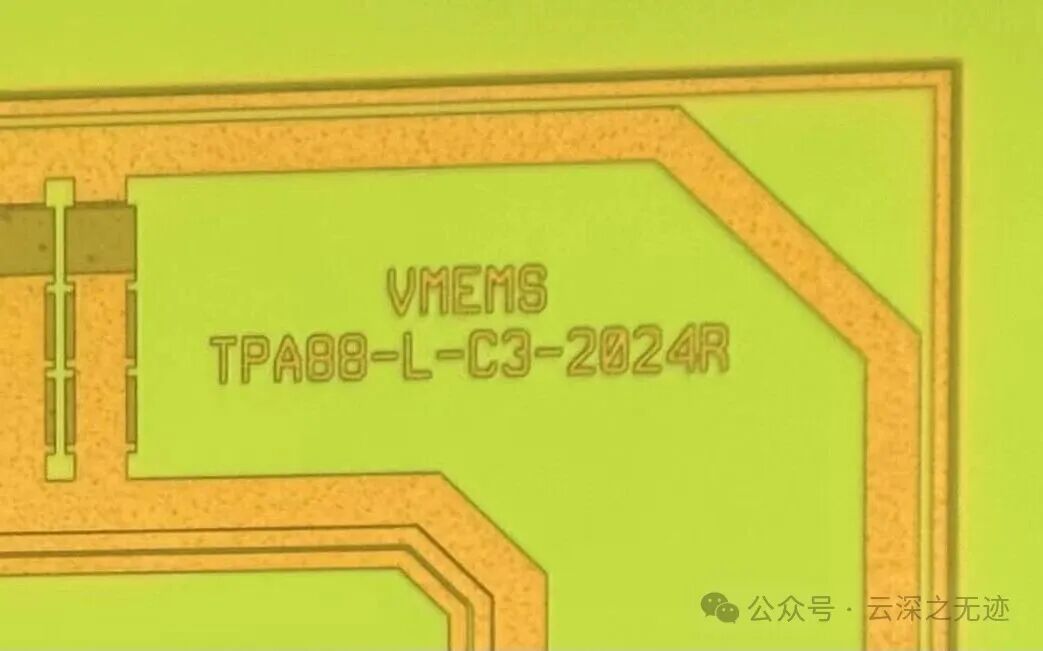

Additionally, the device actually comes from:
Moreover, the price is attractive; those interested can contact the sales team: [email protected]
