In industrial automation systems, precise control and real-time data monitoring of flow pumps are the lifelines that ensure production continuity and process accuracy. However, many early deployed flow pumps are only equipped withRS232 interfaces, akin to having strong internal skills but being limited by the meridians—short data transmission distances (usually ≤15 meters), low rates (≤115.2kbps), and the inability to network multiple devices, making it even more challenging to connect to modern DCS/PLC systems based on the Profibus-DP architecture. How to break through the protocol barriers and achieve millisecond-level collection and closed-loop control of flow data? This has become a real challenge facing engineers.

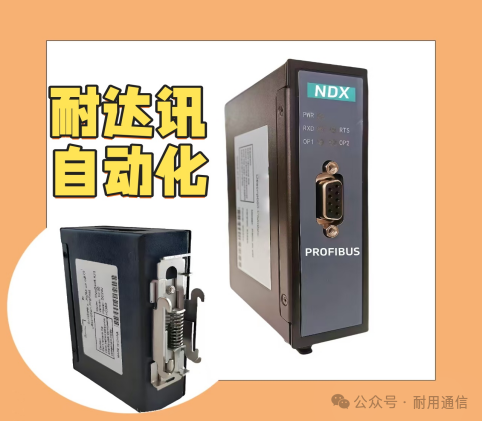

True protocol conversion is not merely a simple electrical interface adaptation, but a deep analysis and reconstruction of data semantics. The professional-grade Naisun Automation RS232-Profibus gateway plays the role of an “intelligent translator.” Its core capabilities are reflected in:
Real-time data exchange: Relying on the gateway’s internal dual-port RAM and dedicated ASIC chip, it packages the asynchronous serial data from RS232 into cyclic synchronous messages for Profibus-DP, with a cycle period compressed to less than 1ms;
Signal integrity assurance: Supports 9.6kbps~12Mbps baud rate adaptation, with a bit error rate lower than 10⁻¹¹, and features 3000Vrms optical isolation, effectively suppressing ground loops and electromagnetic interference;
Flexible configuration capability: By importing GSD files, flow pumps can be mapped as standard slaves in the Profibus network, supporting up to 244 bytes of input/ output data exchange, easily integrated into STEP7, TIA Portal, and other engineering platforms.

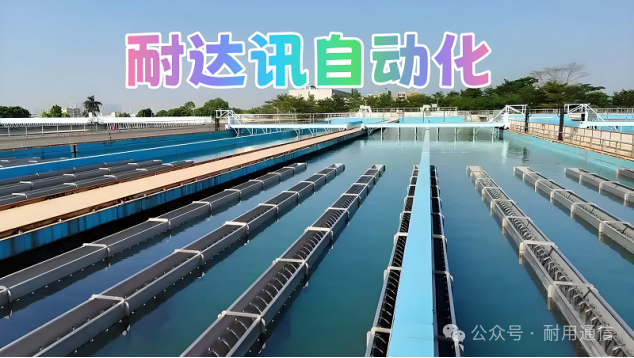

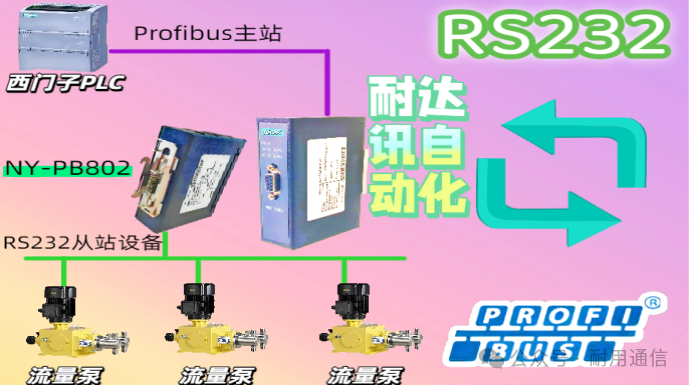

In a smart transformation project of a large water utility group, 4 RS232 flow pumps used for chemical additive dosing faced the dilemma of data islands. Control commands relied on a PC relay, with response delays of up to 800ms, and frequent data packet loss. By deploying a multi-serial port Naisun Automation Profibus gateway, the control architecture was restructured:
Results: Response delays were reduced to ≤ 25ms, achieving flow regulation of ± 0.5%;
Value: Eliminated the original PC relay stage, enabling direct closed-loop control through PLC, reducing maintenance costs by 40%, and leveraging Profibus diagnostic functions for predictive maintenance.
Conclusion: In the wave of industrial digitization, true intelligence lies not in eliminating old equipment, but in how to rejuvenate traditional equipment. The Naisun Automation RS232 to Profibus conversion solution is a perfect embodiment of this intelligence—it serves as both a technical protocol translator and a value asset awakener. Through precise protocol conversion and data reconstruction, we not only opened up the meridians of information transmission but also built a new industrial ecosystem that embraces both tradition and innovation, balancing cost and efficiency.
