Marvell Single WiFi Module Overview

Marvell WiFi Module Introduction

Single WiFi + MCU Module Chip:

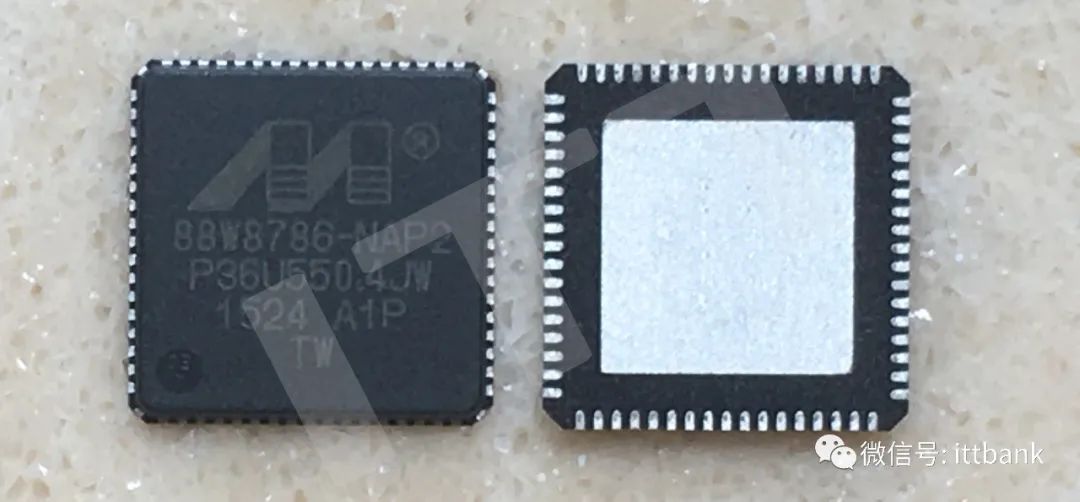

Marvell 8786 Chip:

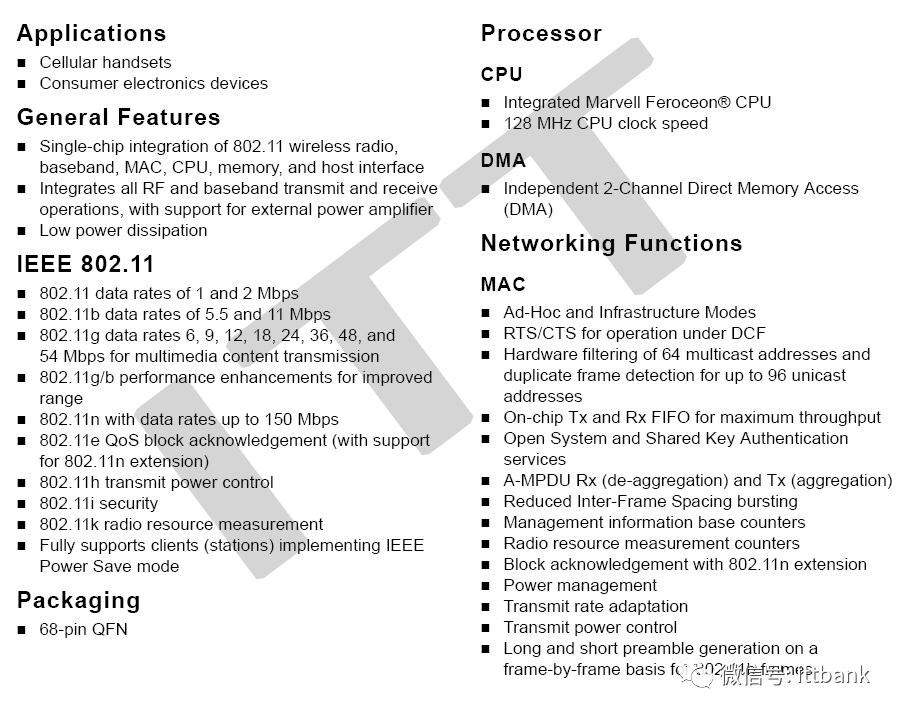

• Supports IEEE802.11b/g/n;

• Supports SDIO2.0 and USB2.0 interfaces;

• Ultra-small size: 4.87mm * 7.67mm * 0.4mm;

• ROHS certified;

• Supports 2.4G single band;

• Bandwidth: 20T/40T;

• Rate: 150Mbit/s 1T1R;

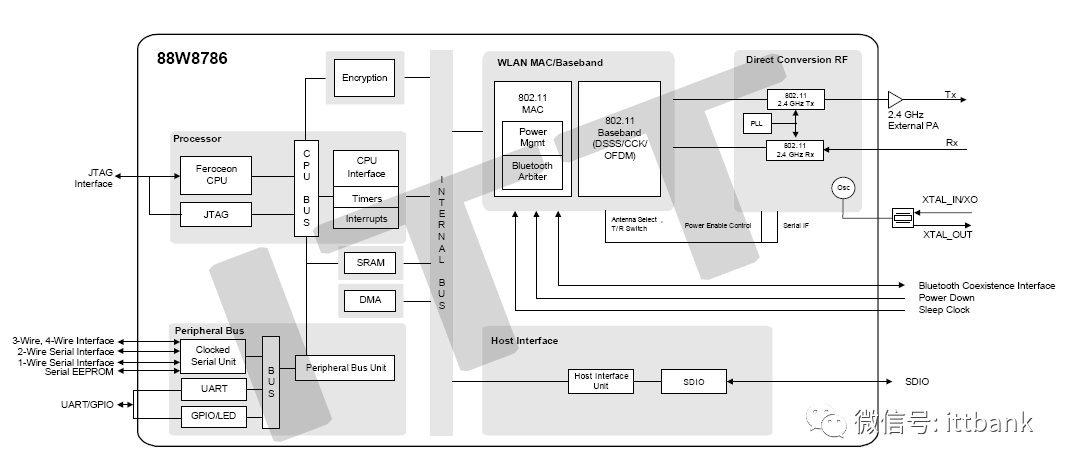

• Integrated Marvell Feroceon@CPU

• 128 MHz CPU clock speed

• Supports UART and GPIO

Provides Android drivers, application platforms include:

• Amlogic (晶晨): S905 S905X S905X2 S905W S905D;

• Rockchip (瑞芯微): RK3128 RK3288 RK3328 RK3368;

• Allwinner (全志): H6 H8

• Freescale (飞思卡尔): iMX6 series

• Intel + Windows

Main Applications:

Mainly used in OTT boxes, projectors, automotive equipment, tablets, and smart devices with WiFi.

Contact Information

For inquiries regarding the WiFi module, contactWu 15999663534

Click “Read Original” to enter the ittbank micro-mall to view specific details of this module
