Broadcom 2T2R WiFi Module Overview

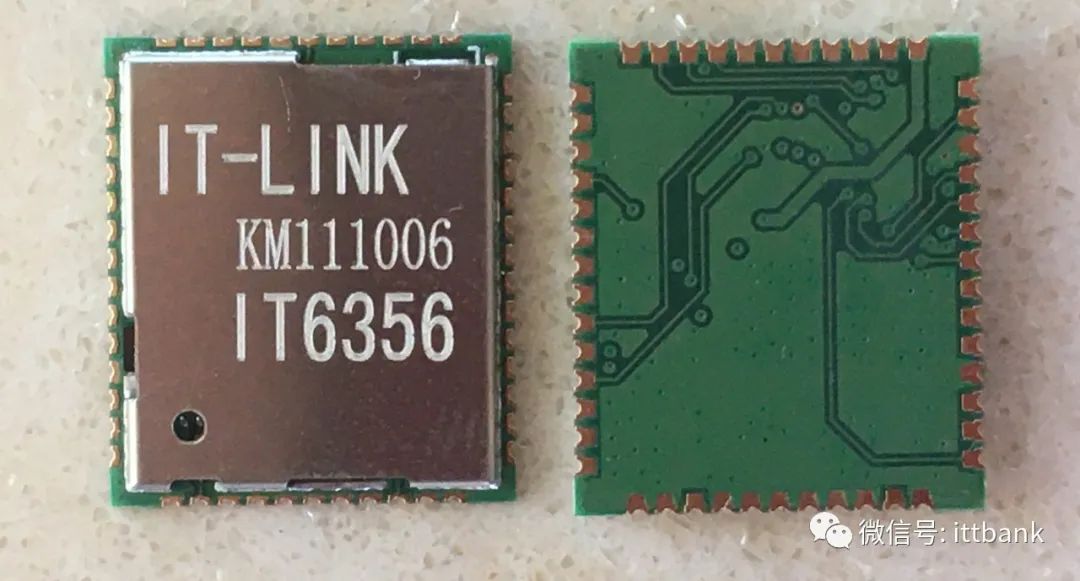

IT6356 WiFi Module Introduction

WiFi/BT/FM 3-in-1 Module:

This module supports dual-band 2.4G + 5G, 802.11a/b/g/n/AC, and Bluetooth 4.0; 2T2R dual antennas.

It has the following advantages:

• 1. Fast Speed: Supports the latest WiFi standards, 802.11a/b/g/n/AC; supports Bluetooth 4.0;

• 2. Good Signal: Supports 5G WiFi, less interference, fast speed, avoiding interference and competition from Bluetooth, Zigbee, and regular 2.4G WiFi signals;

• 3. Bandwidth: 20T/40T/80T;

• 4. Rate: 867Mbit/s 2T2R;

• 5. Size: 13mm x 15mm x 2.1mm;

• 6. Low Power Consumption: Millions of applications in smartphones and tablets, meeting the most stringent mobile power consumption standards;

• 7. High Quality: The module uses top-tier Broadcom WiFi chips and Murata chip-level packaging technology;

• 8. Competitive Price: Significant price advantage compared to Taiwan’s AP6354 and AP6356S series with similar specifications;

• 9. Stable Performance: The module integrates a built-in crystal oscillator in a very small size, saving costs for customers and avoiding frequency calibration production processes, as well as issues like frequency offset and instability caused by external crystal oscillators;

• 10. Good Compatibility: For modules already using the Zhengji series, we provide a pin-compatible adapter board for free, allowing customers to produce without changing hardware design files.

Broadcom BCM4354 Chip + Murata Chip-Level Packaging Technology:

• Supports IEEE802.11a/b/g/n/AC;

• Supports Bluetooth V4.0 + HS;

• SDIO V3.0 interface;

• Ultra-small size: 9.2mm * 5.7mm * 1.2mm, weight: 169.8mg;

• ROHS certified;

• Includes FM;

• Supports dual-band 2.4G/5G;

• Bandwidth: 20T/40T/80T;

• Rate: 867Mbit/s 2T2R;

• Supports concurrent operation of WiFi/BT;

• Provides compatible AP6354/AP6356S and RTL8822 pin adapter boards;

• Provides Android and Linux drivers;

Application Platforms:

• Amlogic: S905 S905X S905X2 S905X3 S905W S905D S912;

• Rockchip: RK3128 RK3288 RK3328 RK3368 RK3399;

• Allwinner: H6 H8;

• Freescale: iMX6 series;

• Samsung;

Main Applications:

OTT boxes, projectors, automotive devices, tablets, and WiFi-enabled smart devices.

IT6356 WiFi Module Success Cases

Contact Information

For inquiries related to WiFi modules, contactEngineer Wu 15999663534
