Marvell Single WiFi Module Overview

Introduction to Marvell WiFi Module

Single WiFi + MCU Module Chip:

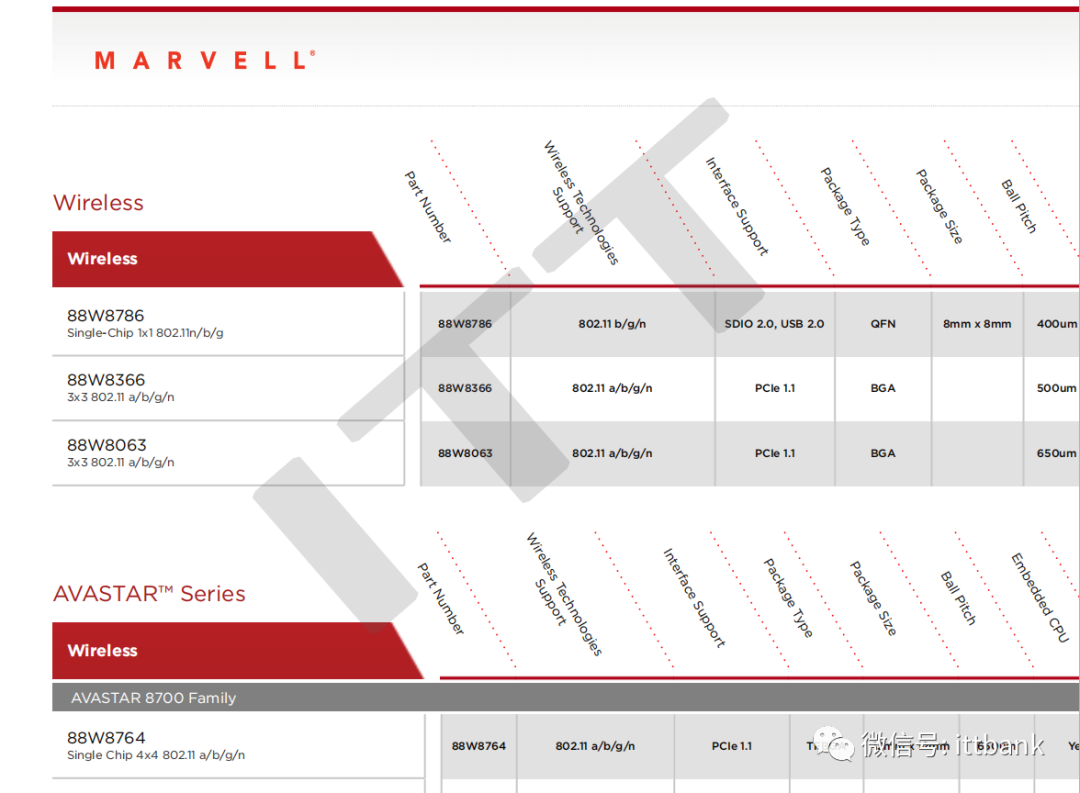

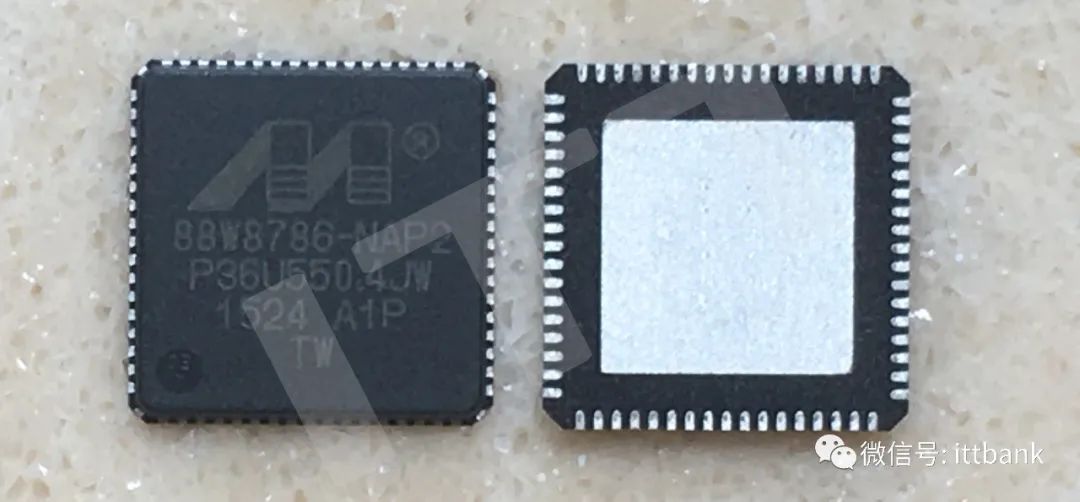

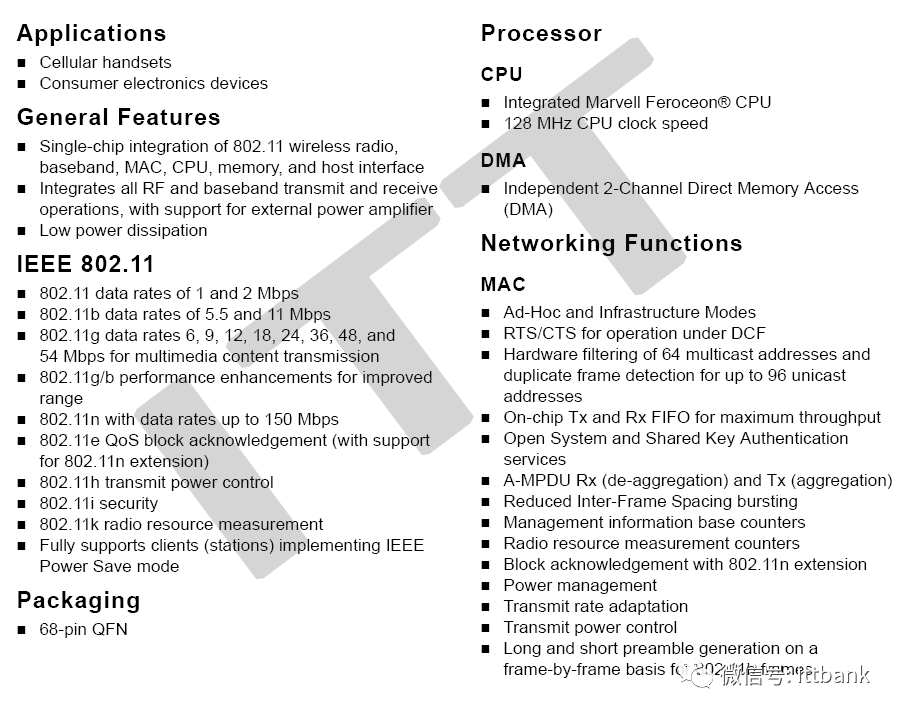

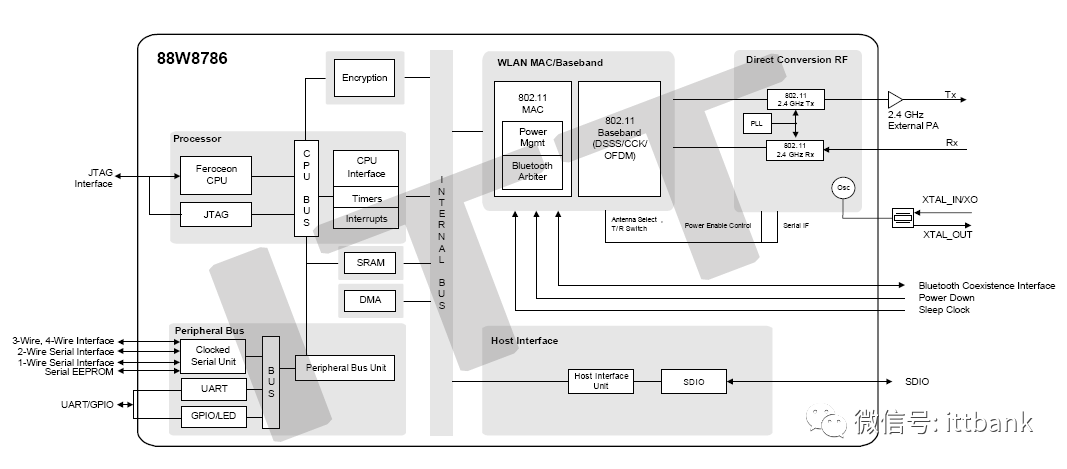

Marvell 8786 Chip:

• Supports IEEE802.11b/g/n;

• Supports SDIO2.0, USB2.0 interfaces;

• Ultra-small size: 4.87mm * 7.67mm * 0.4mm;

• ROHS certified;

• Supports 2.4G single band;

• Bandwidth: 20T/40T;

• Rate: 150Mbit/s 1T1R;

• Integrated Marvell Feroceon@CPU

• 128 MHz CPU clock speed

• Supports UART and GPIO

Provides Android drivers, application platforms as follows:

• Amlogic (晶晨):S905 S905X S905X2 S905W S905D;

• Rockchip (瑞芯微):RK3128 RK3288 RK3328 RK3368;

• Allwinner (全志):H6 H8

• Freescale (飞思卡尔):iMX6 series

• Intel + Windows

Main Applications:

Mainly used in OTT boxes, projectors, automotive devices, tablets, and smart devices with WiFi.

Contact Information:

For inquiries regarding the WiFi module, contactWu Gong 15999663534
