A Bluetooth module is a functional component that can only perform all its functions when embedded in a suitable system. When selecting a Bluetooth module for your product, both hardware and software aspects need to be thoroughly examined.

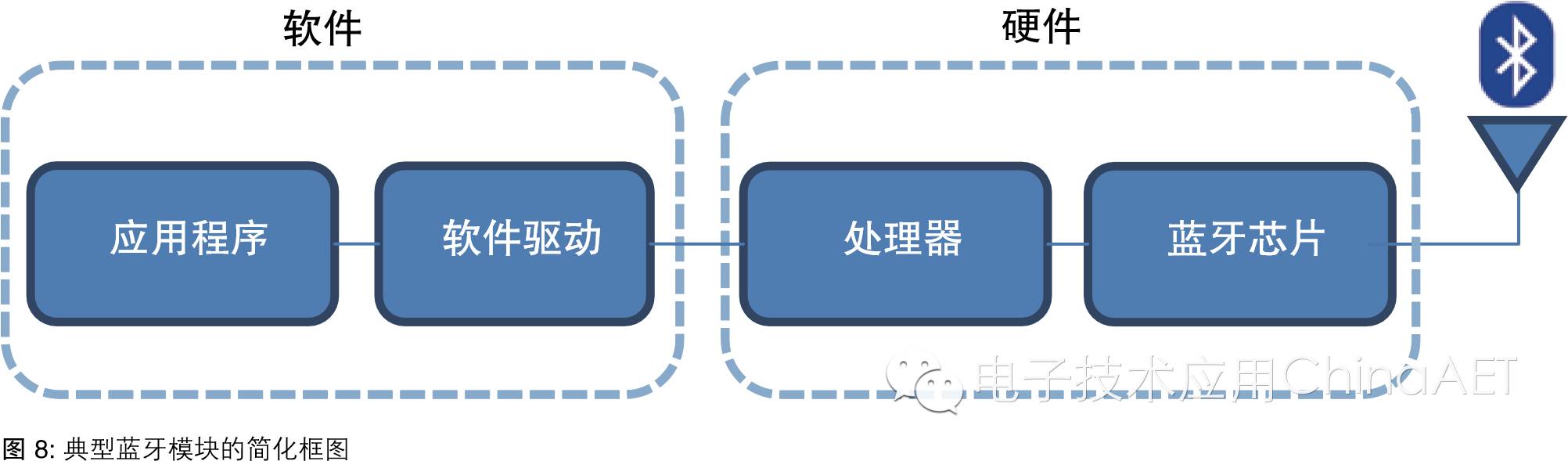

The following diagram is a simplified structural diagram of a Bluetooth module.
The hardware of a Bluetooth module consists of two parts: the Bluetooth chip and the application processor. Currently, more products on the market are purchased directly from module manufacturers such as Laird Technologies, Quatech, and Roving Networks, which come with an application processor, and are then embedded directly into their products. The application processor in the module includes internal or external flash memory, ROM, and RAM. The module also provides different I/O interfaces to serve various applications, including clocks, serial communication interfaces, analog comparators, ADC, DAC, oscillators, and debugging interfaces, etc.
Bluetooth modules generally also require specific software support tailored to different applications to ensure security, ease of use for users, and management for developers. The software component of the module, as shown in the figure, usually includes drivers and comprehensive management and control programs.

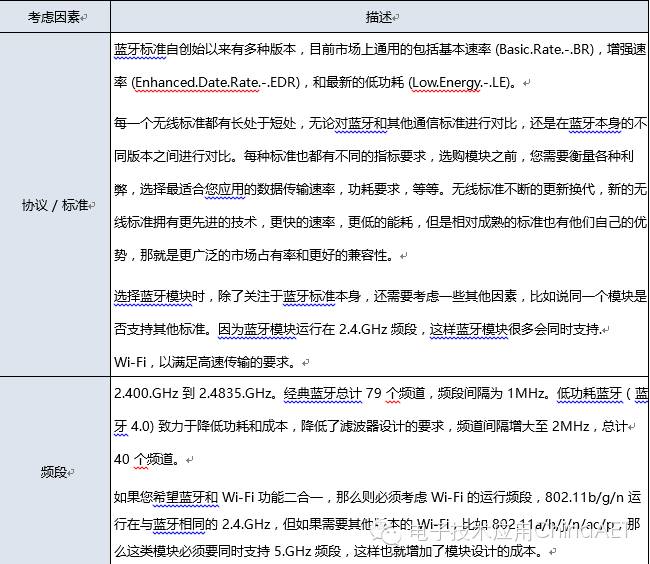

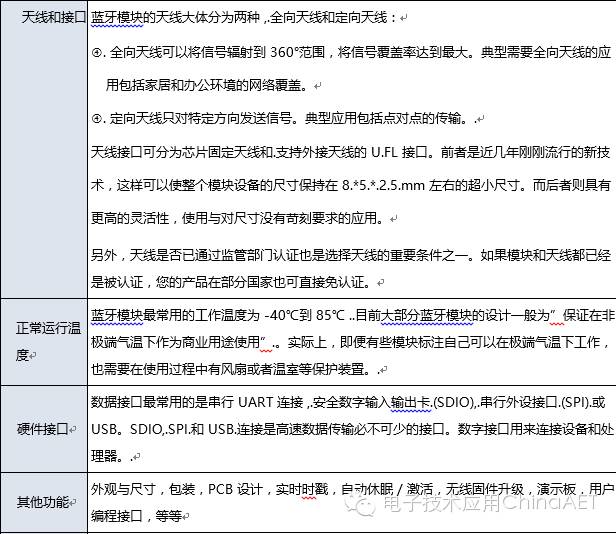

When you are selecting a Bluetooth or other RF module, there may be more choices and solutions available in the market than you can imagine. Module manufacturers or suppliers typically categorize modules based on criteria such as transmission speed, transmission distance, frequency band, certification status, packaging size, etc. Below, we will briefly introduce how to choose a suitable Bluetooth module based on parameters that may appear in searches.

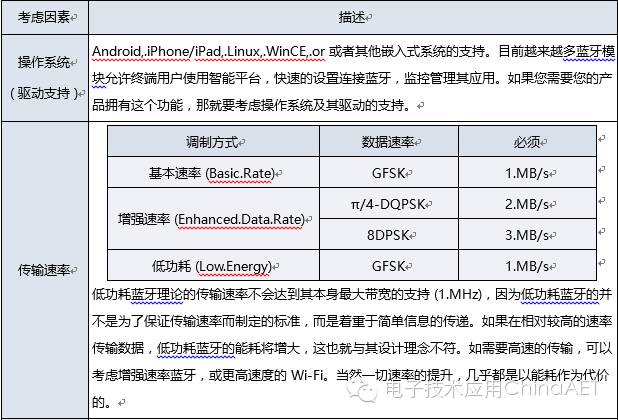

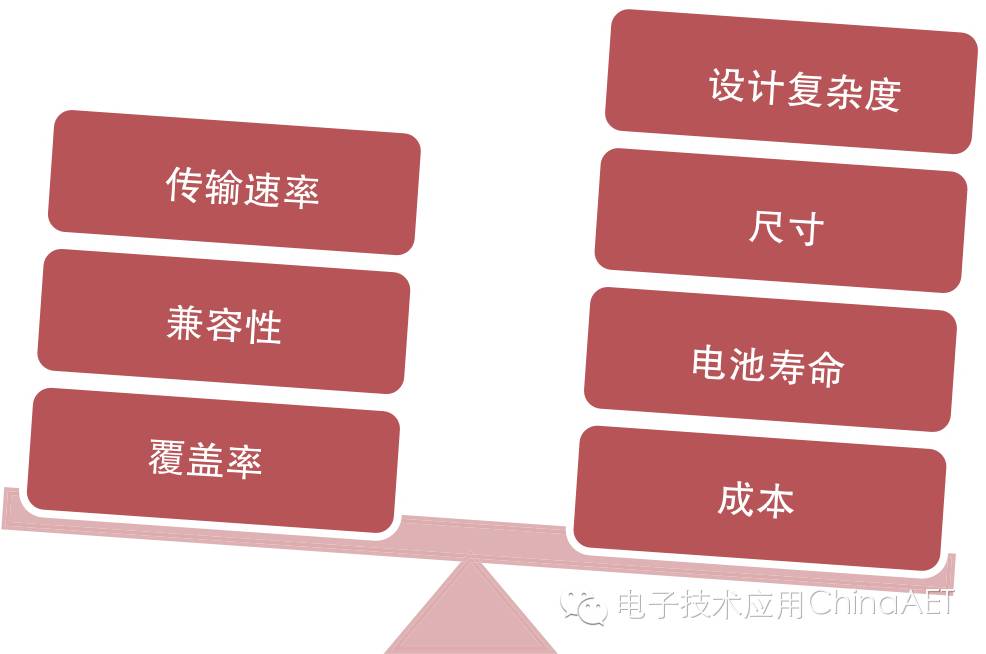

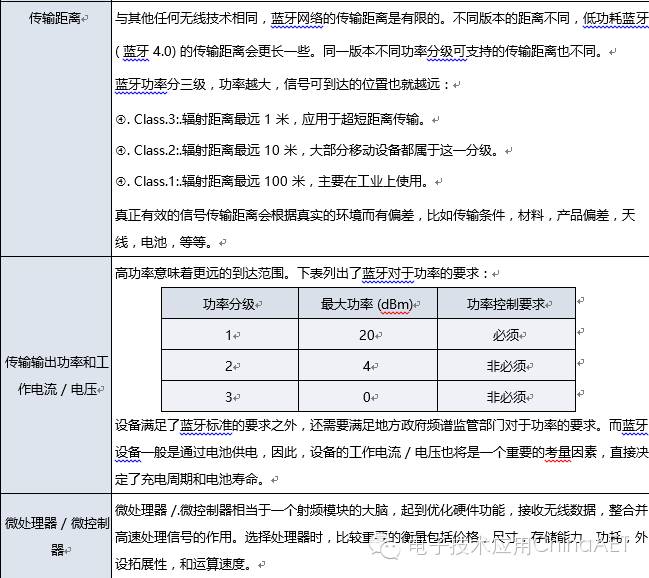

When choosing a Bluetooth module, the three most critical factors are: speed, range, and power consumption. Over the past 10 to 20 years, the technology community has continuously worked to transmit data faster wirelessly, making wireless communication systems’ multiplexing methods, encoding methods, and modulation methods increasingly complex, while the cost and power consumption of processing calculations have also increased. In terms of Bluetooth technology, it is not known for high-speed transmission; if your application requires high speed, it is recommended to consider high-speed Wi-Fi protocols such as 802.11n and 802.11ac. Many modules also embed Bluetooth functionality to expand the compatibility of your devices. Conversely, if your application only cares about connectivity, such as health monitoring or security monitoring, then power consumption metrics may be your priority.
◆ ◆ ◆ ◆ ◆◆ ◆ ◆ ◆ ◆◆ ◆ ◆ ◆ ◆◆ ◆ ◆ ◆ ◆
