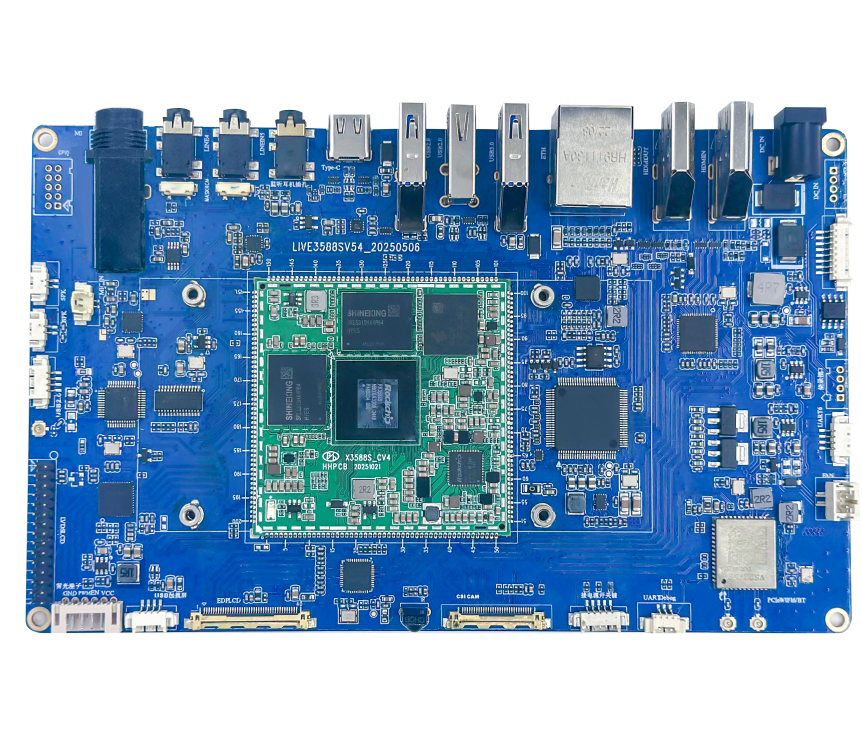

Exploring the X3588SCV4
Jiuding
Redefining Performance Standards for High-End Embedded Devices
In the era of data deluge, the perfect combination of computing power and display is quietly transforming every aspect of our lives. In fields such as smart security, smart healthcare, industrial automation, and digital signage, devices are facing unprecedented demands for data processing and display. A powerful and reliable processor has become the core driving force behind these applications. The X3588SCV4, developed independently by Shenzhen Jiuding Chuangzhan Technology Co., Ltd., is based on the flagship RK3588 architecture from Rockchip. With its 8K encoding and decoding capabilities, 6TOPS NPU computing power, and multi-screen display technology, it is becoming a key engine for the evolution of high-end embedded devices.
01
Powerful Core: The Hardware Foundation of Exceptional Performance
The RK3588 chip equipped in the X3588SCV4 adopts an 8nm process technology, integrating a typical big.LITTLE architecture with four Cortex-A76 cores and four Cortex-A55 cores.
This design fully considers the balance between performance and power consumption, with the big cores reaching a frequency of up to 2.4GHz and the small cores at 1.8GHz.
The advanced 8nm process not only enhances processing efficiency but also significantly reduces power consumption, providing reliable hardware support for industrial devices operating under high loads for extended periods.
When processing large-scale data, the configuration of 1MB L2 Cache and 3MB L3 Cache provides stronger CPU computing capabilities, effectively reducing data access latency.
Whether it is multi-channel video analysis in smart security systems or real-time sensor data processing in industrial automation scenarios, the X3588SCV4 can handle it with ease.
Part.02
Visual Revolution: Display and Encoding Beyond Imagination
The X3588SCV4 utilizes Rockchip’s fourth-generation encoding and decoding technology, achieving true 8K video encoding and decoding, with clearer images and richer details.
This technological breakthrough enables the device to support display outputs of up to 7680×4320@60Hz, providing users with a stunning visual experience.
In addition to supporting mainstream 8K@60fps H.265 decoders, it is also compatible with 8K@60fps VP9 decoders and 4K@60fps AV1 decoders, meaning the X3588SCV4 can seamlessly play various formats of ultra-high-definition content.
The multimedia processing capability is equally impressive—supporting simultaneous decoding of over 40 channels of 1080P video, meeting the stringent demands of multi-channel video applications such as security monitoring and video conferencing systems.
Part.03
AI Empowerment: Strong NPU Expanding Intelligent Boundaries
In the era of artificial intelligence, localized AI computing power has become a key indicator of embedded device performance. The built-in 6TOPs NPU of the X3588SCV4 provides strong support for various AI scenarios.
This NPU utilizes Rockchip’s fourth-generation AI computing engine with fully independent intellectual property rights, improving the utilization of MAC computing units and bandwidth consumption by 30%.
The efficient AI computing power enables the X3588SCV4 to quickly identify product defects in industrial quality inspection processes, such as real-time detection of cold solder joints and bridging in electronic component soldering, with an accuracy of 0.02mm.
In pharmaceutical blister packaging quality inspection, it can complete detection of missing particles and broken bubbles within 10ms, effectively improving the efficiency and accuracy of product quality inspection.
Part.04
Multi-Screen Display: Revolutionizing Interaction Experience
The X3588SCV4 supports four-screen display technology, capable of driving multiple display devices simultaneously, with each screen showing different content.
This feature gives it a significant advantage in scenarios such as smart cockpits, digital signage, and control consoles, with the RK3588 focusing on multi-screen and 360° surround view functions in smart cockpit solutions.
One chip can simultaneously drive multiple screens, including the central control screen, electronic rearview mirror screen, and headrest screens.
Additionally, the X3588SCV4 supports flexible VOP design, achieving up to 8K display and supporting up to 7-screen display, truly enabling ultra-high-definition, high frame rate, and multi-resolution display output combinations.
Part.05
Rich Interfaces: Ultimate Expansion Capability
The X3588SCV4 offers an extensive range of interface resources, including 2 HDMI 2.1, 2 eDP 1.3, 2 DP 1.4, 2 MIPI-DSI display interfaces, and multiple MIPI-CSI camera interfaces.
In terms of data interfaces, it is comprehensive—4 PCIe 3.0, 3 PCIe 2.0, 3 SATA 3.0, 3 USB 3.1, and 4 USB 2.0, meeting the application needs for various high-speed data transmissions.

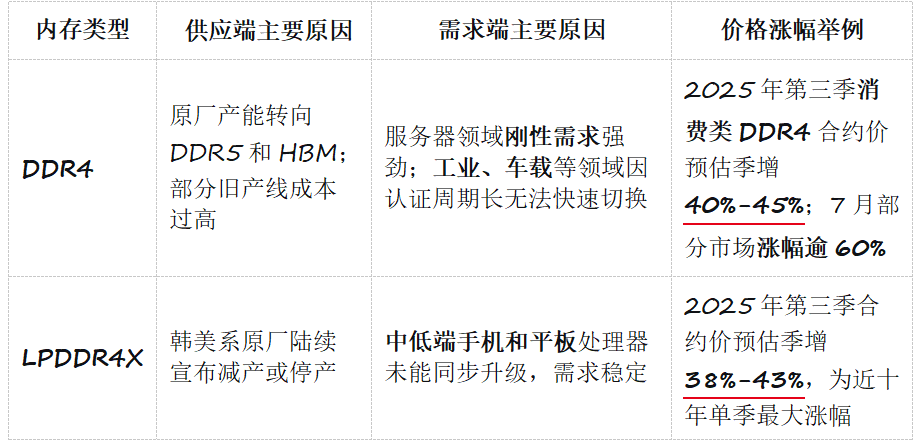

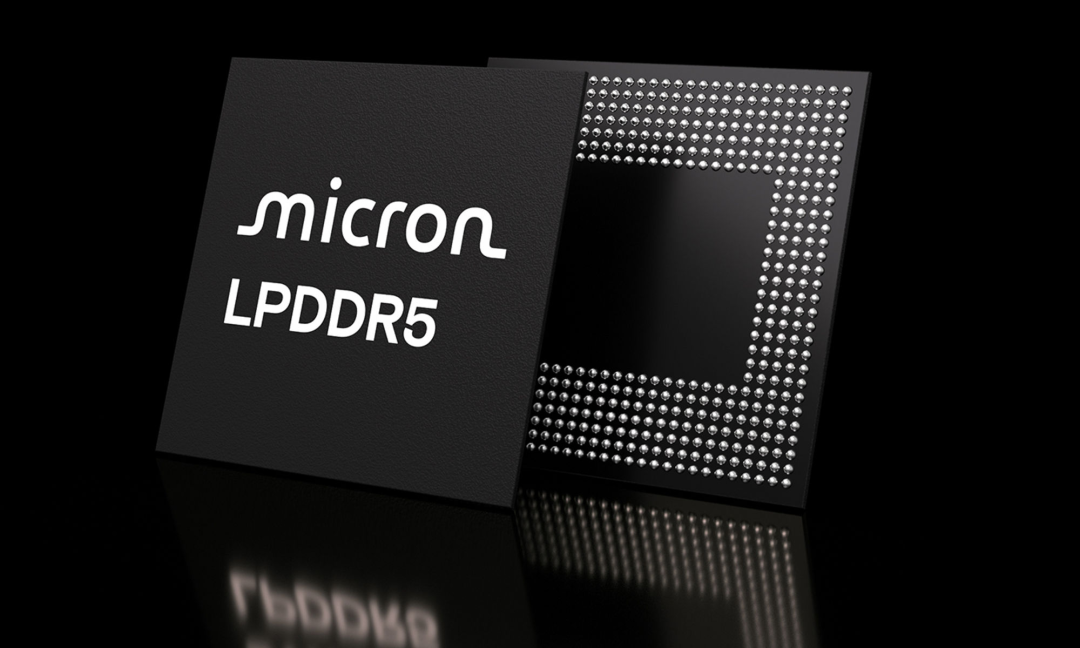

For storage interfaces, the X3588SCV8 supports industry-leading LPDDR5, providing strong hardware support for big data and AI applications. Supporting LPDDR5 is a trend of the times. Recently, prices for DDR4 and LPDDR4(X) memory modules have surged, leading to many questions. Let me clarify this for everyone. Why have prices surged? Because the three major global DRAM manufacturers (Samsung, SK Hynix, Micron) have shifted their production capacity to more profitable DDR5 and HBM (high bandwidth memory), resulting in a significant reduction in the supply of older generation memory, while market demand remains strong, creating a significant supply-demand imbalance.
The storage chip market is experiencing a strong recovery, with stock prices and prices rising together. Upstream manufacturers such as Samsung, Micron, and Hynix are accelerating their shift to high-profit products like DDR5, significantly reducing DDR4/LPDDR4 production, leading to shortages and price increases for older models, with some LPDDR4X prices even exceeding those of the new generation products. Driven by the demand from AI data centers, DRAM products have become the mainstay of performance, while many terminal product manufacturers and developers are facing rising storage cost pressures, accelerating the search for solutions. In the face of the significant challenge of cost control, this price crisis highlights the value of platforms supporting DDR5 memory, making them the most cost-effective “breakthrough” in the current situation.
Now is a critical juncture for the market to transition from DDR4 to DDR5. Although DDR4 can be applied to most electronic products on the market today, DDR4 is facing discontinuation, which will lead to a supply-demand imbalance in many terminal markets for electronic products. Therefore, it is wise to switch the development board to the X3588SCV4 development board and equip it with DDR5.
Part.06
Wide Applications: Empowering Various Industries
The strong performance of the X3588SCV4 allows it to shine in multiple fields:
In the smart security field, the RK3588-based NVR solution supports 2 channels of 320M access/forwarding/storage, with a maximum support for 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding, as well as single-channel 3200W IPC access.
In industrial automation, the X3588SCV4 can quickly process large amounts of sensor data, such as temperature, pressure, and humidity, achieving real-time monitoring and precise control of the production process.
Its multi-core architecture enables task-level parallelism, with the A76 big cores handling complex algorithms and real-time tasks, while the A55 small cores manage low-load logic.
In smart cockpit scenarios, the X3588SCV4 can simultaneously drive 5 screens, including a 2K resolution screen for central control, 1024*600 resolution screens for the left and right electronic rearview mirrors, and a 2K resolution headrest screen for the rear seats.
In edge computing scenarios, the built-in 6TOPS NPU of the X3588SCV4 can accelerate target detection models such as YOLO, meeting the edge computing needs of most terminal devices.
The X3588SCV4 provides not just a chip, but a key to unlocking the future of smart devices. From smart city security monitoring to Industry 4.0 smart manufacturing, from immersive entertainment experiences to the cockpit revolution in smart travel, its application boundaries are continuously expanding.
Choosing the X3588SCV4 means choosing a smarter, more efficient, and more connected world—where technology truly serves humanity and creates infinite possibilities.
