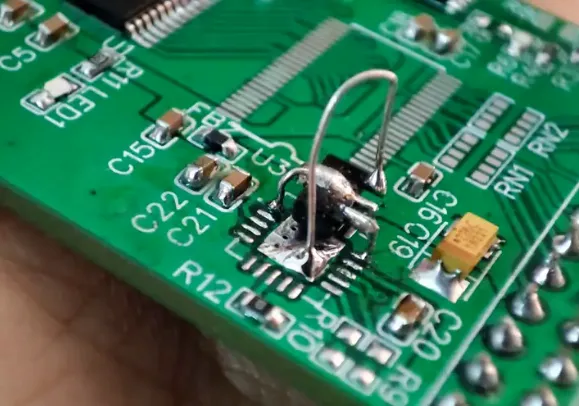

In the control room of a southern factory, technician Xiao Wang was puzzled by the frequent malfunctions of the PLC module. Upon opening the casing, the once pristine PCB surface was now covered with spiderweb-like green rust. These shocking corrosion marks reveal the deadly threat posed by environmental erosion in the mass production of PCBs. Quality Director Engineer Li pointed out: “In mass production, 5% of early failures often stem from environmental erosion, which is characterized by its strong concealment and high destructiveness.”
1. Temperature differences trigger a material “tug-of-war”
In the field of PCB mass production, the glass transition temperature (Tg value) of the substrate directly determines the product’s temperature resistance. When the operating temperature exceeds the Tg value, the epoxy resin substrate transitions from a glassy state to a rubbery state, leading to catastrophic consequences. Due to the difference in the coefficient of thermal expansion (CTE) between FR-4 substrates (CTE 14ppm/°C) and chip packaging (CTE 6ppm/°C), solder joint fractures can occur after 3000 temperature cycles.
2. Moisture penetration:
When the environmental humidity exceeds the critical point of 60%, a water film approximately 5μm thick forms on the PCB surface, opening the Pandora’s box of electrochemical corrosion. A detection report of an underwater robot control board after 200 hours in a salt mist environment showed that the insulation resistance between traces spaced 0.5mm apart dropped sharply from 10^12Ω to 10^6Ω. Water molecules act like nano-scale electrochemical soldiers, continuously transporting copper ions to form dendritic growth. In mass-produced PCBs, this electrochemical migration phenomenon is particularly evident in densely routed areas; when the spacing between the 48V power rail and signal lines is less than 0.3mm, a conductive path can form in just 72 hours.
3. Chemical corrosion:

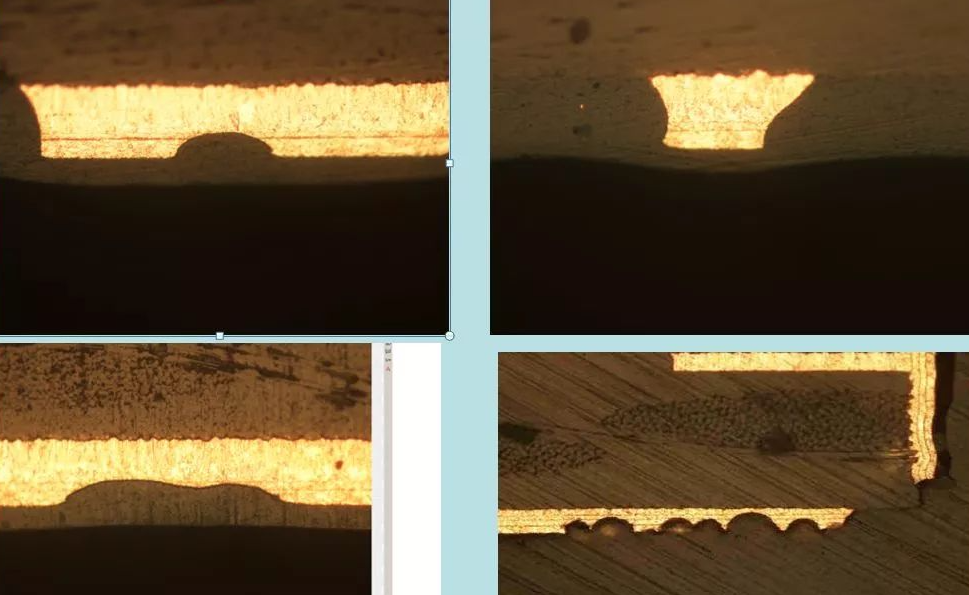

The electrolyte film formed by salty air along the coast is quietly eroding the lifecycle of PCBs. Disassembly of a main control board that was mass-replaced at a wind farm showed extensive ulcerative corrosion on the power layer after 18 months of operation, with corrosion products expanding by 300% leading to layer separation. XRD analysis confirmed that the generated Cu2(OH)3Cl crystals, although 5 orders of magnitude less conductive than pure copper, are sufficient to cause microampere leakage currents. This phenomenon of “chronic poisoning” occurs at an annual rate of up to 7.2% in mass-produced PCBs using standard OSP processes.
Building a protective system:
1. Medium protection: Use modified poly-p-xylene three-proof paint to extend salt mist resistance to over 2000 hours;
2. Material upgrade: Choose low CTE ceramic-filled substrates to control the Z-axis expansion coefficient within 40ppm/°C;
3. Process innovation: Implement ENIG + chemical nickel-palladium-gold composite surface treatment, improving salt mist resistance to 96 hours;
4. Environmental monitoring: Deploy an IoT humidity sensor network to achieve real-time warnings of corrosion risks.
