Cooperative Communication Simulation with Matlab Source Code

1 Introduction

Cooperative communication simulation

2 Code Section

%multi-hop , main programtic% --------------% Set Parametersnr_of_iterations = 1000;SNR = [-10:1:10];use_direct_link = 1;use_relay = 1;global statistic;statistic = generate_statistic_structure;global signal;signal = generate_signal_structure;signal(1).nr_of_bits = 2^10;signal.modulation_type = 'BPSK';% 'BPSK', 'QPSK'calculate_signal_parameter;channel = generate_channel_structure;channel(1).attenuation(1).pattern = 'Rayleigh';% 'no','Rayleigh'channel(1).attenuation(1).block_length = 1;channel(2) = channel(1);channel(3) = channel(1);channel(4) = channel(1);channel(5) = channel(1);channel(6) = channel(1);channel(7) = channel(1);channel(8) = channel(1);channel(9) = channel(1);channel(10) = channel(1);channel(11) = channel(1);channel(12) = channel(1);rx = generate_rx_structure;rx(1).combining_type = 'ERC'; %'ERC','FRC','SNRC','ESNRC','MRC'rx(1).sd_weight = 3;  % used for 'FRC'global relay;relay = generate_relay_structure;relay(1).mode = 'DAF'; %'AAF', 'DAF'relay.magic_genie = 0;relay(1).rx(1) = rx(1); % same behaviorchannel(1).attenuation.distance = 1;channel(2).attenuation.distance = 0.5;channel(3).attenuation.distance = 0.5;% ----------------% Start SimulationBER = zeros(size(SNR));for iSNR = 1:size(SNR,2)% returns the size of the dimension of SNR specified by scalar 2disp(['progress: ',int2str(iSNR),'/',int2str(size(SNR,2))])  %  Convert integer to string%%%%%%%%%%%%%%%%%%%%%%channel(1).noise(1).SNR = SNR(iSNR); % iSNR ??????channel(2).noise(1).SNR = SNR(iSNR);channel(3).noise(1).SNR = SNR(iSNR);for it = 1:nr_of_iterations;% --------------% Reset receiver rx = rx_reset(rx);relay.rx = rx_reset(relay.rx);% -----------% Direct linkif (use_direct_link == 1)[channel(1), rx] = add_channel_effect(channel(1), rx,...signal.symbol_sequence);rx = rx_correct_phaseshift(rx, channel(1).attenuation.phi);end% ------------Relay Transmission---------------if (use_relay == 1)  % Use relay cooperation% ----------Only 1 relay---------% Sender to relay[channel(2), relay.rx] = add_channel_effect(channel(2),relay.rx, signal.symbol_sequence);relay = prepare_relay2send(relay,channel(2));% Relay to destination[channel(3), rx] = add_channel_effect(channel(3), rx,relay.signal2send);% [received_symbol,signal.received_bit_sequence]=rx_combine(rx,channel,use_relay);switch relay.mode% Correct phaseshiftcase 'AAF'rx = rx_correct_phaseshift(rx,...channel(3).attenuation.phi + channel(2).attenuation.phi);case 'DAF'rx = rx_correct_phaseshift(rx,channel(3).attenuation.phi);endend% Receiver[received_symbol, signal.received_bit_sequence] = rx_combine(rx, channel(1),channel(3), use_relay);BER(iSNR) = BER(iSNR) + sum(not(signal.received_bit_sequence == signal.bit_sequence));if (BER(iSNR) > 10000)% Stop iteratebreak;endend % Iterationif (BER(iSNR)<100)warning(['Result might not be precise when SNR equal ',num2str(SNR(iSNR))])endBER(iSNR) = BER(iSNR) ./ it ./ signal.nr_of_bits;end% ---------------Present the result of the simulation---------------------txt_distance = [' - distance: ',...num2str(channel(1).attenuation.distance), ':',...num2str(channel(2).attenuation.distance), ':',...num2str(channel(3).attenuation.distance)];%txt_distance='';if (use_relay == 1)if (relay.magic_genie == 1)txt_genie = ' - Magic Genie';elsetxt_genie = '';endtxt_combining = [' - combining: ', rx(1).combining_type];switch rx(1).combining_typecase 'FRC'txt_combining = [txt_combining, ' ',...num2str(rx(1).sd_weight),':1'];% Convert number to stringendadd2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','two-hop'])else switch channel(1).attenuation.patterncase 'no'txt_fading = ' - no fading';otherwisetxt_fading = ' - Rayleigh fading';endadd2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','two-hop'])end%---------------Multi-hop Simulation-----------%channel(1).attenuation.distance = 1;channel(2).attenuation.distance = 1/3;channel(3).attenuation.distance = 1/3;channel(4).attenuation.distance = 1/3;% ----------------% Start SimulationBER = zeros(size(SNR));for iSNR = 1:size(SNR,2)% returns the size of the dimension of SNR specified by scalar 2disp(['progress: ',int2str(iSNR),'/',int2str(size(SNR,2))])  %  Convert integer to string%%%%%%%%%%%%%%%%%%%%%%channel(1).noise(1).SNR = SNR(iSNR); % iSNR ??????channel(2).noise(1).SNR = SNR(iSNR);channel(3).noise(1).SNR = SNR(iSNR);channel(4).noise(1).SNR = SNR(iSNR);for it = 1:nr_of_iterations;% --------------% Reset receiver rx = rx_reset(rx);relay.rx = rx_reset(relay.rx);% -----------% Direct linkif (use_direct_link == 1)[channel(1), rx] = add_channel_effect(channel(1), rx,...signal.symbol_sequence);rx = rx_correct_phaseshift(rx, channel(1).attenuation.phi);end% ----Relay Transmission-----%if (use_relay == 1)% Sender to relay[channel(2), relay.rx] = add_channel_effect(channel(2),relay.rx, signal.symbol_sequence);relay = prepare_relay2send(relay,channel(2));%  ??this function  %relay1 to Relay2[channel(3), relay.rx]=add_channel_effect(channel(3),relay.rx, relay.signal2send);relay=prepare_relay2send(relay,channel(3)); %relay2 to destination[channel(4),rx]=add_channel_effect(channel(4),rx,relay.signal2send);switch relay.mode% Correct phaseshiftcase 'AAF'rx = rx_correct_phaseshift(rx,...channel(2).attenuation.phi + channel(3).attenuation.phi+ channel(4).attenuation.phi);case 'DAF'rx = rx_correct_phaseshift(rx,channel(4).attenuation.phi);endend% Receiver[received_symbol, signal.received_bit_sequence] = rx_combine(rx, channel(1),channel(4), use_relay);BER(iSNR) = BER(iSNR) + sum(not(signal.received_bit_sequence == signal.bit_sequence));if (BER(iSNR) > 10000)% Stop iteratebreak;endend % Iterationif (BER(iSNR)<100)warning(['Result might not be precise when SNR equal ',...num2str(SNR(iSNR))])endBER(iSNR) = BER(iSNR) ./ it ./ signal.nr_of_bits;end% ---------------Present the result of the simulation---------------------txt_distance = [' - distance: ',...num2str(channel(2).attenuation.distance), ':',...num2str(channel(3).attenuation.distance), ':',...num2str(channel(4).attenuation.distance)];%txt_distance='';if (use_relay == 1)if (relay.magic_genie == 1)txt_genie = ' - Magic Genie';elsetxt_genie = '';endtxt_combining = [' - combining: ', rx(1).combining_type];switch rx(1).combining_typecase 'FRC'txt_combining = [txt_combining, ' ',...num2str(rx(1).sd_weight),':1'];% Convert number to stringendadd2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','three-hop'])else switch channel(1).attenuation.patterncase 'no'txt_fading = ' - no fading';otherwisetxt_fading = ' - Rayleigh fading';endadd2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','three-hop'])end% -----------------% % Graphs to compareSNR_linear = 10.^(SNR/10);add2statistic(SNR,ber(SNR_linear,'BPSK', 'Rayleigh'),'BPSK - single link transmiss')% add2statistic(SNR,ber_2_senders(SNR_linear, 'QPSK'),'QPSK - 2 senders')show_statistic;toc

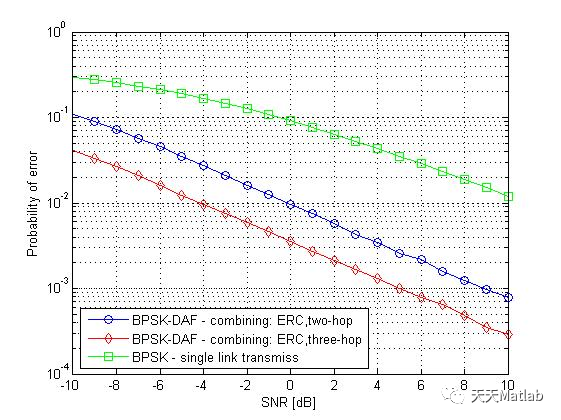

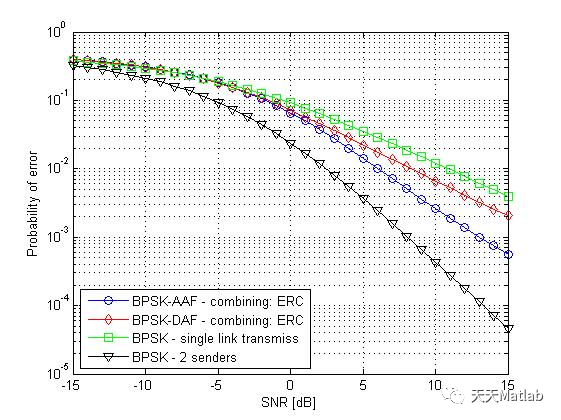

3 Simulation Results

Cooperative Communication Simulation with Matlab Source Code

Cooperative Communication Simulation with Matlab Source Code

4 References

[1] Xian Huiyuan. Research on Wireless Resource Allocation Technology in Multi-User Cooperative Communication Networks [D]. Central South University, 2013.
