1. Document Description (Requirement Translation and Core Positioning)
This document aims to elaborate on the structural analysis and design process of a new aircraft model’s wing beam, which strictly adheres to specific regulatory requirements. The document focuses on the core performance of the wing beam—maintaining the required safety factor while bearing specified load conditions, ensuring structural reliability and flight safety throughout the aircraft’s lifecycle.
1.1 Key Terminology Definition
- Wing Spar: As the main load-bearing component of the wing, it is arranged along the wing span and primarily bears the bending moments, shear forces, and torques transmitted by the wing, making it a core component for ensuring the structural stability of the wing;
- Specified Loading Conditions: Covering typical loads during all flight phases such as takeoff, cruising, maneuvering, and landing, as well as additional loads under extreme weather (e.g., turbulence, icing) and emergency conditions (e.g., single-engine failure, emergency landing), with specific values determined based on the aircraft design task book and aviation regulations;
- Safety Factor: A redundancy coefficient introduced in structural design to address uncertainties such as material performance fluctuations, load calculation deviations, and structural wear and aging, typically required to meet minimum values specified by aviation regulations (e.g., static strength safety factor not less than 1.5, fatigue strength safety factor not less than 1.2).
2. Regulatory Compliance Framework (Design Premise)
The structural analysis and design of the wing beam must be based on authoritative regulations in the aviation field to ensure that the design meets airworthiness certification requirements, primarily following the regulatory framework below:
2.1 International General Regulations
- FAA (Federal Aviation Administration): The Federal Aviation Regulations (14 CFR) Part 23 (Normal and Utility Aircraft) or Part 25 (Transport Category Aircraft) clearly stipulate the strength requirements for wing structures, load condition classifications, and safety factor standards;
- EASA (European Union Aviation Safety Agency): The European Aviation Safety Regulations (CS) Part 23 or 25, equivalent to FAA regulations, provide detailed requirements for the fatigue life and damage tolerance design of wing beams;
- ISO International Standards: Such as ISO 12085 (Aerospace Series – Damage Tolerance Requirements for Composite Structures), ISO 8565 (Aerospace Series – Tensile Test Methods for Metallic Materials), which standardize the material performance testing and structural damage tolerance design processes for wing beams.
2.2 Model-Specific Design Specifications
Based on the flight mission profile of the new model (e.g., range, passenger capacity, takeoff and landing site conditions), model-specific design specifications are developed on the basis of general regulations, clarifying the load levels, environmental adaptability requirements (e.g., high temperature, high humidity, salt spray corrosion), and lifespan targets (e.g., design life of 30,000 flight hours / 15,000 takeoffs and landings).

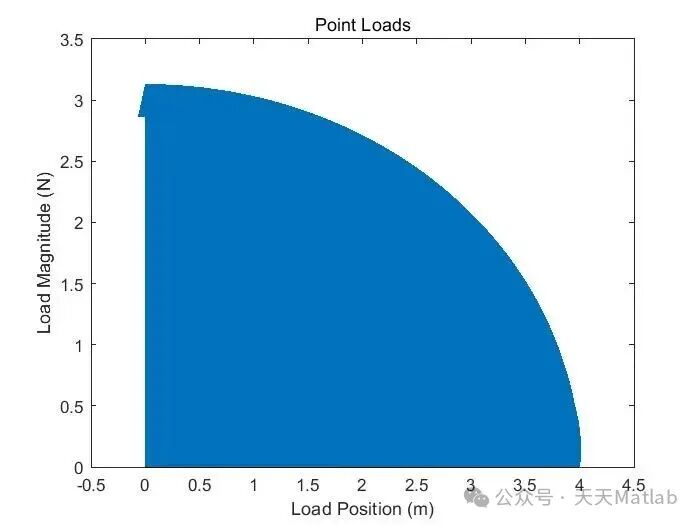

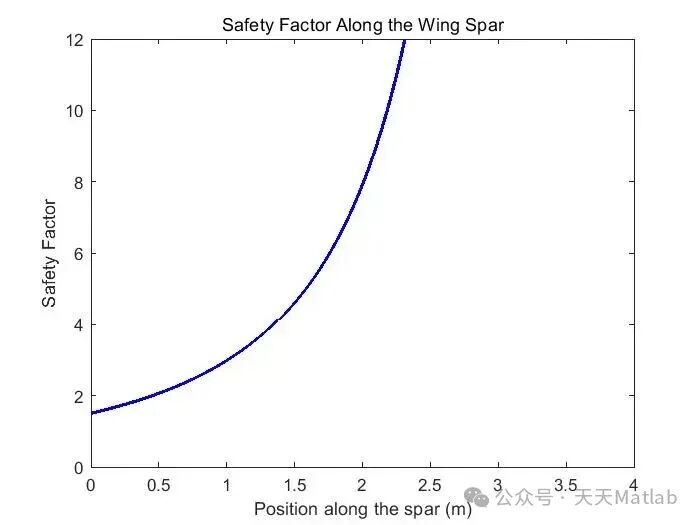

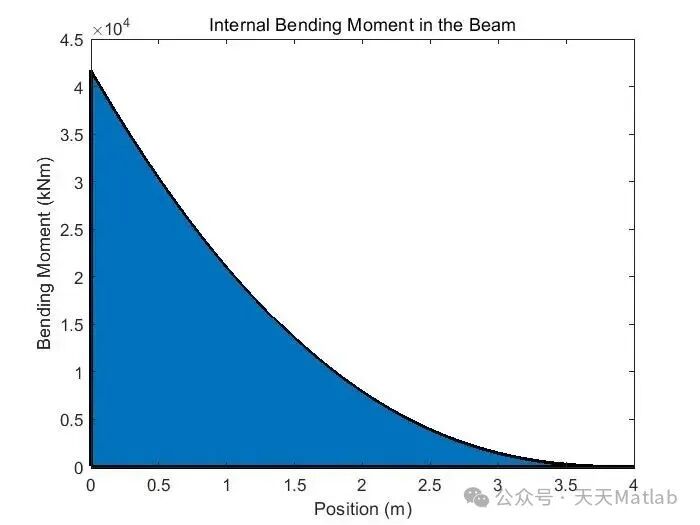

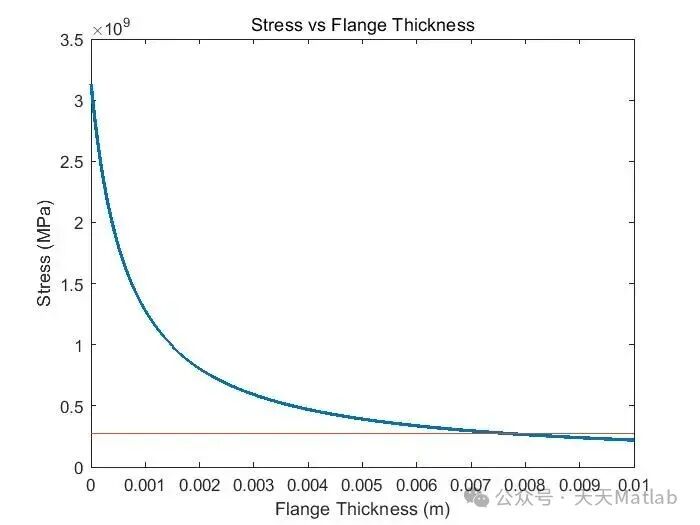

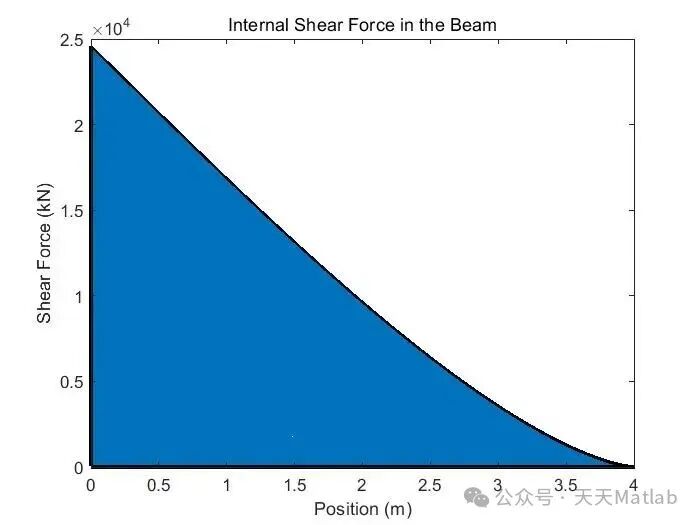

⛳️ Operating Results
📣 Sample Code
%Part 1
% (a)
% Calculate w0 for distributed load function
w0 = 4 * wing_load / (pi * L); % calculate w0 in Newtons per meter
fprintf(“w0(N/m): %f\n”, 4 * wing_load / (pi * 4));
% Distributed load function as a handle
w_x = @(x) w0 * sqrt(1 – (x/L).^2);
% (b) Maximum internal shear force and bending moment using numerical integration
PloadsArray = zeros(1, N);
xAxis = linspace(0, L, N + 1);
deltaX = L/N;
for i = 1 : N
PloadsArray(i) = (w_x(xAxis(i)) + w_x(xAxis(i+1))) / 2 * deltaX;
end
