ACROVIEW, a leader in chip programming, recently announced the latest iteration of its programming software, unveiling a series of newly compatible chip models. In this update, Nuvoton’s low voltage microcontroller M031TD2AE has been supported by the ACROVIEW AP8000 offline programmer.

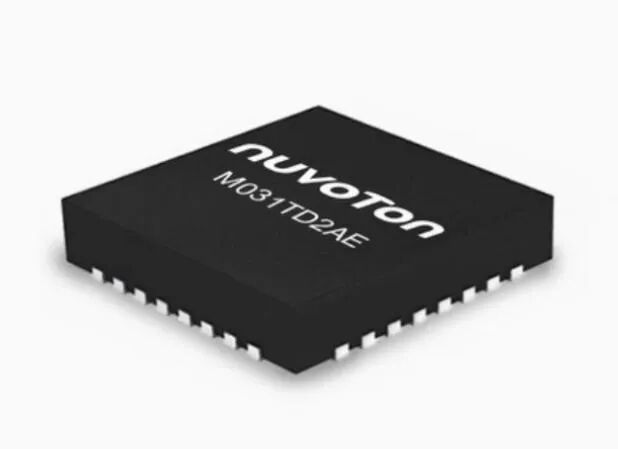

The M031TD2AE is a low voltage microcontroller based on the Arm® Cortex®-M0 core, featuring a 32-bit hardware multiplier/divider. It operates at a frequency of up to 48MHz, with a voltage range of 1.8~3.6V, and is equipped with 64KB Flash and 8KB SRAM.
With its specially designed performance features such as a 2MSPS ADC, 96MHz PWM, 24MHz SPI, and 6MHz UART, it can be applied in industrial control and consumer applications, allowing for rapid and precise conversion of voltage, current, and sensor data, as well as quick response and control of external modules, such as current or voltage feedback from motor control or sensing devices.
The M031TD2AE also offers a wide range of peripherals, including 1 set of Universal Serial Control Interface (USCI), 3 sets of UART, 1 set of SPI/I²S, 2 sets of I²C, 10 channels of 12-bit ADC, and 12 channels of 16-bit PWM, meeting various application needs. It operates within a wide temperature range of -40°C to +105°C, with pin-to-pin compatibility across the entire series.
Key Features
• Operating Characteristics
– Operating Voltage: 1.8V to 3.6V
– Operating Temperature: -40℃ to 105℃
– EFT 4.4kV
– ESD HBM 6kV
• Core
– Arm® Cortex®-M0, operating frequency up to 48MHz
– 32-bit hardware multiplier/divider
• Memory
– 64KB Flash
– 8KB SRAM
– 2KB ISP ROM
– 512Bytes SPROM (Security Protection ROM)
– Supports various programming update methods
– In-System Programming (ISP)
– In-Circuit Programming (ICP)
– In-Application Programming (IAP)
• Clock Control
– External 4~32MHz high-speed crystal oscillator
– External 32.768KHz low-speed crystal oscillator
– Internal 48MHz high-speed oscillator (HIRC48) with a full temperature error of 2%
– Internal 38.4KHz low-speed oscillator (LIRC)
– Internal PLL up to 96MHz
• Timers
– 4 x 32-bit timers
– 1 x 24-bit countdown SysTick timer
• Pulse Width Modulation (PWM)
– 12 channels of 96MHz 16-bit PWM
• Analog (ADC)
– 10-channel 12-bit ADC with a conversion rate of up to 2MSPS
– Supports two analog comparators
• Direct Memory Access (PDMA)
– 5-channel Direct Memory Access (PDMA)
• Cyclic Redundancy Check (CRC)
– CRC-CCITT, CRC-8, CRC-16, and CRC-32
• Communication Interfaces
– Two sets of high-speed 6MHz UART
– One set of universal UART
– Two sets of high-speed 1MHz I²C
– One set of high-speed 24MHz SPI/I²S
– One set of USCI configurable as UART, SPI, I²C
– 27 GPIO (5V I/O allowed except for analog pins)
• 96-bit Unique Identifier (UID)
• 128-bit Unique Customer Identifier (UCID)
• Package
– QFN33 (4x4mm)
Applications
• Laser Rangefinders
• Air Quality Detectors/Cleaners
• LCD Panel Controllers
• Mini Printers
• WPC Wireless Chargers

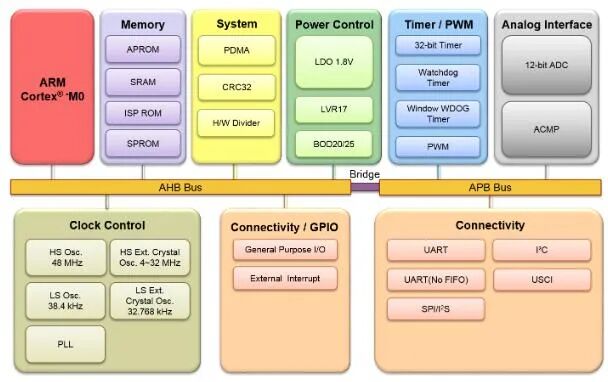

Internal Block Diagram
The AP8000 universal programmer developed by ACROVIEW is a powerful programming solution that supports both online and offline versions in one-to-one and one-to-eight configurations, while also providing dedicated programming solutions for eMMC and UFS, fully meeting the bare chip (offline) and on-board programming needs for all Nuvoton series chip models. The AP8000 consists of three core components: the host, the baseboard, and the adapter, serving as an industry-leading universal programming platform that not only meets the programming needs of various programmable chips on the market but also serves as the core programming platform for ACROVIEW’s chip programming device IPS5800S, efficiently supporting large-scale programming tasks.
The host supports both USB and NET connections, enabling networking of multiple programmers to synchronize control of multiple programmers for programming operations. The built-in safety protection circuit can instantly detect abnormal situations such as reversed chip placement or short circuits, and immediately cut off power to ensure the safety of both the chip and the programmer. The host integrates a high-speed FPGA, significantly enhancing data transmission and processing speed. The back of the host features an SD card slot, allowing users to save project files generated by PC software to the root directory of the SD card and insert it into the slot. By using the button on the programmer, users can select, load, and execute programming commands without relying on a PC, which not only reduces the hardware configuration costs of the PC but also facilitates the rapid construction of the working environment.
The AP8000 enhances the host’s expansion capabilities through the combination design of the baseboard and adapter, currently supporting products from all major semiconductor manufacturers, including QUECTEL, BEKEN, elmos, Nation, HiTrendtech, and others. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and it is compatible with various file formats such as Intel Hex, Motorola S, Binary, POF, etc.
Company Introduction
About Nuvoton Technology: Nuvoton Technology was established in 2008, officially commencing operations in July of the same year after acquiring the logic IC business unit of Winbond Electronics. It was officially listed on the Taiwan Stock Exchange in 2010. Nuvoton focuses on developing ICs for microcontrollers/microprocessors, smart home and cloud security applications, battery monitoring ICs, image sensing ICs, IoT application ICs, and semiconductor components, with leading positions in industrial, automotive, communication, consumer electronics, and computer markets. Additionally, Nuvoton owns a 6-inch wafer manufacturing facility with diverse process technology capabilities, providing specialized wafer foundry services.
About ACROVIEW: ACROVIEW is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. ACROVIEW’s AP8000 universal programmer platform and the latest IPS5800S programming automation solution provide one-stop solutions for customers in the semiconductor and electronics manufacturing fields, having served leading global clients including Huawei, BYD, and Foxconn.
