The chip programming leader ACROVIEW Technology recently announced the latest iteration of its programming software, along with a series of newly compatible chip models. In this update, the RF SoC chip BK2461 launched by BEKEN Integrated has been supported by ACROVIEW’s offline programming device AP8000.

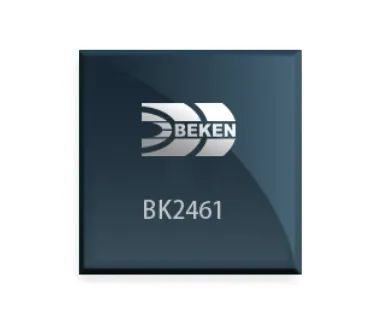

BK2461 is a wireless transceiver (RF) operating in the 2.4GHz ISM band, featuring excellent transceiver performance with a receiving sensitivity of -95dBm, capable of handling complex and strong interference environments. It integrates a low-power 51 MCU and a built-in PA, with a maximum output power of 12dBm, up to 5 PWM channels, and a rich set of I/O ports, making it simple to develop. It is available in QFN24 (4×4) and SOP16 packages, highly integrated, compact in size, and easy to assemble. With advantages in low power consumption, high speed (up to 2Mbps air transmission rate), low cost, and ease of development, it is widely used in wireless remote controls, toys, access control systems, and other fields.
Features
• Power Supply: 1.9V-3.6V
• Compatible with 8051 FLIP51 microcontroller
• 8K OTP (ROM)
• 256Bytes IRAM & 512Bytes SRAM
• High Sensitivity: -87dBm in 2Mbps mode, -95dBm in 250Kbps mode
• Supports UART and I2C interfaces
• Low power consumption, embedded 32k RC oscillator
• Supports 9/18 GPIO
• Up to 5 PWM (Pulse Width Modulation)
• Wireless transmission rate up to 2Mbps
• Built-in PA, maximum output power up to 12dBm
• Embedded 8+1 channel ADC (Analog to Digital Converter)
• Embedded BIRD system (built-in real-time debugger) for online debugging
• Integrated 2.4G RF transceiver

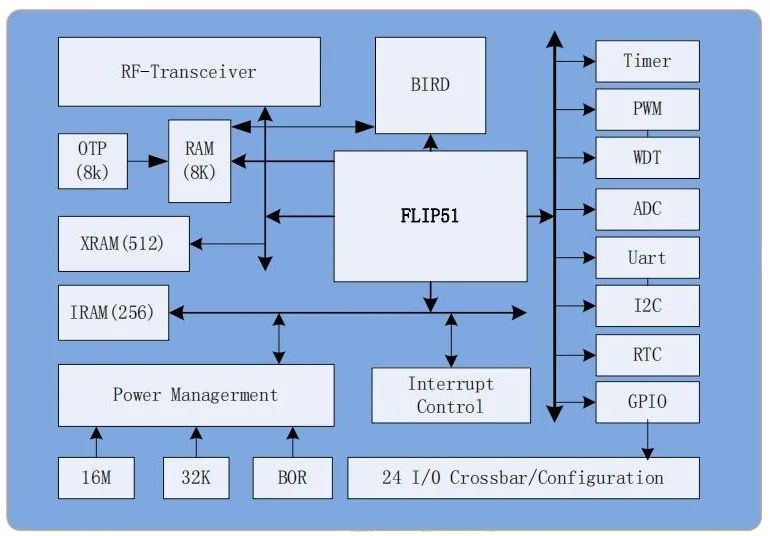

Internal Block Diagram

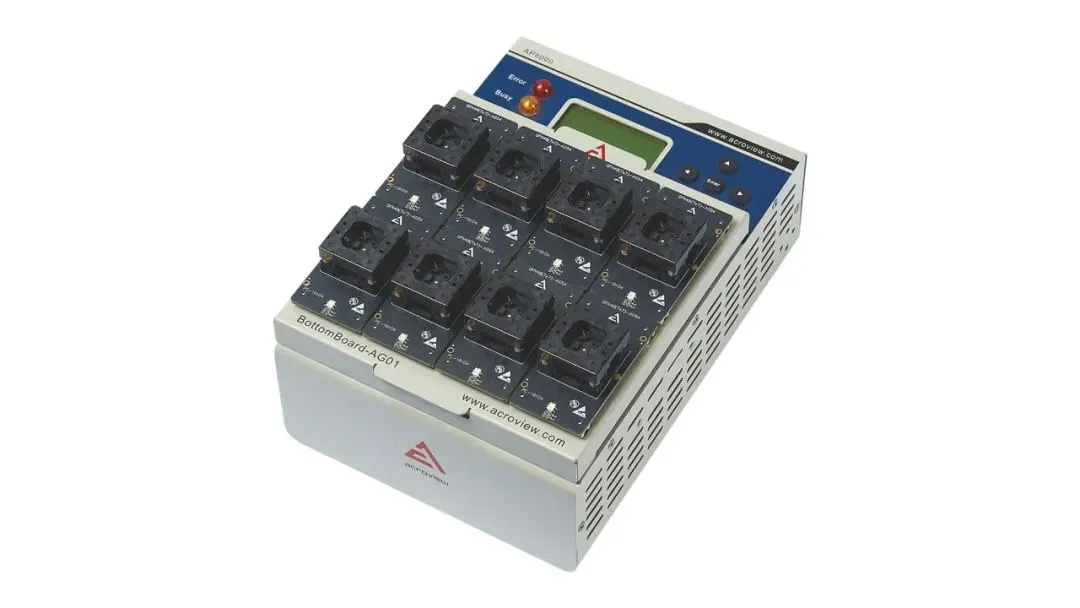

ACROVIEW Technology’s self-developed AP8000 universal programmer is a powerful programming solution that supports both one-to-one and one-to-eight configurations in online and offline versions, while also providing dedicated programming solutions for eMMC and UFS, fully meeting the bare chip (offline) and on-board programming needs of the BEKEN series of chip models. The AP8000 consists of three core components: the host, the baseboard, and the adapter, serving as an industry-leading universal programming platform. It not only meets the programming needs of various programmable chips on the market but also serves as the core programming platform for ACROVIEW’s mother chip programming device IPS5800S, efficiently supporting large-scale programming tasks.
The host supports both USB and NET connections, enabling networking of multiple programmers to synchronize control of multiple programmers for programming operations. The built-in safety protection circuit can instantly detect abnormal situations such as reversed or short-circuited chips and immediately cut off power, ensuring the safety of both the chip and the programmer. The host integrates a high-speed FPGA, significantly enhancing data transmission and processing speed. The back of the host is equipped with an SD card slot, allowing users to save project files generated by PC software to the root directory of the SD card and insert it into the slot. By using the button on the programmer, users can select, load, and execute programming instructions without relying on a PC, which not only reduces the hardware configuration cost of the PC but also facilitates the rapid construction of the working environment.
The AP8000 enhances the host’s expansion capabilities through the combination design of the baseboard and adapter, currently supporting products from all major semiconductor manufacturers, including Geehy, NAVINFO, CR MICRO, NEUSOFT, Silan, and others. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and it is compatible with various file formats such as Intel Hex, Motorola S, Binary, POF, etc.
Company Introduction
About BEKEN Integrated:BEKEN Integrated, established in 2004, is a global leader in wireless connectivity chip design, dedicated to providing cutting-edge chip solutions for IoT applications. With world-class RF-CMOS integrated circuit design capabilities and advanced digital signal processing technology, BEKEN Integrated offers high-performance, low-power system-on-chip (SoC) solutions widely used in various IoT fields, realizing the vision of connecting everything. BEKEN Integrated’s product portfolio fully supports various wireless protocols and communication standards, empowering customers to create the next generation of smart connected devices.
About ACROVIEW Technology:ACROVIEW Technology is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. ACROVIEW’s AP8000 universal programmer platform and the latest IPS5800S programming automation solution provide one-stop solutions for customers in the semiconductor and electronics manufacturing fields, having served leading global clients including Huawei, BYD, and Foxconn.
