Bluetooth headphones, as popular products of modern technology, require high efficiency and precision in their production processes. This article will delve into the production process of Bluetooth headphones and focus on a system setup that balances stability, speed, and cost-effectiveness, showcasing the intricate craftsmanship and intelligent choices behind technological production.
Bluetooth Headphone Production ProcessThe production process of Bluetooth headphones mainly includes several key stages, and the assembly testing line system encompasses all aspects of the production process, ensuring efficiency and precision.1. Production Process
- SMT Section: Responsible for the surface mounting of electronic components, ensuring precise placement on the circuit board.
- Left and Right Ear Assembly Testing Section: Assembles headphone components and conducts preliminary functional tests to ensure basic performance meets standards.
- Charging Case Assembly Testing Section: Completes the assembly and functional testing of the charging case, ensuring stable and reliable charging functionality.
- Final Assembly Testing and Packaging Section: Conducts overall functional testing to ensure products meet quality standards before packaging and shipping.
2. Components of the Assembly Testing Line System
- Loading and Unloading Section: Automated equipment is responsible for loading and unloading materials, ensuring continuity in the production process.
- Material Transfer Section: Equipment such as conveyor belts is responsible for transferring materials between workstations.
- Component Assembly Section: Includes processes such as gluing, assembly, and welding, ensuring precise combination of components.
- Final Testing Section: Testing equipment conducts functional tests on assembled products to ensure product quality.

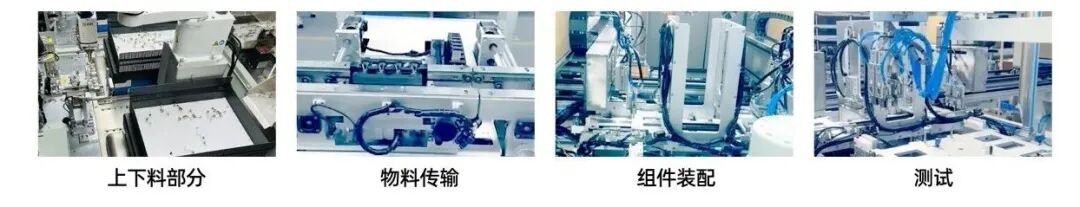

Figure 1 Assembly Testing Line SystemThe entire system consists of a main controller, display devices, sensing devices, and electric and pneumatic actuators, working together to ensure efficient and precise production.
EtherCAT Communication SolutionThe production line project shared here adopts a solution that combines an imported PLC supporting EtherCAT communication with ZLG Zhiyuan Electronics E-series remote I/O to ensure stable and fast operation of the entire system while considering project cost-effectiveness.

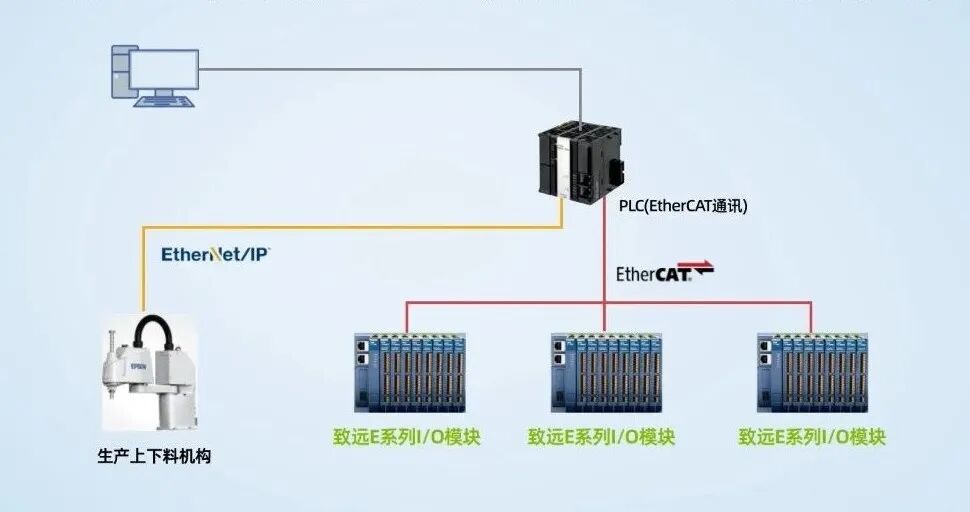

Figure 2 Imported PLC combined with ZLG Zhiyuan Electronics E-series remote I/O solutionThe E-series EtherCAT high-speed I/O module, launched by ZLG Zhiyuan Electronics, is a new generation I/O module that features a refresh cycle in the microsecond (μs) range, meeting the demands of high-speed and real-time control applications. Additionally, this module can flexibly add DI, DO, AI, AO, temperature, and other functional modules based on on-site requirements, enabling remote expansion of the control system’s I/O.

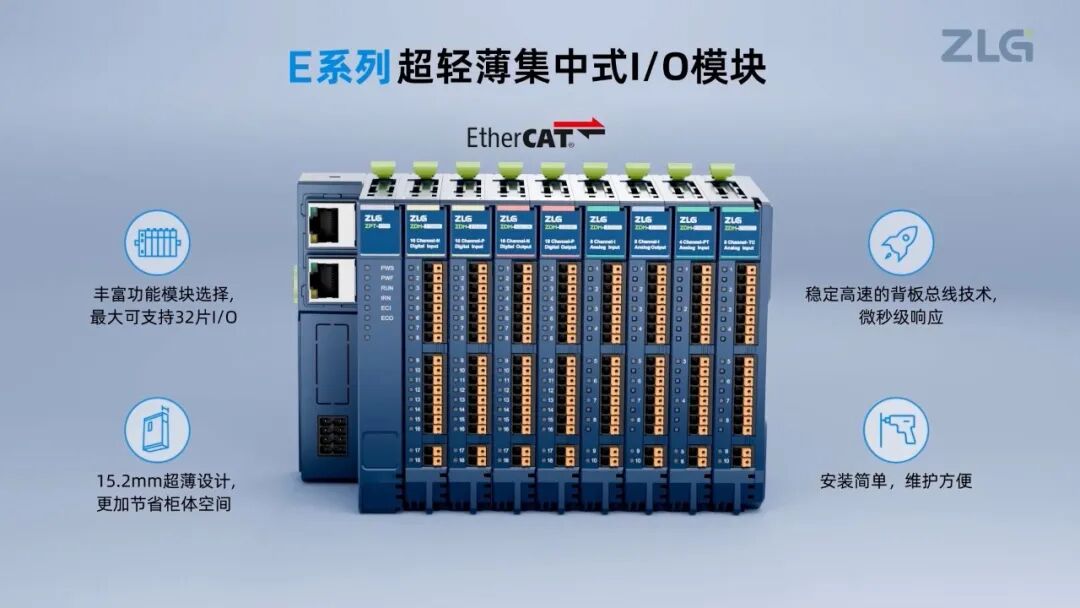

Figure 3 E-series EtherCAT high-speed I/O module
Advantages and Features of Zhiyuan Electronics I/O Modules:
-
EtherCAT coupling + stable high-speed backplane bus technology, achieving μs-level refresh cycles;
-
All functional modules are equipped with signal indicator lights, clearly displaying the I/O working status for easy debugging;
-
Analog resolution of 16 bits, with selectable voltage and current types, and multiple ranges available;
-
The temperature measurement module offers options for PT100/PT1000 thermistors and K/T-type thermocouples, with a measurement accuracy of ±0.5℃;
-
Completely self-designed, with rigorous quality control from R&D to production, ensuring industrial-grade quality and stable communication;
-
Easy and quick wiring for assembly and disassembly.
