The STM32Cube ecosystem is a complete software “solution” for STM32 microcontrollers and microprocessors.
It is suitable for users seeking a complete and free STM32 development environment, as well as for those who already have an IDE (including Keil or iAR), where they can easily integrate various components such as STM32CubeMX, STM32CubeProgrammer, or STM32CubeMonitor.
What is STM32Cube?
In short, the STM32Cube ecosystem is a combination of software tools and embedded software libraries:
-
A complete set of PC software tools that meets all needs throughout the project development cycle
-
Embedded software blocks running on STM32 microcontrollers and microprocessors, providing various functions (from MCU component drivers to more advanced application-oriented functions)

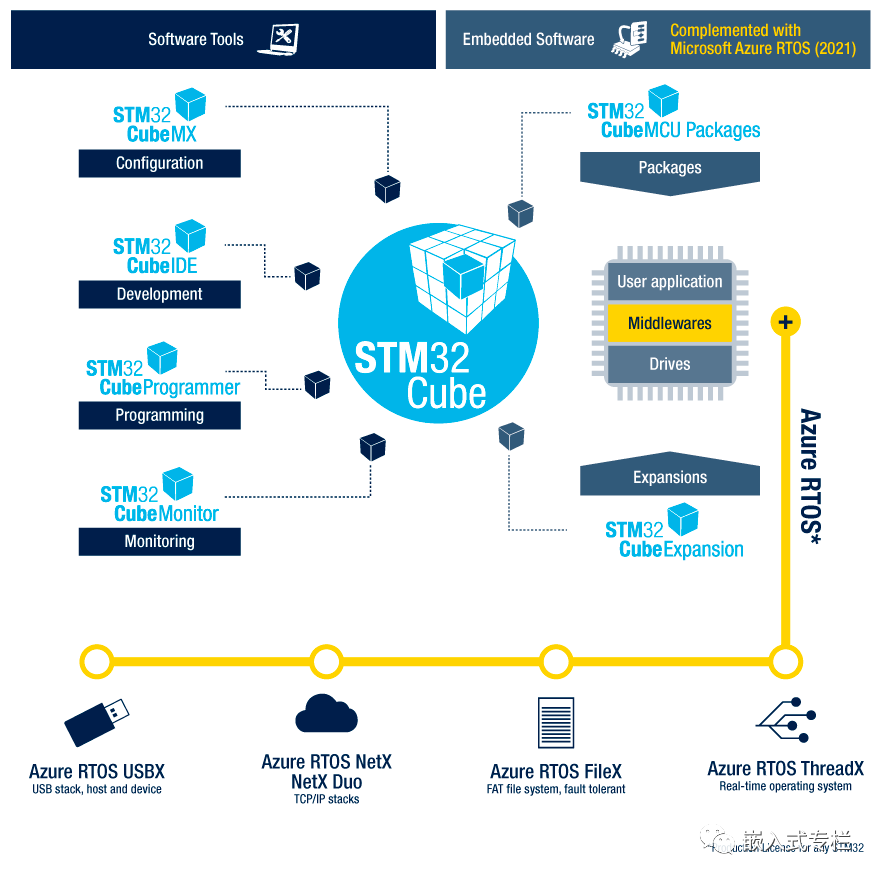

STM32Cube Ecosystem Block Diagram(Main content included):
STM32Cube Software Tool Suite
1. STM32CubeMX
A configuration tool that supports all STM32 processors, this easy-to-use graphical user interface generates initialization C code for Cortex-M cores and Linux device trees for Cortex-A cores.
2. STM32CubeIDE
This IDE (Integrated Development Environment) is based on open-source solutions such as Eclipse or GNU C/C++ toolchain, including compile report features and advanced debugging capabilities. It also integrates the STM32CubeMX tool in the ecosystem.
3. STM32CubeProgrammer
A programming tool for STM32, it enables read and write operations on STM32 (and external storage) through various communication mediums (such as JTAG, SWD, UART, USB DFU, I2C, SPI, CAN, etc.).
4. STM32CubeMonitor
This is a powerful monitoring tool that helps developers fine-tune the behavior and performance of their applications in real-time.
STM32Cube Software
1. STM32Cube MCU and MPU Packages
Specially designed for STM32 series processors, this package provides all necessary embedded software blocks to operate the available STM32 peripheral set. It includes drivers (HAL, LL, etc.), middleware, and a large number of example codes for various practical use cases.
2. STM32Cube Expansion Packages
Application-oriented solutions that complement and extend the STM32Cube MCU software package products, STM32 expansion software packages come from ST or approved partners and are designed to create a wide and scalable embedded software product around STM32.
