What BLE Events Does Nordic Have? When Are They Triggered?

1. GAP Events

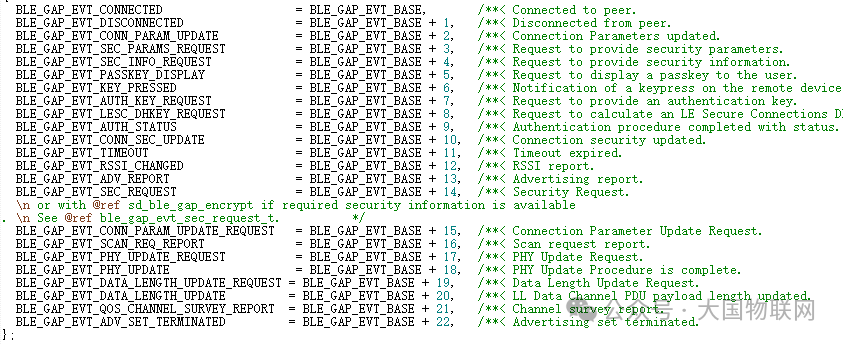

enum BLE_GAP_EVTS

{

BLE_GAP_EVT_CONNECTED

BLE_GAP_EVT_DISCONNECTED

BLE_GAP_EVT_CONN_PARAM_UPDATE

BLE_GAP_EVT_SEC_PARAMS_REQUEST

BLE_GAP_EVT_SEC_INFO_REQUEST

BLE_GAP_EVT_PASSKEY_DISPLAY

BLE_GAP_EVT_KEY_PRESSED

BLE_GAP_EVT_AUTH_KEY_REQUEST

BLE_GAP_EVT_LESC_DHKEY_REQUEST

BLE_GAP_EVT_AUTH_STATUS

BLE_GAP_EVT_CONN_SEC_UPDATE

BLE_GAP_EVT_TIMEOUT

BLE_GAP_EVT_RSSI_CHANGED

BLE_GAP_EVT_ADV_REPORT

BLE_GAP_EVT_SEC_REQUEST

BLE_GAP_EVT_CONN_PARAM_UPDATE_REQUEST

BLE_GAP_EVT_SCAN_REQ_REPORT

BLE_GAP_EVT_PHY_UPDATE_REQUEST

BLE_GAP_EVT_PHY_UPDATE

BLE_GAP_EVT_DATA_LENGTH_UPDATE_REQUEST

BLE_GAP_EVT_DATA_LENGTH_UPDATE

BLE_GAP_EVT_QOS_CHANNEL_SURVEY_REPORT

BLE_GAP_EVT_ADV_SET_TERMINATED

};

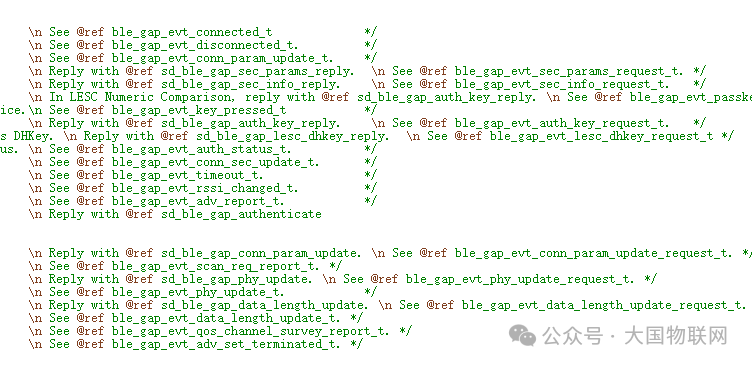

In fact, there are notes following the definitions of these events.

And the data passed from the protocol stack after the corresponding event occurs

1. `BLE_GAP_EVT_CONNECTED`

🔍 Connection Established Successfully

When Triggered: After the device actively connects or is connected

Fields:

ble_gap_evt_connected_t

→ .conn_params (connection parameters)
→ .peer_addr (peer address)
→ .role (central or peripheral)

Common Uses: Start services, negotiate MTU, initiate security, record conn_handle

2. `BLE_GAP_EVT_DISCONNECTED`

🔍 Connection Disconnected

When Triggered: Actively disconnected or unexpectedly disconnected

Fields:

ble_gap_evt_connected_t
→ .conn_params (connection parameters)
→ .peer_addr (peer address)
→ .role (central or peripheral)

Common Uses: Clean up resources, restart advertising, reconnect

`3. BLE_GAP_EVT_CONN_PARAM_UPDATE`

🔍 Connection Parameters Updated Successfully

When Triggered: After the peer or you initiate sd_ble_gap_conn_param_update() is accepted

Fields:

ble_gap_evt_disconnected_t
→ .reason (disconnection reason enum BLE_HCI_*)

4. `BLE_GAP_EVT_SEC_PARAMS_REQUEST`

🔐 Peer Requests Pairing/Encryption

When Triggered: The peer wishes to establish a secure connection (encryption or re-pairing)
Fields: No additional parameters (need to call sd_ble_gap_sec_params_reply() to respond)
Uses: Start pairing or reject

5. `BLE_GAP_EVT_SEC_INFO_REQUEST`

🔐 Request for Encryption Information (e.g., LTK)

When Triggered: The peer attempts to use old connection encryption, requiring you to provide the previously paired LTK, EDIV, Rand.
Uses: Pairing recovery, no need to re-pair.
Processing: Use sd_ble_gap_sec_info_reply() to return the key or reject.

6. `BLE_GAP_EVT_PASSKEY_DISPLAY`

🔐 Display 6-digit pairing password

When Triggered: Using Passkey pairing (usually triggered by Central), the slave needs to display the password.
Processing: Call NRF_LOG_INFO() to print <code>params.passkey; wait for the peer to input.

7. `BLE_GAP_EVT_KEY_PRESSED`

🔐 Keyboard Key Event (only for Keypress pairing)

When Triggered: The peer sends key status during password input (e.g., press, delete, submit).
Processing: Usually just print information, not commonly used unless implementing a complete Keypress UI.

8. `BLE_GAP_EVT_AUTH_KEY_REQUEST`

🔐 Request for User Input of Pairing Password

When Triggered: Using Passkey pairing, the protocol stack requests the user to input the pairing password.
Processing: Call sd_ble_gap_auth_key_reply(conn_handle, type, passkey) to respond.

9. `BLE_GAP_EVT_LESC_DHKEY_REQUEST`

🔐 Request for LESC DH Public Key (LE Secure Connection)

When Triggered: ECDH key exchange in LESC mode
Processing: Call sd_ble_gap_lesc_dhkey_reply() to provide DH Key, provided the local key pair has been generated first

10. `BLE_GAP_EVT_AUTH_STATUS`

🔐 Pairing/Encryption Result

When Triggered: After completing the pairing process (success/failure)
Processing:

.auth_status == BLE_GAP_SEC_STATUS_SUCCESS indicates success
.error_src indicates the source of failure
Can print results, store keys, etc.

11. `BLE_GAP_EVT_CONN_SEC_UPDATE`

🔐 Encryption Status Update

When Triggered: After successful encryption or encryption level upgrade
Uses: Confirm connection security
Processing: Check .conn_sec.sec_mode and other fields to decide whether to allow subsequent operations (e.g., enable Notify)

`BLE_GAP_EVT_TIMEOUT`

⏱️ Timeout Event (Advertising/Scanning/Connection)

Fields:

.src = BLE_GAP_TIMEOUT_SRC_CONN/ADV/SCAN

Processing:

Advertising timeout → re-advertise
Scanning timeout → stop scanning
Connection timeout → reconnect or prompt failure

12. `BLE_GAP_EVT_RSSI_CHANGED`

📶 RSSI Value Change (must be enabled)

When Triggered: Periodically update RSSI after calling sd_ble_gap_rssi_start().
Processing: Read .rssi, used for proximity sensing, signal quality judgment.

4. `BLE_GAP_EVT_ADV_REPORT`

📡 Scanned Advertising Packet

When Triggered: Triggered every time an advertising packet is received while scanning in Central mode
Processing: Read adv_report.peer_addr, <code>data, <code>rssi, to determine the target device or service UUID

13. `BLE_GAP_EVT_SEC_REQUEST`

🔐 Peripheral Actively Requests Encryption

When Triggered: The peripheral initiates the pairing process (e.g., when the app calls sd_ble_gap_authenticate())
Processing: The Central calls sd_ble_gap_authenticate() to continue pairing

14. `BLE_GAP_EVT_CONN_PARAM_UPDATE_REQUEST`

🔁 Request to Update Connection Parameters

When Triggered: The peer wishes to change connection parameters (interval, latency, timeout)
Processing: Use sd_ble_gap_conn_param_update() to accept or reject

15. `BLE_GAP_EVT_SCAN_REQ_REPORT`

📡 Scan Request Report (Slave Listening)

When Triggered: When the slave has set a scan response in the advertising and receives a scan request packet from the Central
Uses: Used for counting scan frequency, making triggered advertising responses

16. `BLE_GAP_EVT_PHY_UPDATE_REQUEST`

🔁 PHY Mode Request (1M/2M/Coded)

When Triggered: The peer proposes to switch PHY
Processing: Use sd_ble_gap_phy_update() to respond

17. `BLE_GAP_EVT_PHY_UPDATE`

🔁 PHY Update Completion Notification

When Triggered: PHY protocol negotiation completed
Processing: Check new .tx_phy / .rx_phy results to confirm whether it is 2M/1M/Coded

18. `BLE_GAP_EVT_DATA_LENGTH_UPDATE_REQUEST`

📦 Data Length Update Request

When Triggered: The peer requests to update the maximum PDU length
Processing: Use sd_ble_gap_data_length_update() to respond

19. `BLE_GAP_EVT_DATA_LENGTH_UPDATE`

📦 Data Length Update Completion

When Triggered: Notification after negotiation is completed
Processing: Record new .max_tx_octets, used to optimize write and notification transmission efficiency

20. `BLE_GAP_EVT_QOS_CHANNEL_SURVEY_REPORT`

📡 QoS Channel Survey Report (Interference Detection)

When Triggered: Periodically reported after calling sd_ble_gap_qos_channel_survey_start()
Uses: Statistics on channel interference level, optimize advertising channel

21. `BLE_GAP_EVT_ADV_SET_TERMINATED`

📡 Multiple Advertising Set Termination Notification

When Triggered: When an advertising instance stops manually or automatically (e.g., timer, successful connection, etc.)
Processing: Record termination reason, decide whether to re-advertise

2. GATTS Events

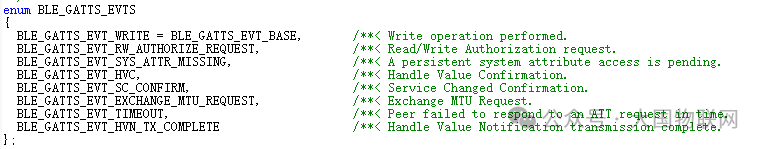

enum BLE_GATTS_EVTS

{

BLE_GATTS_EVT_WRITE = BLE_GATTS_EVT_BASE,

BLE_GATTS_EVT_RW_AUTHORIZE_REQUEST,

BLE_GATTS_EVT_SYS_ATTR_MISSING,

BLE_GATTS_EVT_HVC,

BLE_GATTS_EVT_SC_CONFIRM,

BLE_GATTS_EVT_EXCHANGE_MTU_REQUEST,

BLE_GATTS_EVT_TIMEOUT,

BLE_GATTS_EVT_HVN_TX_COMPLETE

};

GATTS, S stands for server events, usually the server is the device side, which is also the events we focus on.

1️⃣ `BLE_GATTS_EVT_WRITE`

Content	Description
When Triggered	When the Client writes to the characteristic, CCCD, Descriptor, etc. that you defined
Typical Uses	Client writes data, enables Notify, controls command writes
Server Processing Method	Read `<span>p_evt_write->handle</span><span> to distinguish which characteristic was written, read </span><code><span>p_evt_write->data</span><span> for corresponding processing</span>`

case BLE_GATTS_EVT_WRITE:

// Determine which handle is which characteristic or CCCD

// Determine data length and content, execute logic

break;

2️⃣ `BLE_GATTS_EVT_RW_AUTHORIZE_REQUEST`

Content	Description
When Triggered	When the attribute of the characteristic or descriptor is set to require authorization for read/write
Typical Uses	Do not allow writes before encryption, need to determine permissions before allowing access, etc.
Server Processing Method	Read `<span>p_evt->params.authorize_request</span><span>, decide whether to authorize </span><code><span>read</span><span> or </span><code><span>write</span><span>, use </span><code><span>sd_ble_gatts_rw_authorize_reply()</span><span> to reply</span>`

case BLE_GATTS_EVT_RW_AUTHORIZE_REQUEST:
    // Authorization decision, call sd_ble_gatts_rw_authorize_reply()
    break;

3️⃣ `BLE_GATTS_EVT_SYS_ATTR_MISSING`

Content	Description
When Triggered	When a new device connects for the first time, or system attributes have not been set
Typical Uses	Inform the application that system attributes need to be restored
Server Processing Method	Call `<span>sd_ble_gatts_sys_attr_set(conn_handle, NULL, 0, 0)</span><span> to use default attributes</span>`

✅ Generally respond directly:

case BLE_GATTS_EVT_SYS_ATTR_MISSING:
    sd_ble_gatts_sys_attr_set(conn_handle, NULL, 0, 0);
    break;

4️⃣ `BLE_GATTS_EVT_HVC`

Content	Description
When Triggered	When you send an `<span>Indication</span><span> to the client and receive confirmation from the other party</span>`
Typical Uses	The server knows that the previous Indicate has been confirmed by the client
Server Processing Method	Can be used to continue sending the next packet, or set a flag indicating confirmation completion

case BLE_GATTS_EVT_HVC:
    // Indication confirmed
    break;

5️⃣ `BLE_GATTS_EVT_SC_CONFIRM`

Content	Description
When Triggered	When you call `<span>sd_ble_gatts_service_changed()</span><span> and send an Indication, then receive confirmation</span>`
Typical Uses	Inform the Central that “your GATT service has changed”
Server Processing Method	Usually record confirmation status, for logging purposes

6️⃣ `BLE_GATTS_EVT_EXCHANGE_MTU_REQUEST`

Content	Description
When Triggered	The Central actively initiates MTU negotiation
Typical Uses	Both parties determine the maximum data packet length (MTU)
Server Processing Method	Call `<span>sd_ble_gatts_exchange_mtu_reply()</span><span> to reply with the MTU value, generally </span><code><span>NRF_SDH_BLE_GATT_MAX_MTU_SIZE</span><span> or the value supported by the other party</span>`

7️⃣ `BLE_GATTS_EVT_TIMEOUT`

Content	Description
When Triggered	GATT operation (e.g., Indicate) timeout, no response received
Typical Uses	Clean up GATT state, disconnect, etc.
Server Processing Method	Generally call `<span>sd_ble_gap_disconnect()</span><span> to actively disconnect, avoiding deadlock state</span>`

case BLE_GATTS_EVT_TIMEOUT:
sd_ble_gap_disconnect(p_evt->conn_handle, BLE_HCI_REMOTE_USER_TERMINATED_CONNECTION);
    break;

8️⃣ `BLE_GATTS_EVT_HVN_TX_COMPLETE`

Content	Description
When Triggered	One or more Notifies have been sent through the BLE stack
Typical Uses	Used for flow control: one Notify has been sent, prepare to send the next
Server Processing Method	Mark notification as completed, can continue to send the next Notify data

3. GATTC Events

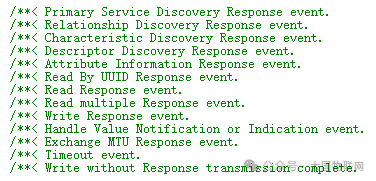

enum BLE_GATTC_EVTS

{

BLE_GATTC_EVT_PRIM_SRVC_DISC_RSP = BLE_GATTC_EVT_BASE,

BLE_GATTC_EVT_REL_DISC_RSP,

BLE_GATTC_EVT_CHAR_DISC_RSP,

BLE_GATTC_EVT_DESC_DISC_RSP,

BLE_GATTC_EVT_ATTR_INFO_DISC_RSP,

BLE_GATTC_EVT_CHAR_VAL_BY_UUID_READ_RSP,

BLE_GATTC_EVT_READ_RSP,

BLE_GATTC_EVT_CHAR_VALS_READ_RSP,

BLE_GATTC_EVT_WRITE_RSP,

BLE_GATTC_EVT_HVX,

BLE_GATTC_EVT_EXCHANGE_MTU_RSP,

BLE_GATTC_EVT_TIMEOUT,

BLE_GATTC_EVT_WRITE_CMD_TX_COMPLETE

};

C represents client events, and the client usually refers to the central device.

1️⃣ `BLE_GATTC_EVT_PRIM_SRVC_DISC_RSP`

🔍 Primary Service Discovery Response

✅ Meaning: The result received after you call sd_ble_gattc_primary_services_discover()
🎯 Used to discover which service UUIDs the device supports
🚫 Ignore ➜ Cannot subsequently discover characteristics

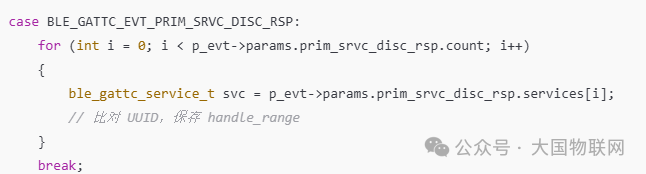

✅ Suggestion: Traverse services[] to extract <code>uuid + <code>handle_range

2️⃣ `BLE_GATTC_EVT_REL_DISC_RSP`

🔎 Included Services Discovery Response

🎯 Used to discover other services nested within a service (not commonly used)
✅ Usually skipped unless you are using a complex Profile

3️⃣ `BLE_GATTC_EVT_CHAR_DISC_RSP`

🔍 Characteristic Discovery Response

✅ Meaning: Called after sd_ble_gattc_characteristics_discover()
🎯 Scenario: Obtain characteristic UUID, attributes, handle
✅ Suggestion: Save .uuid, <code>.handle_value, <code>.handle_decl, etc.

4️⃣ `BLE_GATTC_EVT_DESC_DISC_RSP`

🔍 Descriptor Discovery Response

✅ Used to discover descriptors such as CCCD
🎯 For example: To enable Notification, you need to find and write to CCCD

5️⃣ `BLE_GATTC_EVT_ATTR_INFO_DISC_RSP`

📄 Attribute Information Discovery Response

✅ Applicable to Attribute Info Protocol (ATT v1.4+)
✅ Generally not used, can be skipped

6️⃣ `BLE_GATTC_EVT_CHAR_VAL_BY_UUID_READ_RSP`

📖 Batch Read Characteristic Values by UUID Response

🎯 Applicable for finding all instances of a certain UUID
✅ Can be used to match instance values of the same UUID across multiple services

7️⃣ `BLE_GATTC_EVT_READ_RSP`

📖 Read Characteristic or Descriptor Response

✅ You receive data after calling sd_ble_gattc_read()
✅ Typical scenario: Read battery level, device name, custom data

8️⃣ `BLE_GATTC_EVT_CHAR_VALS_READ_RSP`

📖 Batch Read Multiple Characteristic Values Response (not commonly used)

✅ Used for sd_ble_gattc_read() specifying multiple handles

9️⃣ `BLE_GATTC_EVT_WRITE_RSP`

✍️ Write Response (Write Request)

✅ You call sd_ble_gattc_write() after
🎯 Scenario: Write to remote characteristic, enable Notify
✅ Must wait for this event before sending the next write (writes with response are synchronous and blocking)

🔟 `BLE_GATTC_EVT_HVX`

📡 Received Notify / Indicate

✅ Meaning: The peer sends data to you via Notify/Indicate
🎯 You receive real-time data after subscribing to a certain characteristic

1️⃣1️⃣ `BLE_GATTC_EVT_EXCHANGE_MTU_RSP`

📐 Protocol Stack MTU Negotiation Result

✅ You call sd_ble_gattc_exchange_mtu_request() after triggering
🎯 Optimize throughput (recommended to negotiate immediately after connection)

1️⃣2️⃣ `BLE_GATTC_EVT_TIMEOUT`

⏱️ Client Operation Timeout

✅ Generally, no response during read/write/service discovery process
✅ Suggest to disconnect

1️⃣3️⃣ `BLE_GATTC_EVT_WRITE_CMD_TX_COMPLETE`

✅ No Response Write Completion (Write Command)

✅ Triggered when you use BLE_GATT_OP_WRITE_CMD
✅ Used for flow control (no response writes may also block TX)

4. Global Events

1️⃣ `BLE_EVT_CONNECTED`

✅ Meaning: Device has established a connection (master or slave)
🎯 Scenario:

Central actively connects to Peripheral
Peripheral is connected

🚫 If you do not save conn_handle, you will not be able to send data later
✅ Suggestion:

case BLE_GAP_EVT_CONNECTED:
    m_conn_handle = p_ble_evt->evt.gap_evt.conn_handle;
    NRF_LOG_INFO("Connected. conn_handle: 0x%x", m_conn_handle);
break;

⚠️ Essentially, it is #define BLE_EVT_CONNECTED BLE_GAP_EVT_CONNECTED

2️⃣ `BLE_EVT_DISCONNECTED`

✅ Meaning: Connection Disconnected
🎯 Scenario:

Communication failure
Actively call sd_ble_gap_disconnect()

🚫 Not cleaning up resources may lead to crashes or resource leaks
✅ Suggestion:

case BLE_GAP_EVT_DISCONNECTED:
    NRF_LOG_INFO("Disconnected, reason: 0x%x", p_ble_evt->evt.gap_evt.params.disconnected.reason);
    m_conn_handle = BLE_CONN_HANDLE_INVALID;
break;

⚠️ Essentially, it is #define BLE_EVT_DISCONNECTED BLE_GAP_EVT_DISCONNECTED

3️⃣ `BLE_EVT_TX_COMPLETE`

✅ Meaning: SoftDevice TX buffer available (Notify / Write without response sent)
🎯 Scenario: You have sent many Notifies, TX FIFO is full
🚫 Not processing will cause you to continue writing data to fail (NRF_ERROR_RESOURCES)
✅ Suggestion: Used for sending queue flow control

case BLE_EVT_TX_COMPLETE:
    m_tx_pending = false;
    send_next_notify();
break;

4️⃣ `BLE_EVT_USER_MEM_REQUEST`

✅ Meaning: GATT Client does “long write” (prepare write), SoftDevice requests you to provide memory cache
🎯 Scenario: You call sd_ble_gattc_write() using <code>BLE_GATT_OP_PREP_WRITE_REQ
🚫 Ignore ➜ Long write process suspended
✅ Suggestion: Immediately call sd_ble_user_mem_reply() to pass in buffer

case BLE_EVT_USER_MEM_REQUEST:
{
static uint8_t write_buf[256];
ble_user_mem_block_t mem = {
        .len   = sizeof(write_buf),
        .p_mem = write_buf
    };
    sd_ble_user_mem_reply(conn_handle, &amp;mem);
}
break;

5️⃣ `BLE_EVT_USER_MEM_RELEASE`

✅ Meaning: SoftDevice no longer uses the memory you provided (long write ends)
🎯 Scenario: prepare-write, reliable write completed
✅ Suggestion: Release and reuse the cache

case BLE_EVT_USER_MEM_RELEASE:
    NRF_LOG_INFO("Long write buffer released");
break;

5. Events of the Pairing/Security/Binding/Storage Management Module

typedef enum

{

PM_EVT_BONDED_PEER_CONNECTED,

PM_EVT_CONN_CONFIG_REQ,

PM_EVT_CONN_SEC_START,

PM_EVT_CONN_SEC_SUCCEEDED,

PM_EVT_CONN_SEC_FAILED,

PM_EVT_CONN_SEC_CONFIG_REQ,

PM_EVT_CONN_SEC_PARAMS_REQ,

PM_EVT_STORAGE_FULL,

PM_EVT_ERROR_UNEXPECTED,

PM_EVT_PEER_DATA_UPDATE_SUCCEEDED,

PM_EVT_PEER_DATA_UPDATE_FAILED,

PM_EVT_PEER_DELETE_SUCCEEDED,

PM_EVT_PEER_DELETE_FAILED,

PM_EVT_PEERS_DELETE_SUCCEEDED,

PM_EVT_PEERS_DELETE_FAILED,

PM_EVT_LOCAL_DB_CACHE_APPLIED,

PM_EVT_LOCAL_DB_CACHE_APPLY_FAILED,

PM_EVT_SERVICE_CHANGED_IND_SENT,

PM_EVT_SERVICE_CHANGED_IND_CONFIRMED,

PM_EVT_SLAVE_SECURITY_REQ,

PM_EVT_FLASH_GARBAGE_COLLECTED,

PM_EVT_FLASH_GARBAGE_COLLECTION_FAILED,

} pm_evt_id_t;

1️⃣ `PM_EVT_BONDED_PEER_CONNECTED`

✅ Meaning: Successfully reconnected to a bonded peer.
🎯 Scenario: The device remembers the peer_id, the other party is a previously paired device.
🚫 If ignored: You may miss the opportunity to restore historical data.
✅ Suggestion: Record peer_id, load bonded data.

if (p_evt->evt_id == PM_EVT_BONDED_PEER_CONNECTED)
{
    m_peer_id = p_evt->peer_id;  // Save the currently connected peer_id
}

2️⃣ `PM_EVT_CONN_CONFIG_REQ`

✅ SoftDevice requests connection parameter configuration.
✅ Usually handled internally, no application response required.
✅ You can ignore it.

3️⃣ `PM_EVT_CONN_SEC_START`

✅ Meaning: Start encryption or pairing.
🎯 Scenario: You or the peer initiated a secure connection.
🚫 Ignoring it is not a big deal, mainly for logging.
✅ Suggestion: Log or set status.

if (p_evt->evt_id == PM_EVT_CONN_SEC_START)
{
    NRF_LOG_INFO("Security procedure started.");
}

4️⃣ `PM_EVT_CONN_SEC_SUCCEEDED`

✅ Meaning: Connection encryption/pairing succeeded.
🎯 Scenario: First pairing or re-connection using old keys for encryption.
🚫 Ignoring it will lead to subsequent services being unable to start or notifications failing.
✅ Suggestion:

Record peer_id
Start notifications, GATT services, etc.

if (p_evt->evt_id == PM_EVT_CONN_SEC_SUCCEEDED)
{
    m_peer_id = p_evt->peer_id;
    notify_start(); // Notifications can only be sent after the connection is secure
}

5️⃣ `PM_EVT_CONN_SEC_FAILED`

✅ Meaning: Encryption/pairing failed
🎯 Mobile pairing process interrupted, password mismatch, IO capability conflict, etc.
🚫 Continuing to maintain the connection will have no security guarantee
✅ Suggestion: Disconnect immediately

if (p_evt->evt_id == PM_EVT_CONN_SEC_FAILED){ sd_ble_gap_disconnect(p_evt->conn_handle, BLE_HCI_REMOTE_USER_TERMINATED_CONNECTION);}

6️⃣ `PM_EVT_CONN_SEC_CONFIG_REQ` (the one you should focus on)

✅ Meaning: The peer wishes to re-pair (and you are bonded)
🎯 Scenario: The mobile device deletes the device and reconnects
🚫 Not processing ➜ Will lead to pairing failure
✅ Suggestion:

Reply allowing repairing
Delete the original bond

pm_conn_sec_config_t config = {.allow_repairing = true};
pm_conn_sec_config_reply(p_evt->conn_handle, &amp;config);
pm_peer_delete(p_evt->peer_id);  // Delete old bond

7️⃣ `PM_EVT_CONN_SEC_PARAMS_REQ`

✅ Meaning: SoftDevice requests pairing parameters
🎯 Occurs during the pairing process
✅ PM handles it automatically internally, no need for you to respond

8️⃣ `PM_EVT_STORAGE_FULL`

✅ Meaning: Flash is full, unable to store pairing data
🎯 Multiple pairings without timely GC (garbage collection)
🚫 Subsequent bonding will fail, record write failure
✅ Suggestion:

fds_gc(); // Manually trigger garbage collection

9️⃣ `PM_EVT_ERROR_UNEXPECTED`

✅ PM internal exception (e.g., FDS error)
✅ Suggestion: Log the error code for debugging

🔟 `PM_EVT_PEER_DATA_UPDATE_SUCCEEDED`

✅ Indicates that data (e.g., LTK, flags) has been successfully updated and written to FDS.
✅ Suggestion: Log the mark.

1️⃣1️⃣ `PM_EVT_PEER_DATA_UPDATE_FAILED`

✅ Indicates that writing to FDS failed (possibly Flash Busy)
✅ Suggestion: Retry after GC

1️⃣2️⃣ `PM_EVT_PEER_DELETE_SUCCEEDED`

✅ Successfully deleted peer
✅ Usually used for UI display “cleared successfully”

1️⃣3️⃣ `PM_EVT_PEER_DELETE_FAILED`

✅ Deletion failed (Flash Busy)
✅ Suggestion: Retry later or trigger GC

1️⃣4️⃣ `PM_EVT_PEERS_DELETE_SUCCEEDED`

✅ Successfully cleared all peers
✅ Suggestion: Re-advertise afterwards, enter pairing state

1️⃣5️⃣ `PM_EVT_PEERS_DELETE_FAILED`

✅ Failed to delete all
✅ Reason is usually that GC is not completed

1️⃣6️⃣ `PM_EVT_LOCAL_DB_CACHE_APPLIED`

✅ Indicates that the service cache has been successfully applied (used to skip the discovery process)
✅ Can skip ble_db_discovery_start()

1️⃣7️⃣ `PM_EVT_LOCAL_DB_CACHE_APPLY_FAILED`

✅ GATT cache invalid
✅ Needs to rediscover services

1️⃣8️⃣ `PM_EVT_SERVICE_CHANGED_IND_SENT`

✅ Notified the peer “service has changed”
✅ Suggestion: Wait for confirmation before enabling services

1️⃣9️⃣ `PM_EVT_SERVICE_CHANGED_IND_CONFIRMED`

✅ The client confirmed the Indicate
✅ Suggestion: Use GATT services normally afterwards

2️⃣0️⃣ `PM_EVT_SLAVE_SECURITY_REQ`

✅ The slave actively requests the host for encryption
✅ Suggestion: The master device calls sd_ble_gap_authenticate()

2️⃣1️⃣ `PM_EVT_FLASH_GARBAGE_COLLECTED`

✅ GC successfully completed, Flash available

2️⃣2️⃣ `PM_EVT_FLASH_GARBAGE_COLLECTION_FAILED`

✅ GC failed (e.g., writing Flash)
✅ Suggestion: Retry later

6. Flash Data Storage (FDS) Module Events

1️⃣ `FDS_EVT_INIT` — Initialization Complete

✅ Meaning: FDS module initialization succeeded or failed (triggered after calling fds_init())
🎯 Scenario: During startup, initialization must be completed to read/write records
🚫 Ignoring may cause all subsequent FDS API calls to fail
✅ Processing Suggestion:

void fds_evt_handler(fds_evt_t const * p_evt){ if (p_evt->id == FDS_EVT_INIT) { if (p_evt->result == NRF_SUCCESS) { NRF_LOG_INFO("FDS init successful"); } else { NRF_LOG_ERROR("FDS init failed: %d", p_evt->result); } }}

2️⃣ `FDS_EVT_WRITE` — Record Write Complete

✅ Meaning:fds_record_write() successfully written to Flash
🎯 Scenario: Pairing information, parameter settings, application state written
🚫 Ignoring may lead to unknown data state, unable to continue operations
✅ Suggestion: Record record_id, update status
if (p_evt->id == FDS_EVT_WRITE){ NRF_LOG_INFO("Record written. ID: 0x%x", p_evt->write.record_id);}

3️⃣ `FDS_EVT_UPDATE` — Record Update Complete

✅ Meaning: Called fds_record_update() successfully
🎯 Replaces old record content, automatically invalidates the old record
🚫 Ignoring will lead to uncertainty about whether the overwrite was successful
✅ Suggestion: Confirm and release the old record (if needed)

if (p_evt->id == FDS_EVT_UPDATE)
{
    NRF_LOG_INFO("Record updated. ID: 0x%x", p_evt->write.record_id);
}

4️⃣ `FDS_EVT_DEL_RECORD` — Record Deletion Complete

✅ Meaning:fds_record_delete() successfully deleted the specified record_id
🎯 Scenario: Unbinding, resetting configuration
🚫 Not confirming may cause status errors, not actually deleted
✅ Suggestion: Update internal record status or synchronize UI

if (p_evt->id == FDS_EVT_DEL_RECORD)
{
    NRF_LOG_INFO("Record deleted. ID: 0x%x", p_evt->del.record_id);
}

5️⃣ `FDS_EVT_DEL_FILE` — File Deletion Complete (All Records with the Same file_id)

✅ Meaning:fds_file_delete() successfully, all records in the file have been deleted
🎯 Scenario: Clear a type of data (e.g., all binding records)
🚫 Not processing may miss cleaning up subsequent processes
✅ Suggestion: Update local status flags or trigger re-initialization

<span>if (p_evt->id == FDS_EVT_DEL_FILE)</span><span>{</span><span>    NRF_LOG_INFO("File deleted. File ID: 0x%x", p_evt->del.file_id);
}
</span>

6️⃣ `FDS_EVT_GC` — Garbage Collection Complete

✅ Meaning: Called fds_gc() completed garbage block collection
🎯 Scenario: Insufficient storage space or manual collection
🚫 If you do not wait for GC to complete, it may lead to write failures
✅ Suggestion: Retry writing, update status

<span>if (p_evt->id == FDS_EVT_GC)</span><span>{</span><span>    NRF_LOG_INFO("FDS GC completed.");
// Can continue writing previously failed records
}
</span>

✅ Recommended `fds_evt_handler() Template Structure`

void fds_evt_handler(fds_evt_t const * p_evt)
{
 switch (p_evt->id)
 {
  case FDS_EVT_INIT:
  case FDS_EVT_WRITE:
  case FDS_EVT_UPDATE:
  case FDS_EVT_DEL_RECORD:
  case FDS_EVT_DEL_FILE:
  case FDS_EVT_GC:
  // Handle each as above
  break;

  default:
   NRF_LOG_WARNING("Unknown FDS event: %d", p_evt->id);
    break;
 }
}

And the data passed from the protocol stack after the corresponding event occurs

1. <span><span>BLE_GAP_EVT_CONNECTED</span></span>

2. <span><span>BLE_GAP_EVT_DISCONNECTED</span></span>

<span><span>3. BLE_GAP_EVT_CONN_PARAM_UPDATE</span></span>

4. <span><span>BLE_GAP_EVT_SEC_PARAMS_REQUEST</span></span>

5. <span><span>BLE_GAP_EVT_SEC_INFO_REQUEST</span></span>

6. <span><span>BLE_GAP_EVT_PASSKEY_DISPLAY</span></span>

7. <span><span>BLE_GAP_EVT_KEY_PRESSED</span></span>

8. <span><span>BLE_GAP_EVT_AUTH_KEY_REQUEST</span></span>

9. <span><span>BLE_GAP_EVT_LESC_DHKEY_REQUEST</span></span>

10. <span><span>BLE_GAP_EVT_AUTH_STATUS</span></span>

11. <span><span>BLE_GAP_EVT_CONN_SEC_UPDATE</span></span>

<span>BLE_GAP_EVT_TIMEOUT</span>

12. <span><span>BLE_GAP_EVT_RSSI_CHANGED</span></span>

4. <span><span>BLE_GAP_EVT_ADV_REPORT</span></span>

13. <span><span>BLE_GAP_EVT_SEC_REQUEST</span></span>

14. <span><span>BLE_GAP_EVT_CONN_PARAM_UPDATE_REQUEST</span></span>

15. <span><span>BLE_GAP_EVT_SCAN_REQ_REPORT</span></span>

16. <span><span>BLE_GAP_EVT_PHY_UPDATE_REQUEST</span></span>

17. <span><span>BLE_GAP_EVT_PHY_UPDATE</span></span>

18. <span><span>BLE_GAP_EVT_DATA_LENGTH_UPDATE_REQUEST</span></span>

19. <span><span>BLE_GAP_EVT_DATA_LENGTH_UPDATE</span></span>

20. <span><span>BLE_GAP_EVT_QOS_CHANNEL_SURVEY_REPORT</span></span>

21. <span><span>BLE_GAP_EVT_ADV_SET_TERMINATED</span></span>

1️⃣ <span><span>BLE_GATTS_EVT_WRITE</span></span>

2️⃣ <span><span>BLE_GATTS_EVT_RW_AUTHORIZE_REQUEST</span></span>

3️⃣ <span><span>BLE_GATTS_EVT_SYS_ATTR_MISSING</span></span>

4️⃣ <span><span>BLE_GATTS_EVT_HVC</span></span>

5️⃣ <span><span>BLE_GATTS_EVT_SC_CONFIRM</span></span>

6️⃣ <span><span>BLE_GATTS_EVT_EXCHANGE_MTU_REQUEST</span></span>

7️⃣ <span><span>BLE_GATTS_EVT_TIMEOUT</span></span>

8️⃣ <span><span>BLE_GATTS_EVT_HVN_TX_COMPLETE</span></span>

1️⃣ <span><span>BLE_GATTC_EVT_PRIM_SRVC_DISC_RSP</span></span>

2️⃣ <span><span>BLE_GATTC_EVT_REL_DISC_RSP</span></span>

3️⃣ <span><span>BLE_GATTC_EVT_CHAR_DISC_RSP</span></span>

4️⃣ <span><span>BLE_GATTC_EVT_DESC_DISC_RSP</span></span>

5️⃣ <span><span>BLE_GATTC_EVT_ATTR_INFO_DISC_RSP</span></span>

6️⃣ <span><span>BLE_GATTC_EVT_CHAR_VAL_BY_UUID_READ_RSP</span></span>

7️⃣ <span><span>BLE_GATTC_EVT_READ_RSP</span></span>

8️⃣ <span><span>BLE_GATTC_EVT_CHAR_VALS_READ_RSP</span></span>

9️⃣ <span><span>BLE_GATTC_EVT_WRITE_RSP</span></span>

🔟 <span><span>BLE_GATTC_EVT_HVX</span></span>

1️⃣1️⃣ <span><span>BLE_GATTC_EVT_EXCHANGE_MTU_RSP</span></span>

1️⃣2️⃣ <span><span>BLE_GATTC_EVT_TIMEOUT</span></span>

1️⃣3️⃣ <span><span>BLE_GATTC_EVT_WRITE_CMD_TX_COMPLETE</span></span>

1️⃣ <span><span>BLE_EVT_CONNECTED</span></span>

2️⃣ <span><span>BLE_EVT_DISCONNECTED</span></span>

3️⃣ <span><span>BLE_EVT_TX_COMPLETE</span></span>

4️⃣ <span><span>BLE_EVT_USER_MEM_REQUEST</span></span>

5️⃣ <span><span>BLE_EVT_USER_MEM_RELEASE</span></span>

1️⃣ <span><span>PM_EVT_BONDED_PEER_CONNECTED</span></span>

2️⃣ <span><span>PM_EVT_CONN_CONFIG_REQ</span></span>

3️⃣ <span><span>PM_EVT_CONN_SEC_START</span></span>

4️⃣ <span><span>PM_EVT_CONN_SEC_SUCCEEDED</span></span>

5️⃣ <span><span>PM_EVT_CONN_SEC_FAILED</span></span>

6️⃣ <span><span>PM_EVT_CONN_SEC_CONFIG_REQ</span></span> (the one you should focus on)

7️⃣ <span><span>PM_EVT_CONN_SEC_PARAMS_REQ</span></span>

8️⃣ <span><span>PM_EVT_STORAGE_FULL</span></span>

9️⃣ <span><span>PM_EVT_ERROR_UNEXPECTED</span></span>

🔟 <span><span>PM_EVT_PEER_DATA_UPDATE_SUCCEEDED</span></span>

1️⃣1️⃣ <span><span>PM_EVT_PEER_DATA_UPDATE_FAILED</span></span>

1️⃣2️⃣ <span><span>PM_EVT_PEER_DELETE_SUCCEEDED</span></span>

1️⃣3️⃣ <span><span>PM_EVT_PEER_DELETE_FAILED</span></span>

1️⃣4️⃣ <span><span>PM_EVT_PEERS_DELETE_SUCCEEDED</span></span>

1️⃣5️⃣ <span><span>PM_EVT_PEERS_DELETE_FAILED</span></span>

1️⃣6️⃣ <span><span>PM_EVT_LOCAL_DB_CACHE_APPLIED</span></span>

1️⃣7️⃣ <span><span>PM_EVT_LOCAL_DB_CACHE_APPLY_FAILED</span></span>

1️⃣8️⃣ <span><span>PM_EVT_SERVICE_CHANGED_IND_SENT</span></span>

1️⃣9️⃣ <span><span>PM_EVT_SERVICE_CHANGED_IND_CONFIRMED</span></span>

2️⃣0️⃣ <span><span>PM_EVT_SLAVE_SECURITY_REQ</span></span>

2️⃣1️⃣ <span><span>PM_EVT_FLASH_GARBAGE_COLLECTED</span></span>

2️⃣2️⃣ <span><span>PM_EVT_FLASH_GARBAGE_COLLECTION_FAILED</span></span>

1️⃣ <span><span>FDS_EVT_INIT</span></span> — Initialization Complete

2️⃣ <span><span>FDS_EVT_WRITE</span></span> — Record Write Complete

3️⃣ <span><span>FDS_EVT_UPDATE</span></span> — Record Update Complete

4️⃣ <span><span>FDS_EVT_DEL_RECORD</span></span> — Record Deletion Complete

5️⃣ <span><span>FDS_EVT_DEL_FILE</span></span> — File Deletion Complete (All Records with the Same file_id)

6️⃣ <span><span>FDS_EVT_GC</span></span> — Garbage Collection Complete

✅ Recommended <span>fds_evt_handler()</span><span> Template Structure</span>

Related posts

1. `<span><span>BLE_GAP_EVT_CONNECTED</span></span>`

2. `<span><span>BLE_GAP_EVT_DISCONNECTED</span></span>`

`<span><span>3. BLE_GAP_EVT_CONN_PARAM_UPDATE</span></span>`

4. `<span><span>BLE_GAP_EVT_SEC_PARAMS_REQUEST</span></span>`

5. `<span><span>BLE_GAP_EVT_SEC_INFO_REQUEST</span></span>`

6. `<span><span>BLE_GAP_EVT_PASSKEY_DISPLAY</span></span>`

7. `<span><span>BLE_GAP_EVT_KEY_PRESSED</span></span>`

8. `<span><span>BLE_GAP_EVT_AUTH_KEY_REQUEST</span></span>`

9. `<span><span>BLE_GAP_EVT_LESC_DHKEY_REQUEST</span></span>`

10. `<span><span>BLE_GAP_EVT_AUTH_STATUS</span></span>`

11. `<span><span>BLE_GAP_EVT_CONN_SEC_UPDATE</span></span>`

`<span>BLE_GAP_EVT_TIMEOUT</span>`

12. `<span><span>BLE_GAP_EVT_RSSI_CHANGED</span></span>`

4. `<span><span>BLE_GAP_EVT_ADV_REPORT</span></span>`

13. `<span><span>BLE_GAP_EVT_SEC_REQUEST</span></span>`

14. `<span><span>BLE_GAP_EVT_CONN_PARAM_UPDATE_REQUEST</span></span>`

15. `<span><span>BLE_GAP_EVT_SCAN_REQ_REPORT</span></span>`

16. `<span><span>BLE_GAP_EVT_PHY_UPDATE_REQUEST</span></span>`

17. `<span><span>BLE_GAP_EVT_PHY_UPDATE</span></span>`

18. `<span><span>BLE_GAP_EVT_DATA_LENGTH_UPDATE_REQUEST</span></span>`

19. `<span><span>BLE_GAP_EVT_DATA_LENGTH_UPDATE</span></span>`

20. `<span><span>BLE_GAP_EVT_QOS_CHANNEL_SURVEY_REPORT</span></span>`

21. `<span><span>BLE_GAP_EVT_ADV_SET_TERMINATED</span></span>`

1️⃣ `<span><span>BLE_GATTS_EVT_WRITE</span></span>`

2️⃣ `<span><span>BLE_GATTS_EVT_RW_AUTHORIZE_REQUEST</span></span>`

3️⃣ `<span><span>BLE_GATTS_EVT_SYS_ATTR_MISSING</span></span>`

4️⃣ `<span><span>BLE_GATTS_EVT_HVC</span></span>`

5️⃣ `<span><span>BLE_GATTS_EVT_SC_CONFIRM</span></span>`

6️⃣ `<span><span>BLE_GATTS_EVT_EXCHANGE_MTU_REQUEST</span></span>`

7️⃣ `<span><span>BLE_GATTS_EVT_TIMEOUT</span></span>`

8️⃣ `<span><span>BLE_GATTS_EVT_HVN_TX_COMPLETE</span></span>`

1️⃣ `<span><span>BLE_GATTC_EVT_PRIM_SRVC_DISC_RSP</span></span>`

2️⃣ `<span><span>BLE_GATTC_EVT_REL_DISC_RSP</span></span>`

3️⃣ `<span><span>BLE_GATTC_EVT_CHAR_DISC_RSP</span></span>`

4️⃣ `<span><span>BLE_GATTC_EVT_DESC_DISC_RSP</span></span>`

5️⃣ `<span><span>BLE_GATTC_EVT_ATTR_INFO_DISC_RSP</span></span>`

6️⃣ `<span><span>BLE_GATTC_EVT_CHAR_VAL_BY_UUID_READ_RSP</span></span>`

7️⃣ `<span><span>BLE_GATTC_EVT_READ_RSP</span></span>`

8️⃣ `<span><span>BLE_GATTC_EVT_CHAR_VALS_READ_RSP</span></span>`

9️⃣ `<span><span>BLE_GATTC_EVT_WRITE_RSP</span></span>`

🔟 `<span><span>BLE_GATTC_EVT_HVX</span></span>`

1️⃣1️⃣ `<span><span>BLE_GATTC_EVT_EXCHANGE_MTU_RSP</span></span>`

1️⃣2️⃣ `<span><span>BLE_GATTC_EVT_TIMEOUT</span></span>`

1️⃣3️⃣ `<span><span>BLE_GATTC_EVT_WRITE_CMD_TX_COMPLETE</span></span>`

1️⃣ `<span><span>BLE_EVT_CONNECTED</span></span>`

2️⃣ `<span><span>BLE_EVT_DISCONNECTED</span></span>`

3️⃣ `<span><span>BLE_EVT_TX_COMPLETE</span></span>`

4️⃣ `<span><span>BLE_EVT_USER_MEM_REQUEST</span></span>`

5️⃣ `<span><span>BLE_EVT_USER_MEM_RELEASE</span></span>`

1️⃣ `<span><span>PM_EVT_BONDED_PEER_CONNECTED</span></span>`

2️⃣ `<span><span>PM_EVT_CONN_CONFIG_REQ</span></span>`

3️⃣ `<span><span>PM_EVT_CONN_SEC_START</span></span>`

4️⃣ `<span><span>PM_EVT_CONN_SEC_SUCCEEDED</span></span>`

5️⃣ `<span><span>PM_EVT_CONN_SEC_FAILED</span></span>`

6️⃣ `<span><span>PM_EVT_CONN_SEC_CONFIG_REQ</span></span>` (the one you should focus on)

7️⃣ `<span><span>PM_EVT_CONN_SEC_PARAMS_REQ</span></span>`

8️⃣ `<span><span>PM_EVT_STORAGE_FULL</span></span>`

9️⃣ `<span><span>PM_EVT_ERROR_UNEXPECTED</span></span>`

🔟 `<span><span>PM_EVT_PEER_DATA_UPDATE_SUCCEEDED</span></span>`

1️⃣1️⃣ `<span><span>PM_EVT_PEER_DATA_UPDATE_FAILED</span></span>`

1️⃣2️⃣ `<span><span>PM_EVT_PEER_DELETE_SUCCEEDED</span></span>`

1️⃣3️⃣ `<span><span>PM_EVT_PEER_DELETE_FAILED</span></span>`

1️⃣4️⃣ `<span><span>PM_EVT_PEERS_DELETE_SUCCEEDED</span></span>`

1️⃣5️⃣ `<span><span>PM_EVT_PEERS_DELETE_FAILED</span></span>`

1️⃣6️⃣ `<span><span>PM_EVT_LOCAL_DB_CACHE_APPLIED</span></span>`

1️⃣7️⃣ `<span><span>PM_EVT_LOCAL_DB_CACHE_APPLY_FAILED</span></span>`

1️⃣8️⃣ `<span><span>PM_EVT_SERVICE_CHANGED_IND_SENT</span></span>`

1️⃣9️⃣ `<span><span>PM_EVT_SERVICE_CHANGED_IND_CONFIRMED</span></span>`

2️⃣0️⃣ `<span><span>PM_EVT_SLAVE_SECURITY_REQ</span></span>`

2️⃣1️⃣ `<span><span>PM_EVT_FLASH_GARBAGE_COLLECTED</span></span>`

2️⃣2️⃣ `<span><span>PM_EVT_FLASH_GARBAGE_COLLECTION_FAILED</span></span>`

1️⃣ `<span><span>FDS_EVT_INIT</span></span>` — Initialization Complete

2️⃣ `<span><span>FDS_EVT_WRITE</span></span>` — Record Write Complete

3️⃣ `<span><span>FDS_EVT_UPDATE</span></span>` — Record Update Complete

4️⃣ `<span><span>FDS_EVT_DEL_RECORD</span></span>` — Record Deletion Complete

5️⃣ `<span><span>FDS_EVT_DEL_FILE</span></span>` — File Deletion Complete (All Records with the Same file_id)

6️⃣ `<span><span>FDS_EVT_GC</span></span>` — Garbage Collection Complete

✅ Recommended `<span>fds_evt_handler()</span><span> Template Structure</span>`
