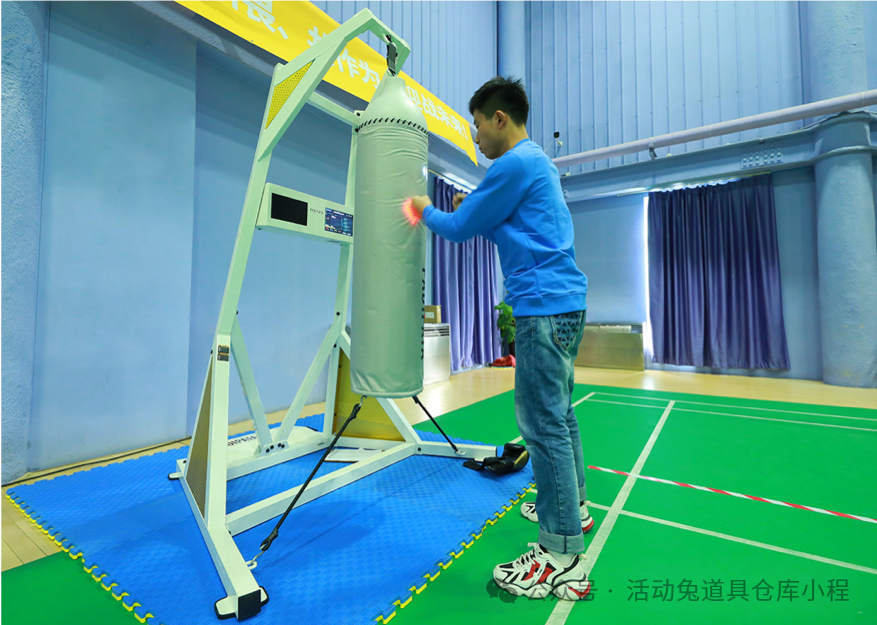

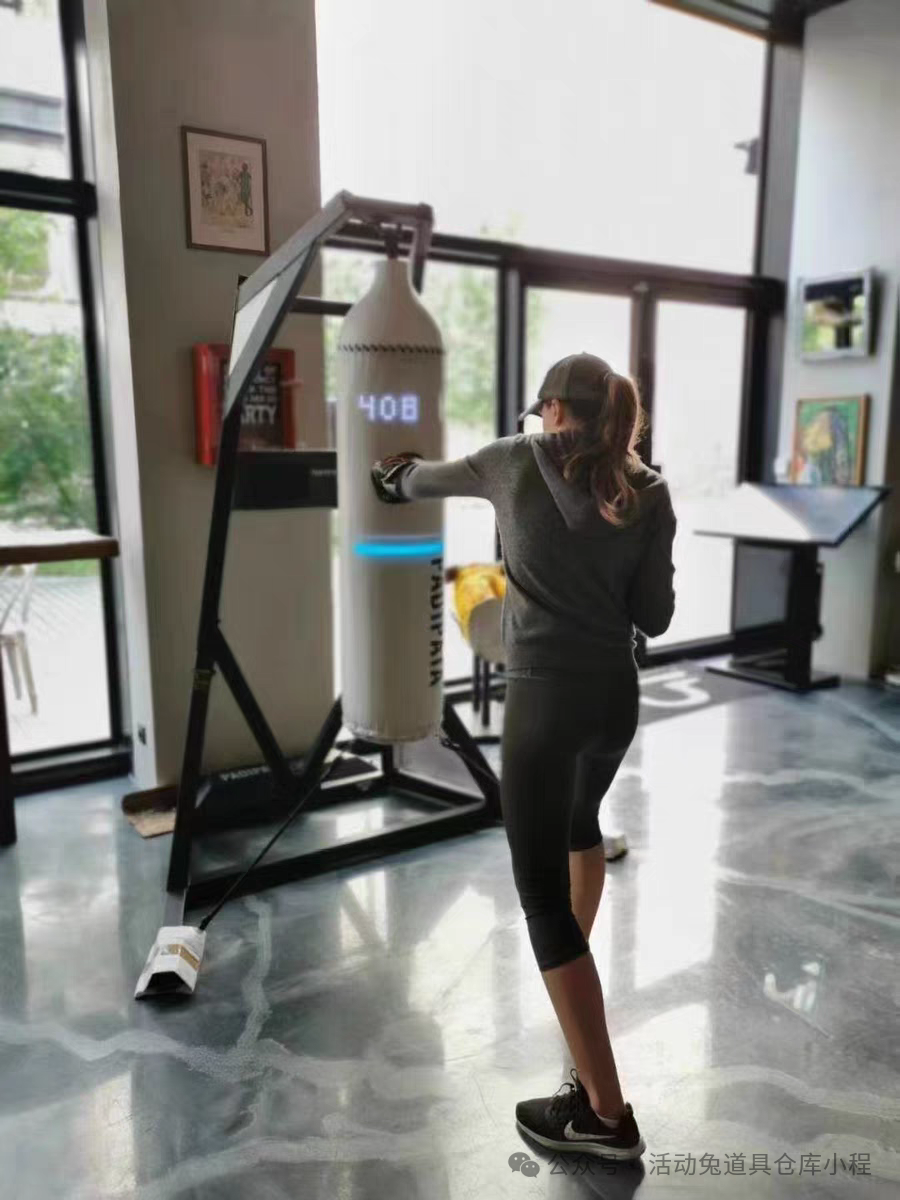

Smart Interactive Punching Bag Fun System V3.0
1. Core Architecture Design
Hardware Perception Layer
3D Force Haptic Matrix:
64-point pressure sensing array (0.5cm accuracy) + Infrared depth camera (0.3cm accuracy)
Dynamic pressure threshold adaptive algorithm (±20% real-time calibration)
Punch response delay ≤ 8ms
Multimodal Fusion:
Kalman filtering algorithm fuses pressure / acceleration / visual data
Punch trajectory reconstruction accuracy reaches 99.2%
Smart Decision Layer
Dynamic Difficulty Engine:
Markov chain prediction model based on user historical data
Punch point refresh rate adapts between 0.3-1.2 seconds
Combo reward mechanism (increases refresh rate by 15% for every 5 combos)
Real-time feedback system:
4D feedback matrix (RGB light effects + tactile feedback + sound effects + voice prompts)
0.2-second response closed loop
2. Data System Design
Smart Scoring System
Triple verification mechanism:
Spatial overlap ≥ 85%
Force threshold ≥ baseline value 75%
Response time ≤ 1.2 seconds
Dynamic scoring algorithm:
Base score = Effective hits × 100
Combo bonus = Combo count² × 2
Time penalty = Number of timeouts × 50
Real-time Ranking System
Distributed data processing:
Redis cluster handles millions of concurrent requests
Ranking update delay ≤ 300ms
Composite sorting rules:
Main dimension: Total score (retaining 3 decimal places)
Secondary dimension: Completion time (accurate to 0.01 seconds)
Anti-cheating algorithm: Abnormal hitting pattern recognition (accuracy 99.6%)
3. User Experience Innovation
Immersive Interaction Design
Scenario-based modes:
Classic mode (standard hitting)
Challenge mode (moving target)
Story mode (gamified tasks)
Smart coaching system:
Real-time action correction (hitting angle / force analysis)
Personalized training plan generation (based on kinematic models)
Social Competitive Ecosystem
Global event system:
Daily ladder competition (top 10% advance)
Weekly champion challenge
Seasonal ranking system (Bronze – King)
Virtual reality integration:
AR target projection (supports mobile / tablet)
Virtual battles (AI practice partner / real person PK)
4. Engineering Implementation Plan
Hardware Configuration
Main control module: RK3588S (8-core 64-bit processor)
Display system: 128×128 full-color LED matrix
Power management: 4000mAh lithium battery (8 hours of battery life)
Deployment Plan
Commercial version:
Edge computing node (NanoPi R6S)
Cloud management platform (supports multi-device monitoring)
Home version:
Bluetooth direct connection to mobile APP
Local data storage (supports offline mode)
5. Core Technical Indicators
Effective hit recognition accuracy: 99.3%
Concurrent processing capability: 100,000 times / second
System response time: ≤ 50ms
Device lifespan: 500,000 hits (industrial-grade materials)
6. Expanded Application Scenarios
Military training (reaction speed training)
Rehabilitation medicine (strength recovery monitoring)
Children’s physical development (fun interactive training)
Fun Props Rental Warehouse offers free fun props rental services in Guangzhou, Shenzhen, the Greater Bay Area, Beijing-Tianjin, Jiangsu-Zhejiang-Shanghai, and other regions. Team building props rental / sports competition equipment / warm-up interactive games / carnival booth materials / VR technology interactive games, etc.
This system integrates multimodal perception, intelligent decision-making, and immersive interaction to create a smart punching device that combines fitness, gaming, and data analysis.
