This article is selected from the Extreme Technology column “IC Design”, authorized to be reprinted from the WeChat public account Old Qin Talks Chips. This article will briefly study the Cortex-A series of the Armv8 architecture. In previous articles, Armv8-A has often been mentioned. So what exactly is Armv8-A? This question is simple to explain and complex at the same time. Today, let’s take some time to study it briefly. As we all know, ARM is a company that designs and licenses processors and corresponding IP (such as interconnect buses, interrupt processors, image processors, etc.). Currently, its processor products are divided into three categories:

Cortex-A Series: This series mainly consists of application processors. The characteristics of these processors include high performance, generally supporting cache, out-of-order execution, branch prediction, multiple instruction issue, and so on.
Cortex-R Series: This series mainly consists of real-time processors. The characteristic of these processors is that their response time to external events is controllable. Here, real-time does not mean that the processor is fast, but that the response time to external events is predictable.
Cortex-M Series: This series mainly consists of microcontroller processors. These processors are generally designed to be relatively simple, with a small chip size and low power consumption, and are usually used as controllers for low-cost chips.

The representative letters of these three series add up to ARM, so this should be intentional by ARM. In fact, ARM’s processor products were not named this way a long time ago, for example, the early ARM9 and ARM11. Now ARM’s processor products have also added the Neoverse series to distinguish them from the A series processors, but that’s a future topic, so let’s just consider it as three series for now.

Returning to Armv8.x-A, the prefix Arm needs no explanation; v indicates version; 8 indicates the major version number; x indicates the extension version number, also known as the minor version number, for example, 8.4 means the major version is 8, and the extension version is 4. The base version of Armv8-A is Armv8.0-A; and the final A indicates the A series, so there should also be R and M, right? However, I have little knowledge of R and M, so I won’t introduce them, and the following content will be based on A. Armv8-A has two execution states, AArch64 and AArch32. Correspondingly, Armv8-A supports two instruction sets: AArch64 (A64) and AArch32, where AArch32 is further divided into A32 and T32. A64 is a fixed-length instruction set, with 32-bit instruction encoding; A32 is also a fixed-length instruction set, with 32-bit instruction encoding; T32 is a variable-length instruction set, with 16-bit and 32-bit instruction encoding. Since A32 and T32 are mainly for forward compatibility, they are rarely used in Armv8-A, and the following content will mainly introduce AArch64-related content. AArch64 has extended some registers, including the following: 31 general 64-bit registers (X0-X30), processor state register PSTATE and several related registers, stack register SP, etc. I will find time to analyze these registers in detail later. Armv8-A defines four exception levels (Exception Level), which have been repeated many times in previous articles. Armv8-A supports GICv3, GICv4, SMMU3. For the instruction set of its processor implementation, ARM has a convention. For example, if a processor implements Armv8.1-A, then the processor:

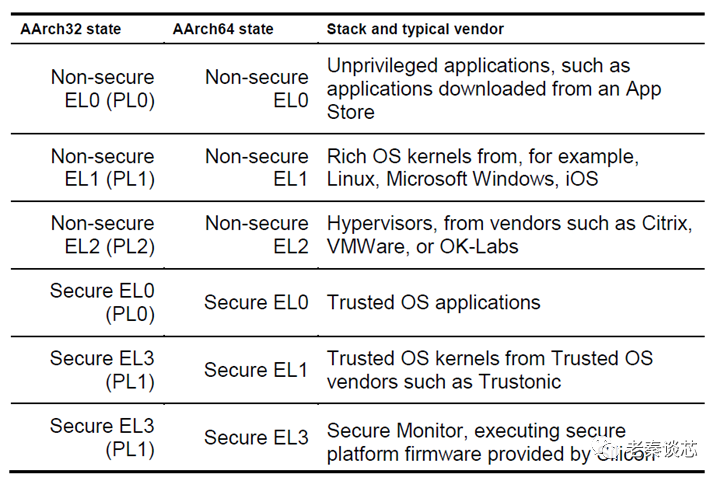

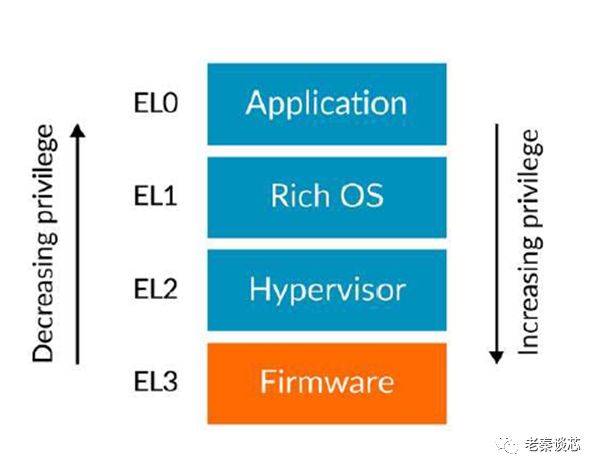

Must implement the functionalities mandated by Armv8.0-A and Armv8.1-A
May implement certain extended functionalities from Armv8.2-A
Is not allowed to implement functionalities from Armv8.3-A and higher versions

Regarding the functionalities required by Armv8.0-A, I will analyze them gradually when I have the opportunity. This is not something that can be completed overnight, as the architecture document alone exceeds ten thousand pages. For now, I will simply list the extended functionalities of versions after Armv8.0-A, and later we will analyze the basic functionalities of Armv8.0-A and these extended functionalities.

1. Armv8.1-A

Atomic memory access instructions (AArch64)
Limited Order regions (AArch64)
Increased Virtual Machine Identifier (VMID) size, and Virtualization Host Extensions (AArch64)
Privileged Access Never (PAN) (AArch32 and AArch64)

2. Armv8.2-A

Support for 52-bit addresses (AArch64)
The ability for PEs to share Translation Lookaside Buffer (TLB) entries (AArch32 and AArch64)
FP16 data processing instructions (AArch32 and AArch64)
Statistical profiling (AArch64)
Reliability Availability Serviceability (RAS) support becomes mandatory (AArch32 and AArch64)

3. Armv8.3-A

Pointer authentication (AArch64)
Nested virtualization (AArch64)
Advanced Single Instruction Multiple Data (SIMD) complex number support (AArch32 and AArch64)
Improved JavaScript data type conversion support (AArch32 and AArch64)
A change to the memory consistency model (AArch64)
ID mechanism support for larger system-visible caches (AArch32 and AArch64)

4. Armv8.4-A

Secure virtualization (AArch64)
Nested virtualization enhancements (AArch64)
Small translation table support (AArch64)
Relaxed alignment restrictions (AArch32 and AArch64)
Memory Partitioning and Monitoring (MPAM) (AArch32 and AArch64)
Additional crypto support (AArch32 and AArch64)
Generic counter scaling (AArch32 and AArch64)
Instructions to accelerate SHA

5. Armv8.5-A and Armv9.0-A

Memory Tagging (AArch64)
Branch Target Identification (AArch64)
Random Number Generator instructions (AArch64)
Cache Clean to Point of Deep Persistence (AArch64)

6. Armv8.6-A and Armv9.1-A

General Matrix Multiply (GEMM) instructions (AArch64)
Fine-grained traps for virtualization (AArch64)
High precision Generic Timer
Data Gathering Hint (AArch64)

7. Armv8.7-A and Armv9.2-A

Enhanced support for PCIe hot plug (AArch64)
Atomic 64-byte load and stores to accelerators (AArch64)
Wait For Instruction (WFI) and Wait For Event (WFE) with timeout (AArch64)
Branch-Record recording (Armv9.2 only)

8Armv8.8-A and Armv9.3-A

Non-maskable interrupts (AArch64)
Instructions to optimize memcpy() and memset() style operations (AArch64)
Enhancements to PAC (AArch64)
Hinted conditional branches

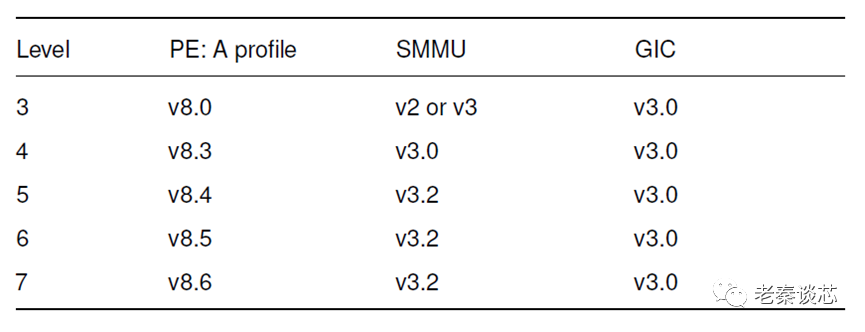

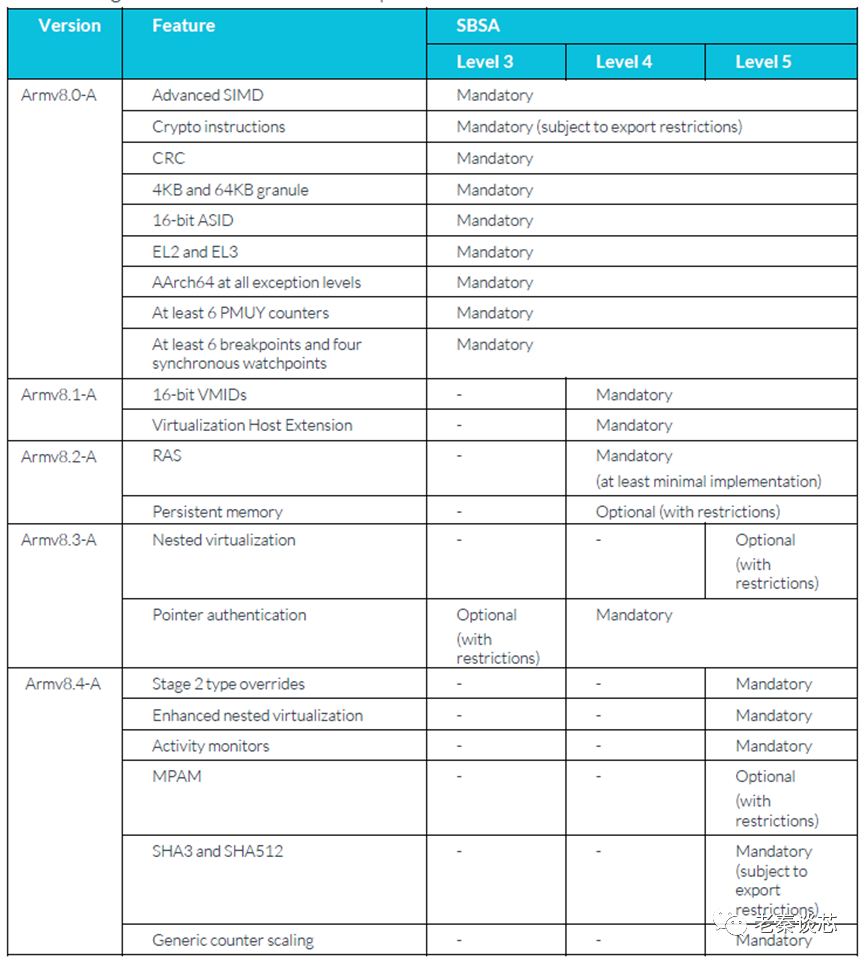

Armv9-A is the latest architecture from ARM, but it has not been fully disclosed yet. Finally, it is worth mentioning that the design of multi-core server chips based on ARM processors is booming, with more and more players both domestically and internationally. ARM has launched the Server Base System Architecture (SBSA) specification, which proposes hardware requirements for servers. The table below summarizes the SBSA requirements related to Armv8.x-A. The SBSA document is public, and interested friends can download it from the official website. The version of the SBSA document I have seen is 7.0, released in January 2021. In fact, the SBSA specifies some rules, with different requirements for different levels. The following image shows the requirements for processors, SMMU, and GIC at different levels of SBSA, which can be viewed in conjunction with the previous image. Finally, I have mustered the courage to start tackling the ARM architecture manual. With over ten thousand pages of documentation, we will take it slow, progressing a little each day.
