In the field of PCBA processing, quality and efficiency are always the core goals pursued by enterprises. However, a slight oversight in complex design and production processes can lead to production difficulties, poor product performance, and even increased rework costs. To identify and resolve potential issues during the design phase, DFM review (Design for Manufacturability) has become an indispensable part.What is DFM review?DFM review refers to a systematic evaluation of design drawings and manufacturing processes during the product design phase to ensure that the circuit board design can be manufactured efficiently and stably. This process combines the actual capabilities of manufacturing processes to verify whether there are issues affecting production, such as overly dense wiring, unreasonable pad design, or component placement not meeting surface mount requirements.Through DFM review, design teams can optimize designs before production begins, avoiding production problems caused by design issues, thereby reducing production costs, shortening delivery cycles, and improving product yield.The role of DFM review1. Enhance manufacturabilityDFM review helps designers clarify the constraints of manufacturing processes, such as the placement accuracy of equipment and the temperature range of soldering processes, ensuring that design solutions meet process requirements and avoiding production failures due to design deviations.2. Reduce production costsBy optimizing designs in advance, DFM review can reduce rework and scrap caused by design issues, significantly lowering production costs. Additionally, reasonable designs can improve material utilization and reduce component procurement costs.3. Improve product quality and reliabilityThe high degree of collaboration between design and manufacturing ensures that every solder joint, trace, and component meets optimal process standards, avoiding common issues such as cold solder joints and short circuits, thus enhancing product reliability and stability.4. Shorten delivery cyclesIdentifying and resolving design issues in advance helps reduce downtime or rework during the production phase, ensuring a smooth production process and significantly shortening the time from design to delivery.The main process of DFM review1. Preliminary reviewAfter the design scheme is completed, a preliminary review of design documents (such as Gerber files, BOM lists, etc.) is conducted to check whether they meet industry standards and manufacturing specifications, such as minimum trace width, via diameter, pad size, etc.2. In-depth evaluationCombining specific manufacturing capabilities and equipment parameters, the feasibility of the design is assessed. For example, checking whether the component layout is reasonable, whether there are risks of poor heat dissipation, or whether high-frequency signal transmission interference has been considered.3. Feedback and optimizationFeedback the identified issues to the design team, providing improvement suggestions, such as adjusting trace lengths, adding heat dissipation holes, or optimizing BGA pad designs. After multiple rounds of feedback and corrections, ensure that the design perfectly matches the process.4. Final confirmationAfter completing all optimizations, conduct a final confirmation of the modified design to ensure that all issues have been resolved and meet mass production requirements.The importance of DFM reviewDFM review is not only an important means to ensure the quality of PCBA processing but also a key link to improve production efficiency, control costs, and enhance customer satisfaction. In the modern electronic manufacturing field, the deep collaboration between design and manufacturing has become an industry trend, and production processes lacking DFM review find it difficult to meet the high demands of complex designs on manufacturing processes.Specifically, DFM review can:– Avoid disconnection between design and process: Help design teams understand the actual capabilities of manufacturing processes, reducing production issues caused by design deviations.– Identify potential risks in advance: Discover hidden dangers in welding, heat dissipation, and electrical performance before production, avoiding large-scale quality issues after mass production.
– Improve mass production efficiency: Optimized designs are easier to produce, reducing the difficulty of equipment debugging and production switching.
Jiangxi Intelli Electronics Technology Co., Ltd.
Intelli production line scale

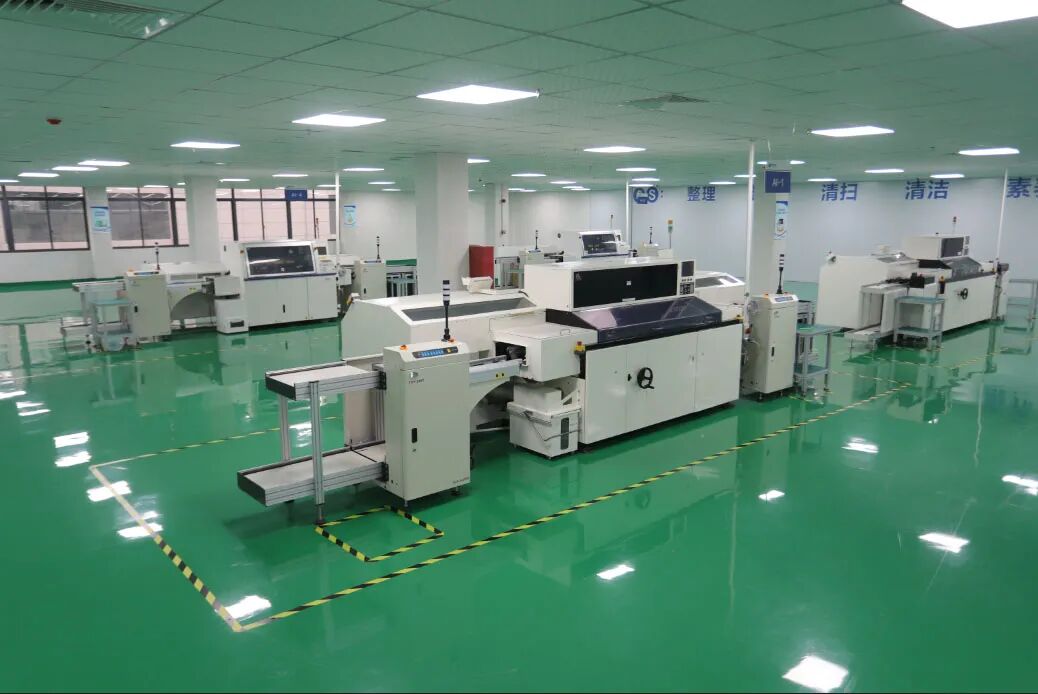

(1) 24 high-end SMT lines from ASM
(2) 8 Panasonic automatic insertion machines
(3) 4 lead-free wave soldering lines, expandable to 8 lines
(4) 8 assembly lines, expandable to 16 lines, 4 packaging lines, expandable to 8 lines
(5) Actual placement capacity of about 3 million points per hour, with a monthly capacity of up to 1.7 billion points
(6) All equipment can connect to the MES system
(7) Each SMT line is equipped with SPI/AOI inspection equipment
(8) Each SMT line is equipped with SPI/AOI post-NG buffer for fully automated connected production
(9) 1+1, 2+1, 3+1, dual-track production line layout can meet the production needs of different products, optimizing reasonably
(10) Reflow soldering with 13 temperature zones, nitrogen filling available
