In robotic applications, there is a significant demand for controlling small power servo motors. The combination of PreDriver + MOS presents challenges in size and cost, and most products that integrate MOS using BCD technology are H-bridges, leading to less flexibility in many applications.

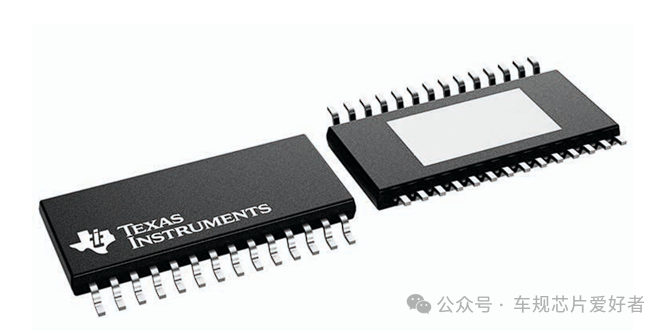

The Texas Instruments TI BLDC driver DRV8313 integrates MOS using BCD technology, supporting a driving capability of 24V 2.5A, suitable for applications in automation, robotics, and consumer products.Features
- Three half-H-bridge driver ICs
- Drives 3-phase brushless DC (BLDC) motors
- Independent half-bridge control
- Pins for low-side current sensing
- Low MOSFET on-resistance
- 24V, 25°C maximum driver current of 2.5A
- A general-purpose comparator can be used for current sensing or other functions
- Built-in 3.3V 10mA low-dropout (LDO) voltage regulator
- Operating supply voltage range from 8V to 60V
- Thermal-enhanced surface mount package

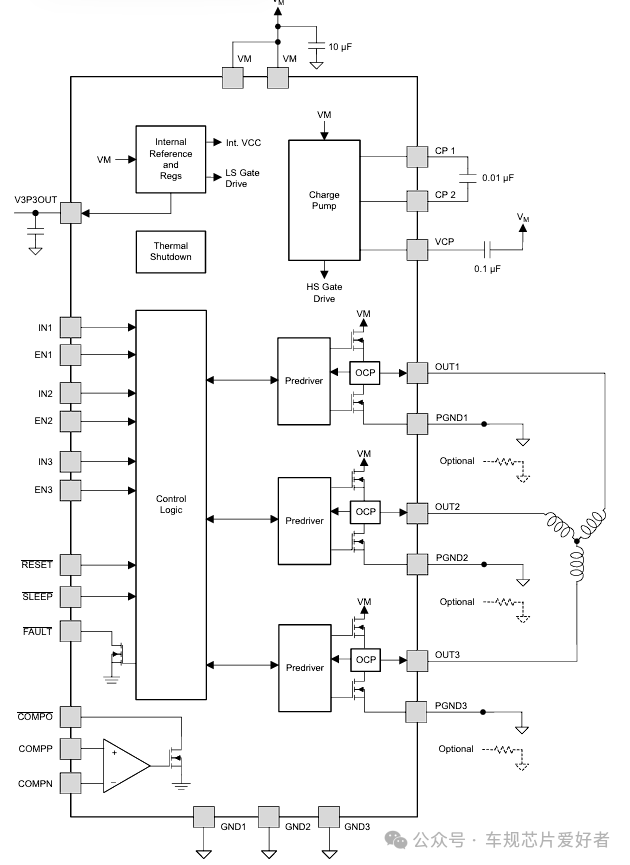

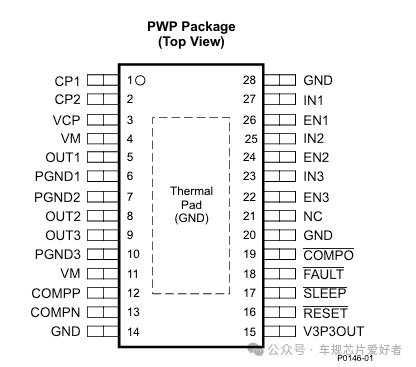

The DRV8313 provides three independently controllable half-H-bridge drivers. While it can also be used to drive solenoids or other loads, it is primarily designed for driving a three-phase brushless DC motor.Each output driver channel contains N-channel power MOSFETs configured in a half-H-bridge. This design connects the ground terminal of each driver to a pin to perform current sensing on each output. A current limiting circuit or other functions can utilize a general-purpose comparator.The DRV8313 provides up to 2.5A peak current or 1.75A root mean square (RMS) output current on each channel of the half-H-bridge (with appropriate PCB heat dissipation at 24V and 25°C). This device offers internal shutdown features for overcurrent protection, short-circuit protection, undervoltage lockout, and over-temperature protection.The DRV8313 comes in a 28-pin thermal thin small outline package (HTSSOP) PowerPAD™ package.

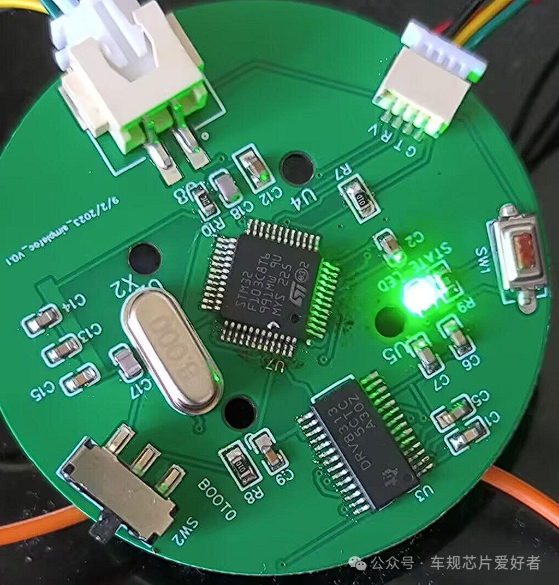

The well-known open-source project SimpleFOC uses this driver. It is very suitable for gimbals and small robots.
