1. Background of the Solution
Nanjing Shenou’s SOC9000 military programmable exchange is a command system equipment for military use. The three-level network of the armed police force integrates data, voice, and video services into a comprehensive network system. It is established to meet the unique three-level command system of the armed police force (from headquarters to brigade, brigade to battalion, and battalion to company), aiming to create a modern information highway for the armed police force.
2. Implementation of the Solution

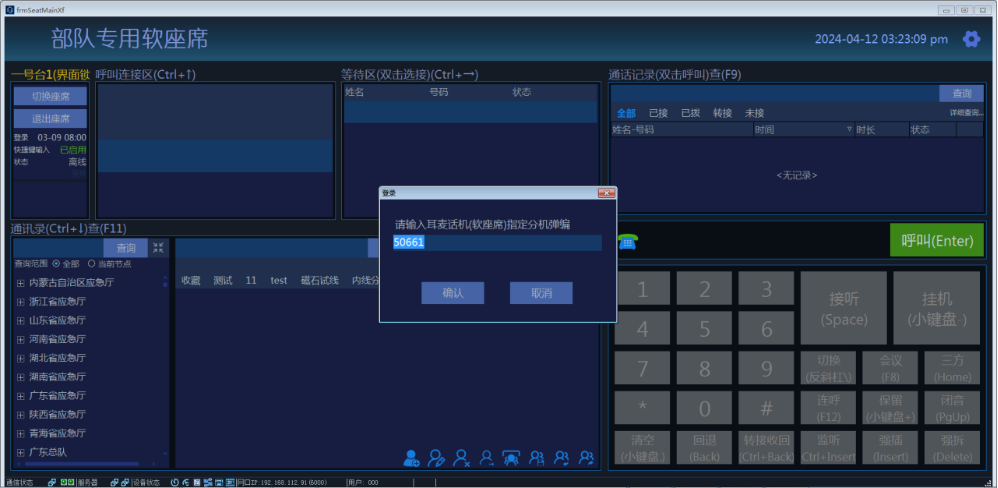

The armed police force has very strict requirements for command issuance and internal communication, with a high level of confidentiality. Communication with the PSTN is also strictly controlled. The Shenou SOC9000 programmable exchange supports domestic military soft seats and magnetic relays, fulfilling the military’s communication needs for monitoring, forced disconnection, and forced insertion, ensuring high confidentiality. It is a dedicated manual switchboard solution designed for military use.
3. Objectives of the Solution
Through the Nanjing Shenou SOC9000 programmable exchange solution, the goal is to achieve integrated intelligent operation and maintenance of “monitoring, management, control, and service”. This is complemented by the unified management system of Shenou equipment, reducing operation and maintenance costs and improving efficiency. The system operates 24/7, with monitoring at the port level, achieving “capillary-level” digital operation and maintenance, with second-level alarm monitoring, remote access to device interfaces, remote packet capture, and continuous monitoring of problematic devices. Scheduled tasks, upgrades, log and configuration backups, reboots, and port releases can be programmed for operation and maintenance. Networking services include 1+n remote disaster recovery, automatic synchronization of number changes across the network, and ensuring that network failures at any node do not affect calls between other nodes.
4. Solution Overview
The Nanjing Shenou SOC9000 military programmable exchange networking solution provides efficient and secure handling of incoming calls. All incoming calls to the armed police/military can be routed to the Shenou manual switchboard system, where they can be transferred to extensions by operators or set to automatically forward to extension numbers, facilitating daily use while protecting internal extension numbers.

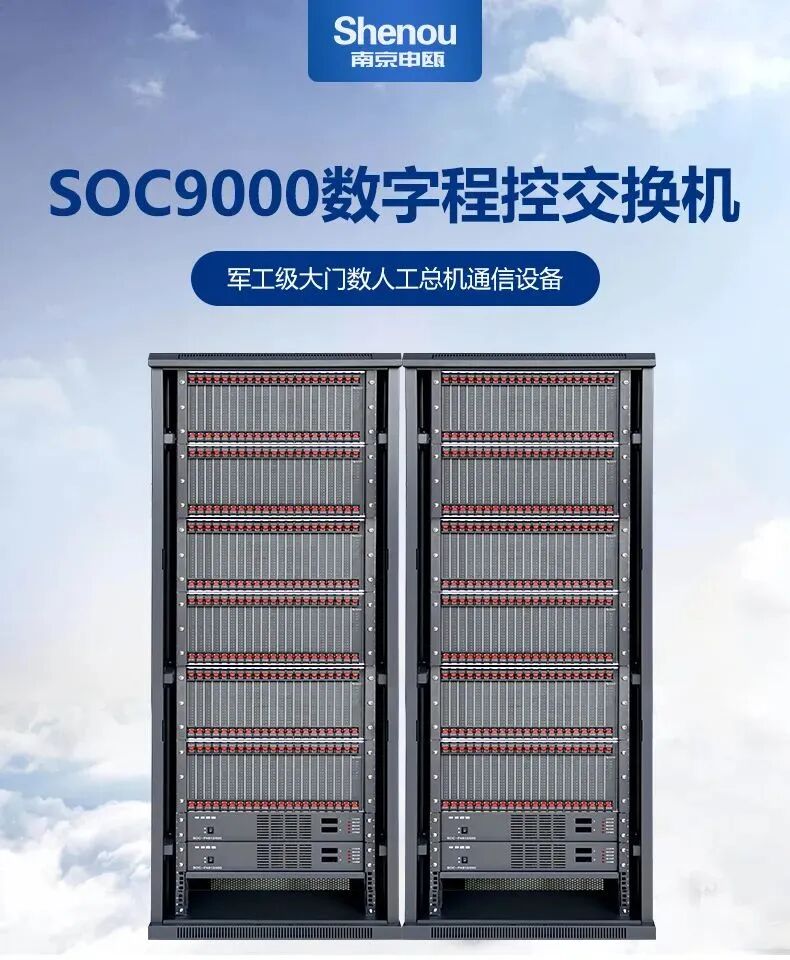

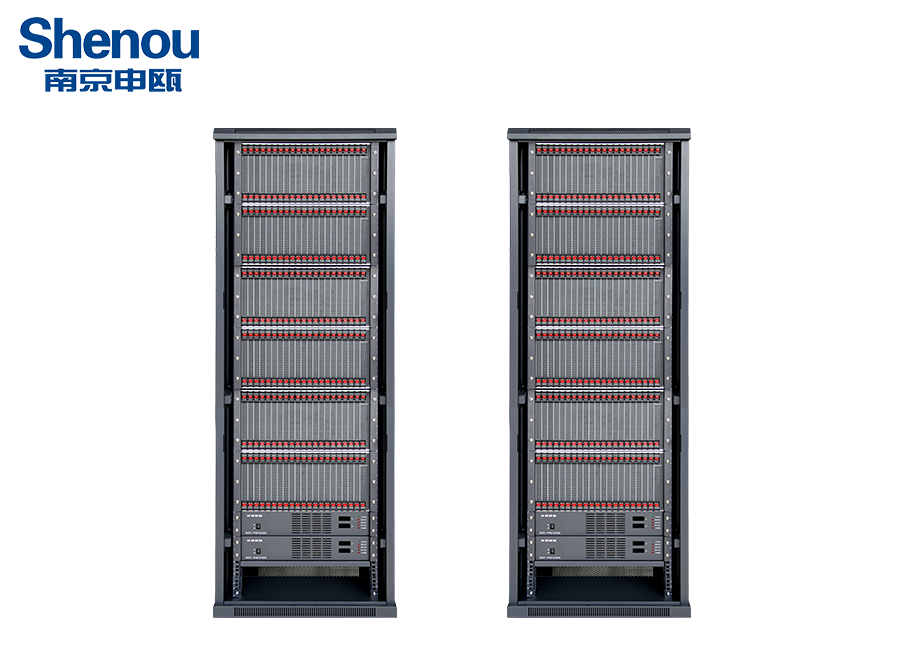

5. Introduction to Nanjing Shenou SOC9000 Manual Switchboard
The Nanjing Shenou SOC9000 manual switchboard is powerful, featuring various relay interfaces, strong networking capabilities, easy addition of user services, intelligent switchboard groups, speed dial functions, timed services, call transfer functions, relay grouping, outgoing prefix settings, different caller number delivery, three-way calling, relay listening to incoming voice calls, multiple dialing options, relay transfer method selection, abbreviated dialing, incoming number replacement, additional functions, code sending method selection, equal dialing, and dedicated relay functions, totaling over 150 features.
The SOC9000 manual switchboard is adaptable to both digital and any analog communication environments, providing users with a better experience and accommodating various complex usage scenarios to meet all user needs.
6. System Features
● Number of Physical Ports
The SOC9000 series supports up to 2048 physical ports, suitable for medium to large company group calls.
● Support for Thousands of Accounts
The built-in account system supports 10,000 accounts, allowing users to log in to their accounts from any port on the exchange. Charges can be deducted based on account level and deposit balance. Independent passwords for accounts can be modified by users, ensuring account security.
● Voice Navigation Function
The built-in dedicated digital signal processor supports 128 segments of voice and multi-level voice navigation functions, enhancing user experience in complex voice navigation scenarios.
● Signaling Monitoring Function
Replacing traditional external signaling monitoring devices, the SOC9000 series exchanges achieve built-in signaling monitoring, reducing maintenance costs and facilitating professional maintenance.
● Built-in Ringback Tones
The built-in ringback tone function supports the selection of 80 different ringback tones, allowing each extension to choose different tones based on personal preference.
● Non-blocking Digital Switching Method
The modular design structure employs a non-blocking fourth-generation ultra-large-scale digital switching network.
● Hot Backup for Main Control (Optional)
Based on user needs, an additional main control board can be added. When the primary control board requires maintenance, it automatically switches to the backup board, ensuring the exchange operates normally.
● Dual PC Interfaces

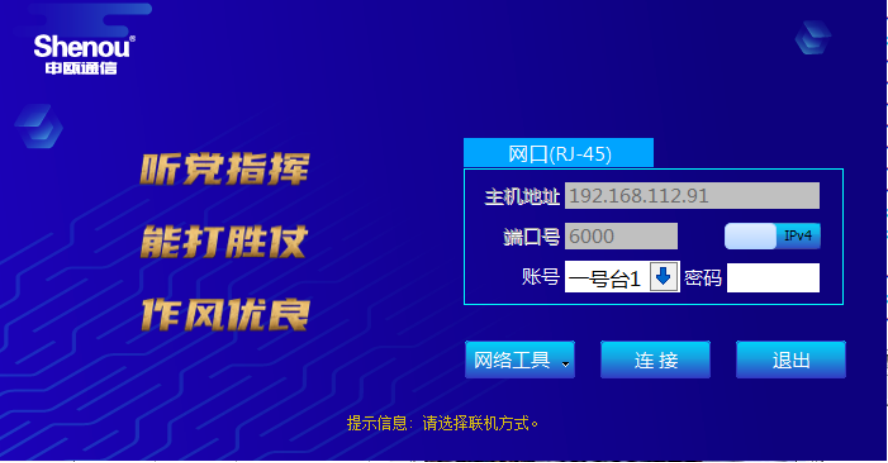

Equipped with dual serial ports, it can connect to two computers simultaneously for real-time monitoring and management of the switchboard, programming, and data settings. The PC switchboard function is powerful and user-friendly, allowing beginners to master it easily without specialized training, thanks to the rich Chinese menu prompts.
The exchange provides an external music source input interface, allowing for the selection of internal and external background music.
● Comprehensive Self-Testing Function
It can perform chip-level self-testing for the main control and sub-control boards, as well as self-testing for each independent user/relay.
● Call Records Never Lost
The system uses a super-large capacity Flash call record storage system, capable of storing up to 2 million independent call records even without a computer switchboard. In the event of a sudden power outage, the digital programmable exchange will automatically stop sending call records to the switchboard. Thanks to the non-volatile nature of Flash, data remains intact for up to ten years after a power loss on the mainboard. Even if the mainboard is damaged, as long as the Flash chip is intact, the call records can be retrieved using specialized equipment, ensuring that call records are never lost.
● Functionality as a Gateway
Due to the various relay interfaces, this exchange supports complete E1 relay signaling, such as NO.1, NO.7, PRI, etc., and integrates VOIP relays, providing users with multiple networking options. The connection methods are diverse, including voice interconnection between digital relays (or VOIP) and loop relays, as well as between digital relays (or VOIP) and digital relays (or VOIP).
● Remote Maintenance
Users can connect via the Internet or through E1 for semi-permanent connections, enabling remote programming, real-time monitoring of calls, cost inquiries, and software troubleshooting, providing timely solutions to user concerns.
● High Reliability
The external ports (user circuits, relay circuits) are equipped with over-voltage and over-current protection, ensuring that even if 220V AC power is mistakenly connected, the exchange will not be damaged, and the system can automatically recover after the issue is resolved.
About Nanjing Shenou
Nanjing Shenou Communication Equipment Co., Ltd. is located in the Nanjing University Science Park, specializing in the design, sales, installation of group telephones, programmable exchanges, telephone exchanges, dispatchers, dispatch systems, IPPBX, IP telephone exchanges, IAD voice gateways, telephone recording systems, call center systems, video conferencing systems, SDH optical transmission systems, PCM multiplexing equipment, MSAP/MSTP, and other products. It provides professional services for enterprises, hotels, factories, schools, hospitals, and telecom operators in office communication applications and guarantees.
