1 Overview
**1 Principle** The Grey Wolf Optimization (GWO) algorithm mimics the social hierarchy and hunting behavior of grey wolves, guiding the pack to search for the optimal solution through ฮฑ, ฮฒ, and ฮด wolves, suitable for continuous space optimization problems. Variational Mode Decomposition (VMD) is an adaptive signal decomposition method that can decompose complex signals into multiple modal components. When combining GWO with VMD to optimize PID parameters, VMD is used to extract key features of the system response signal (such as overshoot and rise time), while GWO dynamically adjusts the PID parameters (Kp, Ki, Kd) based on these features, forming a closed-loop optimization process. The objective function is typically an error integral metric (such as ITSE), and parameter optimization is achieved by minimizing the objective function. 2 Process Implementation **Initialization Phase** Set GWO parameters: population size (usually 20-50), maximum number of iterations (50-200), search space (range of PID parameters). Initialize the positions of grey wolves, each position corresponding to a set of PID parameters (Kp, Ki, Kd). **VMD Signal Processing** Collect the system response signal (such as step response), use VMD to decompose the signal to obtain modal components. Select key modal components to calculate the objective function (such as ITSE): $$ ITSE = \int_0^\infty t \cdot e(t)^2 dt $$ where e(t) is the system error. **GWO Iterative Optimization** Calculate the fitness of each wolf (objective function value) and update the positions of ฮฑ, ฮฒ, and ฮด wolves. The position update formula is: $$ \vec{X}(t+1) = \frac{\vec{X}_1 + \vec{X}_2 + \vec{X}_3}{3} $$ $$ \vec{X}_i = \vec{X}_p – \vec{A} \cdot \vec{D}, \quad \vec{D} = |\vec{C} \cdot \vec{X}_p – \vec{X}| $$ where $\vec{A}$ and $\vec{C}$ are coefficient vectors, and $\vec{X}_p$ is the leader’s position. **Termination Condition** Terminate when the maximum number of iterations is reached or the change in fitness is less than a threshold, outputting the optimal PID parameter combination. Verify the control performance of the optimized parameters in the actual system. **3 Key Code Example (Python Pseudocode)**
# GWO core update logic def gwo_update(population, alpha, beta, delta): a = 2 - iter_num * (2 / max_iter) # Linear decay for wolf in population: A1, A2, A3 = 2*a*random() - a, 2*a*random() - a, 2*a*random() - a C1, C2, C3 = 2*random(), 2*random(), 2*random() D_alpha = abs(C1*alpha.pos - wolf.pos) D_beta = abs(C2*beta.pos - wolf.pos) D_delta = abs(C3*delta.pos - wolf.pos) X1 = alpha.pos - A1*D_alpha X2 = beta.pos - A2*D_beta X3 = delta.pos - A3*D_delta wolf.pos = (X1 + X2 + X3) / 3 # Position update return population # VMD signal processing (requires vmdpy library) from vmdpy import VMD def vmd_feature_extract(signal): alpha = 2000 # Bandwidth limit tau = 0 # Noise tolerance K = 3 # Number of modes DC = 0 # No DC component init = 1 # Initialize center frequency tol = 1e-7 # Tolerance error u, omega = VMD(signal, alpha, tau, K, DC, init, tol) return u[0] # Take the main modal component **4 Notes** – The number of modes K in VMD should be experimentally determined based on the characteristics of the signal – The GWO search range should cover a reasonable physical range of PID parameters – When implementing on actual hardware, consider the impact of sampling frequency and computational delay – Joint simulation verification can be conducted with MATLAB/Simulink
2 Code Snippets and Execution Steps
2.1 Code Snippets2.2 Execution Steps
(1) Directly run main.m to generate the plot with one click

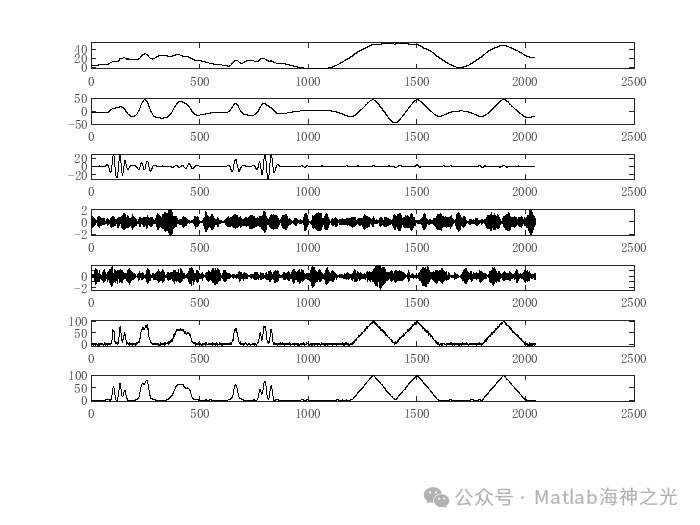

3Execution Results
4MATLAB Version and References
1 MATLAB Version
2019b
2 References
[1] Hu Zhiyong, Long Zuqiang, Gu Jiaying, Sun Ke. Parameter Optimization of Fuzzy PID Controller Based on Grey Wolf Optimization Algorithm [J]. Automation and Information Engineering. 2025
3 Notes
This section is extracted from the internet for reference only. If there is any infringement, please contact for deletion.
