Lesson 7: Sound Level Meter
Sound is everywhere, but how do we quantify the sounds around us? In this lesson, we will start from a small environmental issue and transform the intangible sound into concrete numbers, creating a monitoring device that can display the environmental noise level in real-time, becoming a little scientist who understands the sound environment.
【Task Objectives】
Use a sound sensor and a four-digit display to create a sound level meter:
Real-time monitoring of sound intensity in the environment
Clearly display the current noise value on the four-digit display
【Core Knowledge Points】
Advanced Analog Input: Using a sound sensor to collect continuous analog signals
Four-Digit Display Driving: Learning to use driver chips like TM1650 to control the display

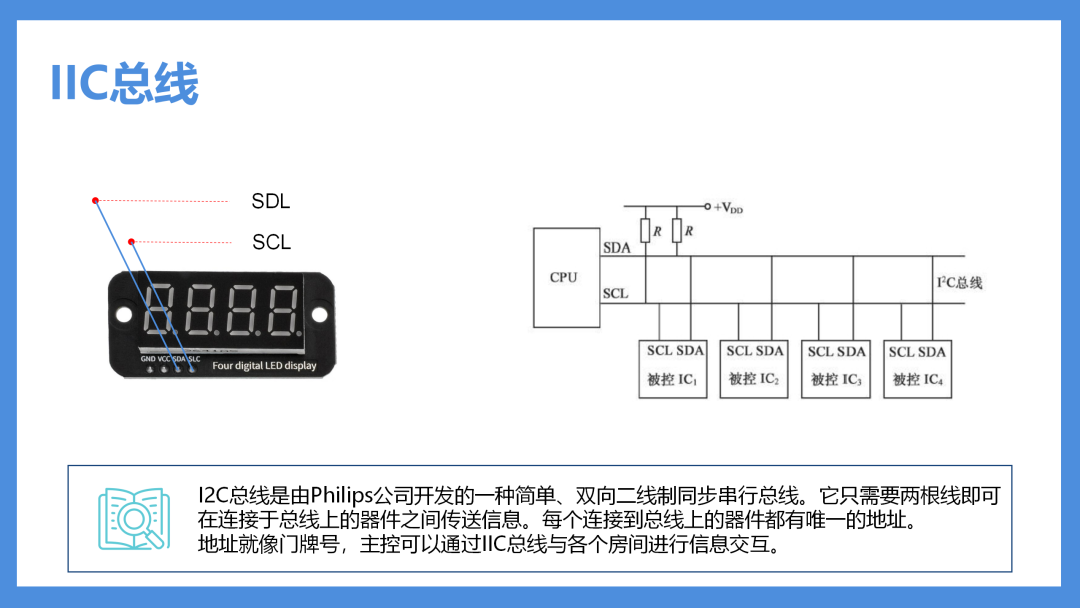

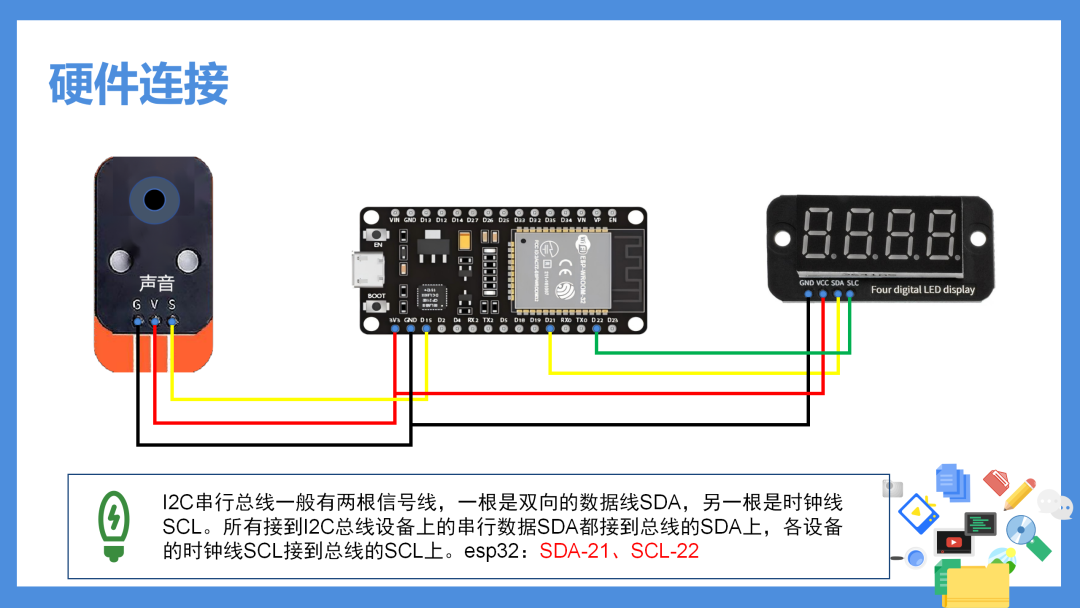

I2C Communication Protocol: Understanding the roles of SDL and SCL pins, mastering the connection methods for bus devices

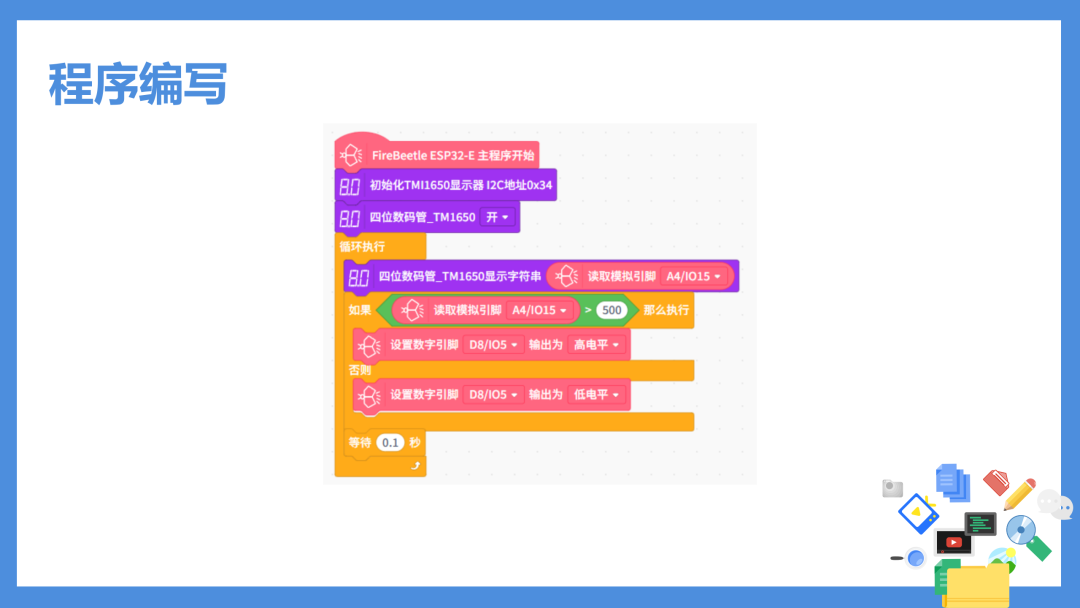

Data Processing and Display: Mapping sensor data to an appropriate range and achieving stable display
【Extended Challenges】
Noise Alarm: Automatically light up a red LED for alarm when the detected noise value exceeds 200.
Sound and Light Interaction: Based on the light alarm, how to add a buzzer for sound alarm to create a complete reminder system?
Thought: What changes will occur in the display of the digital tube if the “clear screen” command is not used?
【Next Lesson Preview】
Lesson 8: Distance Meter: Using Ultrasonic Waves to Perceive the World and Create an Accurate Distance Meter!
We will unlock the ultrasonic sensor and use the principle of sound wave reflection to measure distances accurately, creating a practical and magical electronic ruler.
