Oil pipelines serve as crucial channels for energy transportation, and the quality of their welding directly impacts the safety and lifespan of the pipelines. Traditional manual welding methods rely heavily on human labor, which is strenuous and prone to seam deviations and welding defects under complex conditions, making it difficult to ensure consistency and precision in welding. Today, let’s explore the application of laser weld seam tracking sensors in the automation upgrade of oil pipeline welding with Chuangxiang Zhikong.
Principle of Laser Weld Seam Tracking Sensors
Laser weld seam tracking sensors are based on the principle of laser triangulation measurement, utilizing laser scanning and image processing technology to perform real-time collection and analysis of the weld seams on the workpiece surface. By generating geometric information of the weld seam, the system can accurately identify the position and deviation of the weld seam and transmit the data to the control unit, dynamically adjusting the welding torch trajectory to achieve automatic correction and tracking of the welding path. The laser weld seam tracking welding solution addresses the shortcomings of traditional welding that relies on pre-programmed paths while significantly enhancing adaptability under complex conditions.
Challenges in Oil Pipeline Welding
In oil pipeline welding, the following challenges are often encountered:

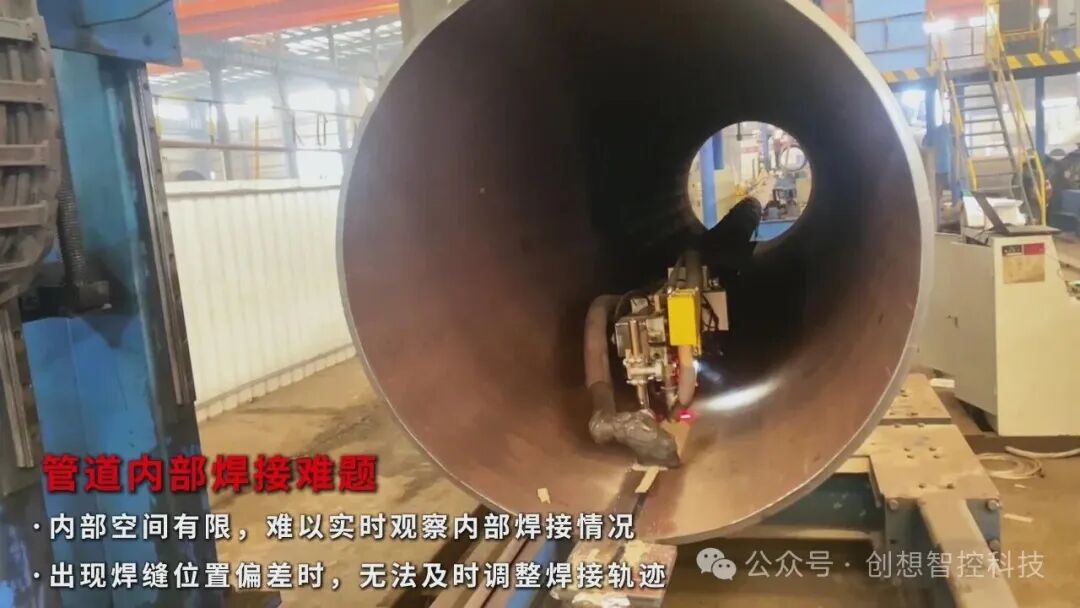

Limited space: The interior of the pipeline is narrow, making manual welding operations difficult, and traditional automation equipment is hard to adapt flexibly;
Difficulty in real-time observation: Strong light and spatter during the welding process hinder accurate monitoring by humans;
Weld seam deviation issues: Assembly errors of the workpiece lead to unstable weld seam positions, causing deviations in the welding path that require frequent manual intervention;
Diverse weld seam types: Horizontal, vertical, and overhead welding at multiple positions require extremely high consistency;
These issues not only reduce the efficiency of oil pipeline welding but also increase quality risks and rework costs, failing to meet the high standards required for large-scale pipeline projects.
Chuangxiang Zhikong’s Solution

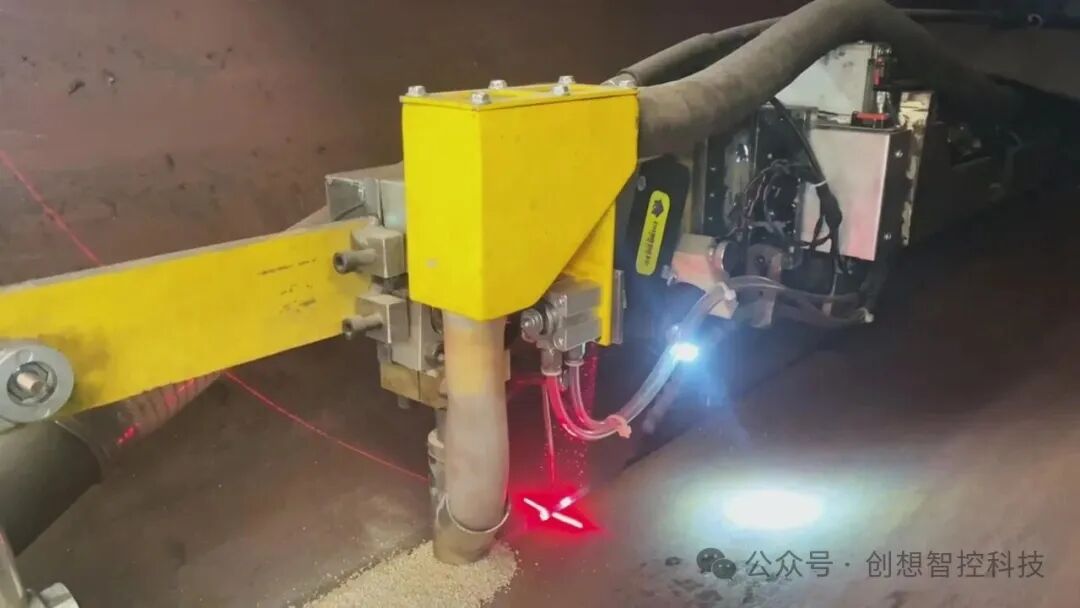

To address the complexity of oil pipeline welding, Chuangxiang Zhikong has launched laser weld seam tracking sensors for specialized oil pipeline welding equipment, which can achieve the following:

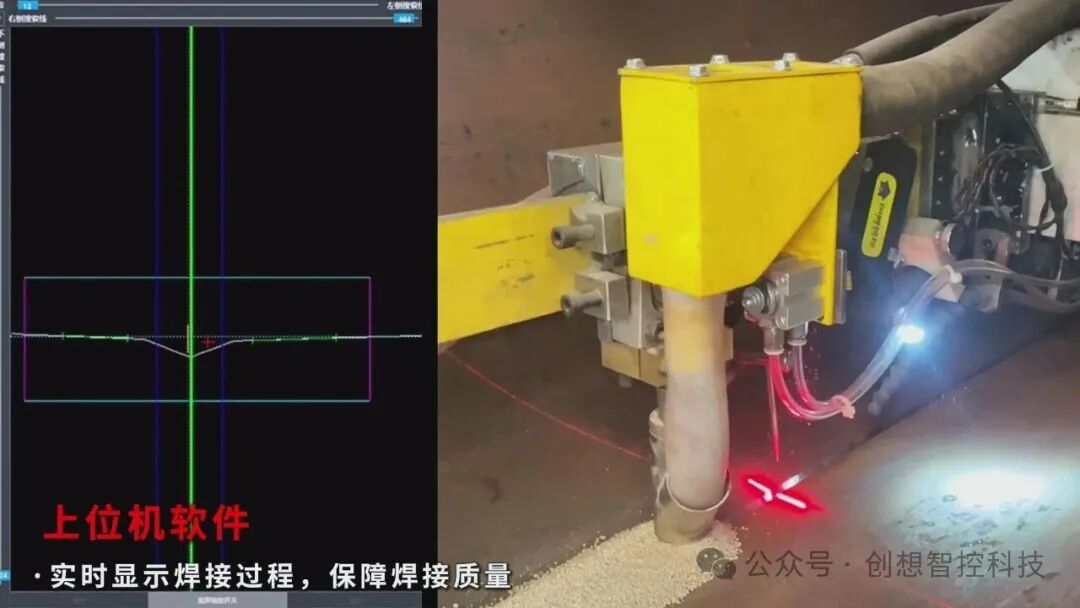

Real-time weld seam detection: Quickly identify the position of the weld seam to ensure accurate welding paths;

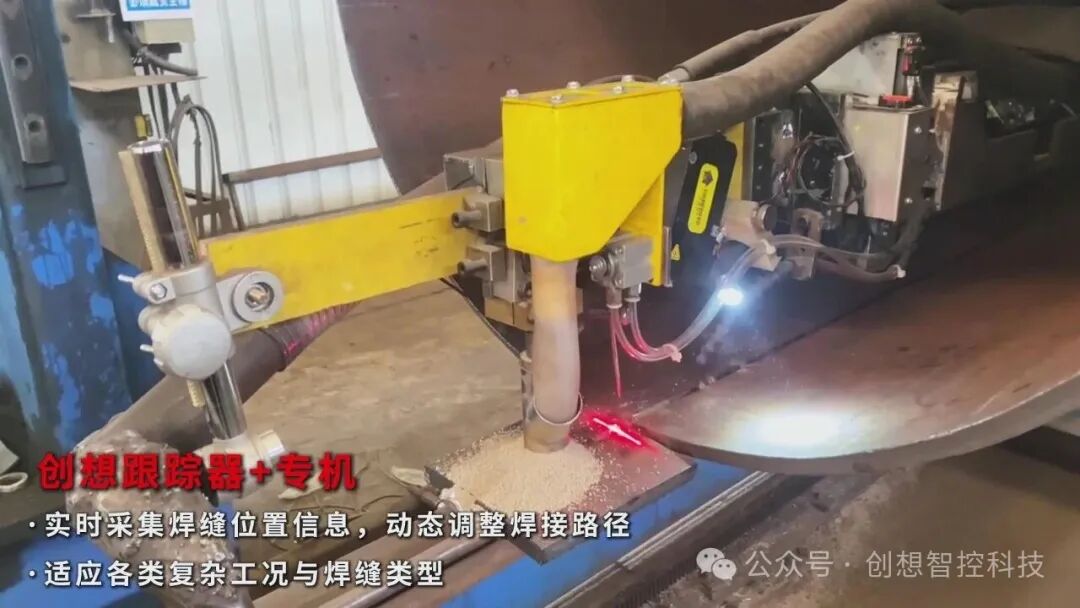

Dynamic trajectory correction: Automatically adjust the position of the welding torch based on real-time data to eliminate deviations;
Multi-condition adaptability: Stable operation regardless of the inner or outer wall of the pipeline or different welding positions;
Dual enhancement of efficiency and quality: Reduce manual intervention to achieve continuous, efficient, and precise welding.
Application Case
In a certain oil pipeline construction project, traditional manual welding faced low efficiency due to limited space and weld seam deviations. The manufacturer introduced Chuangxiang Zhikong’s laser weld seam tracking sensors after extensive comparisons, which enabled real-time monitoring of the weld seam and automatic trajectory correction, significantly improving the welding efficiency of a single pipeline and reducing the rework rate. The production manager reported that the entire automation solution not only shortened the construction period but also greatly enhanced the stability and safety of pipeline welding.
The application of Chuangxiang Zhikong’s laser weld seam tracking sensors has revolutionized the traditional reliance on manual operations in oil pipeline welding, achieving a deep integration of automation, high precision, and high efficiency, providing a reliable solution for oil pipeline welding. With the further development of sensor technology and artificial intelligence, Chuangxiang Zhikong will help the manufacturing industry move towards a smarter and more precise new era.
