JD’s First Interview: Why is the First HTTP Call So Slow?

Source:juejin.cn/post/7249624466150408250

• Introduction
• How Ribbon Performs Load Balancing
• RibbonClientConfiguration
• ZoneAwareLoadBalancer
• Ribbon Load Balancing Strategies
• Ribbon Eager Load Mode
• Enabling Ribbon Eager Load
• Conclusion

Introduction

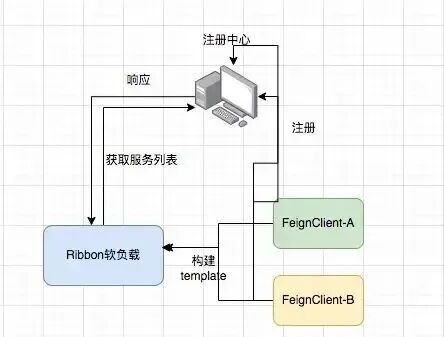

First, we need to understand how Feign performs remote calls, which includes the relationship between the registration center, load balancing, and FeignClient. Microservices register with the server through either Eureka or Nacos, and Feign relies on Ribbon for load balancing. Ribbon needs to obtain the service list from the registration center and cache the services locally. Then, the FeignClient makes the call. This is the general process.

How Ribbon Performs Load Balancing

First, we need to clarify how Ribbon performs load balancing, specifically how it retrieves the service list from Nacos or Eureka, which is crucial.

RibbonClientConfiguration

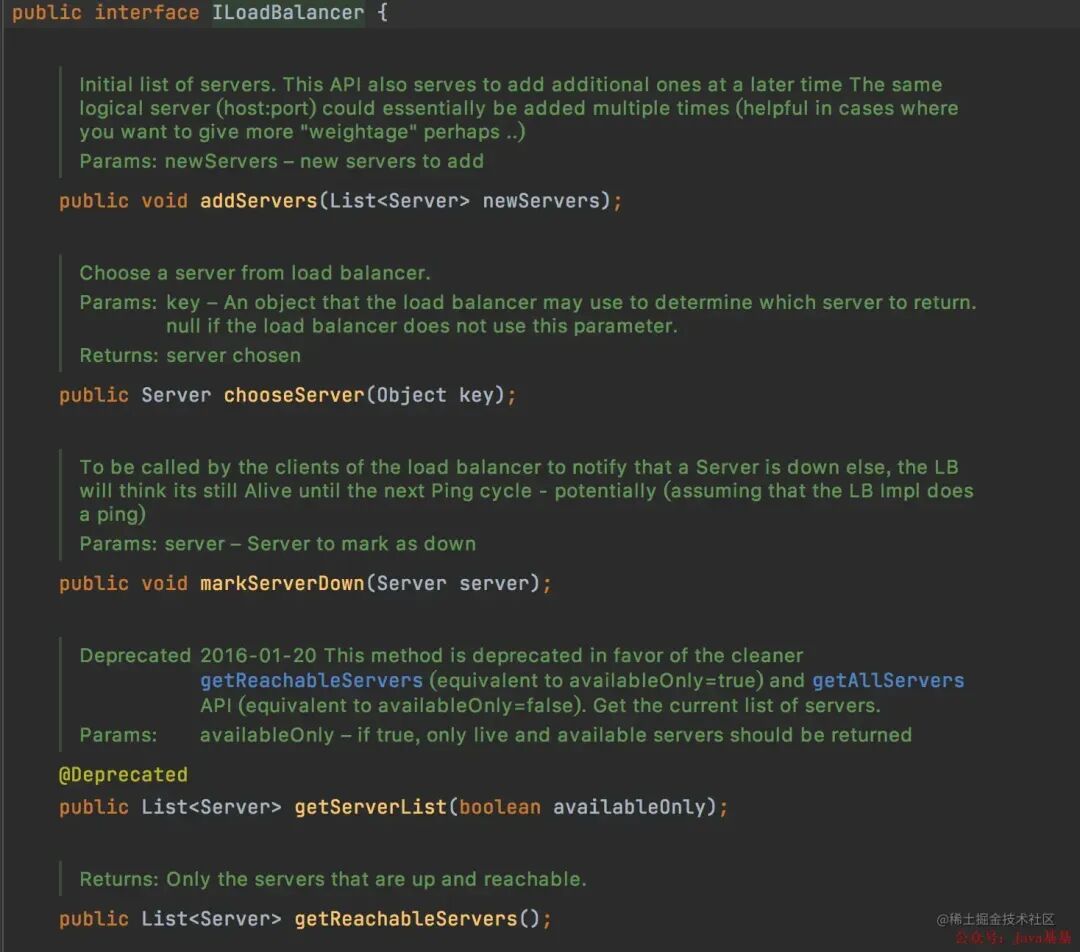

In the RibbonClientConfiguration class, through LoadBalancer, we know that Ribbon relies on LoadBalancer for load balancing, which involves methods from the ILoadBalancer interface, including adding new services, selecting a service from the load balancer, marking a server as down, retrieving the service list, getting alive servers, and obtaining all servers (both healthy and unhealthy).

ZoneAwareLoadBalancer

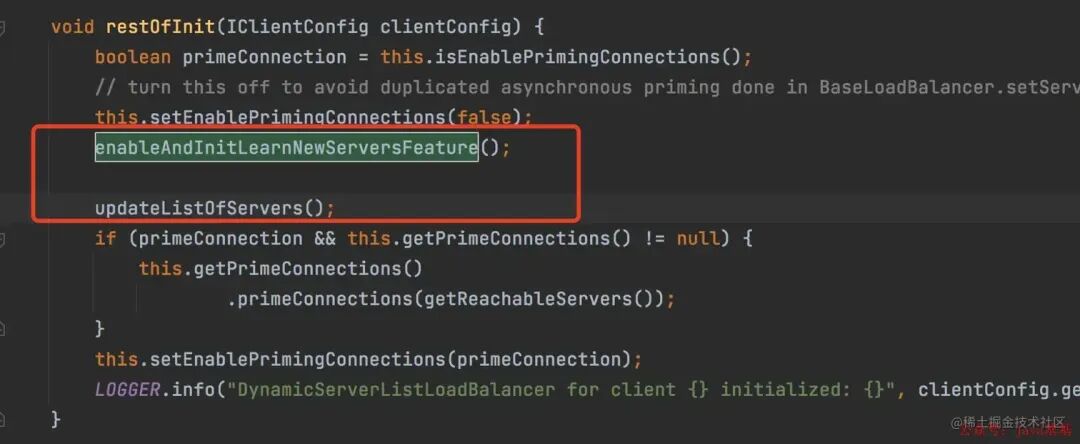

The default load balancer is ZoneAwareLoadBalancer, which inherits the restOfInit method from the parent class DynamicServerListLoadBalancer. Two important methods in this context are enableAndInitLearnNewServersFeature and updateListOfServers.

Inside the enableAndInitLearnNewServersFeature method.

LOGGER.info("Using serverListUpdater {}", serverListUpdater.getClass().getSimpleName());
serverListUpdater.start(updateAction);

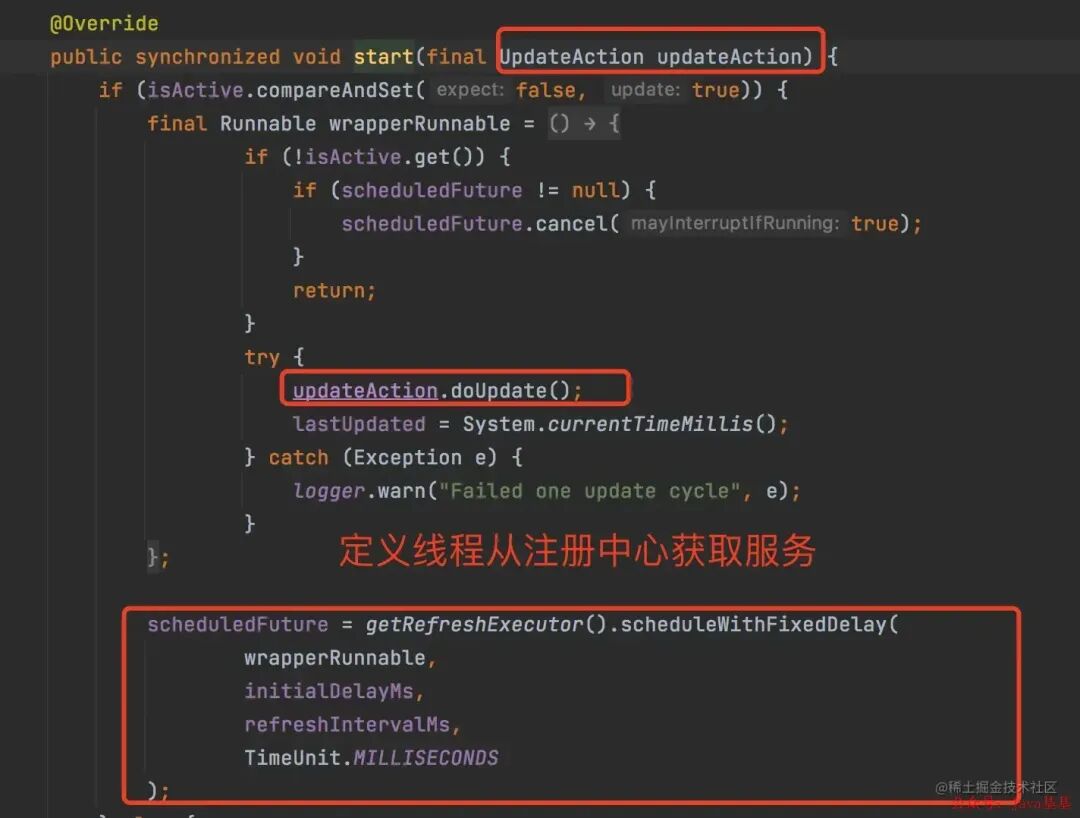

Let’s look at the implementation of the ServerListUpdater.start method, which retrieves the service list using a custom thread.

Ribbon Load Balancing Strategies

Having discussed how to obtain the service list, it is also necessary to talk about the load balancing strategies, which mainly include seven types:

• RoundRobinRule (Round Robin strategy, calls services in order)
• WeightedResponseTimeRule (Weighted response time strategy, prioritizes services with shorter response times)
• RandomRule (Random strategy, randomly selects a service from the provider list)
• BestAvailableRule (Least connections strategy, selects the service instance with the fewest connections)
• RetryRule (Retry strategy, retries to obtain a failed service, returns NULL if not obtained within a specified time)
• AvailabilityFilteringRule (Availability-sensitive strategy, filters unhealthy service instances)
• ZoneAvoidanceRule (Zone-sensitive strategy)

Ribbon Eager Load Mode

Ribbon creates the load client only after the service starts and when a call is made. Therefore, during the first HTTP request, not only the HTTP request time is counted, but also the client creation time, which is why the first call is slow. Let’s write a method to call it.

System service calls System2 service

@GetMapping("/requestSystem2Api")
public String requestSystem2Api(){
    long startTime = System.currentTimeMillis();
    R<String> stringR = iTestServiceClient.testRequestMethod();
    if (null != stringR){
        log.info("Interface returned: " + stringR.getMsg());
    }
    long needTime = System.currentTimeMillis() - startTime;
    log.info("Time taken for interface call: " + needTime);
    return "";
}

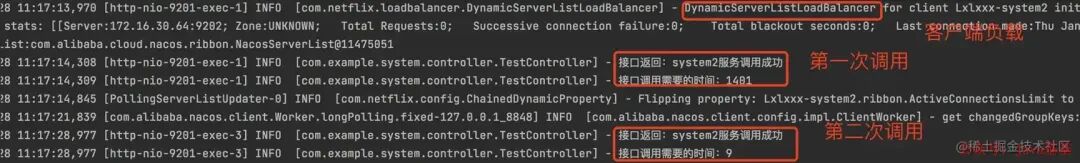

From the call log, we can see that the first call to the System2 service causes Ribbon’s DynamicServerListLoadBalancer to load the Feign client and make the call. The time for the first call is longer, while the second call is much quicker.

Enabling Ribbon Eager Load

ribbon:
  nacos:
    enabled: true # Enable Nacos polling
  eager-load:
    enabled: true # Enable Ribbon's eager load mode (to prevent timeout on the first request)
  clients: Lxlxxx-system2 # Specify the service to enable eager load for
  ReadTimeout: 10000
  ConnectTimeout: 10000
  MaxAutoRetries: 0
  MaxAutoRetriesNextServer: 1
  OkToRetryOnAllOperations: false

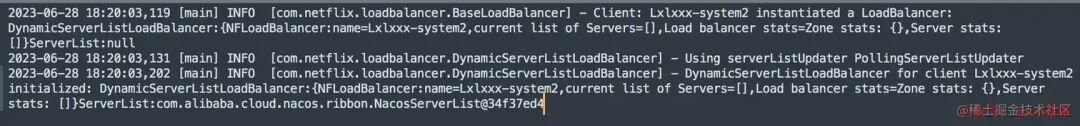

When the project starts, you can see from the logs that the Lxlxxx-system2 service has been loaded, thus avoiding the timeout issue on the first request.

Conclusion

This eager load mode is similar to a “client load preheating” operation, where services are loaded at project startup to prevent timeouts due to data volume or complex business logic during service calls. If your inter-service calls involve complex and slow business processing, you might want to try this solution.
