Introduction
In the field of logistics sorting, linear narrow-band sorting machines are one of the key devices to enhance cargo handling efficiency. Optimizing the logistics sorting process has also become an important part of intelligent technology transformation. Dataie wireless devices are responsible for the communication tasks in the narrow-band sorting system, aiming to further enhance the coordination performance and operational stability of the sorting machines.
1. Project Background

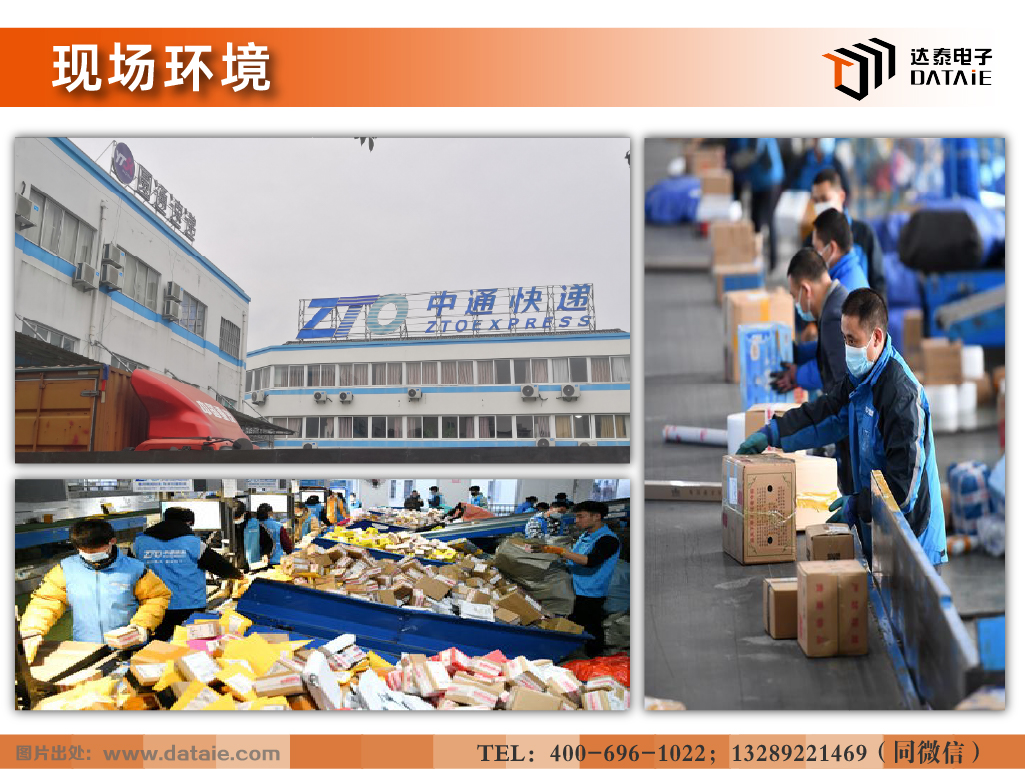

The owner of this project is a certain express sorting station in Ningbo, mainly responsible for the logistics transportation of Zhongtong and Yuantong in the region. With the explosive growth of the e-commerce industry, express sorting is currently facing tremendous efficiency pressure. Traditional manual sorting or circular sorting lines can no longer meet the demands for high throughput and low error rates, so the owner decided to upgrade to a linear narrow-band sorting machine system.
The main application of wireless technology is to transmit the cargo information scanned by the sensor unit of the linear narrow-band sorting machine to the control units of each slave station through the local PLC control system, thereby wirelessly controlling the sorting machine’s control unit to quickly complete sorting at the preset intervals, achieving automation of the sorting process.
2. Project Challenges
Linear narrow-band sorting machines typically consist of a long circular or linear track, with their “slave stations” (such as multiple motor drivers, photoelectric sensors, barcode readers, etc.) installed on continuously moving narrow bands or carts. The master station (PLC in the control cabinet) is fixed.
Whether it is the steel frame structure of the sorting machine on-site, the high-speed moving slave station equipment, or the strict requirements for real-time data transmission and frequent interaction, all pose multiple severe challenges to wireless communication devices. These challenges mainly include: stable transmission capability in a high electromagnetic interference environment, uninterrupted high-throughput data exchange during movement, and ensuring the reliability and real-time coverage of wireless signals under dynamic working conditions.
3. Dataie Wireless Solution
On-site, the narrow-band sorting machine has a total length of 180 meters, divided into 9 control units, using Siemens S7-1200 PLC as the slave control unit; the local PLC control system uses Siemens S7-1500 PLC as the core control master station (the main control cabinet is placed at the side of the scanning area).
Dataie wireless communication technicians considered thehigh-speed response and frequent data volume characteristics of express automatic sorting and decided to use theDTD418M series wireless communication terminals for European and American PLCs to meet the communication needs of the narrow-band sorting machine.The master station uses the DTD418MC outdoor PLC wireless communication terminal, installed in the local PLC control cabinet, while the slave stations use DTD418MB, installed in the 9 narrow-band slave control units.
To ensure the high-frequency continuous stable operation of the narrow-band sorting machine, this wireless communication terminalis equipped with an EMI anti-interference unit, using industrial-gradefully digital wireless encryption technology,with a wireless transmission coverage distance of 1KM, meeting the operational requirements of complex on-site environments while quickly responding to real-time sorting tasks.

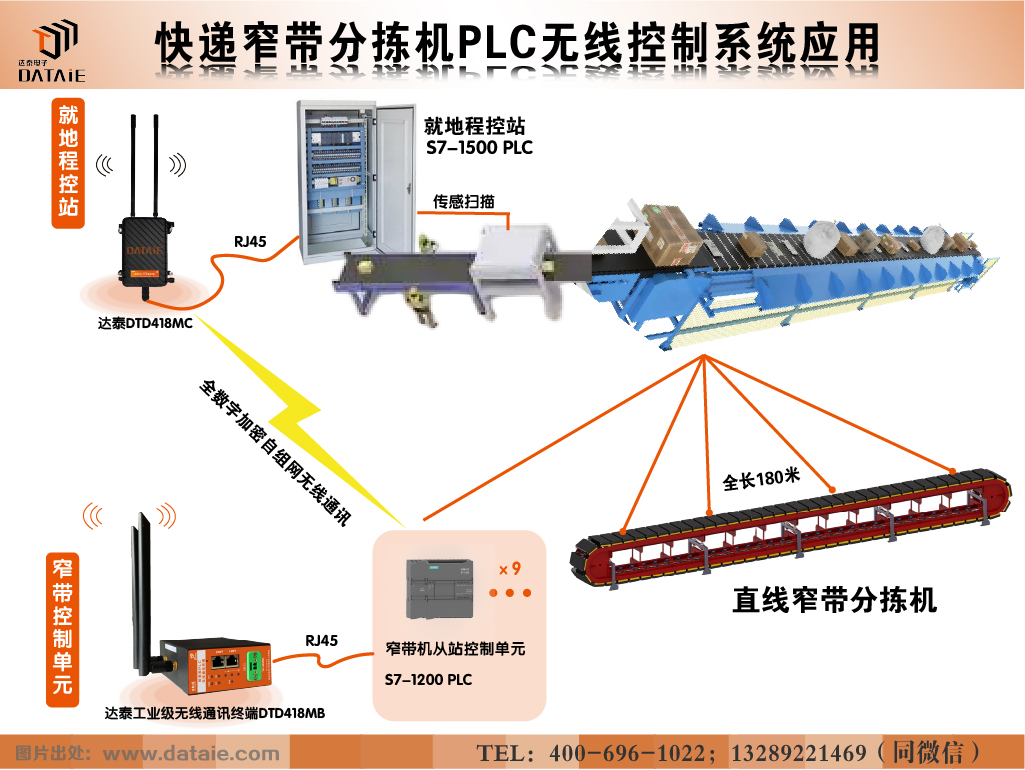

The wireless communication solution is as follows ▼

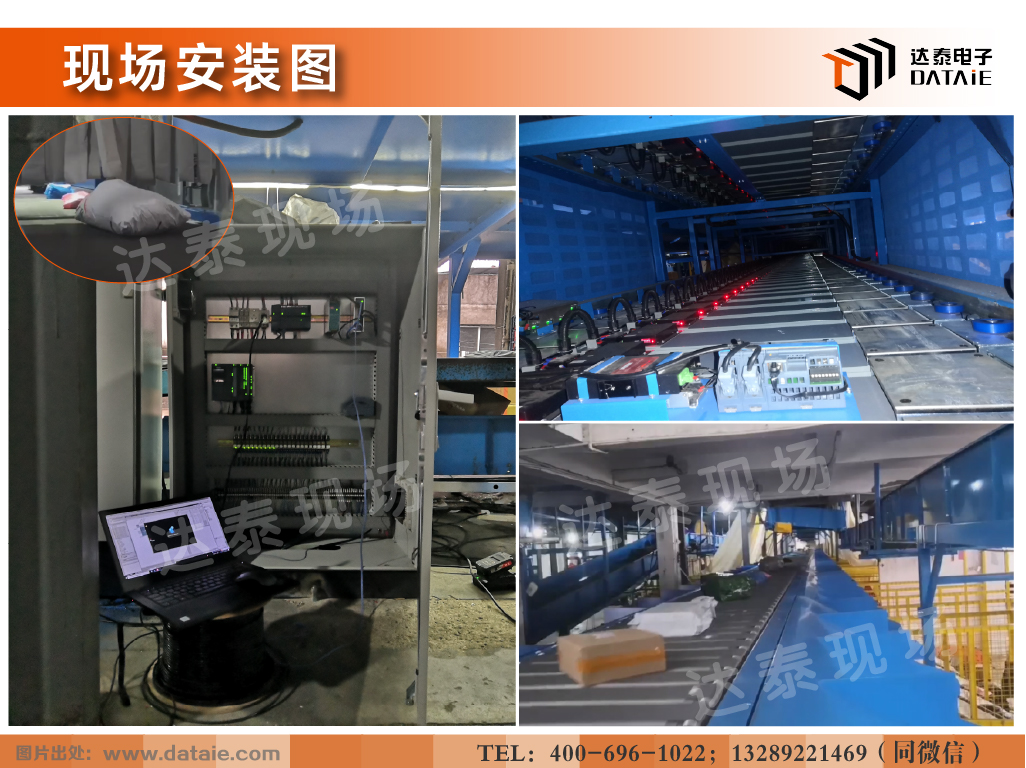

On-site installation diagram ▼
4. Benefits of the Wireless Solution
1. Saves renovation time, no large-scale construction required
Eliminates wiring maintenance troubles and shortens renovation time.
2. Simple installation, no programming required
The wireless communication terminal only needs to be connected to the signal and powered on to start using. Ordinary electricians can complete the installation.
3. Reliable data transmission, fully digital wireless encrypted transmission
The communication protocol has been re-encrypted to ensure data security and reliability.
4. No operating costs, no SIM card required
During subsequent use, there are no wireless device operating costs to be paid.
5. Comprehensive after-sales service
A wireless communication expert team with 20 years of industrial site debugging experience provides reliable technical support and after-sales service for the products.
5. Product Introduction

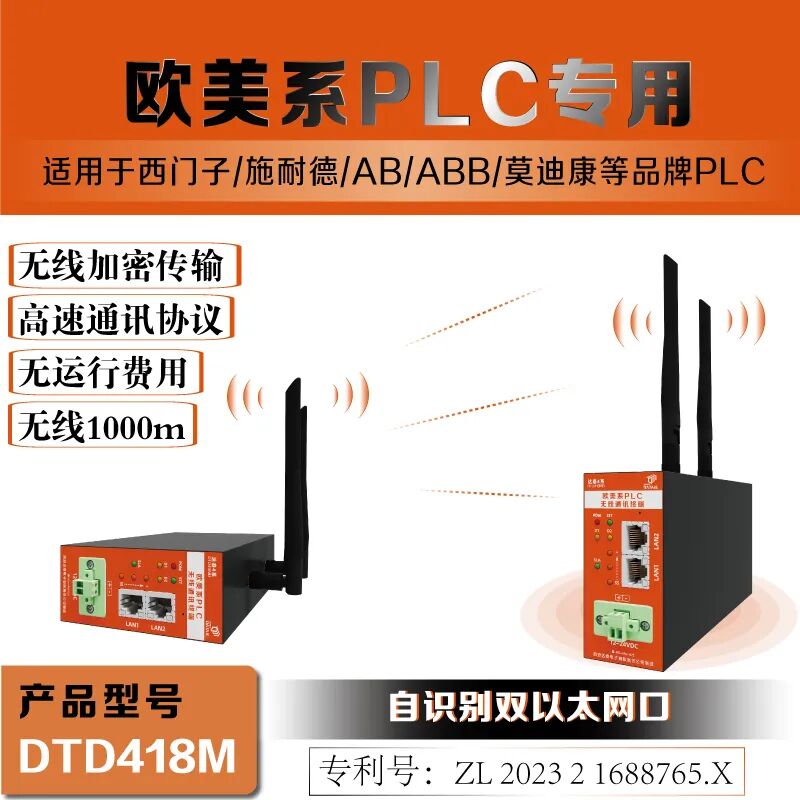

Dataie European and American PLC Wireless Communication Terminal-DTD418M
If you want to know more details aboutDTD418M, please click the end of the article【Read Original】 to view
6. Related Solutions
Wireless Control Solution for Detection Robots in Automotive Manufacturing Workshops

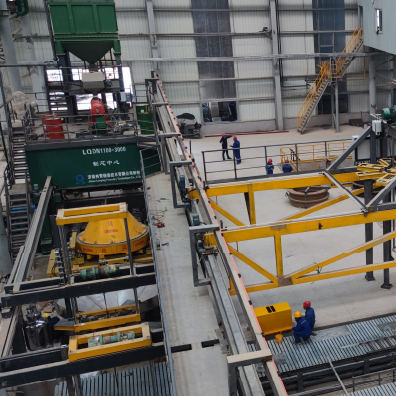

Remote Wireless Control System for Sand Core Library Gantry Robots
Wireless Communication System for Coking Oven Pushing and Coal Signal

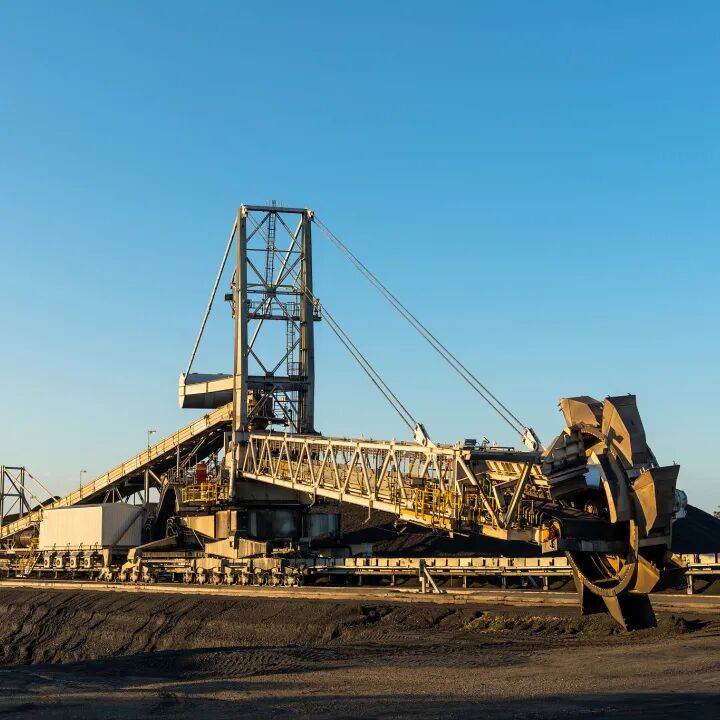

Remote Wireless Monitoring of Bucket Wheel Machine Video and PLC from Central Control Room
