1. Technical Challenges of LTE Wireless Communication Systems and the Positioning of SAM-U3750A
With the rapid development of fields such as Industrial Internet of Things (IIoT), smart cities, and rail transit, the demand for high bandwidth, low latency, and strong reliability in LTE wireless communication systems is increasing. Traditional communication devices face severe challenges in complex electromagnetic environments, wide temperature operating conditions, and multi-task parallel processing capabilities.

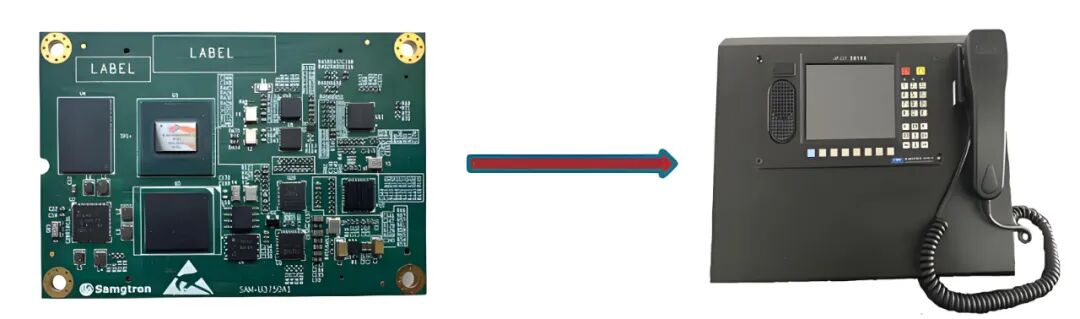

SAM-U3750A is a high-performance embedded board developed by Han Chuan Technology based on the NXP i.MX 8M Plus processor, and with its multi-core heterogeneous architecture, rich hardware interfaces, and industrial-grade reliability, it has become an ideal hardware platform for LTE wireless communication systems.
Its core advantages include:
-
Multi-core Processing Capability: 4-core Cortex-A53 (1.8GHz) + Cortex-M7 (800MHz), meeting the needs of complex algorithms and real-time control;
-
High-Speed Communication Interfaces: Dual Gigabit Ethernet, PCIe Gen3.0, USB 3.0, etc., supporting high-speed data transmission and module expansion;
-
Industrial-Grade Design: Wide temperature operation (-40℃~85℃), anti-interference, and long lifecycle support, suitable for harsh environments.
2. Core Technology Analysis of SAM-U3750A

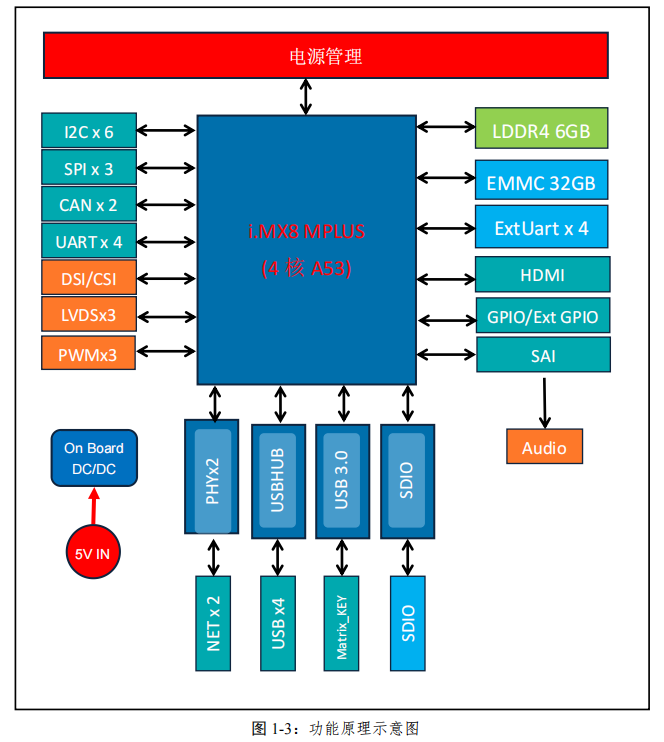

2.1 Processor and Hardware Architecture
SAM-U3750A adopts the NXP i.MX 8M Plus processor, which has the following key features:
-
Machine Learning and Vision Acceleration: Integrated NPU (2.3 TOPS computing power) and dual ISP (supporting 12MP@30fps), optimizing video stream analysis and edge computing tasks in LTE systems;
-
High-Speed Memory and Storage: Onboard 6GB LPDDR4 memory (2.133GHz) and 32GB eMMC (HS400), ensuring large data caching and fast read/write;
-
Multiple Display Interfaces: Supports HDMI 2.0a (4Kp30), LVDS (1920×1080p60), and MIPI DSI, suitable for multi-screen interaction needs in vehicle terminals or monitoring systems.
2.2 Communication Interfaces and Expansion Capabilities
-
Network Interfaces:
-
Dual Gigabit Ethernet (RGMII interface), supporting TSN (Time-Sensitive Networking) and AVB (Audio Video Bridging), ensuring low-latency transmission in LTE networks;
-
PCIe Gen3.0: Expandable for 5G/LTE modules (such as Huawei, ZTE domestic solutions), achieving high-speed wireless communication;
-
Multi-Protocol Support:
-
8-channel UART (up to 4Mbps), 2-channel CAN FD, meeting the multi-node communication needs of industrial equipment;
-
USB 3.0/2.0: Supports OTG mode and multiple camera access, expanding data acquisition capabilities.
2.3 Software and Operating System
-
Operating System Compatibility: Supports Linux 5.4.7 and Android systems, providing a flexible software ecosystem;
-
Drivers and Protocol Stacks: Built-in QT 5.15.0 framework, optimizing Human-Machine Interface (HMI) development; supports TCP/IP, Modbus, MQTT, and other industrial communication protocols.
3. Application Solutions of SAM-U3750A in LTE Systems
3.1 Integration of 5G/LTE Modules and Data Transmission
-
Domestic 5G Module Adaptation: Connects Huawei/ZTE 5G modules via PCIe interface, achieving domestic LTE private network communication, meeting the wireless communication needs of rail transit vehicles;
-
Gigabit Ethernet Redundancy Design: Dual network ports support link aggregation and failover, ensuring communication link 99.99% availability;
-
Localized Data Processing: Utilizes NPU to accelerate AI inference (such as traffic prediction, anomaly detection), reducing cloud dependency and transmission latency.
3.2 Reliability Design in Industrial Environments
-
Wide Temperature and Anti-Interference: Hardware supports -40℃~85℃ operating temperature, PCB uses 6-layer gold immersion process to reduce signal attenuation;
-
Power Management Optimization: The core board integrates a DC/DC module, supporting 5V±5% wide voltage input, adapting to vehicle power fluctuations;
-
Watchdog and Redundancy Mechanisms: Three hardware watchdogs monitor system status, combined with software heartbeat packet mechanisms to achieve fault self-recovery.
3.3 Multi-Service Integration Application Cases
-
Railway Vehicle-Ground Communication System:
-
Based on the MCX (Mission Critical Communication) standard, achieving multimedia scheduling communication and beyond-visual-range video surveillance;
-
SAM-U3750A supports running the MCX client under the Linux system, integrating gigabit networks and domestic 5G modules, meeting 3GPP R16 specifications;
-
Industrial IoT Gateway:
-
Accessing multiple sensor data via USB 3.0, combined with Cortex-M7 core real-time processing, achieving edge computing and protocol conversion;
-
Supports MQTT protocol for uploading to cloud platforms and local storage of 12 months of historical data.
4. Performance Verification and Advantages
4.1 Measured Performance Data
-
Network Throughput: Measured packet loss rate of gigabit Ethernet <0.01%, response time ≤7ms (see manual P13);
-
Multi-Task Processing: 4-core A53 full load power consumption is only 1.1A@12V, image processing efficiency improved by 40% under NPU acceleration;
-
Environmental Adaptability: Passed EMC Level 4 certification, running without failure for 500 hours in -40℃ cold start tests.
4.2 Summary of Core Advantages
-
Domestic Compatibility: Supports domestic operating systems (Hongmeng, Kirin) and 5G modules, meeting Xinchuang requirements;
-
Flexible Expansion: Quickly adaptable to different LTE scenarios through PCIE, USB, GPIO, and other interfaces;
-
Full Lifecycle Support: Provides Linux BSP packages, hardware design guidelines, and OEM/ODM services, shortening customer development cycles.
SAM-U3750A, with its high performance, high reliability, and domestic adaptation capabilities, provides a full-stack solution from hardware to software for LTE wireless communication systems. Whether in rail transit, industrial IoT, or smart cities, its technical advantages can significantly enhance system efficiency and stability, helping customers seize market opportunities. If you need detailed design guidelines or customized support, please contact Han Chuan Technology.
