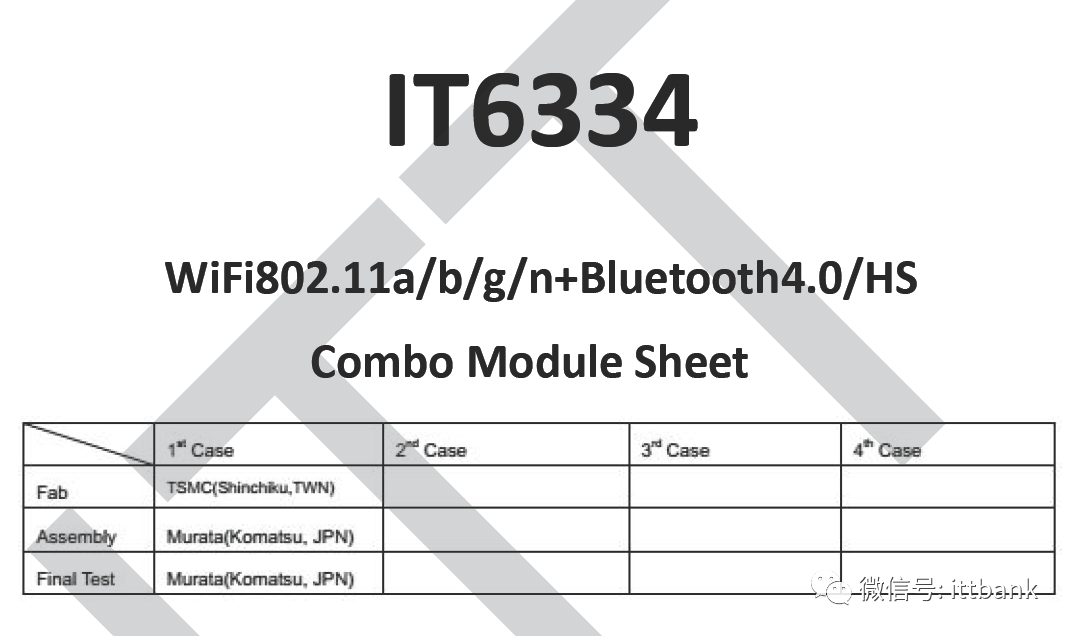

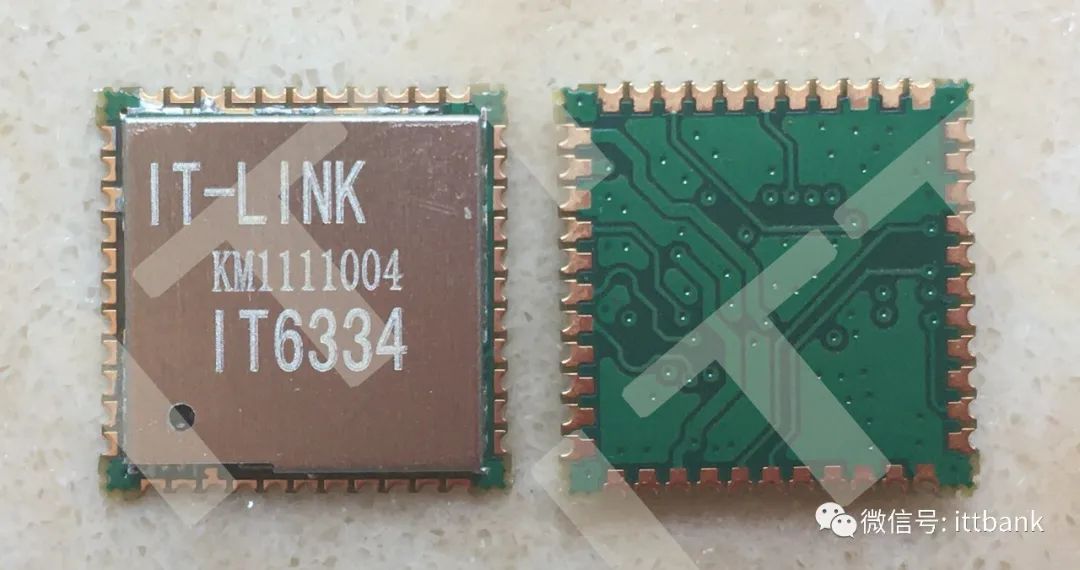

Broadcom 1T1R WiFi Module IT6334

Introduction to the IT6334 WiFi Module

WiFi/BT 2-in-1 Module:

This module operates on dual bands of 2.4G + 5G, supporting 802.11a/b/g/n; it also supports Bluetooth 4.0.

It has the following advantages:

• 1. Fast Speed: Supports the latest WiFi standards, 802.11a/b/g/n, and Bluetooth 4.0;

• 2. Good Signal: Supports 5G WiFi, with less interference and faster speeds;

• 3. Bandwidth: 20T/40T;

• 4. Rate: 72.2Mbit/s at 20MHZ, 150Mbit/s at 40MHZ 1T1R;

• 5. Size: 12mm x 12mm x 2.1mm;

• 6. Low Power Consumption: The chips used in the module are applied in tens of millions of smartphones and tablets, meeting the most stringent mobile power consumption standards;

• 7. High Quality: The module uses top-tier Broadcom WiFi chips and is manufactured using Murata’s chip-level packaging technology;

• 8. Competitive Price: It has a significant price advantage compared to the AP6330 module with similar specifications from Taiwan;

• 9. Stable Performance: The module integrates a built-in crystal oscillator, saving costs for customers and avoiding frequency calibration production processes, as well as issues like frequency deviation and oscillation failure caused by external crystal oscillators;

• 10. Good Compatibility: Compatible with the Zhengji AP series modules, allowing customers to produce without modifying hardware design files.

Broadcom BCM4334 Chip + Murata Chip-Level Packaging Technology:

• Supports IEEE802.11a/b/g/n;

• Supports Bluetooth V4.0 + HS;

• SDIO V2.0 interface;

• Ultra-small size: 8.8mm * 5.3mm * 1.35mm;

• ROHS certified;

• Supports dual-band 2.4G/5G;

• Bandwidth: 20T/40T;

• Rate: 72.2Mbit/s at 20MHZ, 150Mbit/s at 40MHZ 1T1R;

• Supports simultaneous operation of WiFi/BT;

• Provides compatible pin adapters for AP6330/AP6212/AP6212A;

• Provides Android and Linux drivers.

Supported Platforms:

• Amlogic: S905 S905X S905X2 S905X3 S905W S905D S912;

• Rockchip: RK3128 RK3288 RK3328 RK3368;

• Allwinner: H6 H8;

• Samsung

Main Applications:

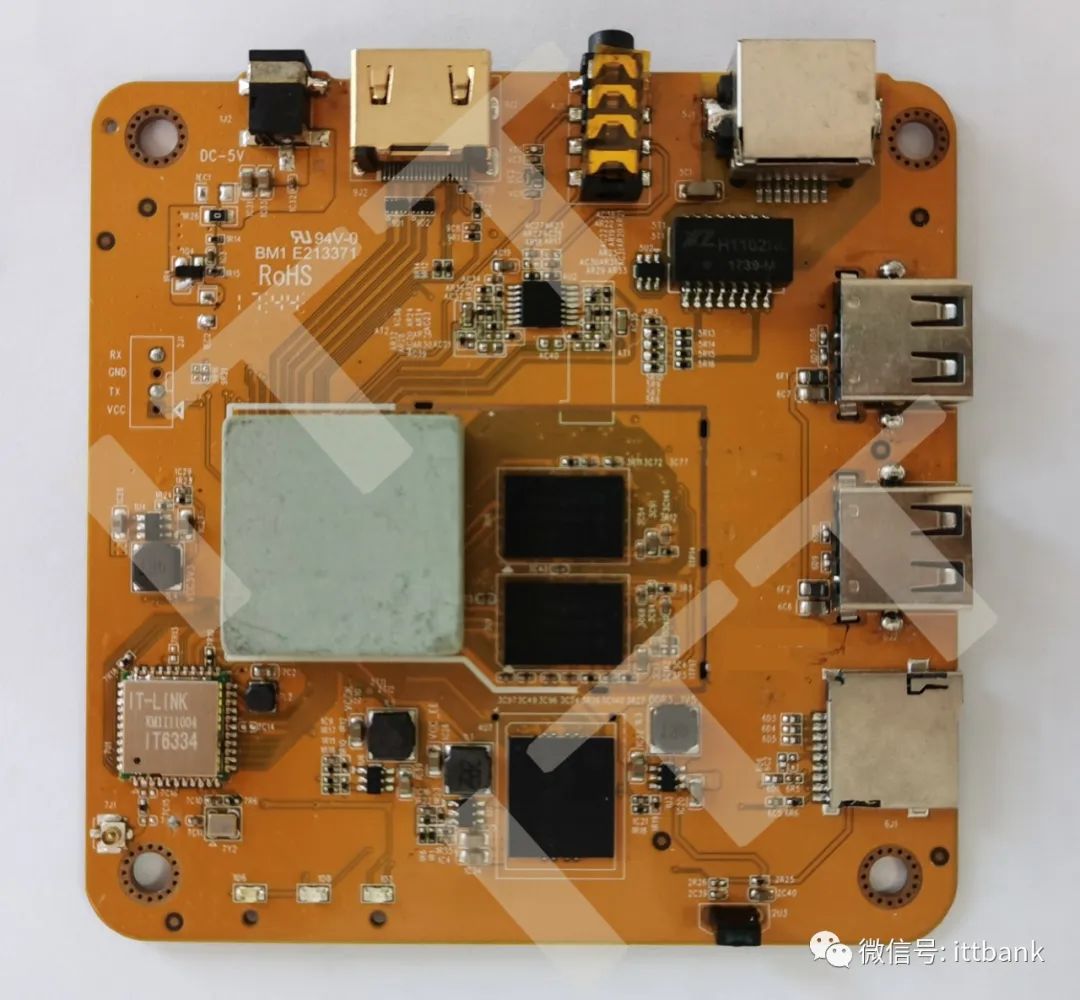

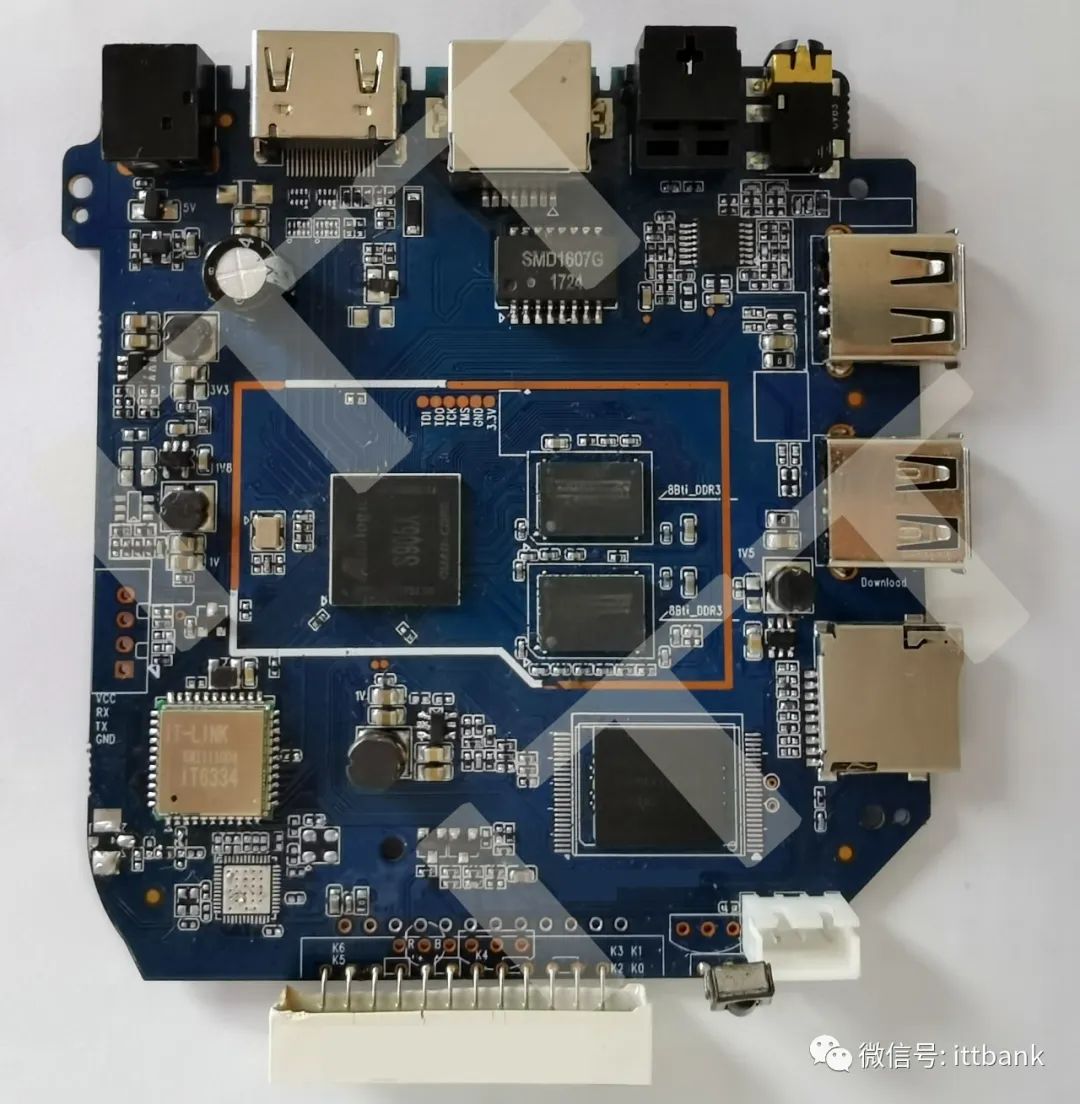

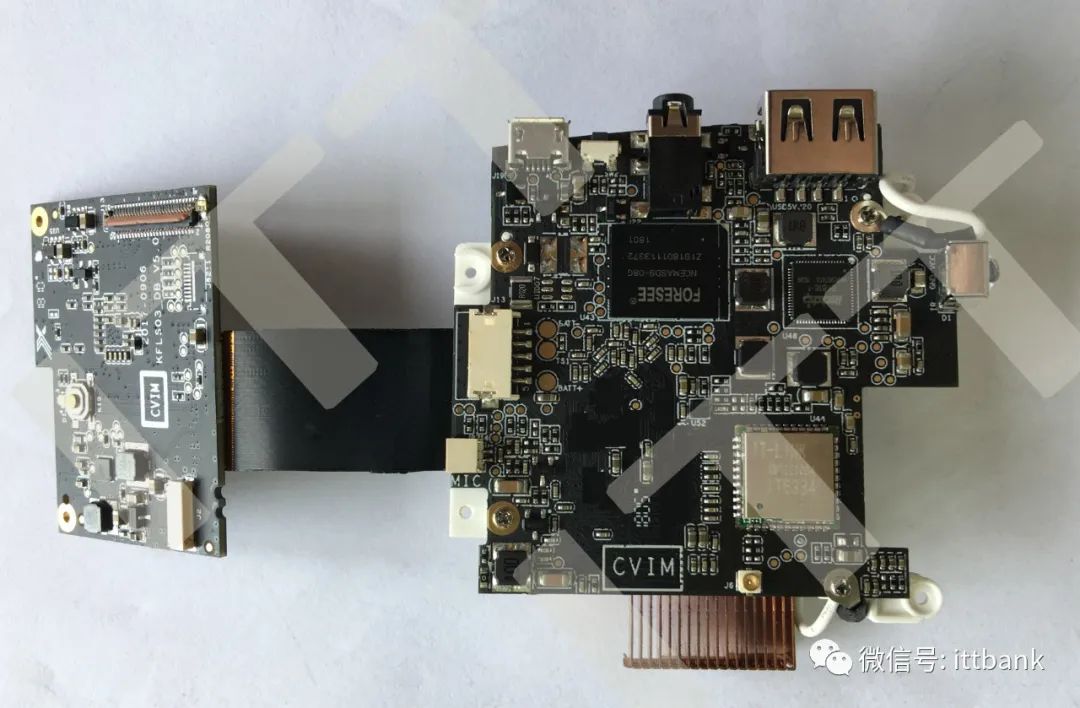

OTT boxes, set-top boxes, projectors, tablets, and smart devices with WiFi.
