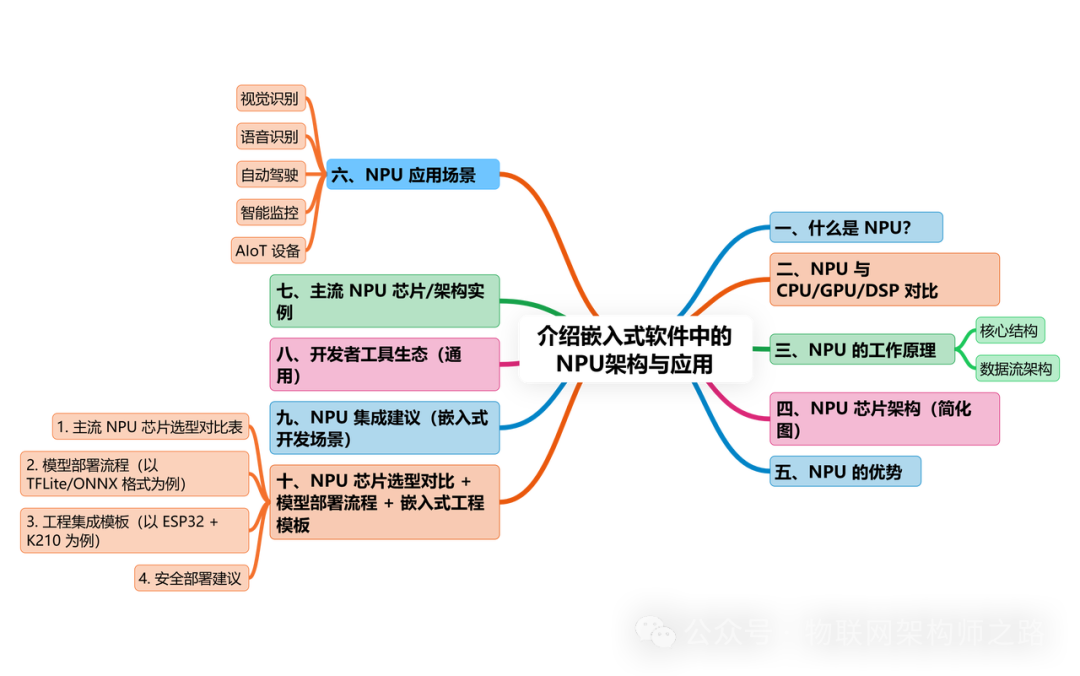

1. What is an NPU?

NPU (Neural Processing Unit) is a processor specifically designed for inference and training of artificial neural networks, featuring high parallelism, low power consumption, and low latency. It is a key hardware component in scenarios such as edge AI, autonomous driving, smart cameras, and voice recognition.

2. Comparison of NPU with CPU/GPU/DSP

Item	CPU	GPU	DSP	NPU
Design Goal	General processing	Graphics/matrix parallel processing	Signal processing	Neural network inference and training
Instruction Structure	Sequential execution	SIMD parallel	Custom instructions	Dedicated instructions/hardware convolution engine
Parallel Capability	Low	High (thousands of threads)	Medium	Extremely high (neuron-oriented parallelism)
Energy Efficiency	Average	High power consumption	Medium-low	High performance + low power consumption
Applicable Scenarios	General tasks	Image rendering, AI training	Audio processing, filtering	AI inference, image recognition, voice recognition, etc.

3. Working Principle of NPU

Core Structure:

• MAC Unit Array: Used for matrix multiplication (Multiply-Accumulate), the basic computing unit of neural networks
• Weight Cache: High-speed SRAM cache for neural network weights
• Activation Function Unit: Supports ReLU, Sigmoid, Softmax, etc.
• Data Flow Engine: Optimizes read/write paths to achieve parallel pipelining

Data Flow Architecture:

Adopts a data-driven computing model (Dataflow), allowing data to flow at the “tensor” level within the chip, enabling hardware acceleration for operations such as convolution and pooling.

4. NPU Chip Architecture (Simplified Diagram)

┌──────────────┐
│ Input Interface │◀──── Image, audio data
└────┬─────────┘
▼
┌───────────────────────┐
│ NPU Main Structure (MAC Array + Activation + Controller) │
└────────┬──────────────┘
▼
┌──────────────┐
│ Weight Cache │
└──────────────┘
▼
┌──────────────┐
│ Output Buffer │───▶ Output classification results / feature maps

└──────────────┘

5. Advantages of NPU

1. High throughput: Completes inference tasks more efficiently than CPU/GPU

2. High energy efficiency: Suitable for edge devices (e.g., cameras, IoT terminals)

3. Specialized optimized instruction set: Supports low-precision computations such as INT8, FP16

4. Strong customizability: Can work in conjunction with FPGA/SoC embedded systems

5. Low latency response: Suitable for real-time detection tasks

6. Application Scenarios of NPU

Visual Recognition

• Face recognition, license plate recognition, object detection (e.g., YOLO, SSD, Mobilenet)

Voice Recognition

• Local offline voice command recognition (wake-word, ASR module)

Autonomous Driving

• Traffic condition recognition, obstacle avoidance strategies, local image processing inference modules

Smart Surveillance

• Video structured analysis (human recognition, action detection, behavior judgment)

AIoT Devices

• Smart locks, robotic vacuum cleaners, smart doorbells, security cameras, etc.

7. Mainstream NPU Chip/Architecture Examples

Manufacturer	Chip / Architecture	Features
Huawei HiSilicon	Ascend / Kirin NPU	Self-developed architecture, supports FP16/INT8, high integration
Cambricon	Cambricon-1H/MLU	Representative of domestic AI chips, active model ecosystem
GigaDevice	GD32 AI / NPU SoC	Targeted at MCU-level lightweight AI inference scenarios
Google	Edge TPU	Supports TFLite inference, extremely low power consumption
Intel	Movidius VPU/NPU	Embedded OpenVINO toolchain, focused on visual processing
NVIDIA	Jetson series + DLA	NPU + GPU collaboration, suitable for edge AI video analysis
Rockchip	RK3568 / RK3588	NPU up to 6 TOPS, mainstream embedded AI platform

8. Developer Tool Ecosystem (General)

• TFLite / ONNX Runtime / NCNN: Lightweight AI inference frameworks
• OpenVINO / TensorRT: Intel/NVIDIA optimized inference tools
• KPU Toolchain / MaixPy / Kendryte IDE: Adapted for domestic lightweight NPUs (e.g., K210)

9. NPU Integration Recommendations (Embedded Development Scenarios)

1. Prefer chips that support TFLite Micro / ONNX model formats

2. Avoid excessive fully connected layers, and try to use lightweight structures like Mobilenet

3. Local testing should consider: power consumption, temperature rise, inference speed, model compatibility

4. Communicate with MCU/CPU via shared memory or DMA to reduce latency

5. Model encryption deployment (to prevent extraction)

10. NPU Chip Selection Comparison + Model Deployment Process + Embedded Engineering Template

Applicable for edge AI projects (e.g., smart cameras, smart locks, voice recognition devices) during the development process for NPU chip selection, model deployment, and engineering integration.

Includes the following content:

• Mainstream NPU chip selection comparison table (K210 / RK3568 / Edge TPU / Ascend, etc.)
• Complete model deployment process (Training → Conversion → Compilation → Deployment → Inference)
• ESP32 + K210 engineering structure template (UART cooperative communication)
• Model security deployment recommendations (encryption, verification, threshold judgment)

1. Mainstream NPU Chip Selection Comparison Table

Chip Model	Manufacturer	Peak Computing Power	Supported Model Formats	Interface Type	Power Consumption	Development Toolchain
K210	Kendryte	0.5 TOPS	KModel / TFLite	SPI / UART / I2C	0.3W	MaixPy, KPU SDK
RK3568 NPU	Rockchip	1~3 TOPS	TFLite / ONNX	GPIO / MIPI / PCIe	1~3W	RKNN Toolkit, TensorFlow Lite
Edge TPU	Google	4 TOPS	TFLite	USB / PCIe	~2W	Edge TPU Compiler
Ascend 310	Huawei	16 TOPS	MindSpore	PCIe / Network Interface	8~10W	MindStudio IDE
Jetson Nano	NVIDIA	0.5 TFLOPS	ONNX / TensorRT	GPIO / USB / HDMI	5~10W	JetPack + TensorRT
Cambricon MLU	Cambricon	2~32 TOPS	ONNX / TFLite	PCIe / M.2	5~15W	MagicMind SDK

2. Model Deployment Process (Using TFLite/ONNX Format as an Example)

Step 1: Model Training (PC Side)

• Train the original model using PyTorch / TensorFlow
• Output .pt / .h5 / .pb formats

Step 2: Model Conversion

• Convert to .onnx or .tflite

Bash

# Convert TensorFlow model to TFLite
python3 export.py --output=model.tflite
# Convert PyTorch model to ONNX
torch.onnx.export(model, input_tensor, "model.onnx")

Step 3: Model Compilation (Target Platform)

• Use toolchain to convert model to NPU runnable format

Bash

# Compile Rockchip model with RKNN Toolkit
rknn_toolkit_lite -i model.tflite -o model.rknn
# Compile for Google Edge TPU
edgetpu_compiler model.tflite

Step 4: Model Deployment

• Copy the model to the embedded device file system (SPIFFS/SD card/USB)
• Load using SDK or inference engine

Step 5: Run Inference & Optimization

• Use camera frame / audio input to access the model
• Optimize memory usage / inference frequency / latency response

3. Engineering Integration Template (Using ESP32 + K210 as an Example)

Project Structure

smart_lock_ai/
├── esp32/ # Main control, responsible for communication, UI, logic
│   ├── main.c # MQTT, button control, state machine
│   └── uart_k210_driver.c # Communication with K210
├── k210/ # Neural network subsystem
│   ├── face_model.kmodel # Compiled model file
│   ├── main.py # MaixPy + camera + inference + UART send results
│   └── kpu_loader.py # KPU loading module
├── docs/ # Model description, interface protocol

Communication Protocol Example (K210 → ESP32)

JSON

{
"event": "face_detected",
"confidence": 0.92,
"timestamp": 1718910000
}

4. Security Deployment Recommendations

• Model encryption (KModel / RKNN format encryption options)
• Model integrity verification (SHA256)
• Use CRC verification and frame header/footer for communication with the main control device
• Incorporate threshold judgment + two-factor verification for local inference results
