1 Overview
See CSDN Poseidon with the same title
**1 Transient Triangular Harris Hawks Optimization (TTHHO) Overview** The Transient Triangular Harris Hawks Optimization (TTHHO) is an improved version of the Harris Hawks Optimization (HHO), combining triangular search mechanisms and transient response strategies to solve drone path planning problems in complex mountainous environments. Its core is to simulate the hunting behavior of Harris hawks (exploration, siege, attack), combined with dynamic terrain obstacle avoidance and hazard assessment, to generate globally optimal paths. — **2 Complex Mountain Hazard Model Construction** **Terrain Hazard Quantification** Using Digital Elevation Models (DEM) and obstacle distribution data, the hazard function is defined as:
\[ H(x,y) = w_1 \cdot \text{Height}(x,y) + w_2 \cdot \text{Slope}(x,y) + w_3 \cdot \text{Obstacle}(x,y) \] where \( w_1, w_2, w_3 \) are weight coefficients corresponding to elevation, slope, and obstacle density. **Dynamic Threat Field Modeling** Introducing dynamic factors such as wind speed and thunderstorms, the instantaneous threat probability distribution is described using a Gaussian Mixture Model (GMM):
\[ P_{\text{threat}}(x,y,t) = \sum_{i=1}^k \alpha_i \mathcal{N}(\mu_i, \Sigma_i) \] where \( \alpha_i \) is the mixture weight, and \( \mu_i \) and \( \Sigma_i \) are the mean and covariance of the dynamic threat. — **3 TTHHO Path Planning Process** **Initialization Phase** Randomly generate the initial population of drones \( X = \{x_1, x_2, …, x_N\} \), where each path \( x_i \) consists of a series of waypoints, aiming to minimize the total cost function:
\[ f(x_i) = \lambda_1 \cdot \text{Length}(x_i) + \lambda_2 \cdot \sum H(x,y) + \lambda_3 \cdot \text{Smoothness}(x_i) \] **Transient Triangular Search Mechanism** Introduce the triangular search strategy during the siege phase to update the hawk positions:
\[ x_{\text{new}} = x_{\text{prey}} + \Delta t \cdot (r_1 \cdot \vec{AB} + r_2 \cdot \vec{AC}) \] where \( \vec{AB} \) and \( \vec{AC} \) are triangular vectors, \( \Delta t \) is the transient time step, and \( r_1, r_2 \) are random coefficients. **Dynamic Obstacle Avoidance and Convergence** Control the balance between exploration and exploitation through an adaptive energy factor \( E \):
\[ E = 2E_0 \left(1 – \frac{t}{T_{\max}}\right) \] When \( |E| \geq 1 \), perform global search; otherwise, make local fine adjustments to the path. — **4 Algorithm Advantages** – **Triangular Search Mechanism**: Enhances global exploration capability in complex terrains, avoiding local optima. – **Transient Response**: Dynamically adjusts search step size, quickly adapting to sudden threats. – **Multi-objective Optimization**: Integrates path length, hazard cost, and smoothness to ensure flight safety. Note: In practical applications, real-time sensor data should be combined to update the hazard model and validate the algorithm’s performance on simulation platforms (such as Gazebo or MATLAB).
2 Code and Running Steps
2.1 Partial Code2.2 Running Steps
(1) Directly run main.m to generate the graph with one click

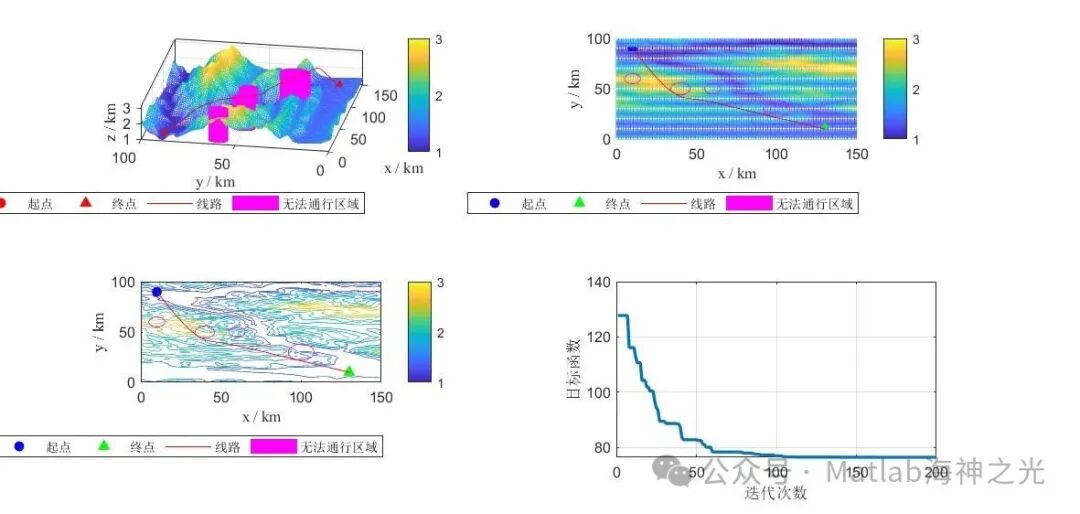

3Running Results
4MATLAB Version and References
1 MATLAB Version
2019b
2 References
[1] Zhou Deyun, Xu Jian, Huang He. Multi-drone path planning based on improved genetic algorithm [J]. Aviation Computing Technology. 2009
3 Note
Introduction to this section is excerpted from the internet for reference only. If there is any infringement, please contact for removal.
