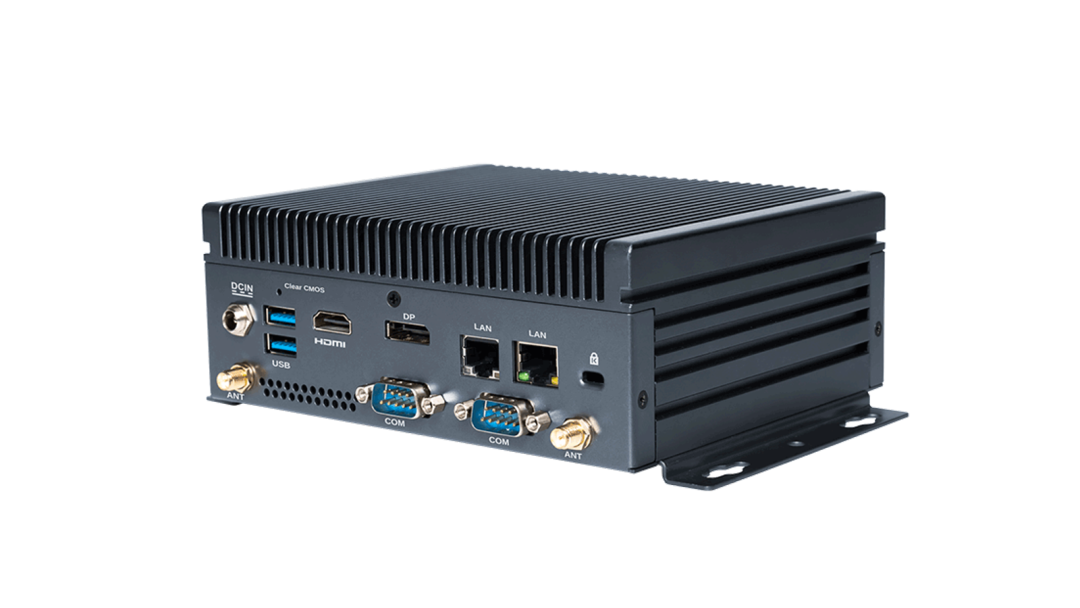

In special industrial environments, achieving rapid production relies heavily on the robust support of various industrial computers.Jiehe Technology Industrial Computer AF208, as the core control unit, plays a critical role with its sturdy and reliable casing, advanced heat dissipation technology, and compact flexible deployment features.
Robust Casing, Fearless of Dust

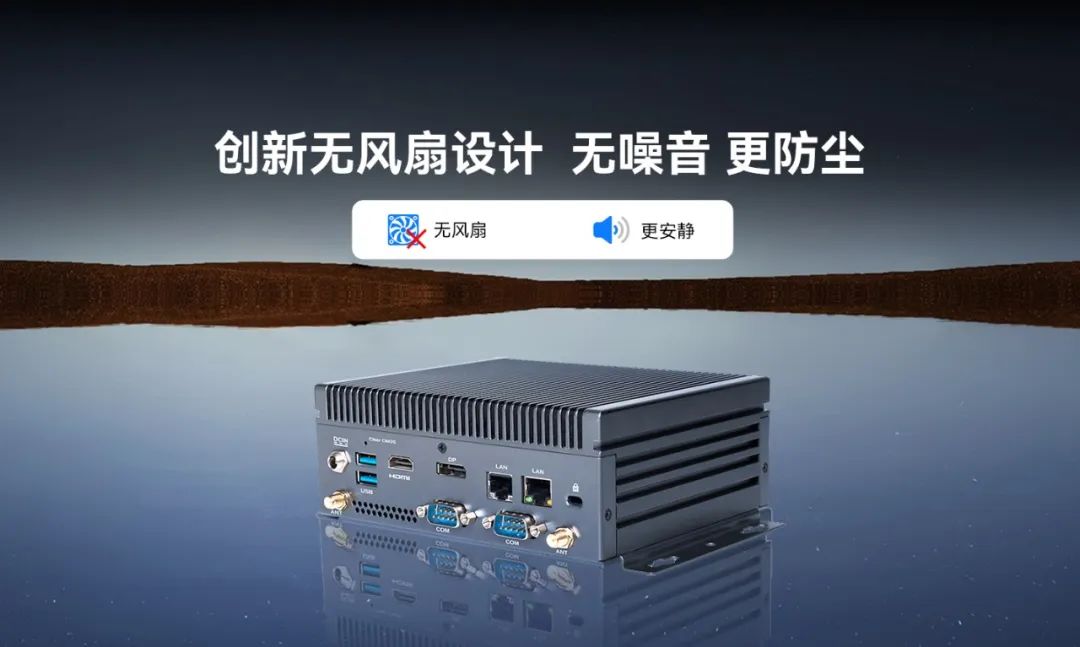

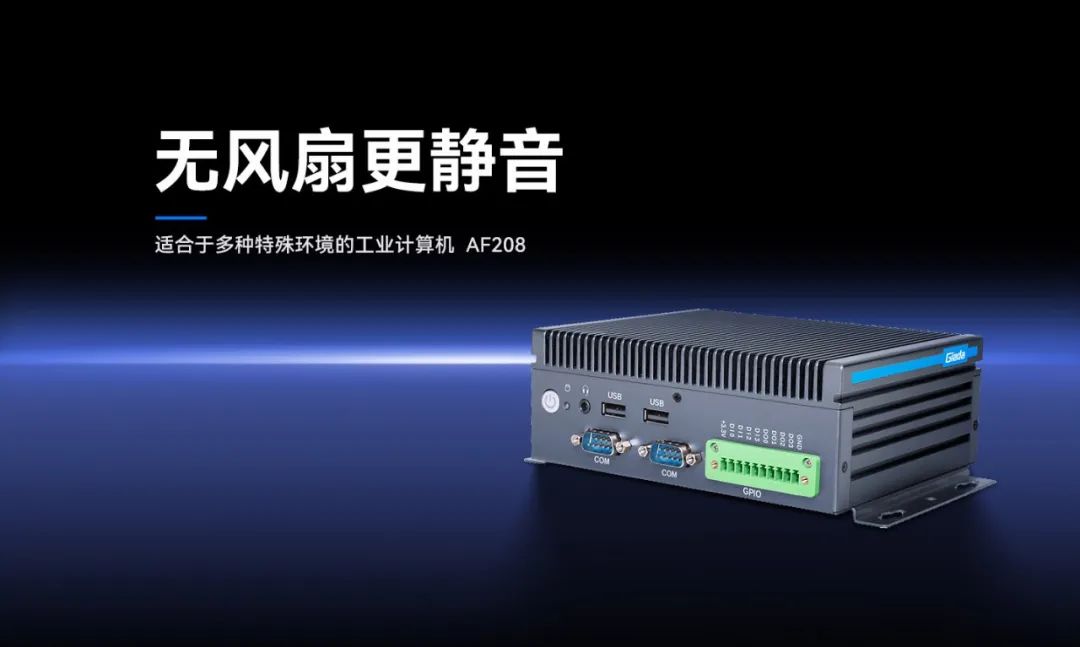

The Jiehe Technology Industrial Computer AF208 features a durable casing material with a fanless design. The casing is designed with fins to maximize heat dissipation without a fan, creating an extremely quiet working and usage environment, allowing the device to operate noiselessly and be more dustproof.
High Energy, Long Lifecycle
The AF208 supports the Intel Alder Lake-N platform and can be equipped with Intel® Processor N97 and Intel® Atom X7211E Processor high-performance processors, onboard LPDDR5 memory, and supports solid-state drives using PCIe 3.0 X4 channels, meeting multitasking needs and facilitating user expansion of additional storage space.
Rich I/O Interfaces
2 High-Definition Video Output Interfaces
The AF208 supports 4K ultra-high-definition playback, providing 1 x HDMI 2.0 (Max. 4096×2190@60Hz) and 1 x DP1.2 (Max. 4096×2160@60Hz) interfaces, with DP interface compatible with VGA, which is optional.
4 COM Serial Ports
The AF208 offers a wealth of industrial-grade I/O interfaces, equipped with 4 COM serial ports for easy connection to PLCs, sensors, and other industrial devices; the 10-pin GPIO interface supports digital signal control and expansion.
2 USB3.2 Gen2 Interfaces (10 Gbps)
Can drive high-speed storage devices or industrial cameras while retaining 2 x USB2.0 interfaces for compatibility with traditional peripherals such as keyboards and scanners.
1 2.5 Gigabit Ethernet Port and 1 Gigabit Ethernet Port
Enables high-speed wired transmission, supporting devices with different rates.
Environmental Adaptability and Reliability

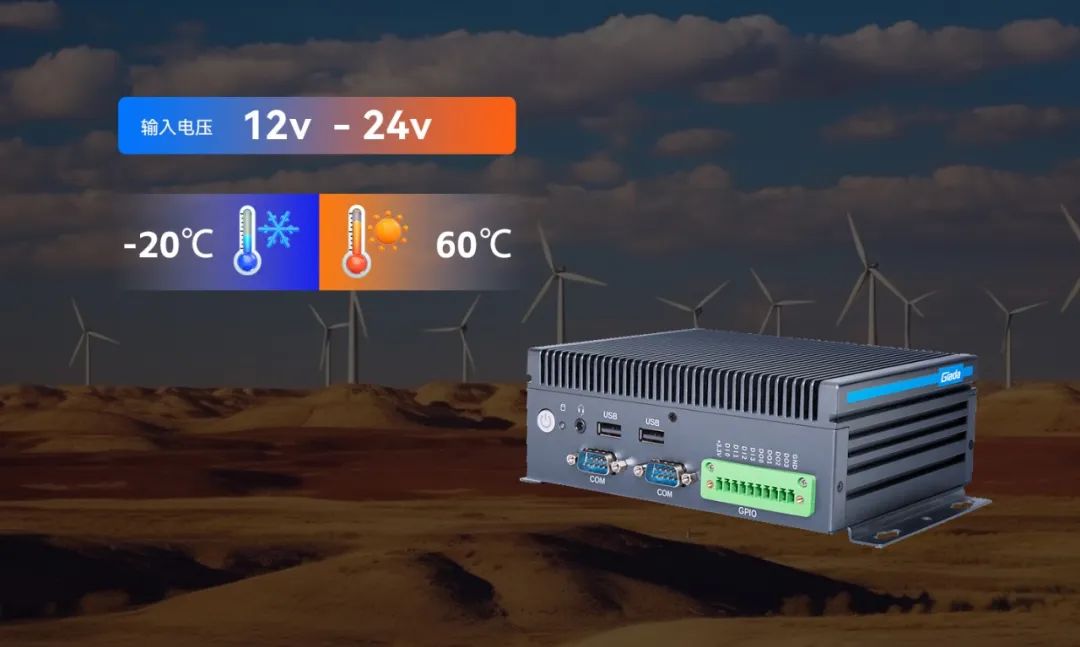

The AF208 supports a wide operating temperature range of -20°C to 60°C and a 12-24V wide voltage input design for stable operation, unafraid of extreme weather challenges such as severe cold and high temperatures, ensuring stable operation.

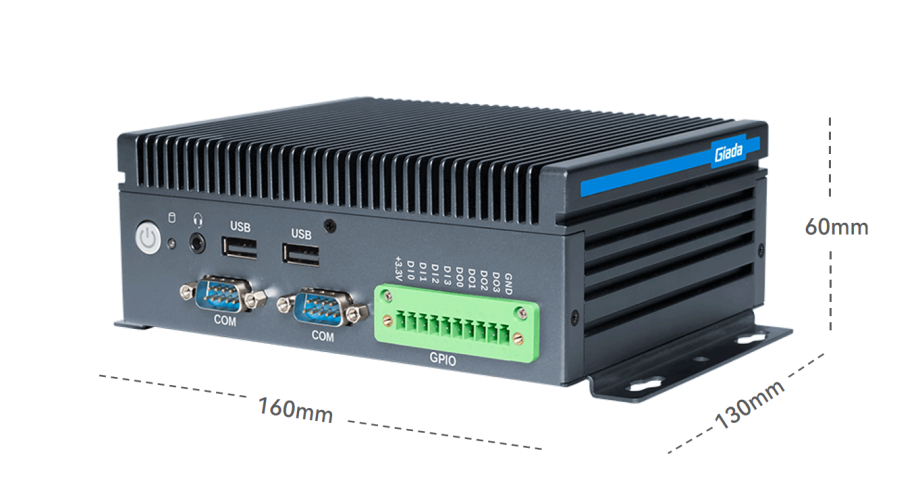

With dimensions of only 160mm×130mm×60mm, the lightweight design adapts to space-constrained cabinets, mobile devices, or small industrial environments, allowing for flexible deployment while maintaining high reliability under complex conditions such as vibration and dust, meeting the stringent requirements of smart manufacturing, outdoor monitoring, and vehicle edge computing.
In the wind-swept borders and the continuously operating workshops, the AF208 not only adapts to extreme environments but also finds wide applications inindustrial manufacturing, industrial automation, intelligent transportation, and intelligent robotics and other complex scenarios, showcasing its excellent performance and broad applicability.
