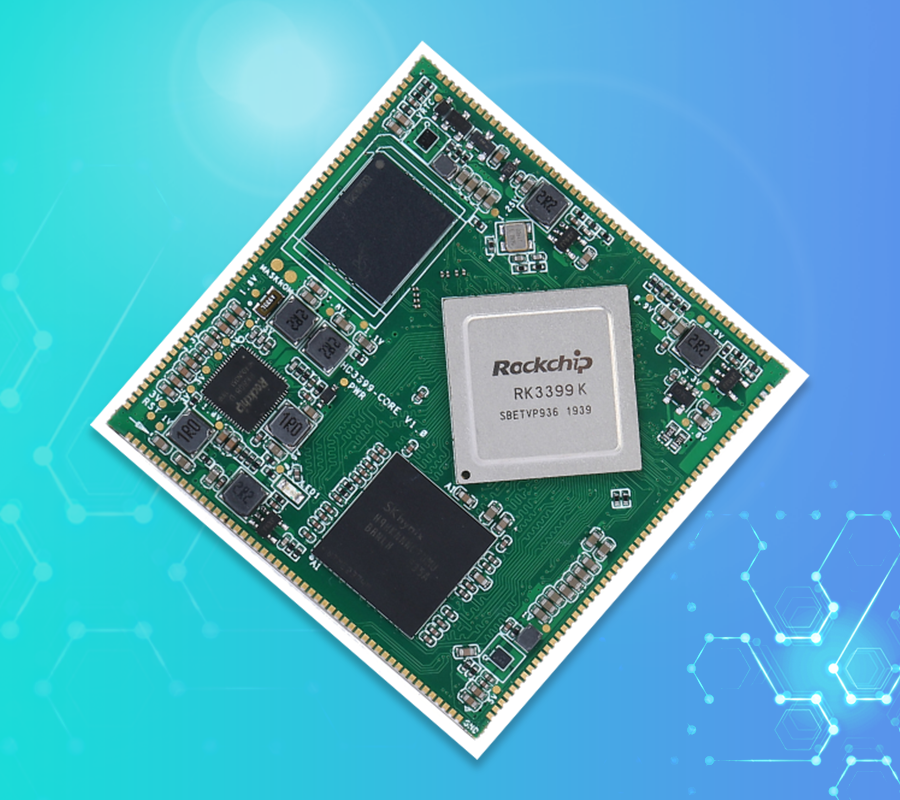

64bit 6core “server-grade” processor
Designed based on the domestic RK3399 processor, it integrates 2 1.8GHz ARM Cortex-A72 cores and 4 1.4GHz ARM Cortex-A53 cores, 64bit system, comparable to desktop computer processing performance; integrates LPDDR4, memory supports 4GB, 8GB or more; suitable for AI, VR, streaming processing, servers, and other high-performance applications.
4core Graphics Processor
The GPU adopts Mali-T864, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, utilizing hardware acceleration modules to reduce CPU load; supports 3D, 4K ultra-high definition output, H2.65 video hardware decoding, H2.64 video hardware encoding, supports video deinterlacing, denoising, edge/ detail/ color optimization and other post-processing.

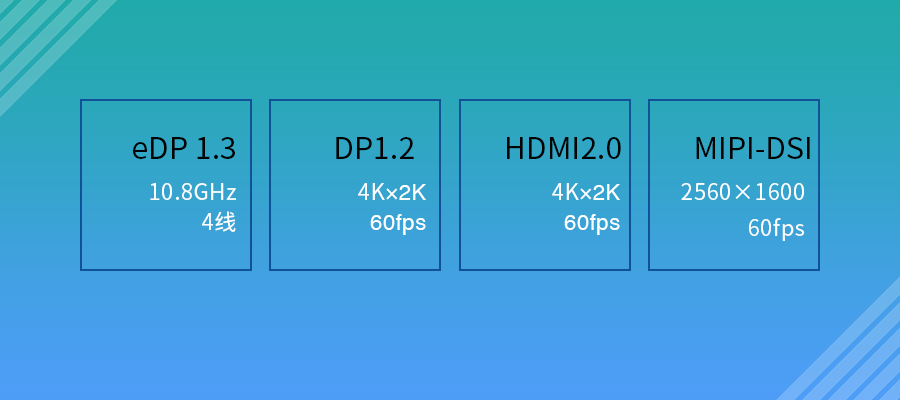

Multiple Display Interfaces | Supports Dual-Screen Different Display Dual-Screen Same Display
Resolution supports 4096×2160; supports multiple display interfaces, dual-channel MIPI-DSI (4 lines per channel), eDP 1.3( 4 lines, 10.8Gbps), HDMI 2.0a(supports 4K 60Hz display, supports HDCP 1.4/2.2), DisplayPort 1.2 (4 lines, maximum supports 4K 60Hz)
Supports Android System
Supports Android7.1 system, software resources are richer, application development is easier! It can facilitate office learning, gaming entertainment, software development, project implementation……
Dual Hardware ISP | Dual MIPI-CSI
Dual camera interface. Dual hardware ISP, supports up to single 13MPix/s or dual 8MPix/s, supports simultaneous input of dual camera data, supports panoramic photography, gesture recognition, face recognition, human flow/ vehicle flow statistics and other applications.

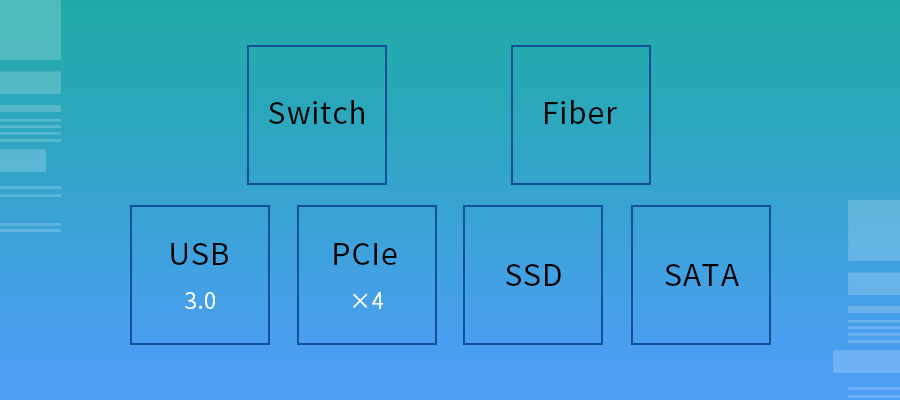

High-Speed Data Interfaces
Integrates Gigabit Ethernet, PCIe2.1, USB3.0 and other high-speed interfaces, supports network function expansion (Gigabit switch, fiber interface, PCIe expansion network port), storage function expansion (PCIe expansionSATA), high-speed wireless function expansion (USB3.0 expansion 5G communication) and more.

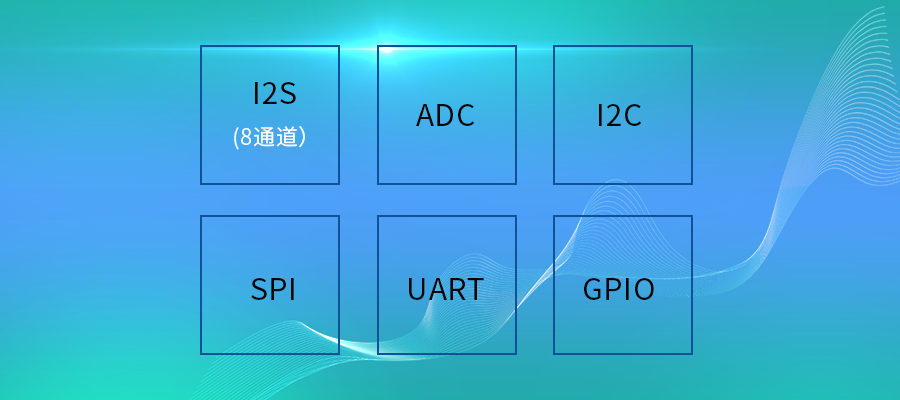

Rich Functional Interfaces
Includes various high-speed data interfaces, display interfaces, camera interfaces, the product also supports rich collection and control interfaces such as UART, ADC, IIS, IIC, SPI, PWM, GPIO and more.

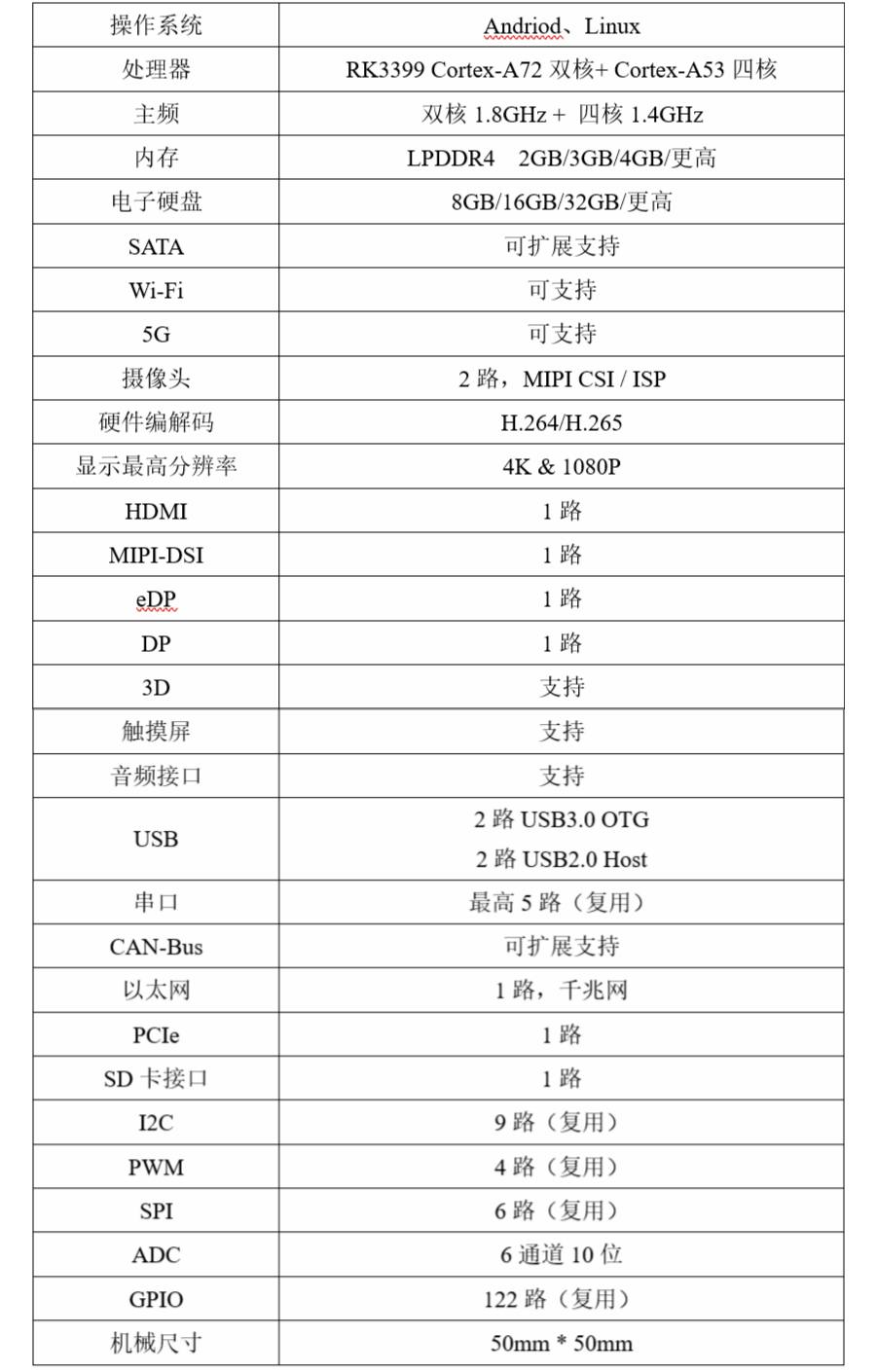

Hardware Parameters
