When we develop more complex products, we often use SoCs. Such products generally run on Linux or Android systems, and the hardware tends to be more complex, typically consisting of SoC + DDR3/DDR4 + eMMC + a bunch of peripherals, with the board usually having multiple layers, starting from 4 layers, and 6 or 8 layers being quite common.
Complexity means a higher chance of errors, longer development cycles, and greater risks. A small mistake can lead to significant issues, and if the small system fails to boot, it becomes even more awkward, making troubleshooting difficult. Therefore, we sometimes directly purchase core boards for projects and design the peripheral circuits ourselves.
This approach offers several benefits. Firstly, the small system can run reliably because the core board functions as a self-contained small system, minimizing concerns about failures caused by undetermined reasons; at worst, the issue lies in the peripheral circuit design, which can be easily modified, thus reducing risk and shortening the development cycle. Secondly, peripheral interface boards do not need to be as multilayered as core boards, sometimes even a 2-layer board suffices, which can also lead to cost advantages. Thirdly, these SoCs are usually BGA packaged, along with eMMC, requiring high production control standards. By using a core board, the responsibility for these challenges is transferred to the supplier, making in-house production less daunting.
Therefore, to accelerate product development, using a mature core board is a viable option. Here, I would like to recommend the core board from Tronlong Technology.
Founded in 2013, Tronlong Technology is a leading provider of embedded product platforms in China, primarily covering industrial core boards, industrial evaluation boards, and project services. Headquartered in Guangzhou Science City, it has an independently operated educational instrument division and technical service centers in Beijing, Shanghai, Shenzhen, and Xi’an.
Tronlong Technology focuses on the development of ARM, FPGA, and DSP multi-core heterogeneous technology and is an official partner of TI and Xilinx in China. Its product line encompasses processor platforms from TI, Xilinx, NXP, Allwinner, Rockchip, and Unisoc, which are widely used in industries such as industrial automation, instrumentation, energy and power, communications, medical, and security.
The Tronlong SOM-TLA40i is a 4-core ARM Cortex-A7 domestic industrial core board designed based on the Allwinner Technology A40i processor, with a maximum frequency of 1.2GHz per core.

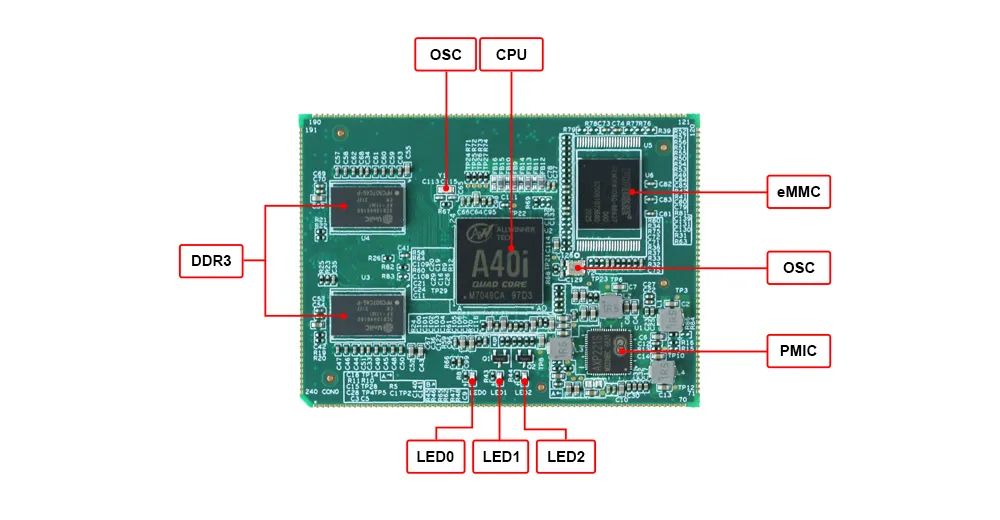

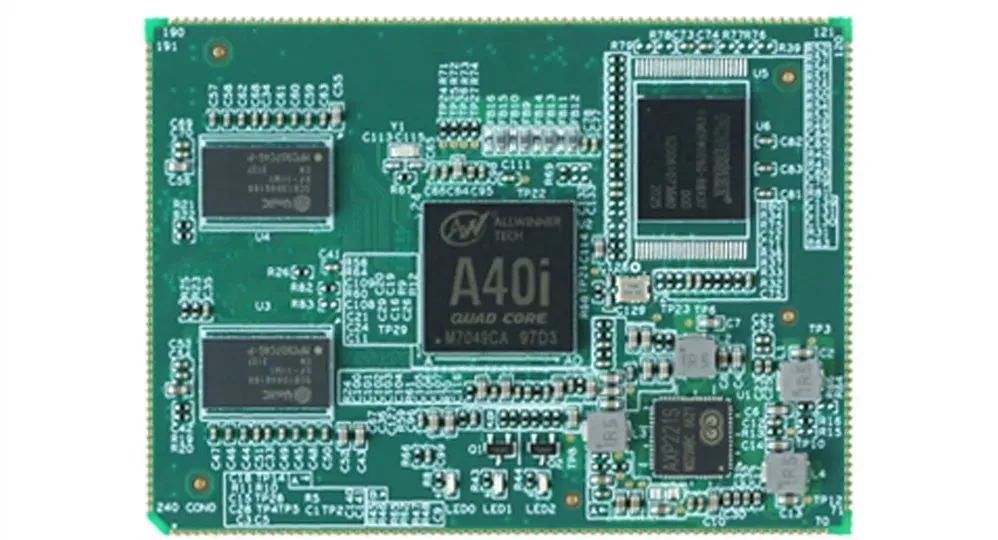

Figure 1 Front View of SOM-TLA40i Core Board

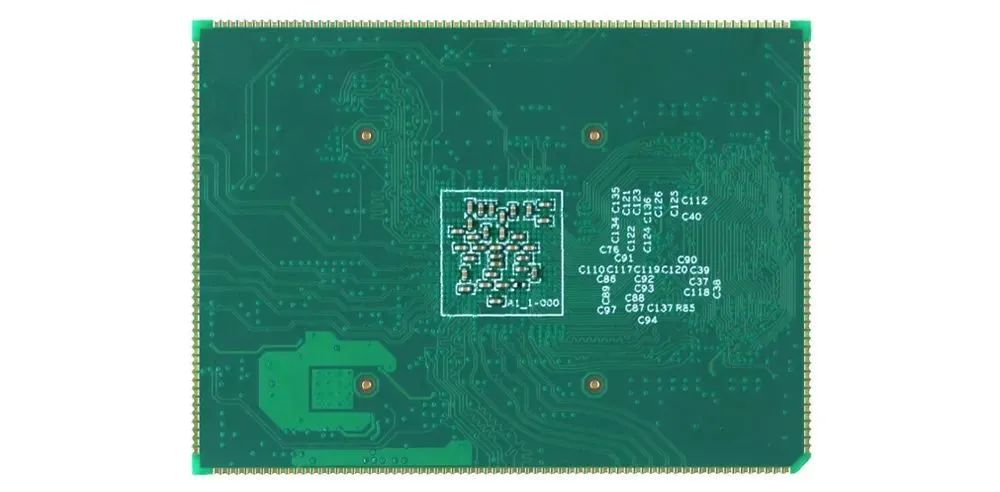

Figure 2 Back View of SOM-TLA40i Core Board
Long press the QR code below to obtain detailed product information
2 Exceptional Display Capabilities, First Choice for Industrial HMI
The SOM-TLA40i core board supports various industrial high-definition display interfaces such as MIPI/LVDS/LCD/CVBS/VGA/HDMI, enabling dual-screen independent display. It also provides interfaces through the TLA40i-EVM evaluation board, facilitating quick customer evaluations.
Additionally, the core board supports Mali400 GPU, H.264 video hardware encoding/decoding (1080P), and 6-channel video input, along with SATA for large-capacity storage interfaces.

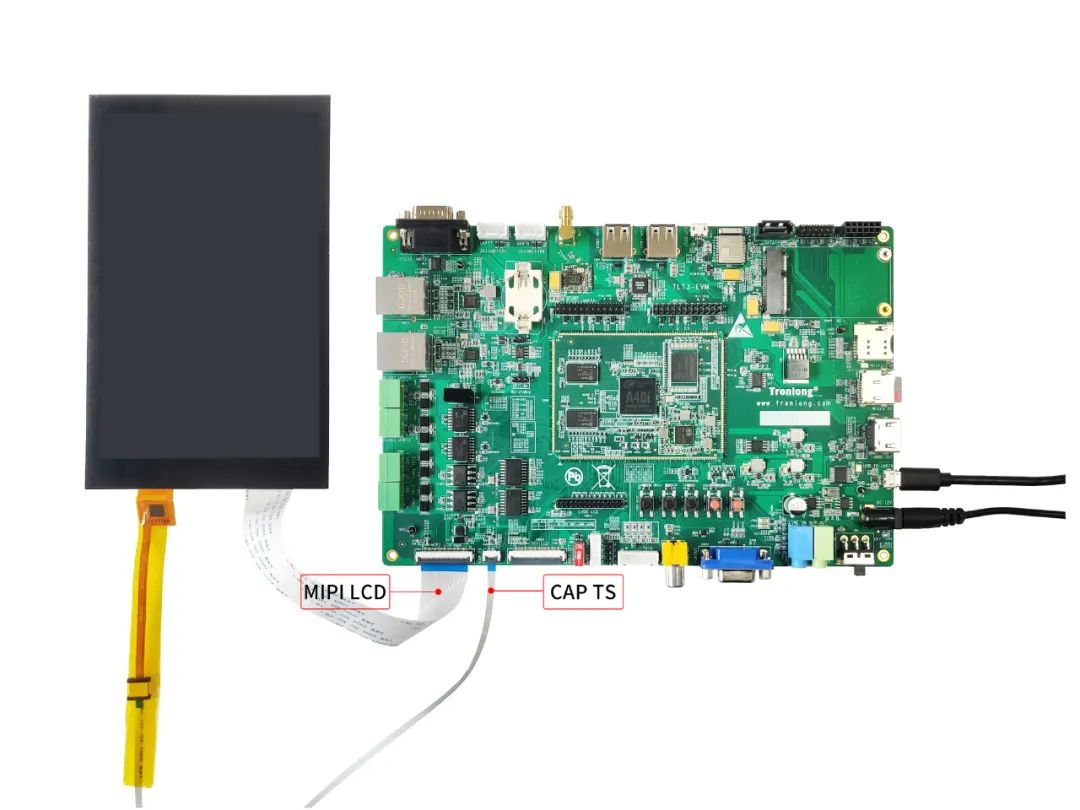

Figure 3 MIPI Display

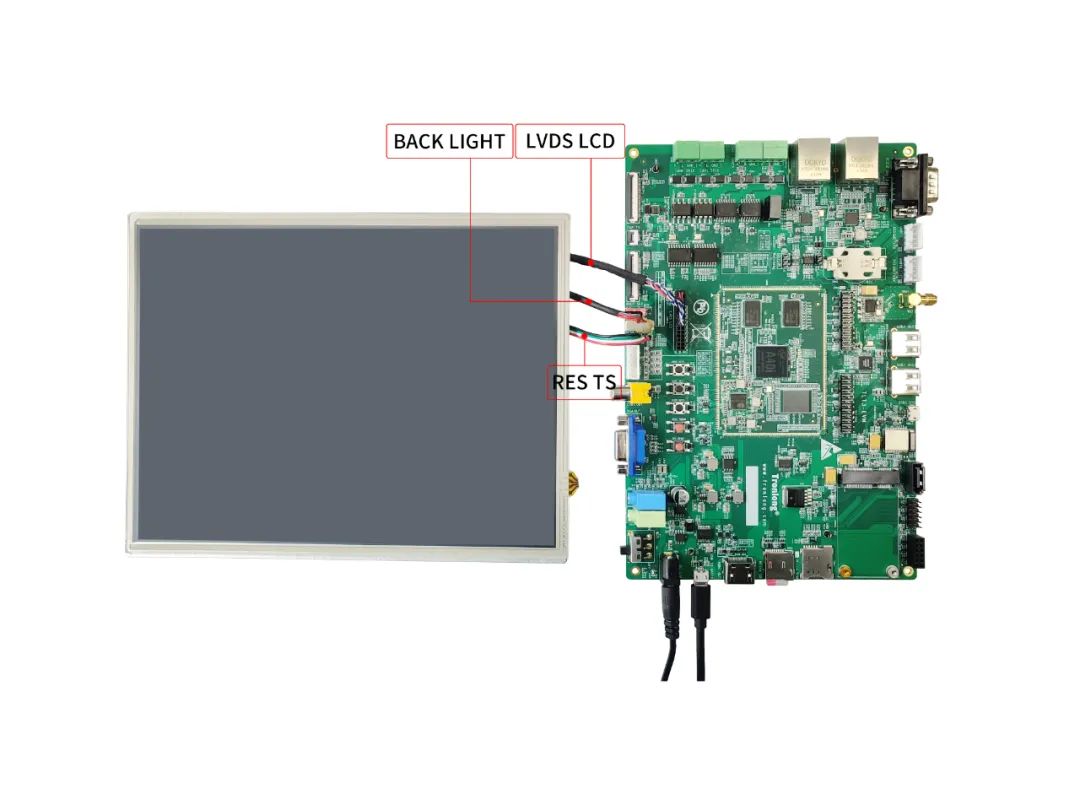

Figure 4 LVDS Display

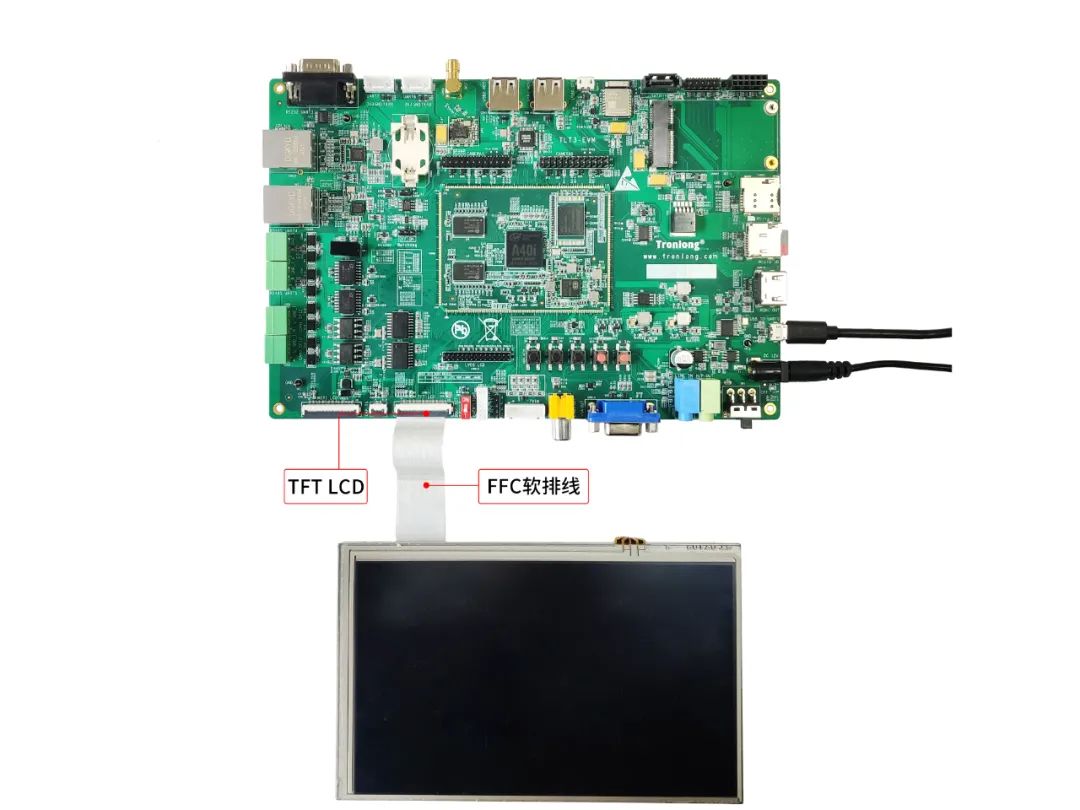

Figure 5 LCD Display

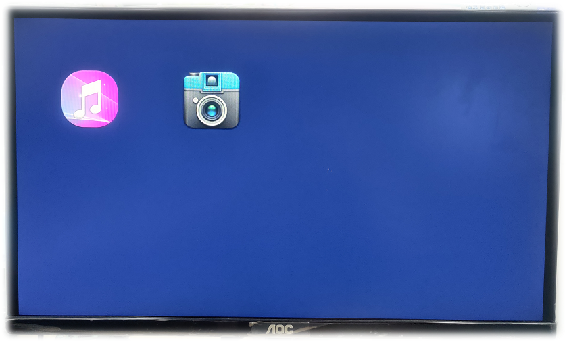

Figure 6 VGA, HDMI Display

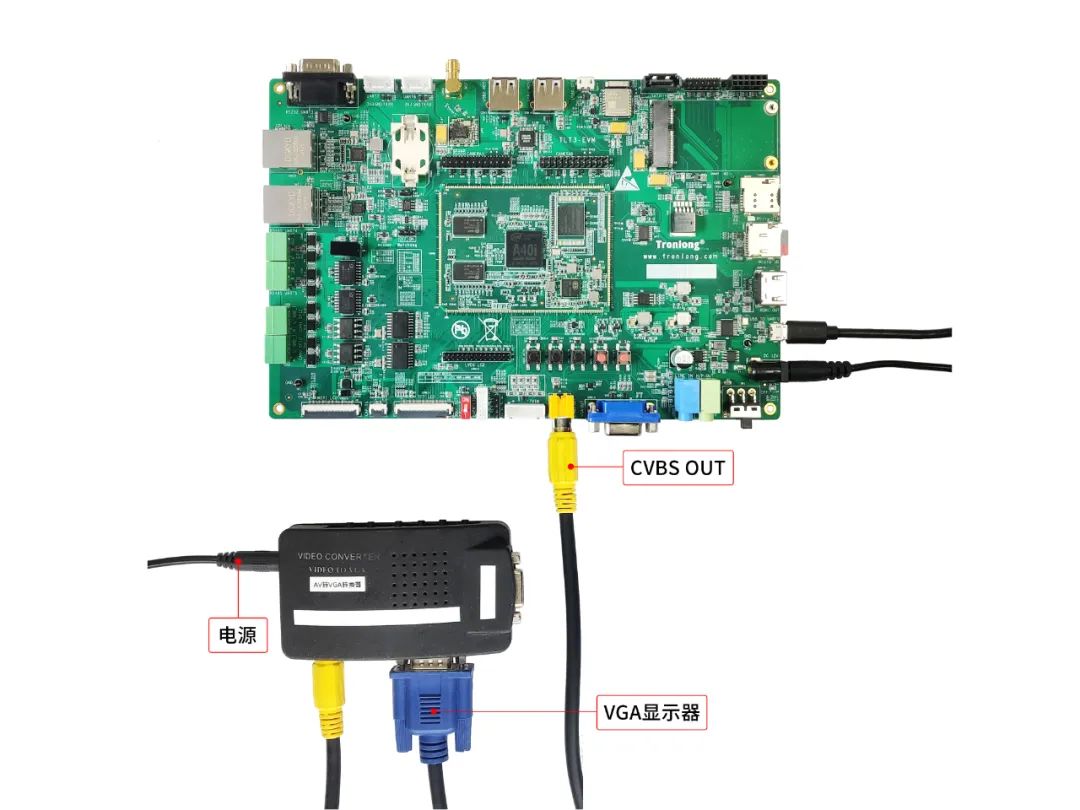

Figure 7 CVBS Display
Figure 8 Dual-Screen Independent Display
3 Typical Industrial Application Fields

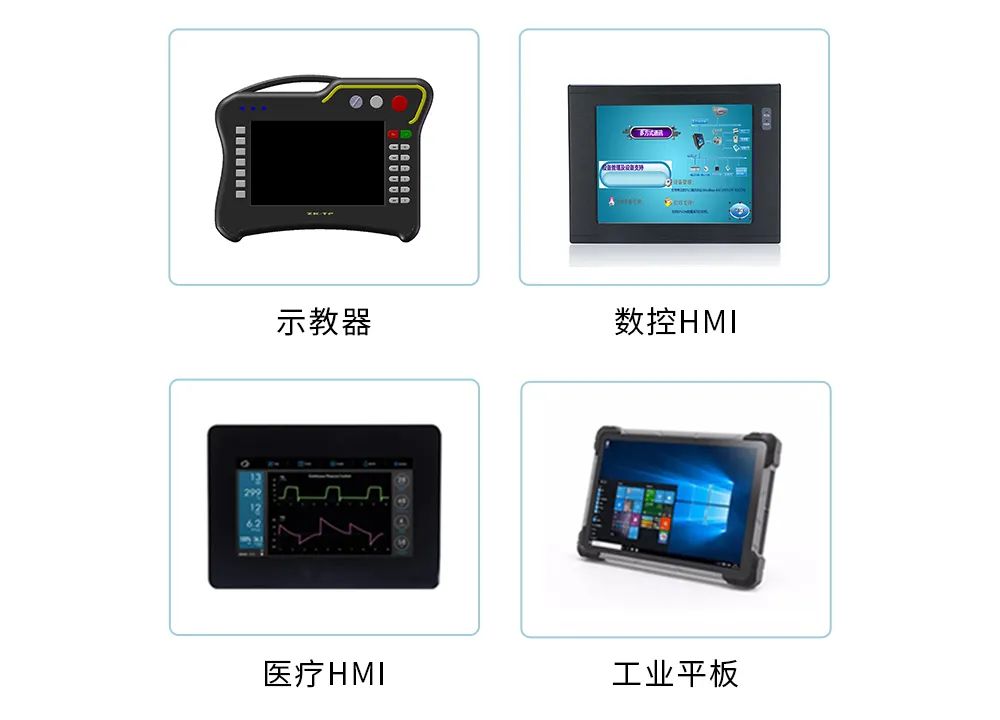

Figure 9 Application Fields
4 100% Domestic Content, Starting at 238 Yuan Including Tax!
The SOM-TLA40i core board’s CPU, ROM, RAM, power supply, and other components all use domestic solutions (100% domestic content), and it has passed high and low temperature, vibration, and 3000 startup tests, ensuring stability and reliability to meet various industrial application environments.
Figure 10 SOM-TLA40i Core Board Hardware Resource Diagram
The core board is available in bulk starting at 238 Yuan including tax. Considering its industrial grade, 100% domestic content, 4-core [email protected], and exceptional display capabilities, it offers an outstanding cost-performance ratio. Industrial users are welcome to evaluate it!
Open【Taobao】 and scan the image QR code
Or visit Tronlong’s Tmall flagship store: tronlong.tmall.com
5 Download Resources
Please long press the QR code below to obtain detailed product information
