Communication between electronic devices is like communication between humans; both parties need to speak the same language. In electronic products, these languages are called communication protocols.
Previously, I shared articles on SPI, UART, and I2C communication separately; this article compares them.
Serial vs Parallel
Electronic devices communicate by sending data bits. A bit is binary and can only be 1 or 0. Bits are transmitted from one device to another through rapid changes in voltage. In a system operating at 5V, “0” is communicated through a short pulse at 0V, while “1” is communicated through a short pulse at 5V.

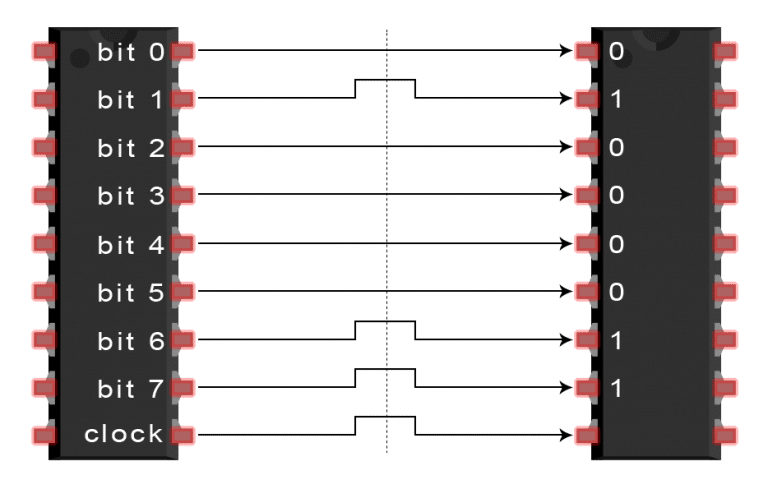

Data bits can be transmitted in parallel or serial form. In parallel communication, data bits are transmitted simultaneously across multiple lines.The following diagram shows the parallel transmission of the letter “C” in binary (01000011):

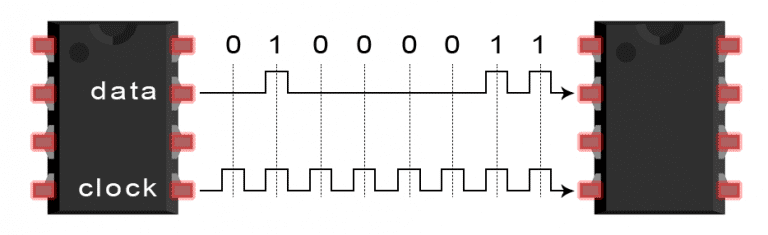

In serial communication, bits are sent one by one over a single wire. The following diagram shows the serial transmission of the letter “C” in binary (01000011):
SPI Communication
SPI is a common general-purpose communication protocol for devices. Its unique advantage is that it allows for uninterrupted data transmission, enabling the continuous sending or receiving of any number of bits. In contrast, I2C and UART send data in packets, which have a limited number of bits.
In SPI devices, the devices are divided intomaster and slave systems.The master is the controlling device (usually a microcontroller), while the slave (typically a sensor, display, or memory chip) receives instructions from the master.
A set of SPI communication includes four signal lines:MOSI (Master Output/Slave Input) – signal line, master output, slave input.MISO (Master Input/Slave Output) – signal line, master input, slave output.SCLK (Clock) – clock signal.SS/CS (Slave Select/Chip Select) – chip select signal.

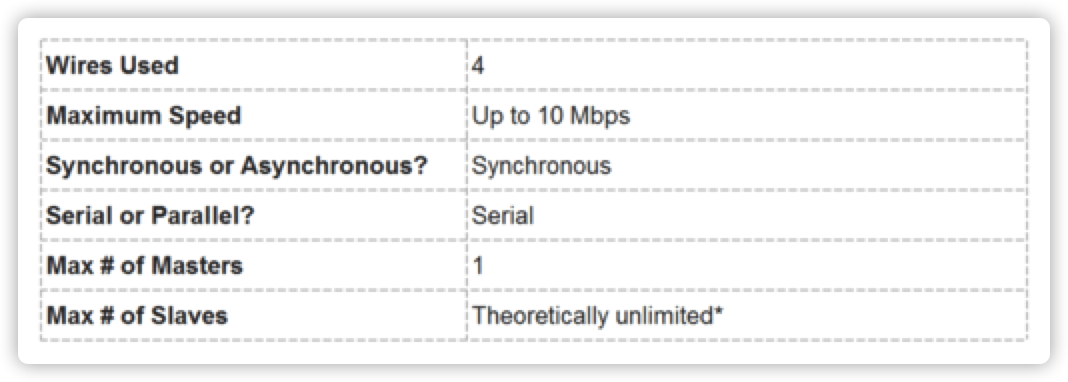

Characteristics of the SPI Protocol
In fact, the number of slaves is limited by the system’s load capacitance, which reduces the master’s ability to switch accurately between voltage levels.
Operating Principle
Clock Signal
One bit of data is transmitted per clock cycle, so the speed of data transmission depends on the frequency of the clock signal. The clock signal is generated by the master, so SPI communication is always initiated by the master.
Any communication protocol that shares a clock signal is called synchronous.SPI is a synchronous communication protocol, while some asynchronous communications do not use a clock signal. For example, in UART communication, both parties are set to a pre-configured baud rate, which determines the speed and timing of data transmission.
Chip Select Signal

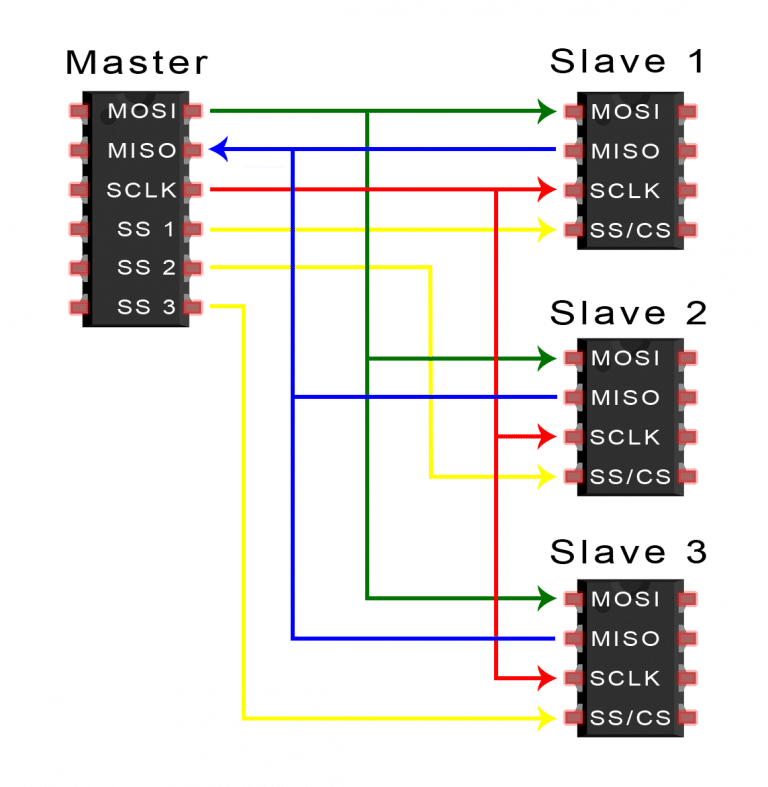

The master enables communication by pulling the slave’s CS/SS low.In idle/non-transmission state, the chip select line remains high. The master can have multiple CS/SS pins, allowing it to communicate with multiple different slaves.
If the master has only one chip select pin available, the slaves can be connected as follows:

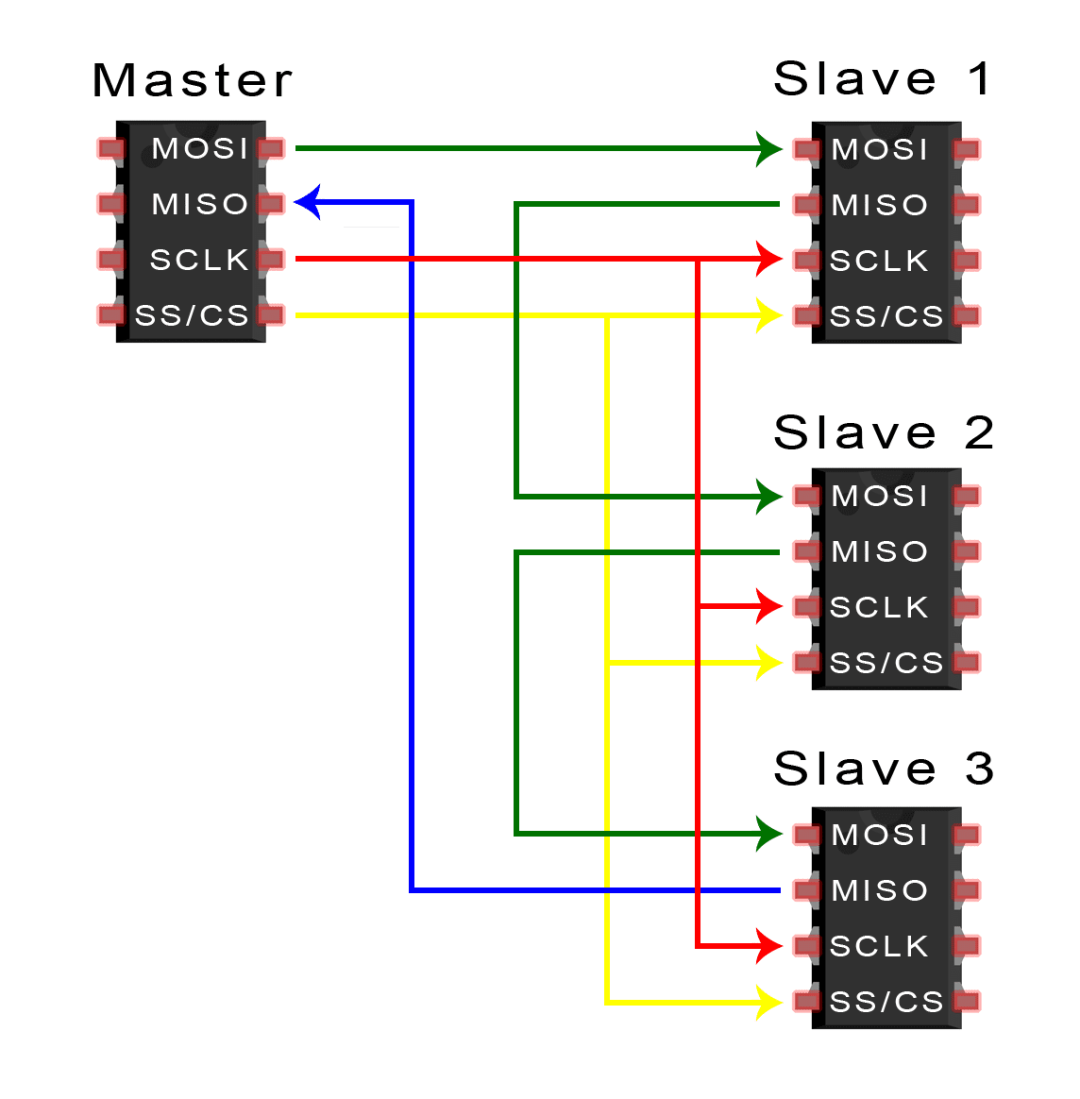

MOSI and MISO
The master sends data to the slave serially via MOSI, and the slave can also send data back to the master via MISO, allowing both to occur simultaneously. Thus, theoretically,SPI is a full-duplex communication protocol.
Transmission Steps

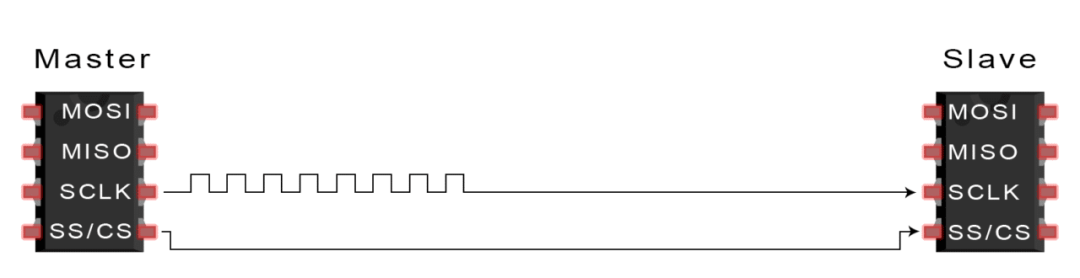

1. The master outputs the clock signal
2. The master pulls the SS/CS pin low to activate the slave

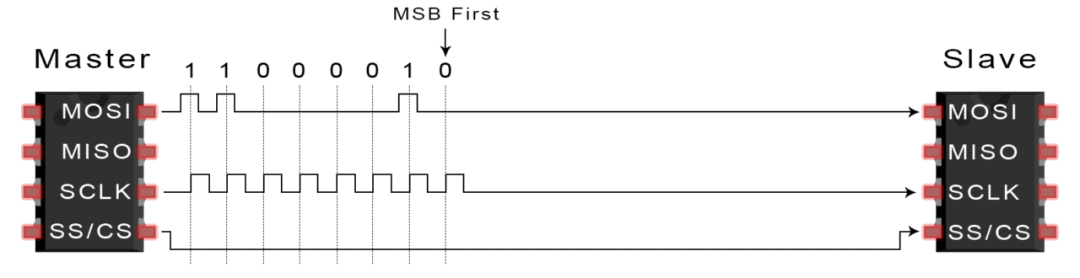

3. The master sends data to the slave via MOSI

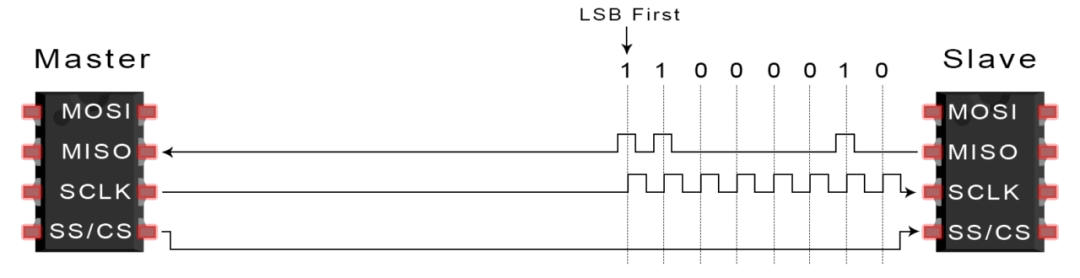

4. If a response is needed, the slave returns data to the master via MISO
Using SPI has its advantages and disadvantages; when choosing between different communication protocols, careful consideration should be given based on project requirements.
Pros and Cons
Advantages
SPI communication has no start or stop bits, allowing for continuous data flow without interruption; it does not have a complex slave addressing system like I2C, and the data transmission rate is higher than I2C (almost twice as fast). Independent MISO and MOSI lines allow for simultaneous sending and receiving of data.
Disadvantages
SPI uses four lines (while I2C and UART use two), lacks confirmation of successful signal reception (I2C has this feature), and has no form of error checking (like parity bits in UART).
UART stands for Universal Asynchronous Receiver/Transmitter, also known as serial communication. Unlike communication protocols like SPI and I2C, it is a physical circuit within a microcontroller or an independent IC.
The main purpose of UART is to send and receive serial data, and its best advantage is that it only uses two wires to transmit data between devices.The principle of UART is easy to understand, but if you haven’t read about the SPI communication protocol, that might be a good starting point.

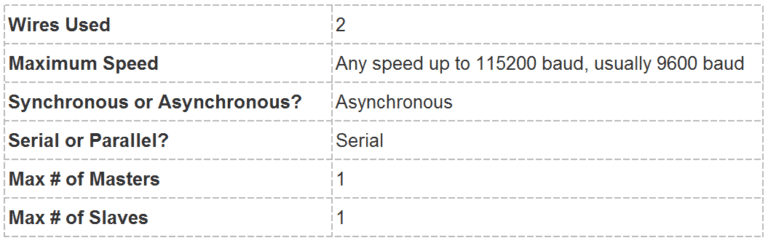

UART Communication

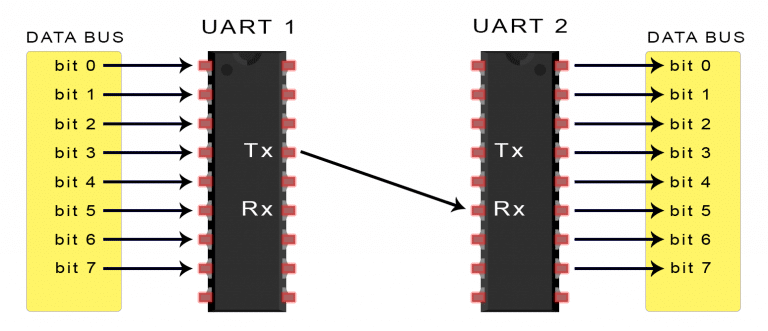

In UART communication, two UARTs communicate directly with each other. The sending UART converts parallel data from a controlling device (like a CPU) into serial form and sends it to the receiving UART. Only two wires are needed to transmit data between the two UARTs, with data flowing from the Tx pin of the sending UART to the Rx pin of the receiving UART:
UART is an asynchronous communication, meaning there is no clock signal; instead, start and stop bits are added to the data packets. These bits define the start and end of the data packet, allowing the receiving UART to know when to read the data.When the receiving UART detects the start bit, it reads the bits in the data frame at a specific baud rate. The baud rate is a measure of data transmission speed, expressed in bits per second (bps). The two UARTs must operate at approximately the same baud rate, with a maximum difference of about 10% between the sending and receiving UARTs.
Operating Principle
After the sending UART obtains parallel data from the data bus, it adds a start bit, a parity bit, and a stop bit to form a data packet, which is then serially output bit by bit from the Tx pin, while the receiving UART reads the data packet bit by bit on its Rx pin.
UART data consists of 1 start bit, 5 to 9 data bits (depending on the UART), an optional parity bit, and 1 or 2 stop bits:
Start Bit:
UART data transmission lines typically remain at a high voltage level when not transmitting data. When transmission begins, the sending UART pulls the transmission line from high to low within one clock cycle, and when the receiving UART detects the transition from high voltage to low voltage, it begins reading the bits in the data frame at the baud rate.
Data Frame:
The data frame contains the actual data being transmitted. If a parity bit is used, it can be 5 to 8 bits long. If no parity bit is used, the length of the data frame can be 9 bits.
Parity Bit:
The parity bit is a way for the receiving UART to determine if any data changes occurred during transmission. After the receiving UART reads the data frame, it counts the number of bits that are 1 and checks whether the total is even or odd, matching it with the data.
Stop Bit:
To signal the end of the data packet, the sending UART drives the data transmission line from low voltage to high voltage for at least two bit times.
Transmission Steps

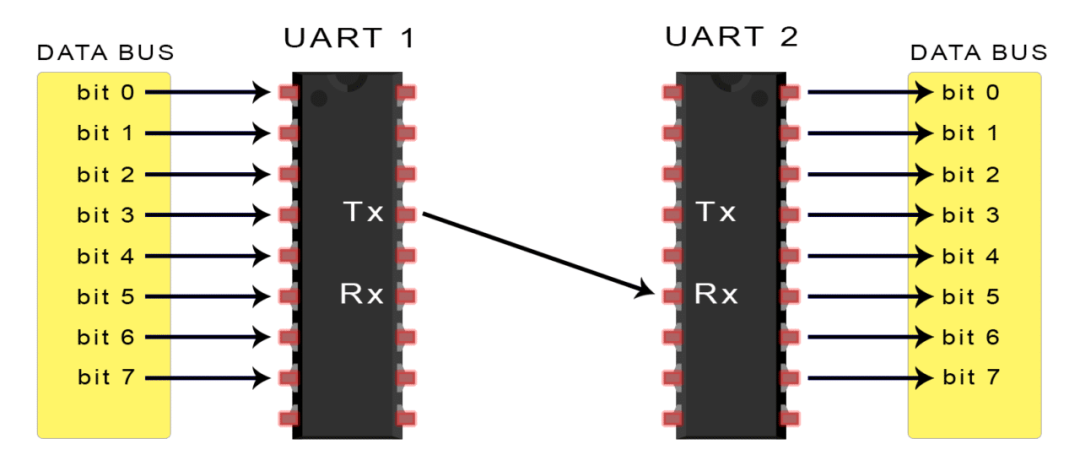

1. The sending UART receives parallel data from the data bus:
2. The sending UART adds the start bit, parity bit, and stop bit to the data frame:

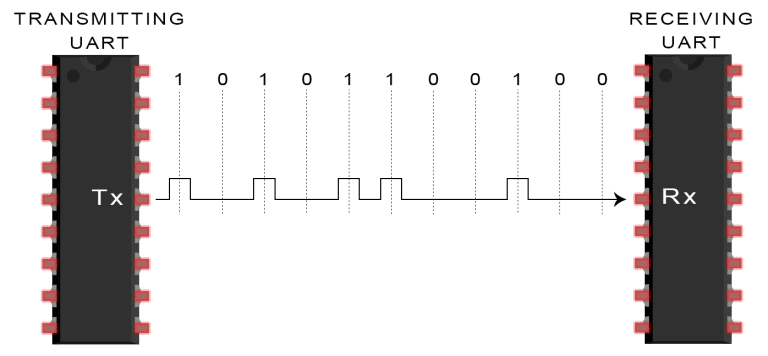

3. The entire data packet is serially sent from the sending UART to the receiving UART. The receiving UART samples the data line at the pre-configured baud rate:
4. The receiving UART discards the start bit, parity bit, and stop bit from the data frame:
5. The receiving UART converts the serial data back into parallel data and transmits it to the data bus of the receiving end:
Pros and Cons
No communication protocol is perfect, but UART excels at its job. Here are some pros and cons to help you determine if they fit your project needs:
Advantages
-
Only uses two wires
-
No clock signal required
-
Includes parity bit for error checking
-
As long as both parties set up the structure of the data packet
-
A well-documented and widely used method
Disadvantages
-
Maximum data frame size is 9 bits
-
Does not support multiple slave systems or multiple master systems
-
Baud rate of each UART must be within 10% of each other
I2C Communication

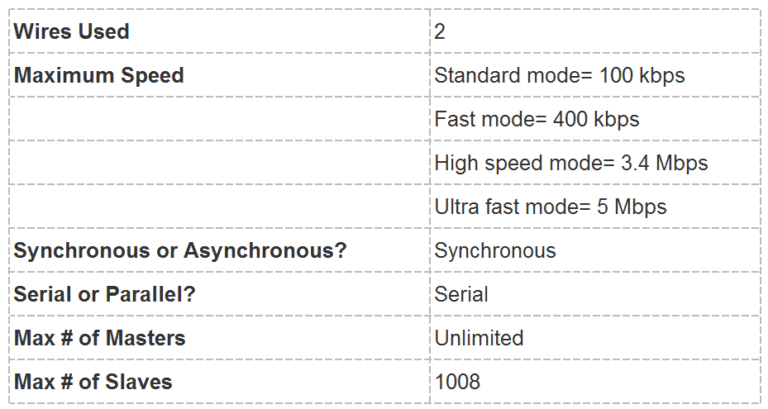

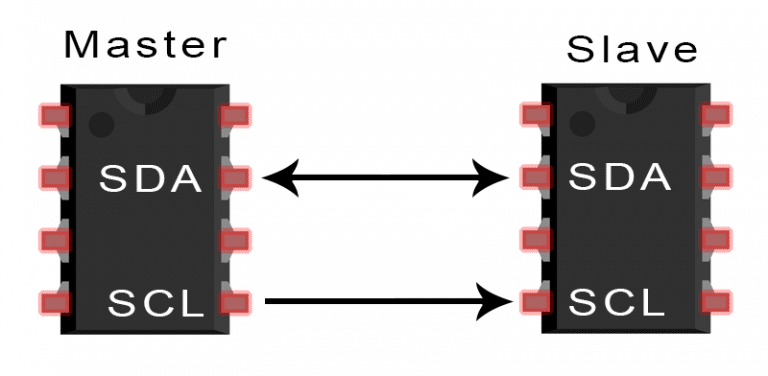

The I2C bus is a simple, bidirectional two-wire synchronous serial bus developed by Philips. It requires only two wires to transmit information. It combines the advantages of SPI and UART, allowing multiple slaves to connect to a single master (like SPI), and also enabling multiple masters to control one or more slaves. This is very useful when you want multiple microcontrollers to log data to a single storage card or display text on a single LCD.
SDA (Serial Data) – data line.
SCL (Serial Clock) – clock line.
I2C is a serial communication protocol, so data is transmitted bit by bit along the SDA line. Like SPI, I2C also requires a clock synchronization signal, which is always controlled by the master.
Operating Principle

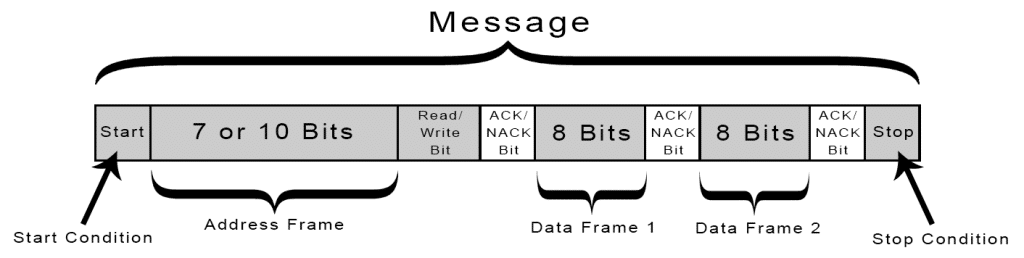

I2C data transmission occurs in the form of multiple messages, each containing the binary address frame of the slave, one or more data frames, as well as start and stop conditions, read/write bits, and ACK/NACK bits between data frames:

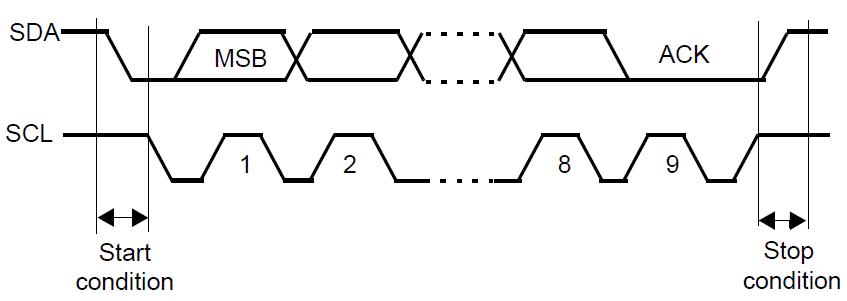

Start Condition: When SCL is high, SDA switches from high to low.
Stop Condition: When SCL is high, SDA switches from low to high.
Address Frame: A unique 7-bit or 10-bit sequence for each slave device, used for address identification between master and slave devices.
Read/Write Bit: A bit that is low if the master is sending data to the slave and high if requesting data.
ACK/NACK: Each frame in the message is followed by an ACK/NACK bit. If the address frame or data frame is successfully received, the receiving device returns an ACK bit to indicate confirmation.
Addressing
Since I2C does not have chip select lines like SPI, it needs to use another method to confirm a specific slave device, which is addressing.
The master sends the address of the slave it wants to communicate with to each slave, and each slave compares it with its own address. If the address matches, it sends a low-level ACK bit back to the master. If it does not match, it does nothing, and the SDA line remains high.
Read/Write Bit
The end of the address frame contains a read/write bit. If the master is sending data to the slave, it is low. If the master is requesting data from the slave, it is high.
Data Frame
Once the master detects the ACK bit from the slave, it can send the first data frame. The data frame is always 8 bits long, followed by an ACK/NACK bit to verify the reception status. After sending all data frames, the master can send a stop condition to terminate communication.
Transmission Steps
1. When the SCL line is high, the master initiates bus communication by switching the SDA line from high to low.
2. The master sends the 7-bit or 10-bit address of the slave it wants to communicate with, along with the read/write bit:

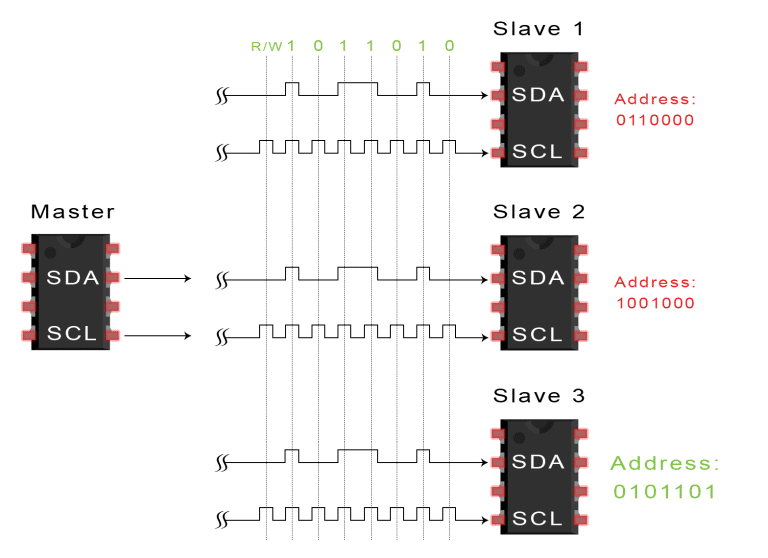

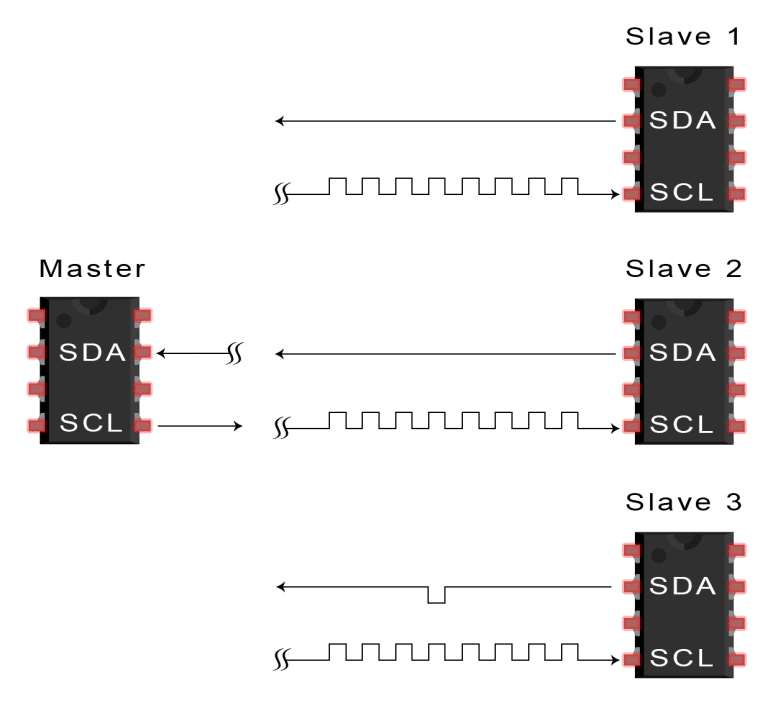

3. Each slave compares the address sent by the master with its own address. If the address matches, the slave returns an ACK bit by pulling the SDA line low. If the master’s address does not match the slave’s address, the slave pulls the SDA line high.

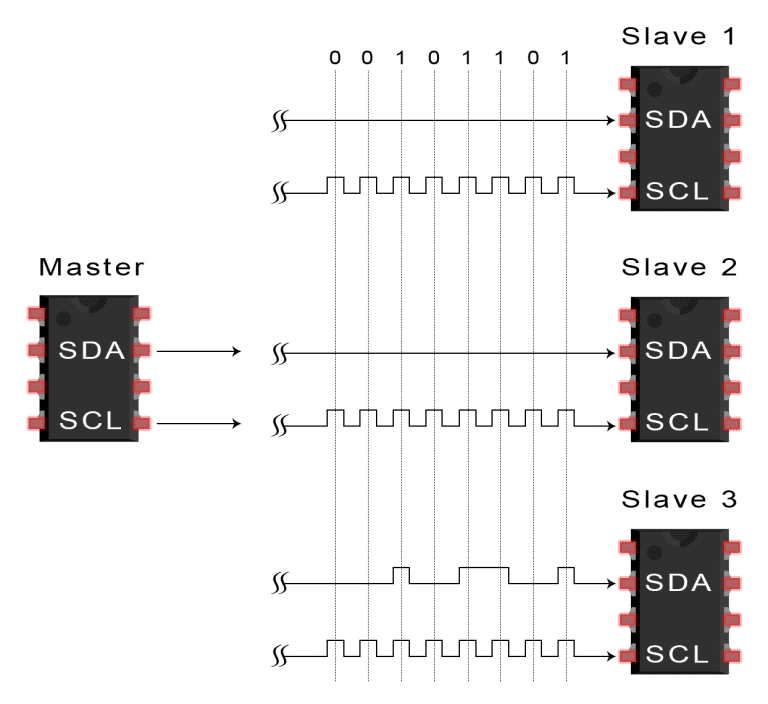

4. The master sends or receives data frames:
5. After each data frame is transmitted, the receiving device returns another ACK bit to the sender to confirm that the frame has been successfully received:
6. The master then switches SCL to high and then switches SDA to high, sending a stop condition to the slave.
Single Master vs Multiple Slaves

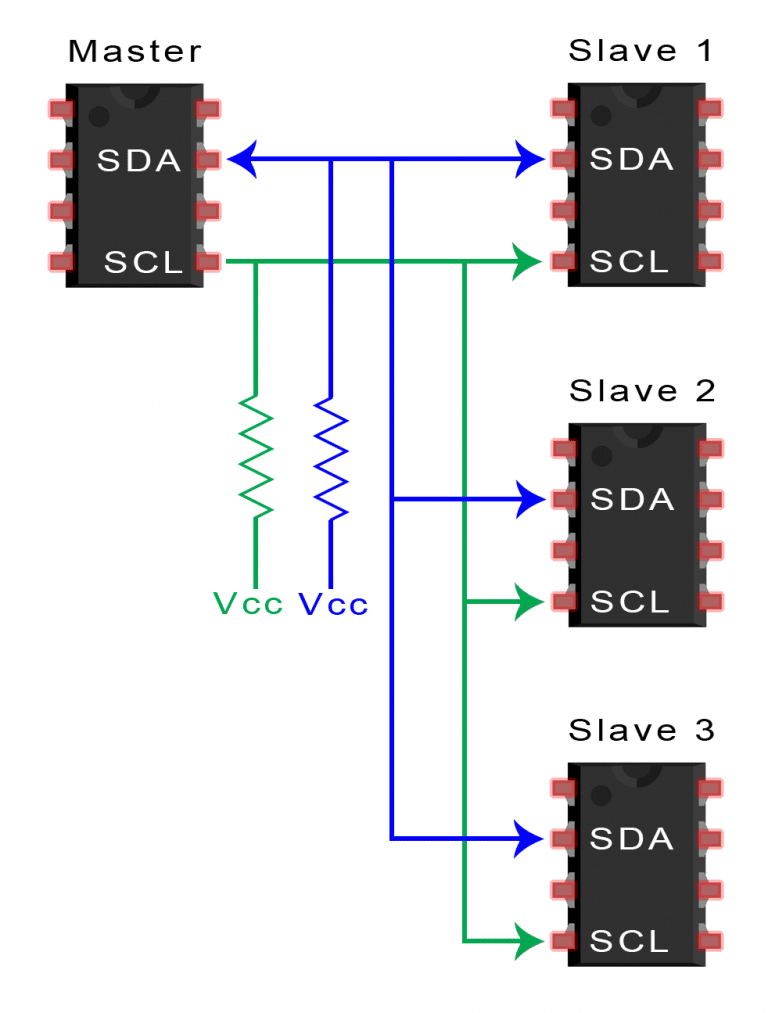

Since I2C uses addressing, a single master can control multiple slaves. With a 7-bit address, up to 128 (2^7) unique addresses can be used. Using a 10-bit address is uncommon but can provide 1,024 (2^10) unique addresses. When connecting multiple slaves to a single master, use a 4.7K ohm pull-up resistor to connect them, for example, connecting the SDA and SCL lines to Vcc:
Multiple Masters vs Multiple Slaves

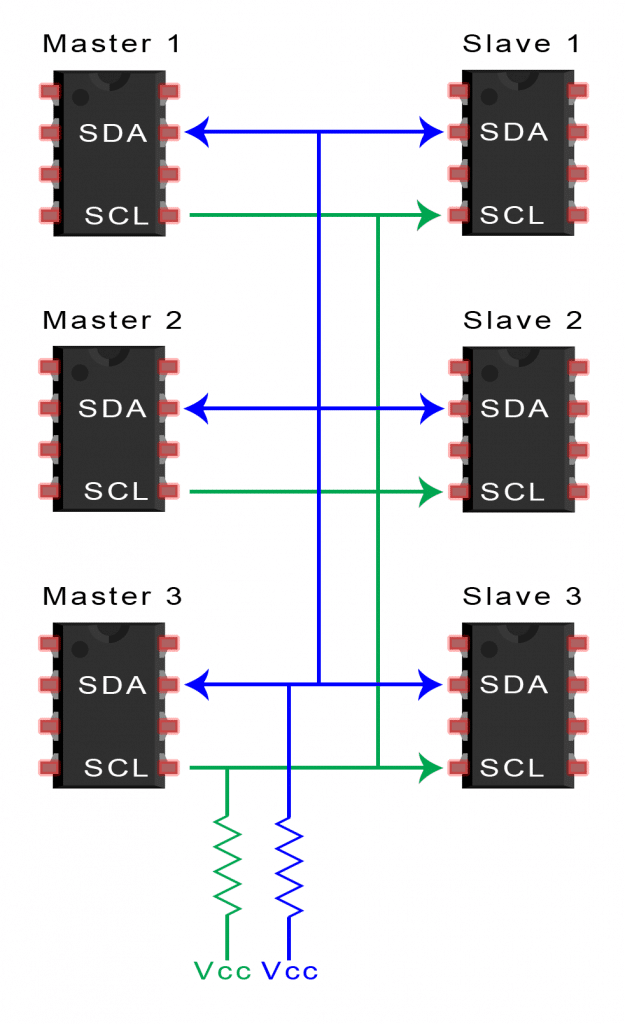

I2C supports multiple masters connected to multiple slaves. Problems can arise when two masters attempt to send or receive data simultaneously over the SDA line. Therefore, each master must check the SDA line to see if it is low or high before sending a message. If the SDA line is low, it means another master is controlling the bus. If the SDA line is high, it is safe to send data. When connecting multiple masters to multiple slaves, use a 4.7K ohm pull-up resistor to connect the SDA and SCL lines to Vcc:
Pros and Cons
Compared to other protocols, I2C may sound complex. Here are some pros and cons to help you determine if they fit your project needs:
Advantages
-
Only uses two wires
-
Supports multiple masters and multiple slaves
-
Hardware is simpler than UART
-
A well-known and widely used protocol
Disadvantages
-
Data transmission rate is slower than SPI
-
Data frame size is limited to 8 bits
