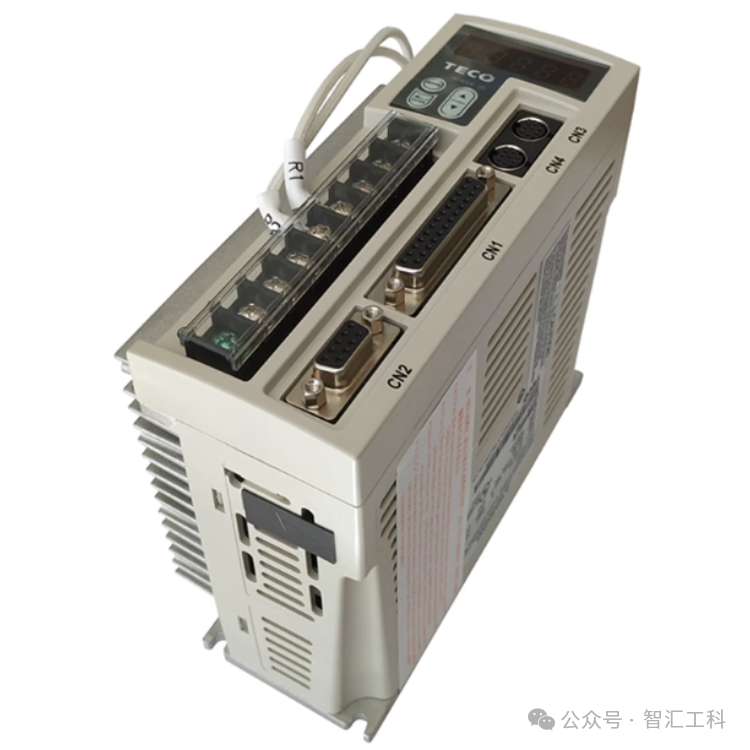

Bus drivers play a crucial role in industrial automation control systems, and their zero return function is a core aspect of ensuring equipment positioning accuracy. However, in practical applications, the issue of the zero return axis not moving occurs frequently, which not only affects production efficiency but may also pose safety risks. This article will delve into the five typical causes of the non-movement of the zero return axis in bus drivers and provide targeted solutions, along with typical cases and preventive measures, to offer engineers a systematic troubleshooting guide.
1. Troubleshooting at the Hardware Level
1. Power Supply and Wiring Issues
A case in an automotive production line showed that the servo motor had no response during the zero return. Upon inspection, it was found that the 24V control power supply voltage was only 18V. Measuring the output of the power supply module confirmed the voltage anomaly, and replacing the power supply resolved the issue. Suggested checks include:
● Whether the power supply (380V/220V) is missing a phase.
● Voltage fluctuation range of the control power supply (24V) (±10% is the critical value).
● Ground resistance of the encoder cable shielding (should be <1Ω).
● Insulation resistance of the power cable (should be >5MΩ).
2. Limit Switch Failure
In CNC machine applications, about 32% of zero return failures stem from limit switch issues. A processing center experienced oxidation of the origin switch contacts due to coolant ingress, resulting in the driver receiving the zero return command but the axis not moving. The following diagnostic methods were employed:
● Use PLC online monitoring to check the limit signal status.
● Measure the contact resistance of mechanical switches (should be <0.5Ω).
● Check the contamination of the emission/receiving window of photoelectric switches.
3. Abnormal Motor and Encoder
A case in packaging machinery showed that bearing wear in the motor led to pulse loss in the encoder, specifically manifested as:
● Successful zero return under no load but failure under load.
● Driver alarm “Follow Error Exceeded” (Error 832).
Solutions include replacing the bearings and re-aligning the encoder phase, as well as using an oscilloscope to check the integrity of the ABZ signal waveform.
2. Key Points in Parameter Configuration
1. Incorrect Zero Return Mode Setting
Common configuration pitfalls for PROFINET bus drivers:
● Confusion between Mode 1 (Limit Switch + Encoder Z Pulse) and Mode 2 (Single Limit Switch).
● Improper ratio of high-speed (V_high) to low-speed (V_low) during zero return (recommended 3:1 to 5:1).
● Reference point offset (Offset) not compensating for mechanical backlash.
2. Mismatched Electronic Gear Ratio
In a pick-and-place machine case, the motor’s pulse count per revolution was set to 2500 PPR, but the driver parameter was incorrectly set to 10000 PPR, resulting in the actual movement distance being only 1/4 of the set value. Correction formula:
Actual gear ratio = (Motor encoder resolution × Mechanical reduction ratio) / Pulses required per revolution.
3. Soft Limit Conflicts
The seventh axis of the robot is often prohibited from returning to zero due to the following parameter settings:
● Positive soft limit (P-OT) less than the zero return position.
● Negative soft limit (N-OT) set too low.
It is recommended to reserve a 10% travel margin as a safety buffer.
3. Bus Communication Fault Diagnosis
1. Periodic Synchronization Anomalies
The EtherCAT bus system needs to check:
● DC synchronization clock deviation (should be <100ns).
● Whether the process data object (PDO) mapping is correct.
● Whether the watchdog timeout (default 100ms) is sufficient.
2. Packet Loss Handling
A production line experienced a packet loss rate of >0.1% due to a switch port failure; solutions included:
● Using Wireshark to analyze communication quality.
● Enabling EtherCAT’s “Redundant Link” feature.
● Adjusting the bus cycle (extending from 2ms to 4ms).
3. Slave Status Monitoring
Querying via CoE (CANopen over EtherCAT):
● Error register (0x1001).
● Device status word (6041h) bit parsing.
● Synchronization manager configuration parameters (0x1C00 series).
4. Mechanical System Problem Handling
1. Stuck Drive Components
Typical manifestations include:
● Significant increase in axis movement resistance in manual mode.
● The driver shows a load rate continuously >80%.
Processing flow:
A[Disconnect motor from load coupling] –> B{Manually rotate the load side}
B –>|Smooth| C[Check motor bearings]
B –>|Stuck| D[Investigate guide rails/lead screws]
2. Excessive Backlash
Laser interferometer detection standards:
● Ordinary machine tools: ≤0.03mm .
● Precision equipment: ≤0.01mm .
Compensation method: Set up a bidirectional compensation table through driver parameters (input backlash values for 5-7 position points).
3. Coupler Slippage
The diaphragm coupler needs to check:
● Tightening bolt torque (refer to manufacturer specifications).
● Diaphragm group fatigue cracks (check with an endoscope).
● Misalignment (radial <0.05mm, angular <0.02°).
5. Software Logic Error Troubleshooting
1. PLC Program Defects
Common errors include:
● Incomplete zero return start conditions (e.g., not detecting the servo enable signal).
● State machine transition logic errors (missing timeout handling branches).
Debugging suggestions:
● Add debugging information output (e.g., status words for each stage of zero return).
● Use S7-PLCSIM Advanced for virtual debugging.
2. Multi-Axis Coordination Issues
In gantry structures, special attention should be paid to:
● Zero return order of master and slave axes (recommended master first, then slave).
● Position synchronization window (generally set to 5 encoder pulses).
● Emergency stop strategy when deviation is too large.
3. Third-Party Component Conflicts
A case showed that the OPC UA server was incompatible with the driver firmware, manifested as:
● Random loss of zero return commands.
● Irregular “communication timeout” alarms.
Solutions include upgrading firmware or switching to the standard Modbus TCP protocol.
Preventive Maintenance Recommendations
1. Establish a Regular Inspection System:
● Measure grounding resistance monthly.
● Clean encoder gratings quarterly.
● Calibrate limit switches every six months.
2. Maintenance Record Analysis:
Use SCADA systems to track failure frequency and create Pareto charts to identify major problem sources.
3. Spare Parts Management Strategy:
Based on MTBF (Mean Time Between Failures) data, establish reasonable inventory for consumables such as limit switches and encoders.
Through systematic fault tree analysis (FTA) methods, engineers can quickly locate the root causes of zero return failures. Practice shows that about 70% of issues can be diagnosed within 30 minutes through standardized inspection processes. It is recommended that companies establish a comprehensive fault code knowledge base and standardize typical solutions to significantly improve equipment maintenance efficiency.
