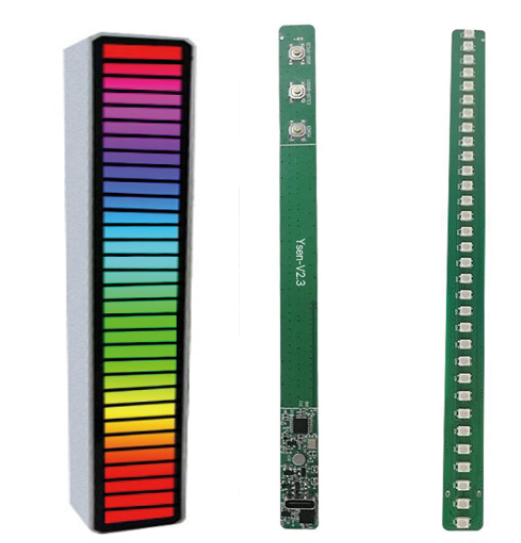

Audio Light PCBA Colorful Light Circuit Board Solution for Music Rhythm Atmosphere Lighting

Parameters:

Product Name: Audio Light Circuit Board Module

Features:

1. Built-in high-sensitivity microphone (voice control)

2. 32 colorful LEDs, with no less than 8 modes

3. Available in plug-in and rechargeable versions

Usage Instructions:

1. M/S button: short press – select mode, long press – select speed

2. C button: short press – select color, long press – select brightness

3. Long press ON/OFF button to turn on/off

The Audio Light PCBA Colorful Light Circuit Board Solution is a sound and light interaction solution with high requirements for music visualization, rhythm synchronization accuracy, light effect smoothness, and response speed in the fields of smart ambient lighting and audio-visual entertainment. Its core is to collect environmental sounds or music signals in real-time through a high-sensitivity, low-noise microphone or audio input interface, analyze the music’s spectrum and rhythm using built-in audio processing algorithms (such as FFT), and drive programmable RGB LEDs (such as WS2812B) to dynamically change colors, brightness, and animation modes, achieving an immersive visual experience where “light follows sound”.

As a PCBA solution provider with mature algorithms and rich project experience in sound and light synchronization and smart lighting, we are very familiar with such requirements. We can provide you with a complete solution for the Audio Light PCBA based on high-performance audio processing MCUs, with quick response, stunning light effects, precise synchronization, and high cost-effectiveness.

**Core Solution: One-stop Audio Light PCBA Solution (Quick Response, Stunning Light Effects, Precise Synchronization)

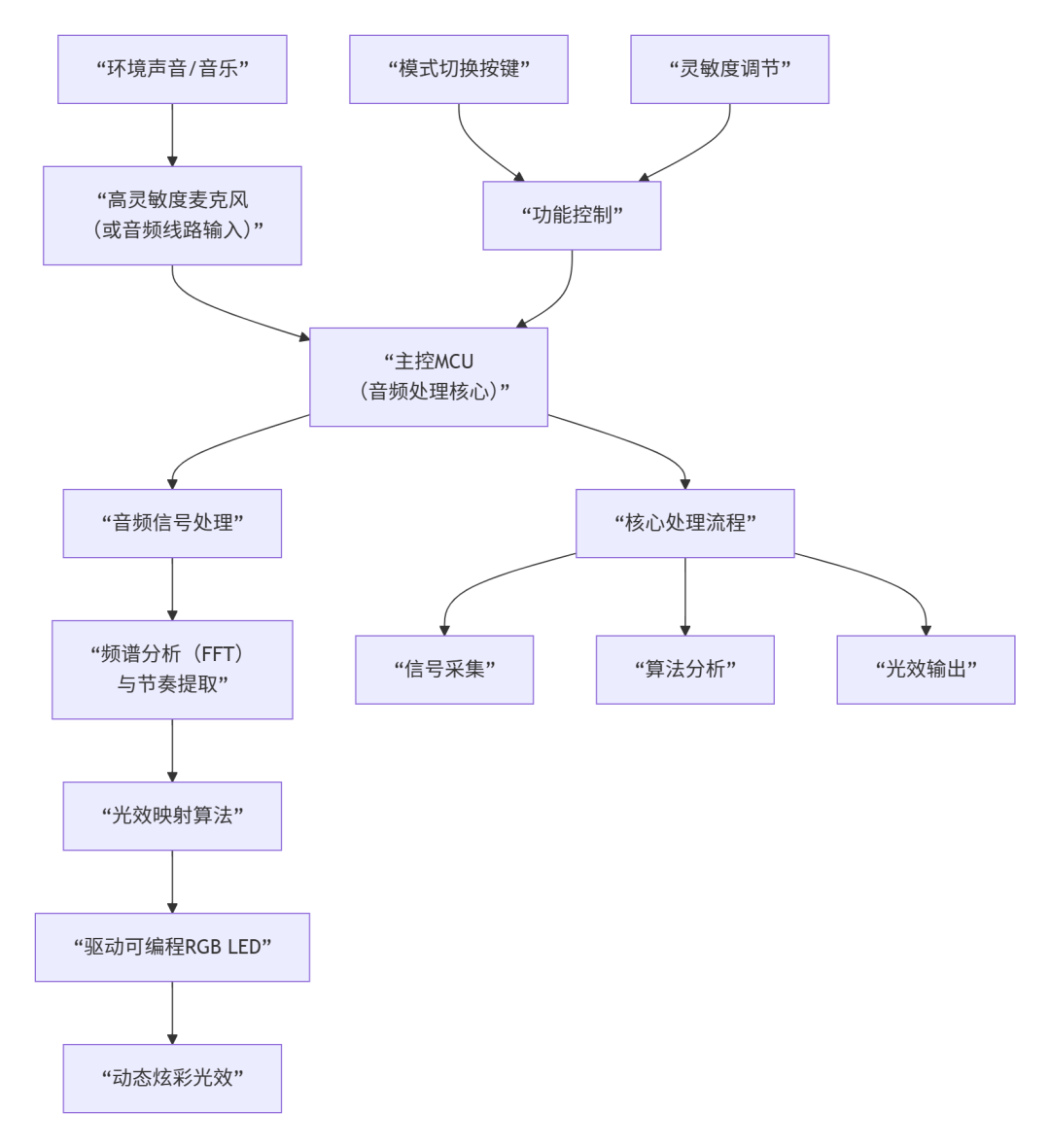

To help you quickly understand its technical implementation, the following diagram clearly shows the core workflow of the Audio Light:

1. Technical Solution Details (Audio Capture, Processing, Light Effects)

1. High-Fidelity Audio Capture System (Signal Foundation)

Capture Method:

Built-in MIC:Uses high signal-to-noise ratio MEMS microphone, captures environmental sounds, easy to install.
Audio Line Input:Provides 3.5mm interface or terminal block, directly connects to audio equipment, strong anti-interference capability, purified sound quality.

Signal Conditioning:Built-in hardware filtering circuit, effectively filters out noise.

2. Intelligent Audio Processing System (Algorithm Core)

Processing Algorithm:Uses Fast Fourier Transform (FFT) algorithm, real-time analysis of low, mid, and high-frequency energy of music.
Rhythm Extraction:Extracts music beats, achieves light effects synchronized with rhythm.

3. Stunning Dynamic Light Effects System (Visual Performance)

Light Effect Modes:

Spectrum Mode:Different frequency bands correspond to different colors or LED beads.
Energy Mode:Overall brightness changes with music volume.
Rhythm Mode:Lights flash or switch with music beats.
Gradient Mode:Smooth color transitions.

LED Driving:Drives programmable RGB LED strips like WS2812B, achieving rich and colorful dynamic effects.

2. Key Performance Indicators (Excellent Experience)

Performance Parameters	High Configuration Specifications	Testing Conditions
Response Time	< 20ms	Light effects closely follow music rhythm, with no delay
Sensitivity	Multi-level adjustable	Adapts to different ambient sound levels
Supported Number of LEDs	Supports up to 1024 WS2812B LEDs	Meets long strip requirements
Signal-to-Noise Ratio	> 60dB	Clear signal capture, strong anti-interference

3. Solution Advantages

Quick Response:High-speed audio processing, light effects synchronized with music.
Stunning Light Effects:Multiple light effect modes, customizable personalized effects.
Easy Installation:Plug and play, no complex setup required.
Wide Application:Suitable for various scenarios such as homes, parties, stages, and shops.

4. Application Scenarios

Home Audio-Visual:Background lighting for TVs and computer monitors.
Entertainment Venues:KTV, bars, party rooms.
Commercial Displays:Store windows, product display cabinets.
Stage Performances:Stage backgrounds, music festival atmosphere lights.

5. Recommended Chip Solutions (High Cost-Effectiveness)

Function Module	Recommended Chip (High Reliability)	Features
Main Control MCU	ESP32 Series	Strong processing capability, supports Wi-Fi and Bluetooth
Audio Processing	Dedicated audio processing chip	High processing efficiency, good sound quality

6. Information Required from You

To provide you with the most accurate solution and quotation, please clarify the following information:

Details to Confirm	Purpose
1. Functional Requirements	What light effect modes are needed? What are the sensitivity requirements?
2. Installation Method	How do you plan to use it? (Built-in MIC/external audio)
3. Procurement Scale	Is it a sample requirement or a bulk plan? What is the approximate quantity needed?

We look forward to your detailed requirements! We can provide you with a complete PCBA solution, from audio processing, light effect design to structural adaptation, helping you create a stunning Audio Light.
