Renesas RA0E1 Development Board Review | Renesas RA0 Development Board Evaluation Report SPI-OLED
First, I would like to thank Jialichuang for providing the Renesas development board evaluation activity.

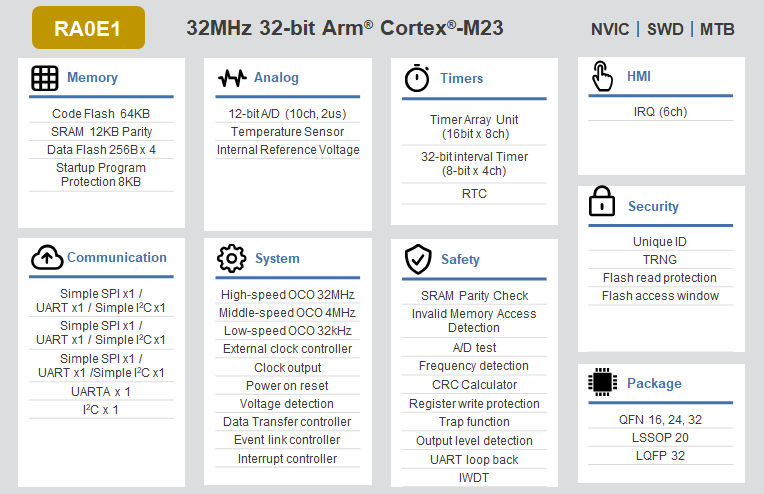

RA0E1 Block Diagram
RA0E1 Features
-
32MHz Arm Cortex-M23 core
-
Up to 64KB Flash and 12KB SRAM
-
1KB Data Flash (100,000 P/E cycles)
-
16-pin and 32-pin package options
-
Wide voltage range from 1.6V to 5.5V
-
TAU (16-bit General PWM Timer)
-
TML32 (32-bit Interval Timer)
-
Real-time clock
-
12-bit Analog-to-Digital Converter
-
Temperature sensor
-
SAU (UART, Simple SPI, Simple I2C)
-
UART
-
I2C bus
-
Random number generator
-
Security features
-
+-1% High-precision, High-speed On-chip Oscillator
-
Flexible power architecture with fast wake-up capabilities
-
HAL driver code
-
Supports Arm ecosystem and Renesas original development tools
The following is the specific testing operation process:

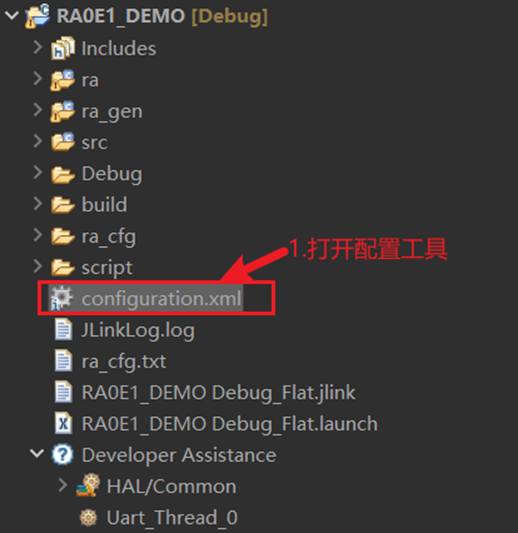

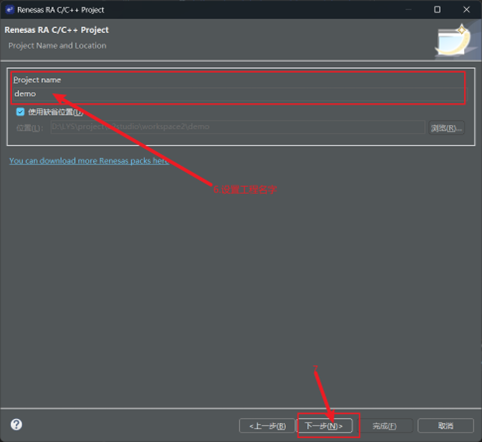

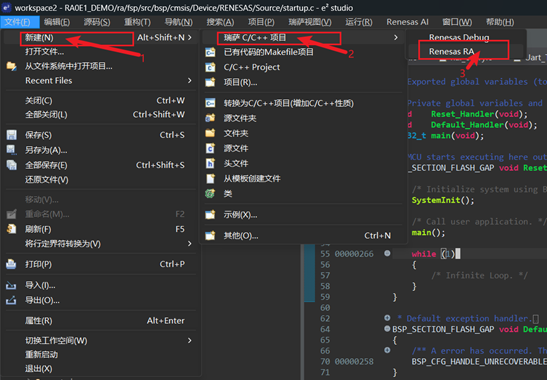

Set Project Name

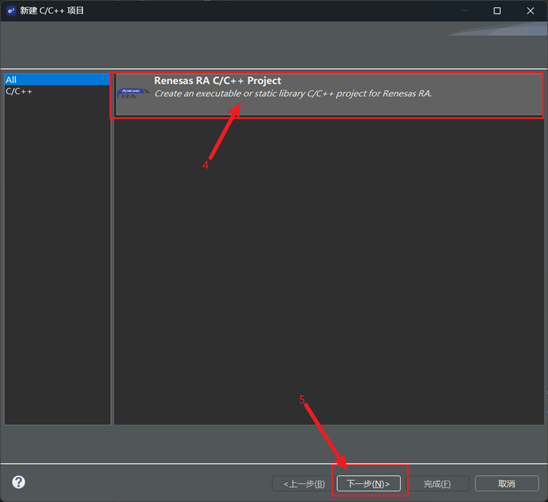

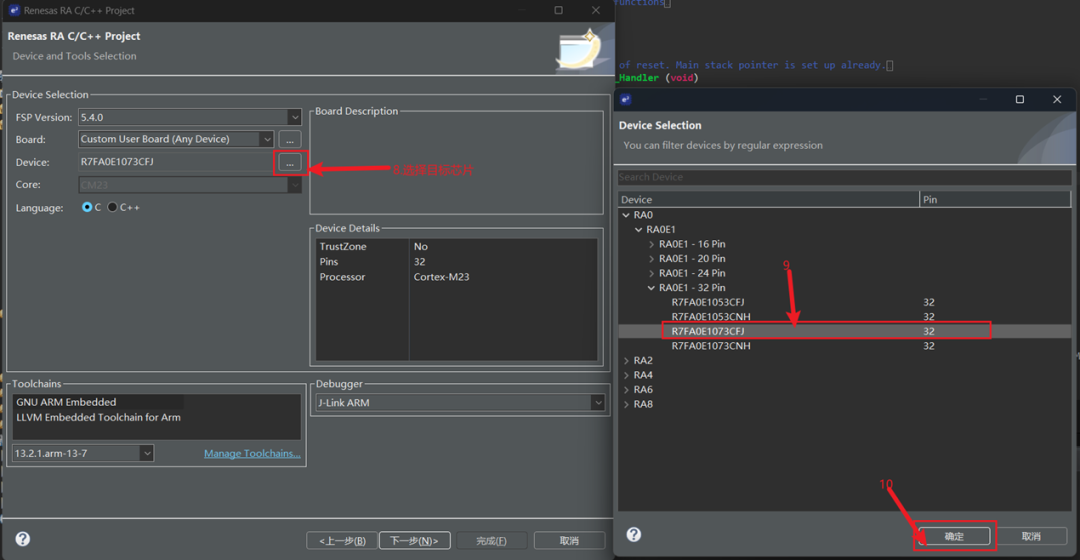

Select Target Chip

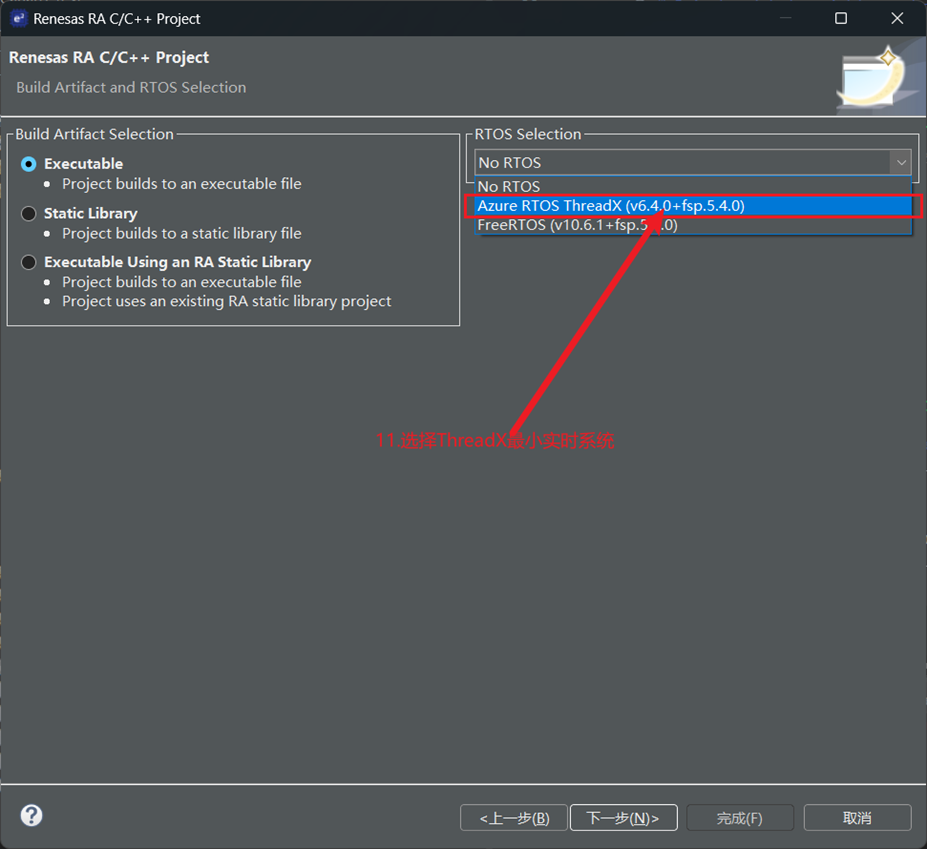

Select ThreadX Real-time System

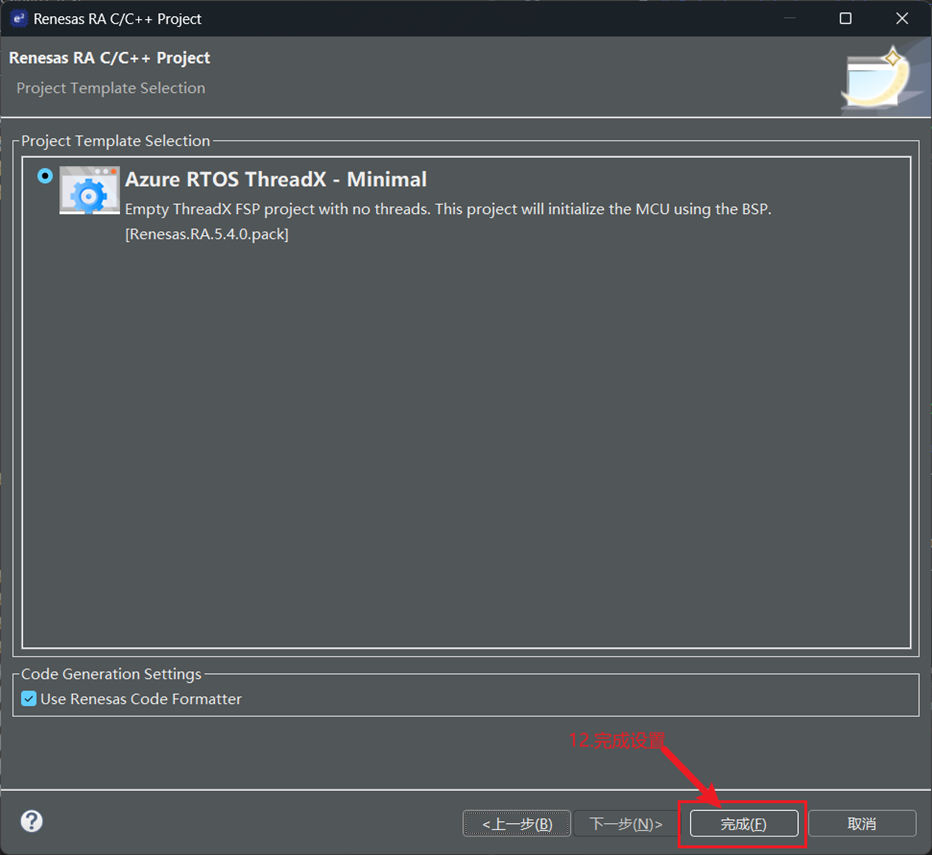

Project Setup Completed

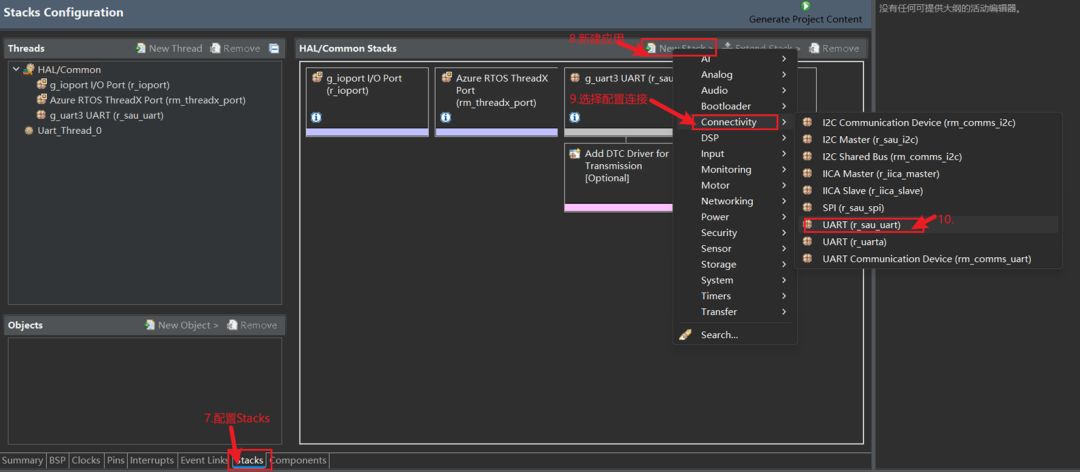

Configure Serial Port and Transmit/Receive Tasks

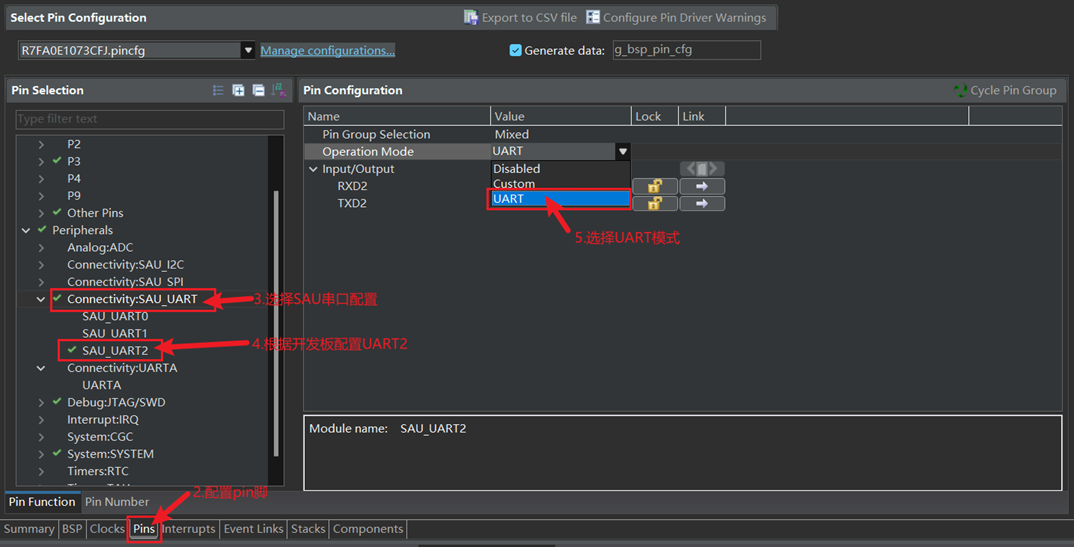

Configure Serial Port Pins

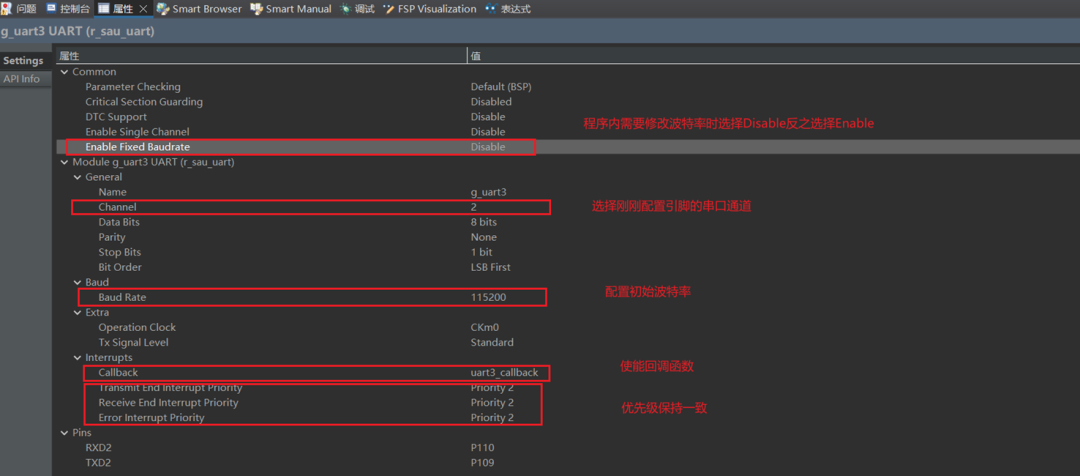

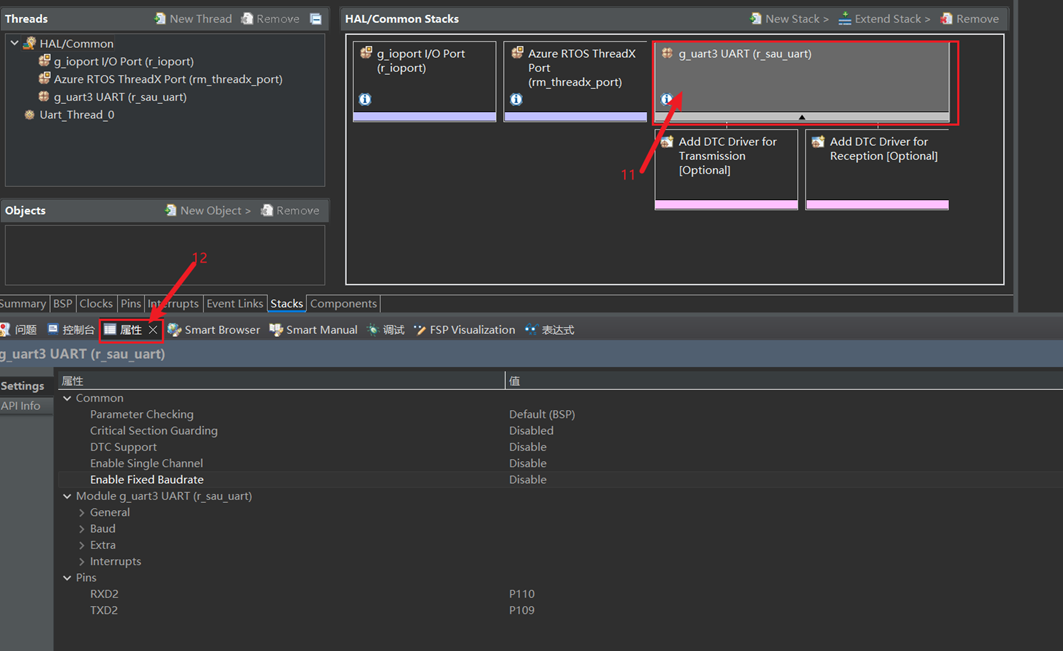

Configure Serial Port Attribute Parameters

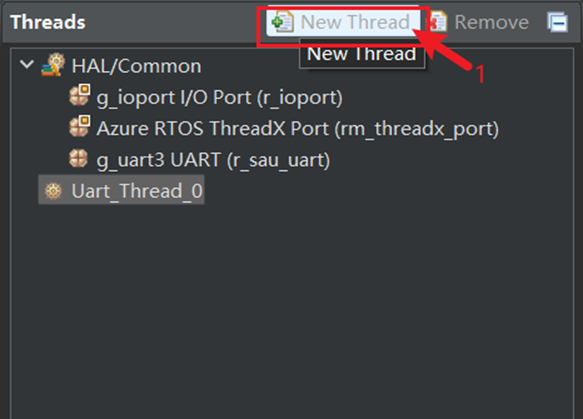

Configure Serial Port Uart_Thread Task

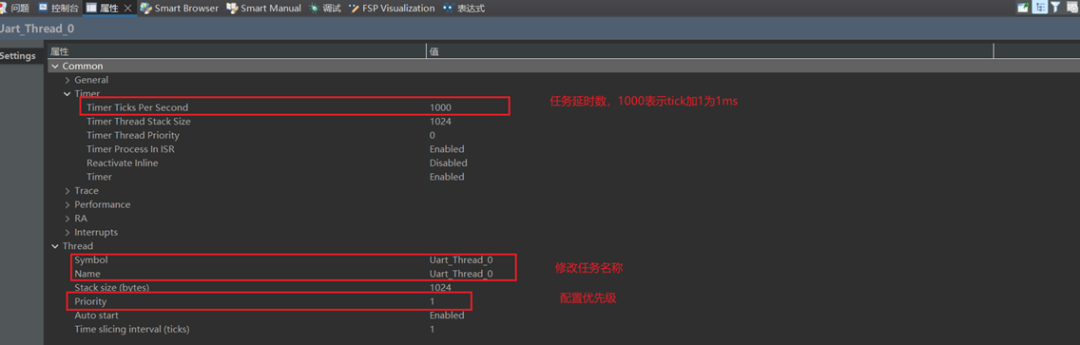

Configure ThreadX Task Parameters
Software Business Logic
Code Implementation

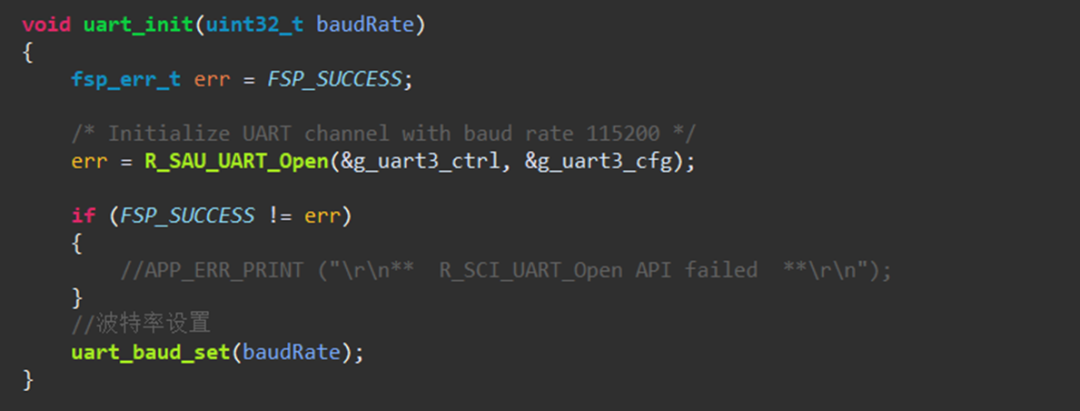

Serial Port Initialization:

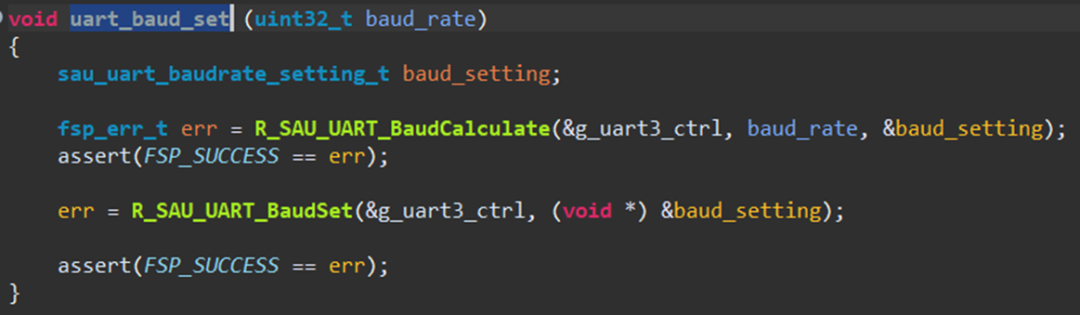

Use uart_baud_set function when changing baud rate:

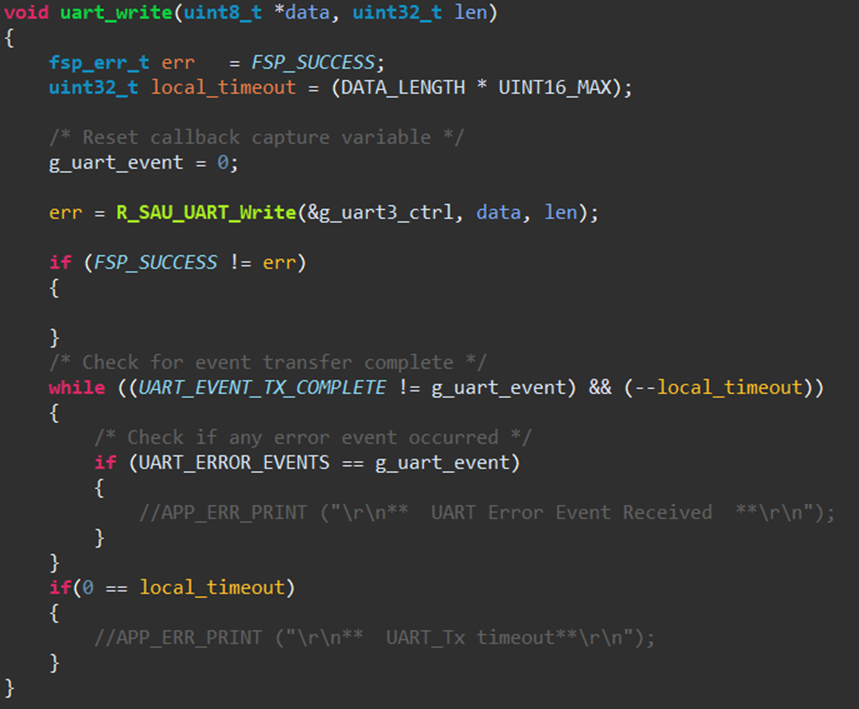

Serial Port Send Function:
Send data through the serial port based on the incoming data buffer and data length.

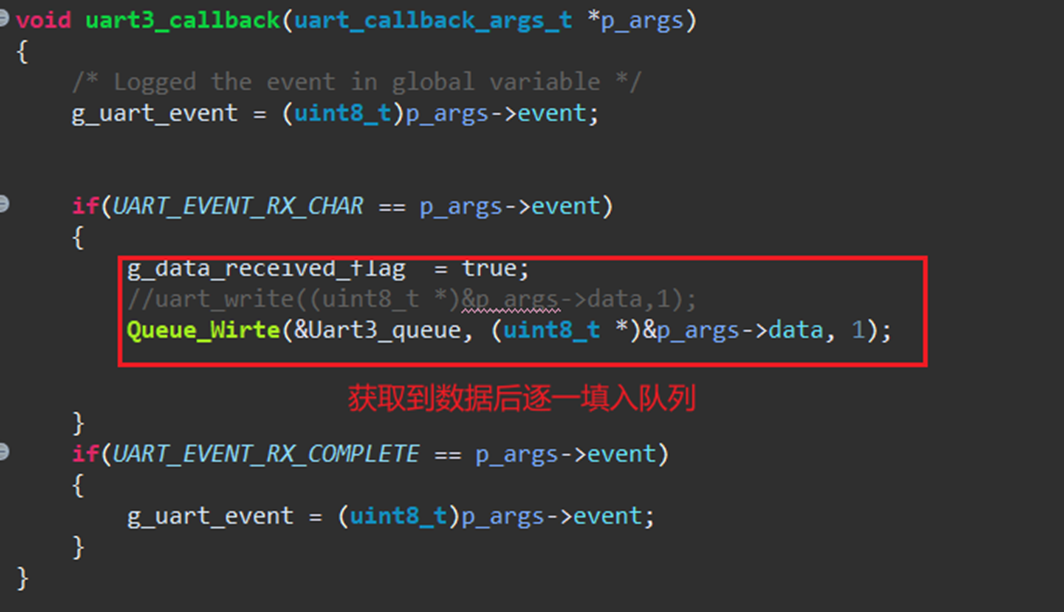

Interrupt Receive Function Handling:

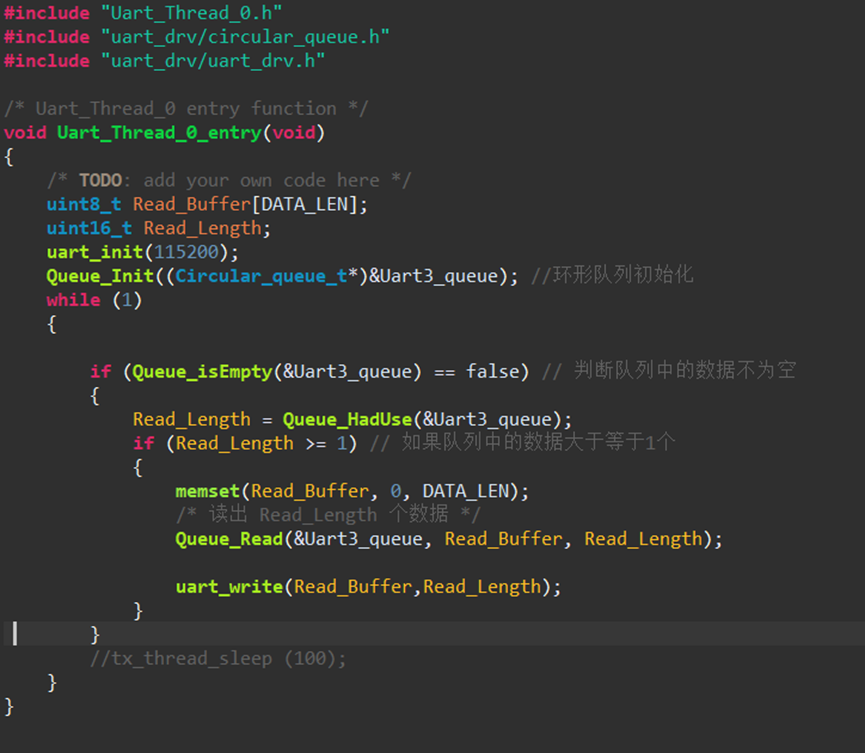

Task Function:

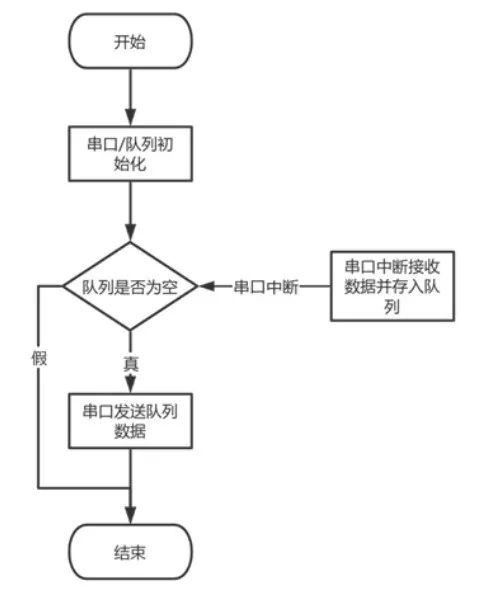

Check if the circular queue is empty; if there is data in the queue, transmit it through the serial port.
Test Results

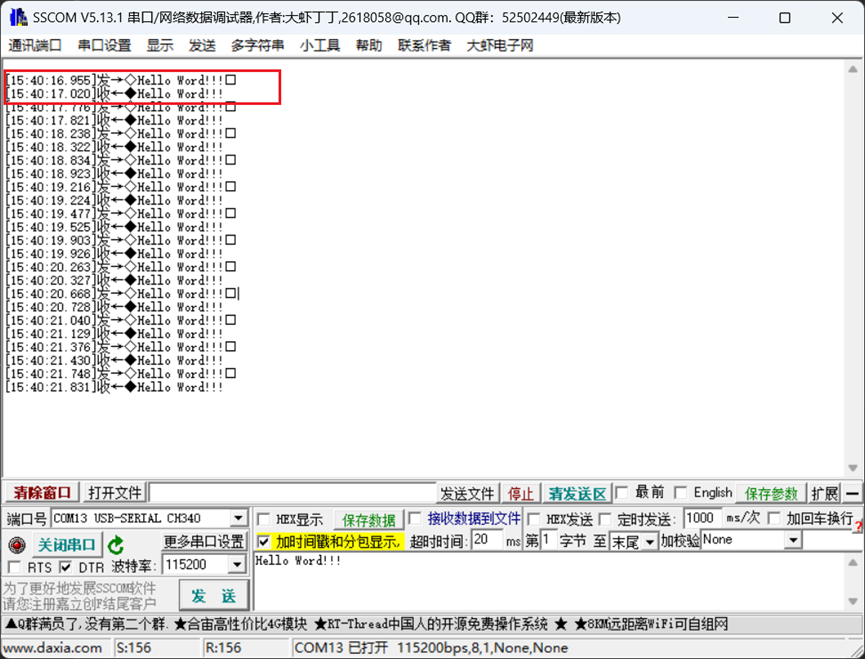

Serial Port Data Echo Successful:
Insights
Thank you to Lichuang for providing the testing opportunity; I learned about the usage of RA0 and Renesas MCUs. Using the Renesas FSP library and configuration tools significantly simplified the development process. I have mastered the functions related to opening the serial port, setting serial port parameters, reading, and writing data to the serial port.
