AIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link Solution

AIBOX Self-Organizing Network Module and Solution SpecificationsThree Forms:

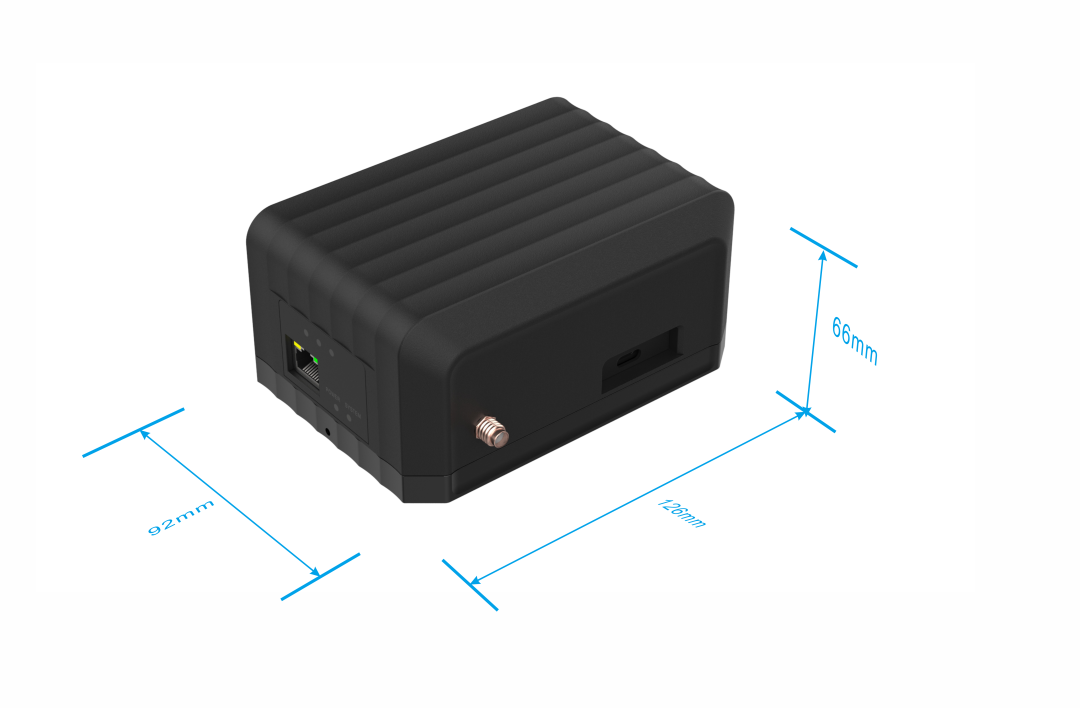

  • Self-Organizing Network – Aircraft Side

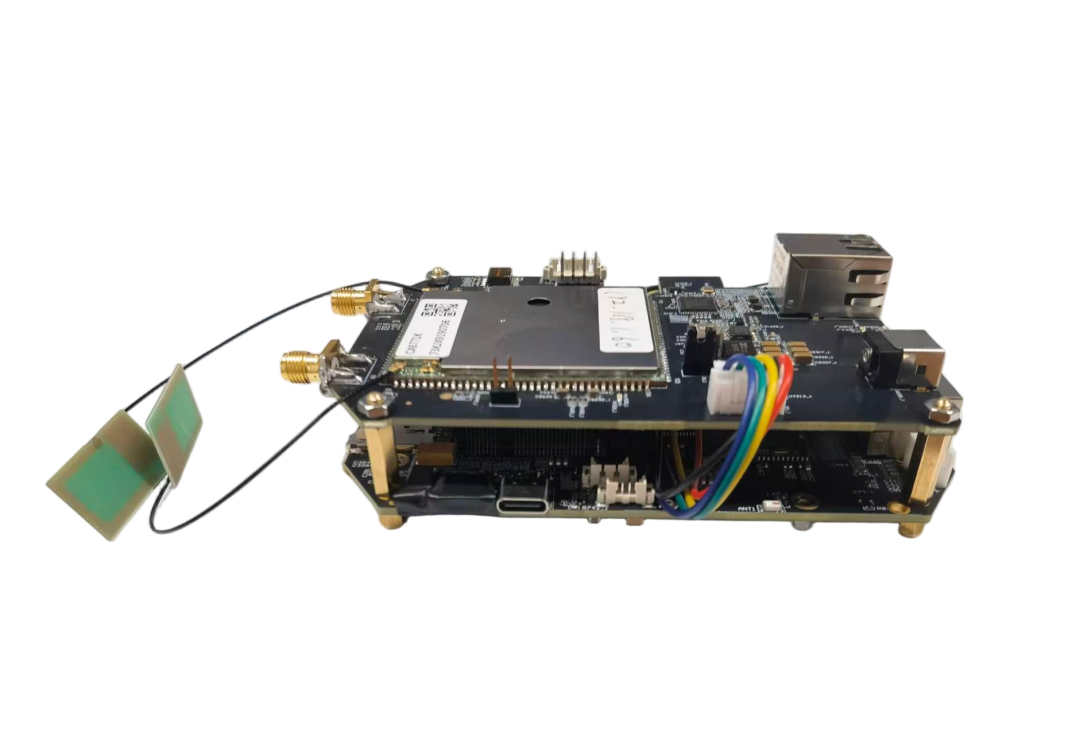

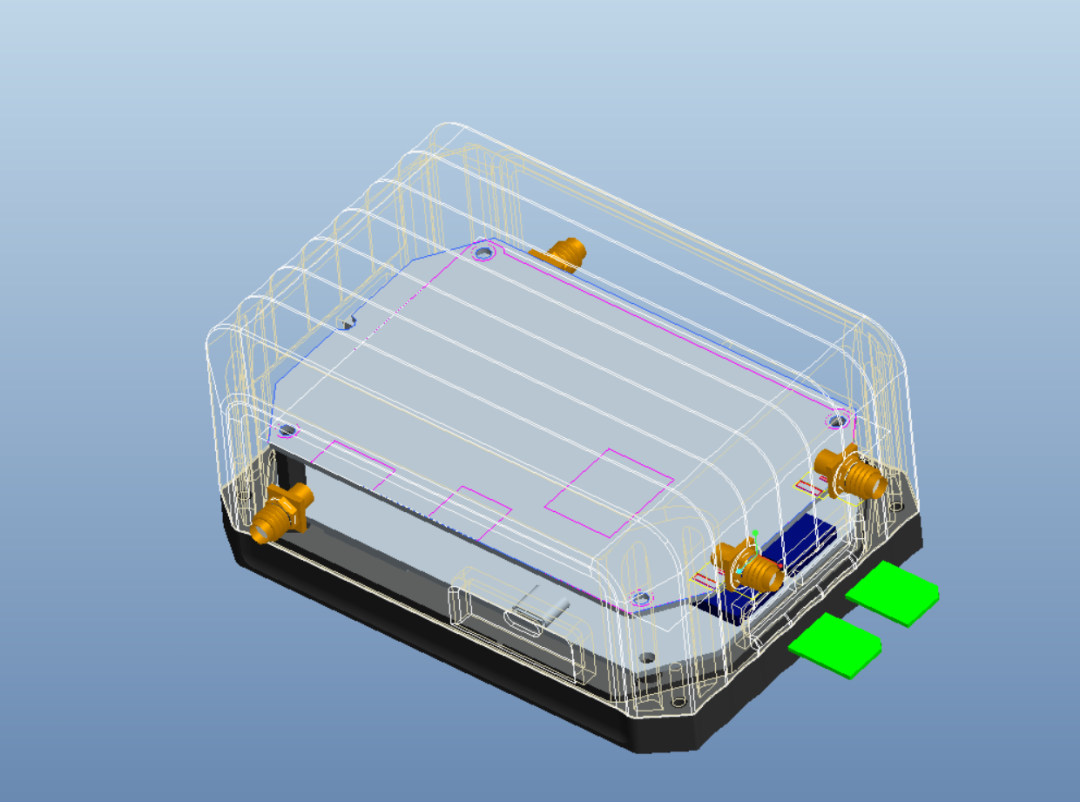

Utilizes a self-organizing network independent sub-card connected via USB2.0 to RK3588Note: The self-organizing network independent sub-card and the WIFI6 module as well as the second 5G module share the same USB2.0 interfaceEmploys a 1.4G frequency band, MESH mode self-organizing network moduleAIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link SolutionOptional built-in PCB antenna or external antennaStructure: Built-in cooling fan (side)AIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link Solution5G + Self-Organizing Network Dual-Link Function:Supports two firmware versions1: Kernel 6.1: Supports MPTCP functionality, meeting multi-link bundling research. This version is not compatible with ROS1, SLAM position enhancement functionality is not supported2: Kernel 6.0: Consistent with the currently used version, compatible with ROS1, supports SLAM position enhancement functionality. Does not support MPTCP, uses dual transmission selection, supports manual switching

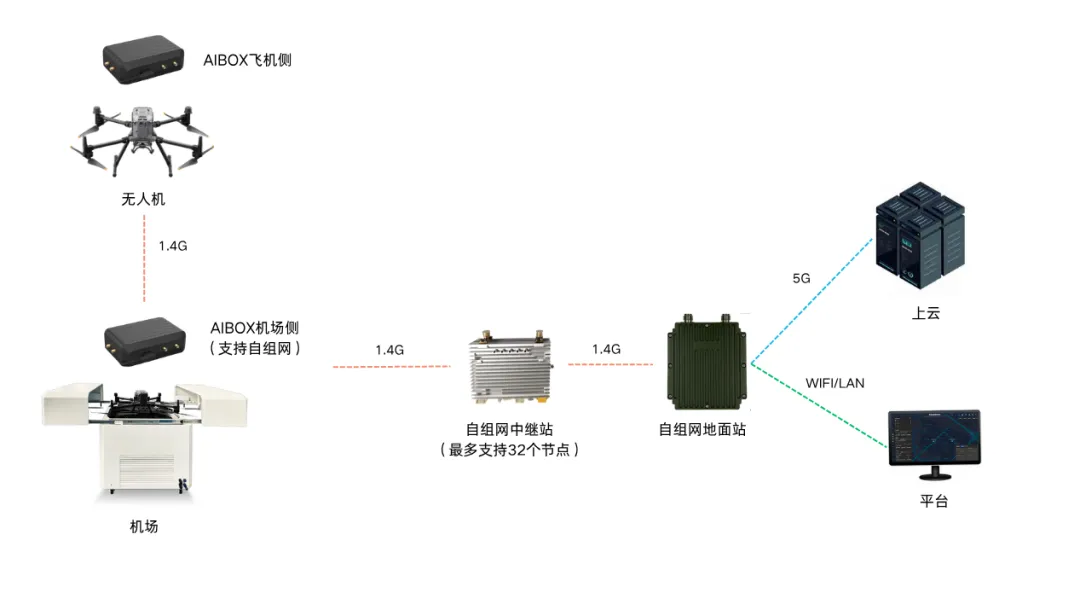

  • Self-Organizing Network – Relay Station

Contains only the self-organizing network module, supports LAN outputUtilizes an external antennaOptional PA module for long-distance communication, 30 kilometers, 60 kilometers (under development)Structure: Waterproof aluminum shell

  • Self-Organizing Network – Ground Station

Hardware same as AIBOX – Self-Organizing Network Aircraft Side, external 1.4G antennaOptional PA module for long-distance communication (30 kilometers, 60 kilometers) (under development)Realizes 1.4G self-organizing network communication gateway functionality, supports LAN, WIFI, and 5G cellularAIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link Solution

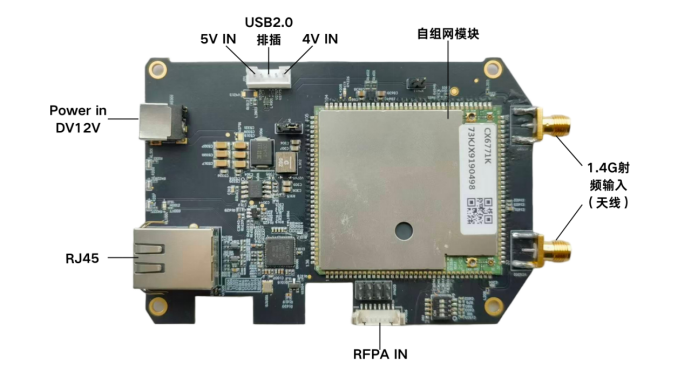

  • Self-Organizing Network Sub-Card

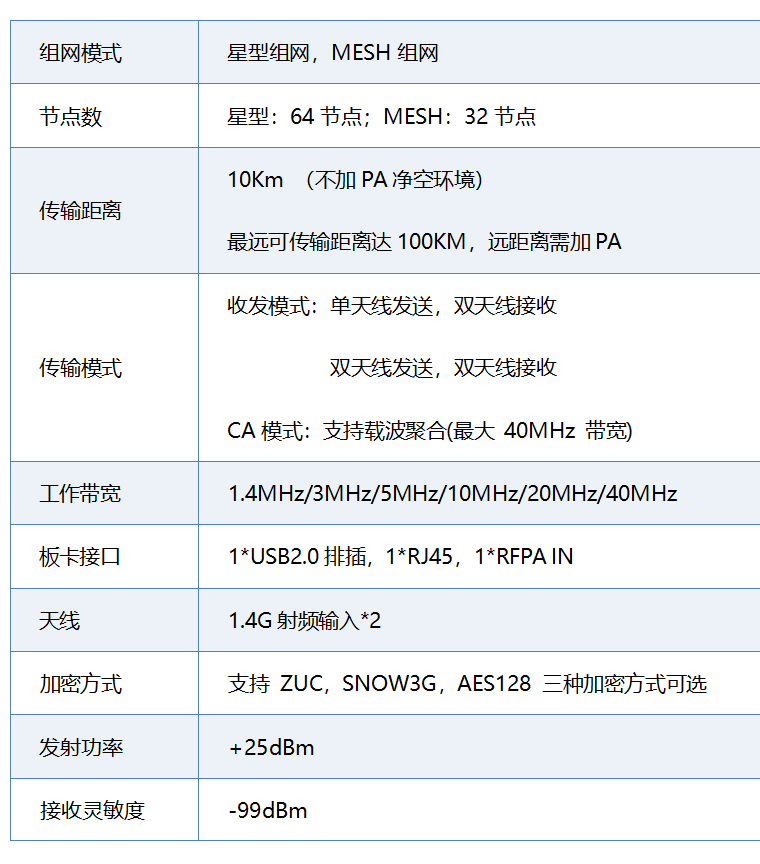

AIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link SolutionUtilizesCX667xK dual-band SOC chip, with a transmission power of 26 dBm, capable of rapidly establishing a decentralized, multi-hop relay broadband private network in non-line-of-sight, strong interference, and other complex scenarios, enabling high-speed, seamless transmission of video, images, voice, and data.

1.High Speed, Large Bandwidth:

Supports Carrier Aggregation (CA) technology, expanding bandwidth to 40MHz, providing higher data transmission channels.

Utilizes64QAM high-order modulation, significantly improving spectral efficiency, ensuring the transmission of high-definition video and large data volumes.

2.Long Distance, Strong Reception:

Features+25dBm high transmission power, combined with -99dBm ultra-high receiving sensitivity, greatly enhancing link budget and penetration capability.

In the absence of external amplifiers, the clear transmission distance can reach10kilometers, with wide coverage.

3.High Reliability, Anti-Interference:

Supports dual antenna transmission and reception, utilizing MIMO technology to enhance link stability and data throughput.

Excellent adjacent channel leakage ratio (ACLR < -36dBc) and spurious control effectively reduce interference, ensuring communication quality in complex electromagnetic environments.

4.Military-Grade Security:

SupportsZUC (National Secret), SNOW3G, AES128 three encryption algorithms, providing high-level security protection for tactical communication, emergency command, and other sensitive applications..

5.Flexible Configuration:

Offers various working bandwidth options from1.4MHz to 40MHz, allowing flexible optimization between coverage range and transmission rate based on actual scenarios.

AIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link Solution

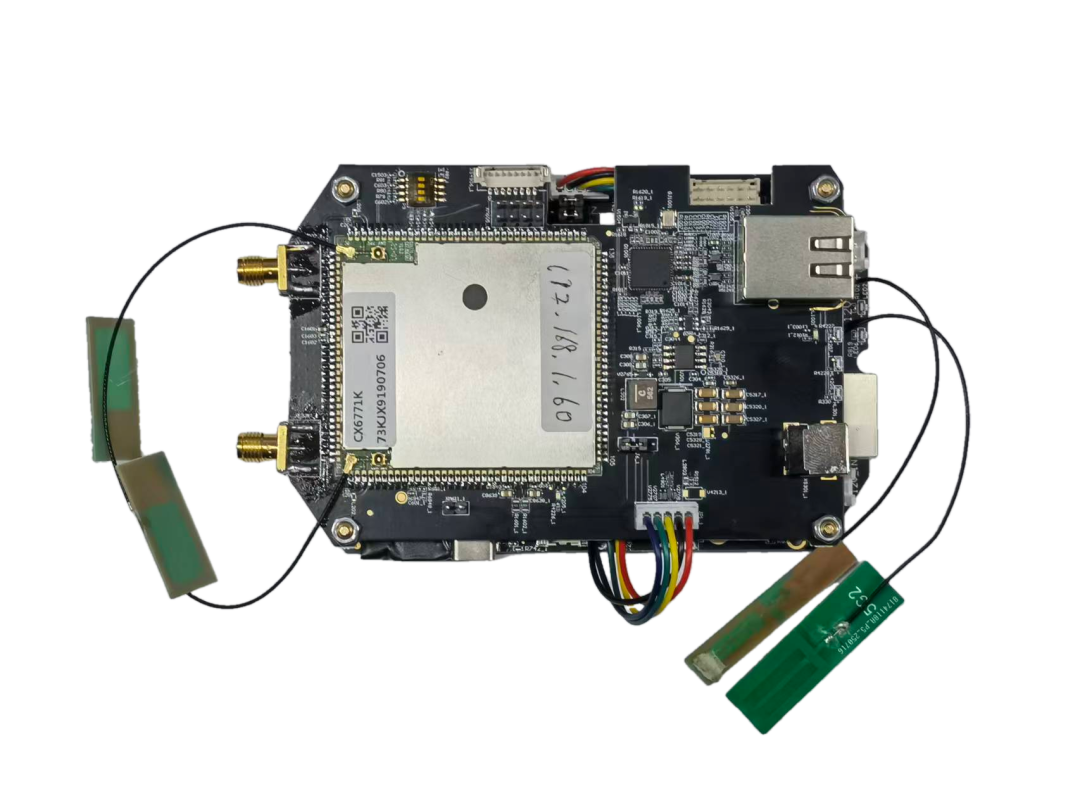

  • RK3588 + 5G (supports dual 5G) + Self-Organizing Network

NPU: 6T + 26T (NPU expansion card)AIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link SolutionAIBrainBOX-UAV: 5G + Self-Organizing Network Dual-Link Solution
