In the SMT processing, solder paste printing is a crucial step that affects soldering quality. SPI (Solder Paste Inspection) serves as the core tool for solder paste quality inspection, playing a vital role in ensuring the quality of solder paste printing and improving the consistency and reliability of PCBA (Printed Circuit Board Assembly) production.
Definition and Role of SPI in SMT Processing
SPI is an automatic optical inspection device specifically designed to detect the quality of solder paste printing. It utilizes a high-precision optical system and 3D imaging technology to real-time measure the thickness, volume, coverage area, and height distribution of solder paste, ensuring that the printing quality meets design requirements. In PCBA contract manufacturing, the accuracy of solder paste printing directly impacts the subsequent component placement and soldering quality. The introduction of SPI effectively reduces defects caused by poor solder paste printing, such as insufficient solder, solder bridging, or open circuits.
Through real-time detection by SPI, companies can not only ensure the uniformity of solder paste distribution but also quickly identify and correct printing deviations, significantly improving product yield and production efficiency. For customers, this strict quality control method ensures high product reliability and helps reduce the risks of rework and scrap.
Application Scenarios and Operational Process of SPI in SMT Processing
SPI is mainly applied in the solder paste printing stage of SMT production lines, where it inspects the solder paste printed on PCBs before component placement. The specific process is as follows:
1. After solder paste printing, the PCB enters SPI inspection: The PCB, after being printed with solder paste by the screen printer, is directly transferred to the SPI inspection device, which automatically scans the printed area and performs 3D measurements of the solder paste’s thickness, area, and volume.
2. 3D Imaging Analysis: SPI uses laser or other optical imaging technologies to generate a 3D image of the solder paste and analyzes its thickness, coverage area, and volume through system algorithms to determine whether the solder paste printing quality meets design standards.
3. Result Determination and Feedback: Based on the inspection results, SPI categorizes and marks defects such as excessive solder paste, insufficient solder paste, and misalignment, providing real-time feedback to the printing stage for adjustments, ensuring that the amount of solder paste on each PCB meets standards.
Through this automated inspection process, SPI effectively ensures the precision and consistency of solder paste printing, providing a solid foundation for subsequent component placement.
The Role of SPI in Improving SMT Processing Quality, Efficiency, and Cost Control
SPI is not only a quality monitoring tool in SMT processing but also an effective means to enhance production efficiency and cost control:
– Improving Product Quality: SPI can monitor the solder paste printing status of each PCB in real-time, ensuring that the amount and position of solder paste are accurate, thereby reducing the occurrence of soldering defects from the source and enhancing product reliability and lifespan.
– Increasing Production Efficiency: The rapid detection speed and real-time feedback function of SPI can immediately identify and correct anomalies in solder paste printing, significantly reducing the probability of defects in subsequent processes, minimizing rework and repair time, and ensuring a smooth and efficient production flow.
– Reducing Costs: By promptly identifying issues in solder paste printing, SPI effectively reduces rework, scrap, and material waste caused by poor solder paste quality, thereby lowering production costs. Additionally, SPI can accumulate solder paste printing data for analysis and optimization of the printing process, providing data support for production and further reducing long-term production costs.
The Professional Strength of Our Company in SMT Processing
In SMT processing services, our company ensures high standards and strict quality control processes through advanced SPI inspection equipment. With SPI, we can provide customers with:
– High Standard Quality Assurance: SPI monitors the quality of solder paste printing throughout the process, ensuring reliable soldering and reducing potential quality risks during production, providing customers with stable, high-quality products.
– Refined Process Control: With the detection data from SPI, we can continuously optimize the solder paste printing process, reducing process variability and enhancing product consistency and precision.
– Agile and Efficient Response Capability: SPI provides real-time feedback on inspection results, helping us quickly adjust during production, improving the flexibility and adaptability of the production line, and offering customers the advantage of rapid delivery.
As a professional processing factory in the electronic manufacturing industry, we are committed to introducing advanced inspection technologies and equipment to ensure product quality and production efficiency, providing high-quality and reliable SMT processing services to our customers. SPI, as a crucial part of our SMT processing quality control, is key to ensuring our professional services and allows customers to confidently entrust their production needs to us, achieving greater value.
Jiangxi Intelli Electronics Technology Co., Ltd.

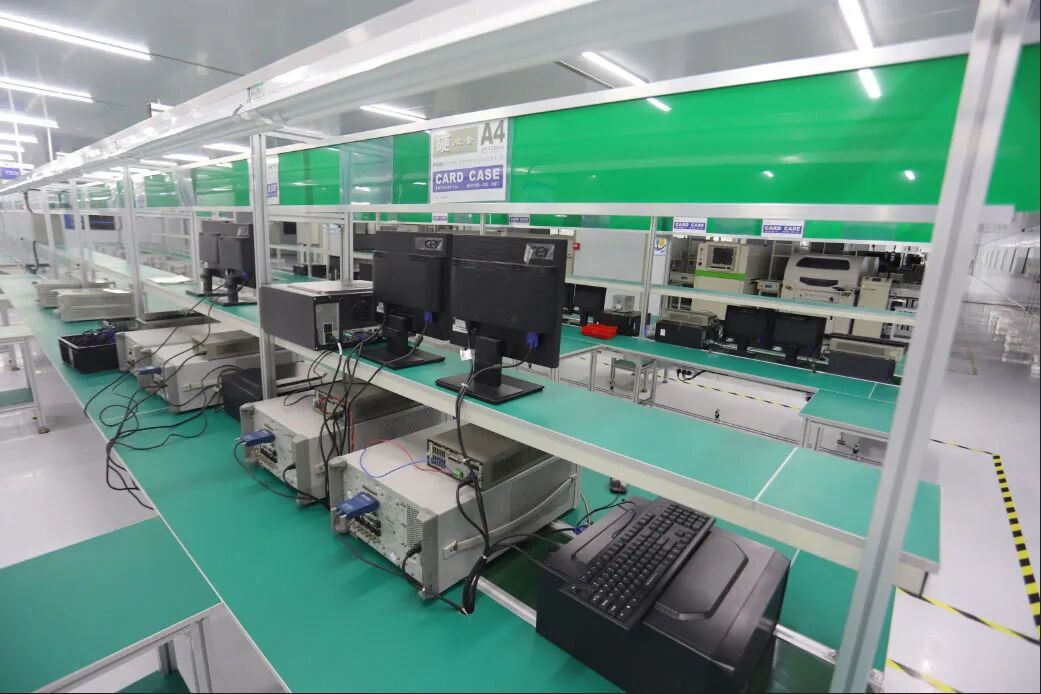

The factory covers an area of approximately 30,000 square meters, with 24 SMT production lines, 8 through-hole lines, 4 wave soldering lines, 8 assembly lines, and 4 packaging lines, with a total investment of 1 billion yuan, featuring an advanced and complete digital management system, an Industry 4.0 smart factory.
