(Apply for free at the end)

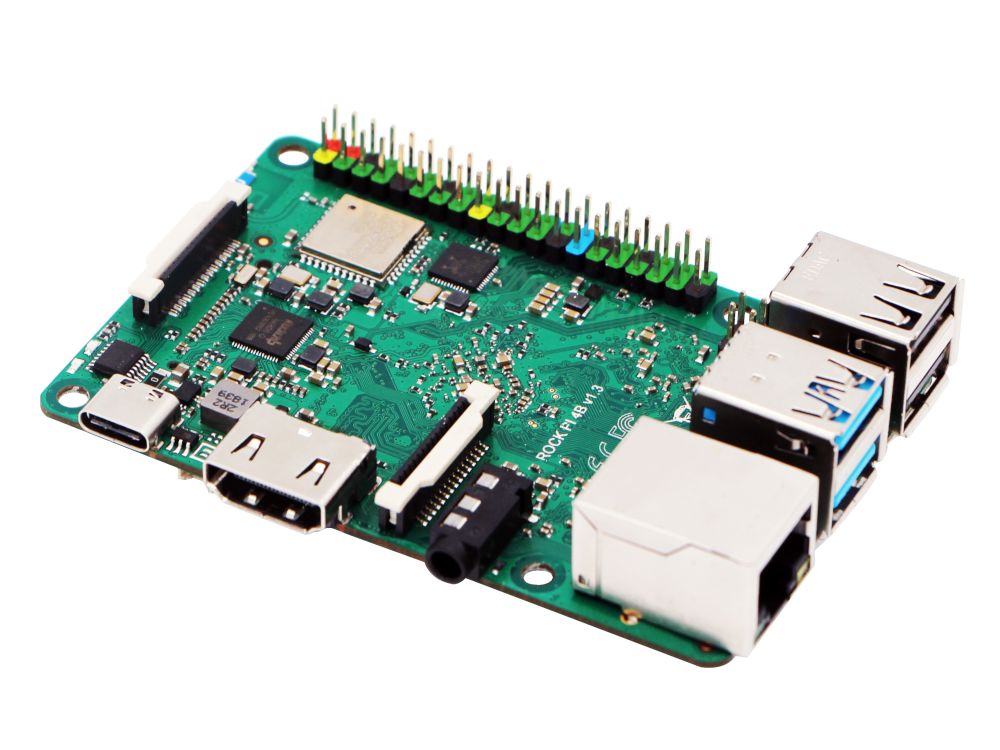

ROCK 4B is a development board developed by Radxa, featuring a powerful six-core ARM processor with an integrated RK3399, significantly enhancing performance compared to other popular SBC motherboards.
BoardCardConfiguration
SoC–Rockchip RK3399 big.LITTLE hexa-core processor with 2x Arm Cortex-A72 @ up to 1.8 GHz, 4x Cortex-A53 @ up to 1.4 GHz, a Mali-T864 GPU with support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC, and a VPU with 4K VP9 and 4K 10-bit H265/H264 decoding
System Memory– 1, 2 or 4GB LPDDR4 @ 3200 Mbps
Storage – eMMC module socket, micro SD card slot up to 128GB, M.2 NVME SSD socket
Video Output / Display Interface
HDMI 2.0a up to 4K @ 60 Hz
2-lane MIPI DSI via FPC connector
Dual independent display support
Audio–Via HDMI and 3.5mm audio jack; HD codec supporting up to 24-bit/96Khz audio
Camera–MIPI-CSI2 connector for camera up to 8MP
Connectivity-Gigabit Ethernet with PoE support (additional HAT required), 802.11ac WiFi 5, Bluetooth 5.0 with on-board antenna
USB–1x USB 3.0 host port, 1x USB 3.0 OTG port, 2x USB 2.0 host ports
Expansion–40-pin expansion header with 1x UART, 2x SPI bus, 2x I2C bus, 1x PCM/I2S, 1x SPDIF, 1x PWM, 1x ADC, 6x GPIO, and power signals (5V, 3.3V and GND)
Misc–RTC
Power Supply–Via USB-C port supporting USB PD 2.0 (9V/2A, 12V/2A, 15V/2A, or 20V/2A) and Qualcomm Quick Charge 3.0/.0 (9V/2A, 12V/1.5A). It’s also possible to power the power via a 5V/3.4A power adapter, but it is not recommended
Dimensions–85 x 54 mm
Board Card GPU

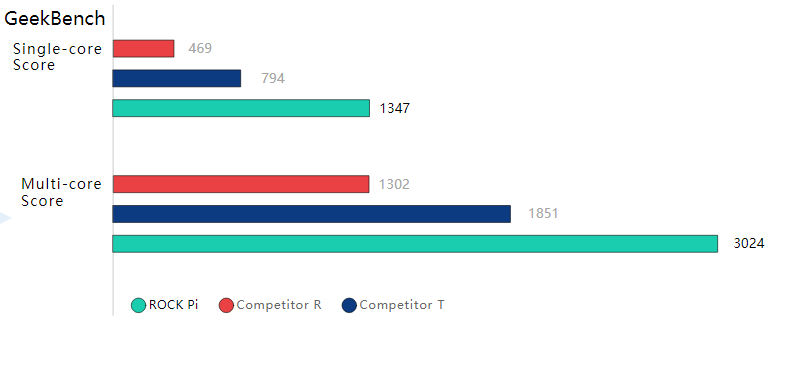

ROCK Pi4B uses the ARM-based RK3399 SoC with six cores, enhancing multi-threaded application performance, providing 4 cores and a 600MHz clock speed.
Compared to competitors’ SBC GPUs, ROCK Pi 4B offers better GPU computing and GPU acceleration performance.

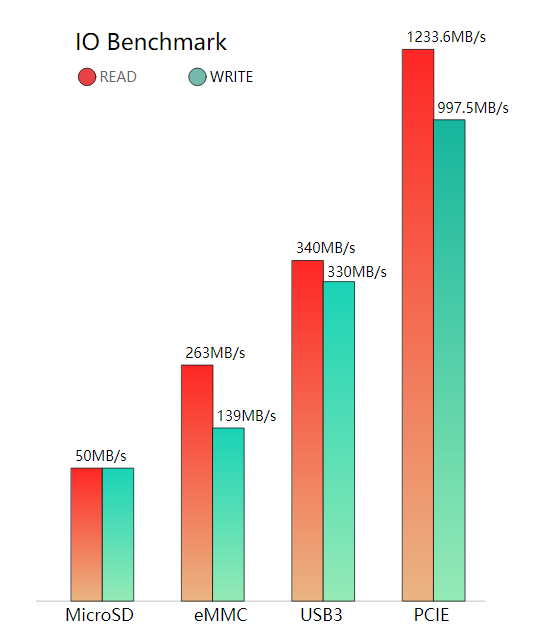

IO Performance
ROCK Pi 4B features multiple storage options, providing excellent read and write performance on external storage drives, resulting in faster read and write speeds. This improves workflows, copying, backing up, and overall file usage.
The biggest highlight is the hardware interface compatibility with the official Raspberry Pi boards.

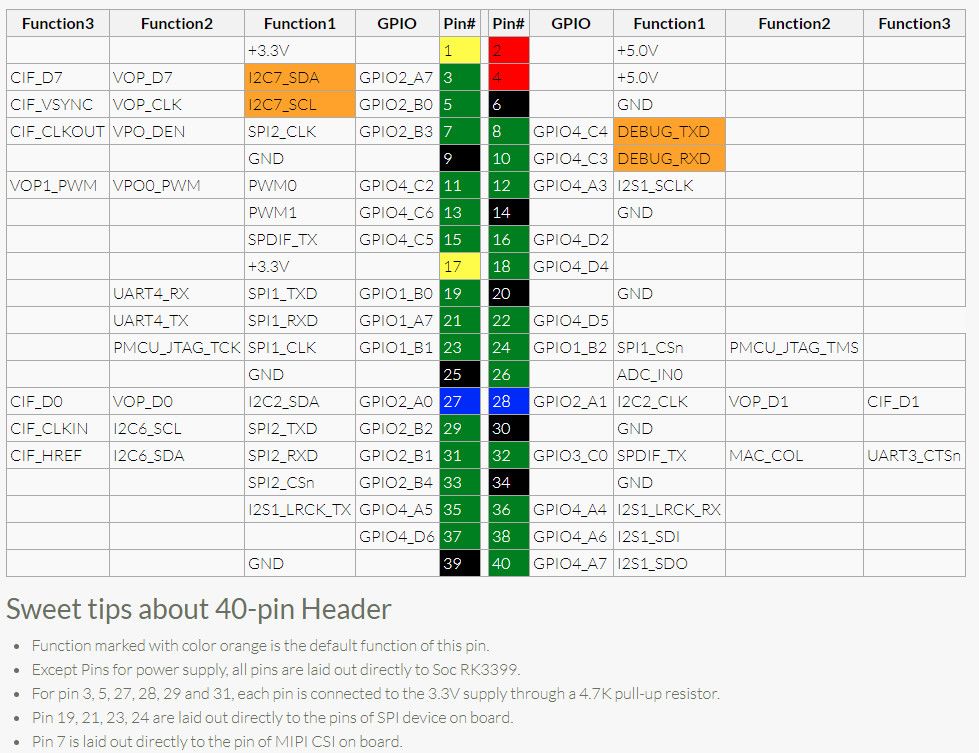

Not only the board size, but the 40Pin IO and display interfaces are also compatible with Raspberry Pi. For example, the official Raspberry Pi 7-inch display and the official Raspberry Pi CSI camera can be used on the RPI 4.
Trial Details
This trial event is hosted by Chip Board Workshop, scan the QR code below to apply for free, with 2 units of RPI 4B (2GB version) available. Announcement date is 2019/2/28.
