STM32 DAC Noise Generator: Exploring Analog Signals from Scratch

In the world of microcontrollers, the Digital-to-Analog Converter (DAC) is like an artist that can turn cold numbers into vivid analog signals. Today, we will explore how to use the DAC function of STM32 to create a simple and fun noise generator.

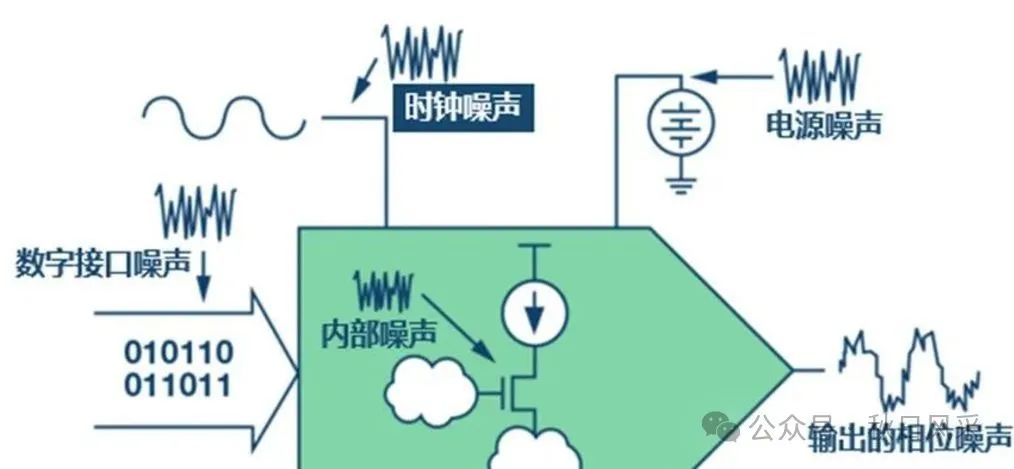

What is DAC? Why Do We Need It?

Imagine you have a pile of digital building blocks, but you want to build a smooth rainbow bridge with them. This is the role of DAC – it converts discrete digital information into continuously varying analog signals. In our daily lives, from MP3 players to wireless communication, DAC is everywhere.

Basics of STM32 DAC

The DAC module in the STM32 series microcontrollers is like a translator from digital to analog. It typically has a 12-bit resolution, meaning it can produce 4096 different voltage levels. This is sufficient for most application needs.

Note: The output range of STM32’s DAC is usually 0~3.3V. If you need a different voltage range, you may require additional operational amplifier circuits.

Hardware Connection

We only need an STM32 development board to get started. Locate the pin marked ‘DAC’ or ‘PA4’ (DAC1); this is our signal output point. Connect an oscilloscope or multimeter to this pin and ground to observe the output.

         ┌───────────┐
         │           │
         │  STM32    │
         │           │
         │      PA4  ├───── DAC Output
         │   (DAC1)  │
         │           │
         │      GND  ├───── Ground
         │           │
         └───────────┘

Software Implementation

We need to initialize the DAC:

void DAC_Init(void)
{
  // Enable DAC clock
  RCC->APB1ENR |= RCC_APB1ENR_DACEN;

  // Configure DAC
  DAC->CR |= DAC_CR_EN1;  // Enable DAC channel 1
}

We can write a simple white noise generation function:

uint32_t random_seed = 123456789;

uint32_t generate_random(void)
{
  random_seed = random_seed * 1103515245 + 12345;
  return (random_seed / 65536) % 32768;
}

void generate_white_noise(void)
{
  while(1)
  {
    uint32_t random_value = generate_random();
    uint32_t dac_value = random_value % 4096;  // Limit to 12-bit range

    DAC->DHR12R1 = dac_value;  // Set DAC output value

    // You can add a small delay here to control noise frequency
    for(volatile int i = 0; i < 100; i++);
  }
}

Note: A simple linear congruential random number generator is used here. In practical applications, more complex algorithms may be needed to generate high-quality random numbers.

Practical Application Cases

1. Audio Effects: Connect this noise generator to a simple audio amplification circuit, and you will get an analog “crackle” generator, which can be used for music production or sound effects.

2. Random Number Generator: By sampling the noise output from the DAC, you can create a hardware random number generator, which is useful in cryptography and game development.

3. Sensor Testing: Noise signals can be used to test the performance of various sensors and filtering algorithms.

Common Problems and Solutions

1. Output Voltage Range Incorrect? Check your reference voltage settings. By default, STM32’s DAC uses VREF+ as the reference, usually connected to VDD (3.3V).

2. Output Signal Has Significant Steps? This is normal. If a smoother signal is needed, you can add a simple RC low-pass filter after the DAC output.

3. Generated Noise Not “Random” Enough? Consider using more complex random number generation algorithms or utilize external random sources (like the least significant bit of a temperature sensor) to increase randomness.

Practical Suggestions

Initially, try generating sine waves or triangle waves at different frequencies, which helps understand how DAC works. Gradually increase complexity, attempting to generate various interesting waveforms. Remember to use an oscilloscope to observe the output, which will give you intuitive feedback.

Hands-on practice is the best way to learn. Get your development board ready and start your DAC noise journey!
