Flash memory is widely used in embedded systems, especially in scenarios requiring large-capacity non-volatile storage, such as firmware storage, logging, and data backup. However, due to the physical characteristics of Flash, it faces the risk of failure after a limited number of erase-write cycles.

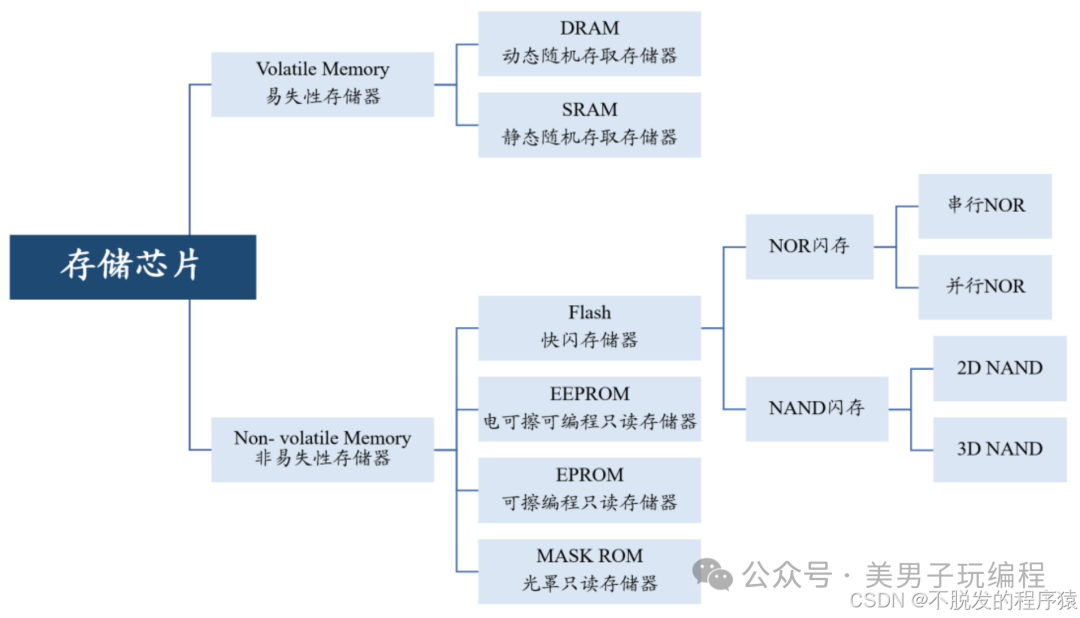

Flash storage is mainly divided into NAND Flash and NOR Flash, which differ in structure and application scenarios:

• NAND Flash: High density, low cost, suitable for data storage, such as eMMC, UFS, etc.

• NOR Flash: Fast read speed, suitable for code storage and execution, such as firmware and Bootloader.

The lifespan of Flash is mainly determined by the erase-write cycles (P/E Cycle). After a limited number of erase-write operations, each storage block may experience unrecoverable write errors, manifested as bit flips, data loss, etc.

The goal of lifespan prediction is to assess the remaining usable cycles of Flash based on its current usage state. Common methods include:

• Estimation based on erase counts: Count the number of erase operations for each block and compare it with the maximum erase count.

• Prediction based on Bit Error Rate (BER): Regularly read and verify data to estimate lifespan based on the trend of BER changes.

• Prediction based on failure models: Construct specific failure models and predict remaining lifespan based on actual working conditions of the device.

The goal of monitoring methods is to obtain the health status of Flash in real-time, allowing for measures to be taken as the lifespan approaches its end.

• Bad Block Management (BBM): Detect and mark bad blocks, redirecting data.

• Wear Leveling: Balance the erase counts across blocks to extend overall lifespan.

• ECC Verification and Correction: Use Error Correction Code (ECC) to repair errors caused by erase operations.

Below is an example of Flash lifespan prediction code based on erase counts.

#define MAX_PE_CYCLES 10000
#define BLOCK_NUM 256
unsigned int wear_count[BLOCK_NUM] = {0};

void write_block(int block_id) {
    if (wear_count[block_id] >= MAX_PE_CYCLES) {
        printf("Block %d has reached the maximum erase count and needs to be replaced or marked as bad block.\n", block_id);
    } else {
        wear_count[block_id]++;
        printf("Block %d has been written %d times.\n", block_id, wear_count[block_id]);
    }
}

void check_flash_health() {
    for (int i = 0; i < BLOCK_NUM; i++) {
        if (wear_count[i] >= MAX_PE_CYCLES * 0.8) {
            printf("Warning: Block %d's erase count is approaching lifespan limit.\n", i);
        }
    }
}

int main() {
    for (int i = 0; i < 10050; i++) {
        write_block(0);
    }
    check_flash_health();
    return 0;
}

This code simulates the erase-write operations of Flash blocks and performs simple monitoring and warning of lifespan status.

Prediction and monitoring of Flash lifespan are important means to enhance the stability of embedded systems.

Through reasonable prediction and monitoring methods, the lifespan of Flash can be effectively extended, reducing the risk of data loss and system crashes.
