π₯ Content Introduction
1. Basics of 3D Grid Map Modeling
- Data Collection: Acquire 3D point cloud data using depth cameras (such as Kinect), LiDAR, or RGB-D sensors.
- Preprocessing:
- Denoising: Remove outliers from the point cloud (e.g., using statistical filtering, setting a standard deviation threshold of 1.0-2.0).
- Registration: Stitch multiple frames of point clouds (using the ICP algorithm, with 20-50 iterations, error < 0.01m).
- Voxelization: Map point cloud data to a 3D grid, marking the state of each cell based on point cloud density (e.g., if the number of points > 10, classify as an obstacle).
- Example: After voxelization of a point cloud from an indoor scene, a grid map of 100Γ100Γ30 (d=0.1m) is generated, with approximately 15% of the cells classified as obstacles.

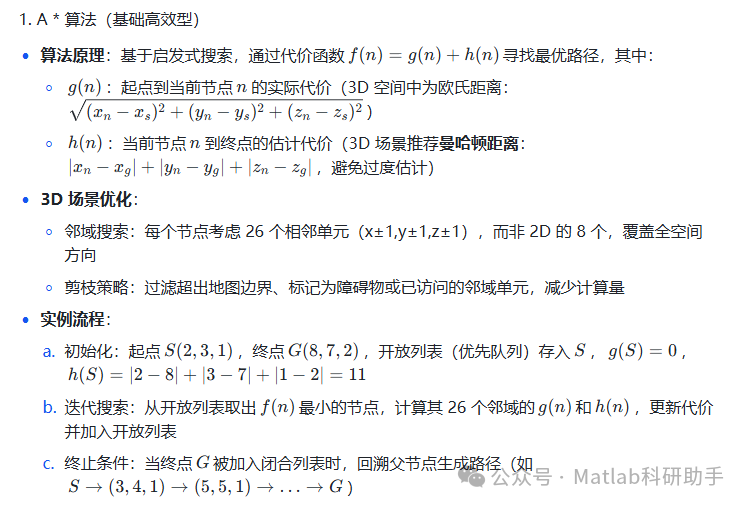

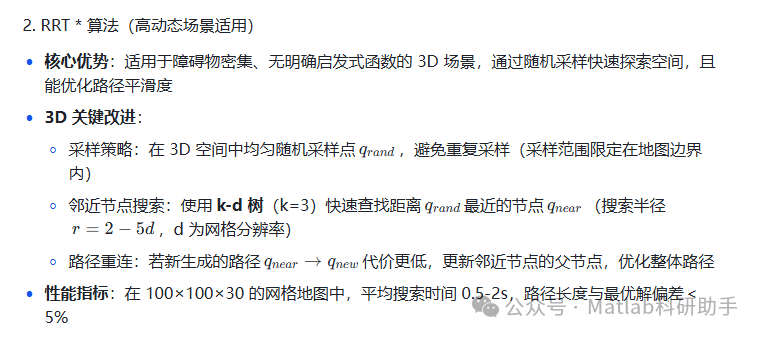

2. Core Path Planning Algorithm (3D Scene Adaptation)

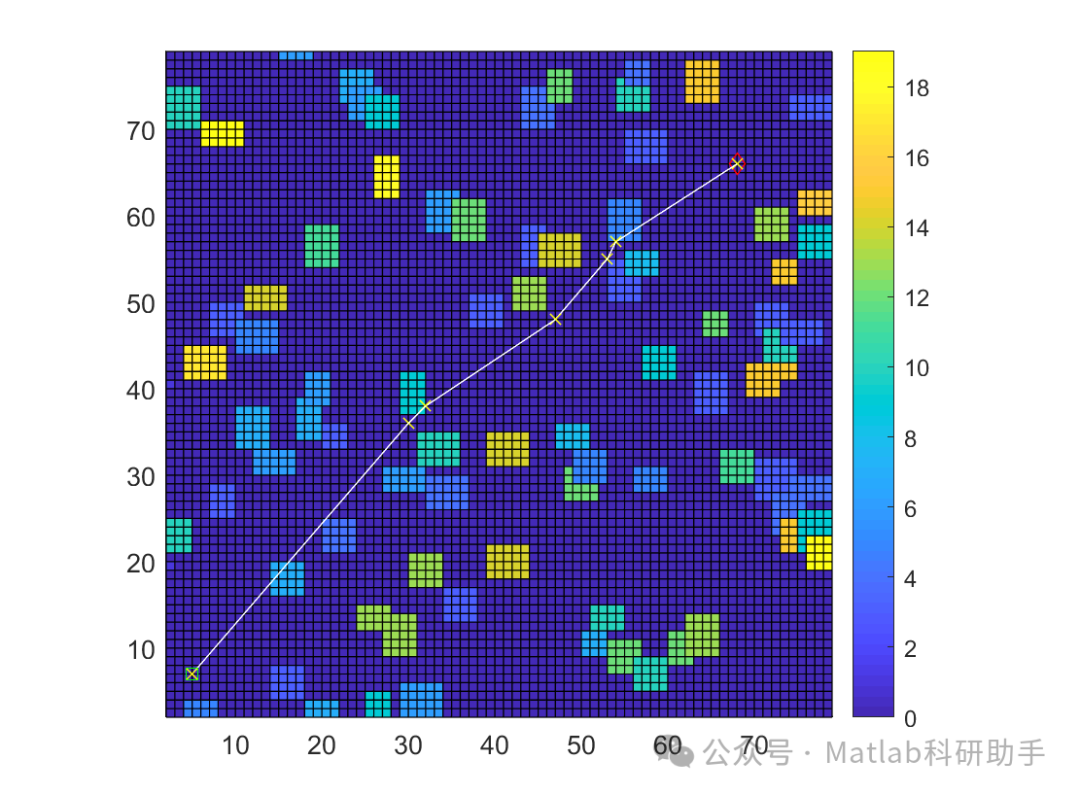

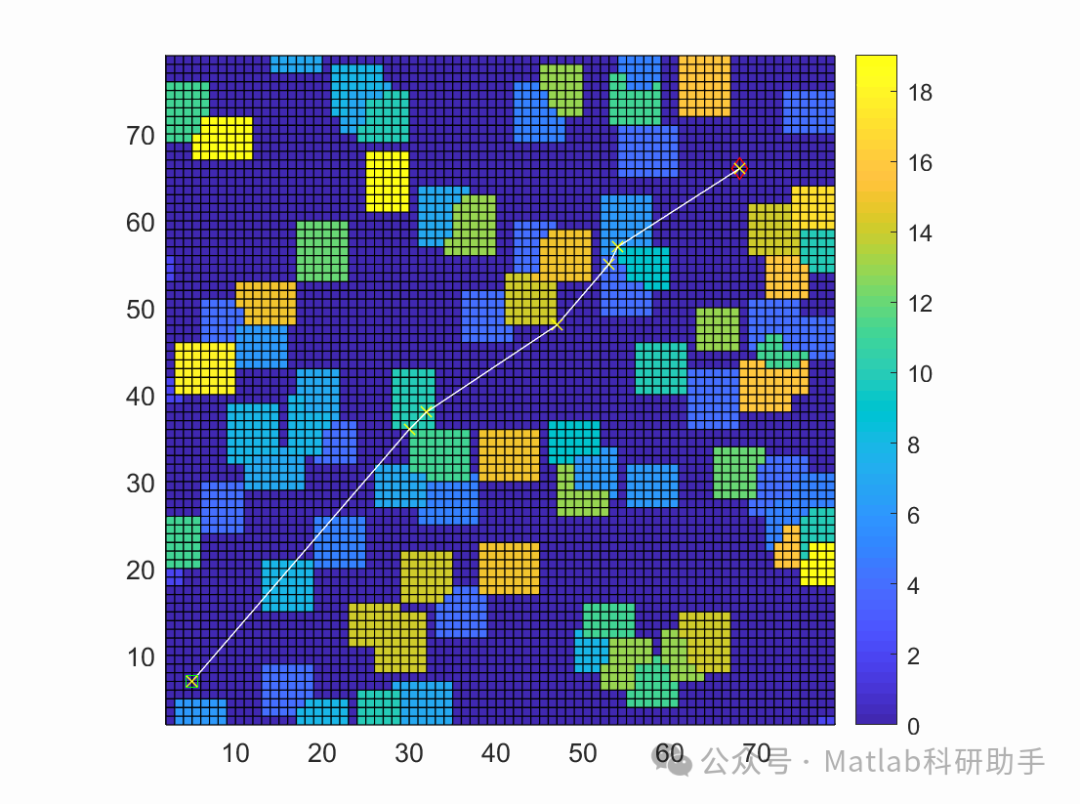

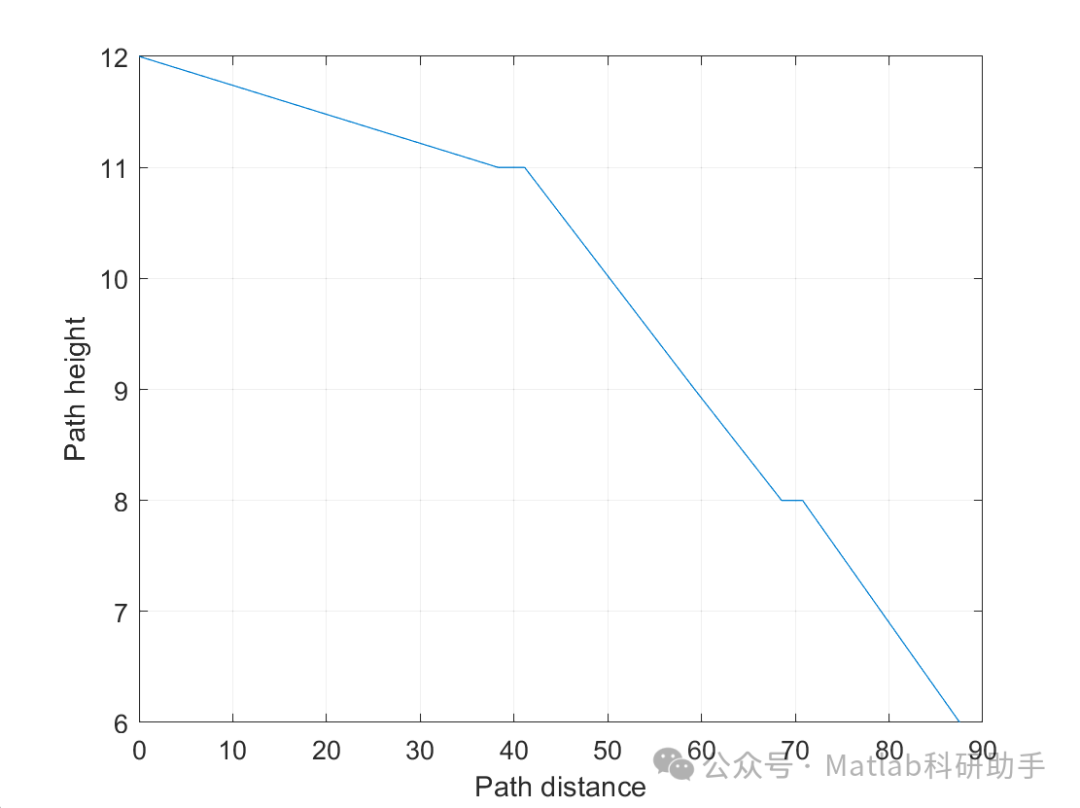

β³οΈ Results
π References
[1] Jiang Yingjie, LΓΌ Xueqin, Duan Liwei. Path Planning for Substation Inspection Robots Using Grid Genetic Algorithms*[J]. Science and Technology Innovation, 2015(6):3. DOI:10.15913/j.cnki.kjycx.2015.06.012.
[2] Wang Yubin, Shen Zhenjun, Wang Yucheng, et al. Research on Path Planning of Tetrahedral Robots Based on A* Algorithm[J]. Mechanical Transmission, 2024, 48(2):42-47. DOI:10.16578/j.issn.1004.2539.2024.02.006.
[3] Jiang Yingjie, LΓΌ Xueqin, Duan Liwei. Path Planning for Substation Inspection Robots Using Grid Genetic Algorithms*[J]. Microcomputer Information, 2015(006):000.
