1 Overview
Source of literature:

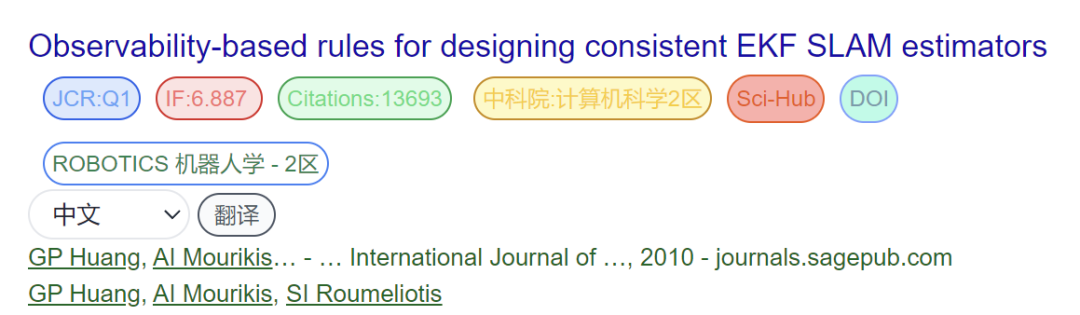

Abstract: This paper investigates the inconsistency issues in Simultaneous Localization and Mapping (SLAM) based on the Extended Kalman Filter (EKF) from the perspective of observability. We demonstrate through analysis that when the Jacobian matrices of the process and measurement models are evaluated at each time step based on the latest state estimates, the linearized error state system used in EKF has a higher-dimensional observable subspace than the actual nonlinear SLAM system. Consequently, the covariance estimates of EKF will decrease in directions of the state space where no information is available, which is one of the main reasons for inconsistency. Based on these theoretical results, we propose a general framework for improving the consistency of EKF SLAM. In this framework, the linearization points of EKF are chosen to ensure that the resulting linearized system model has an appropriately dimensional observable subspace. We describe two algorithms that are instances of this paradigm. The first algorithm is called Observable Constraint (OC)-EKF, which selects linearization points to minimize their expected error (i.e., the difference between the linearization points and the true state) while satisfying observability constraints. The second algorithm computes the Jacobian matrix of the filter using the first available estimates of all state variables. This method is referred to as First Estimate Jacobian Matrix (FEJ)-EKF. The proposed algorithms have been tested through simulations and experiments, showing significant improvements in accuracy and consistency over standard EKF. Keywords: Simultaneous Localization and Mapping, Nonlinear Estimation, Extended Kalman Filter, Linearization Error, Estimator Inconsistency, Observability
2 Results

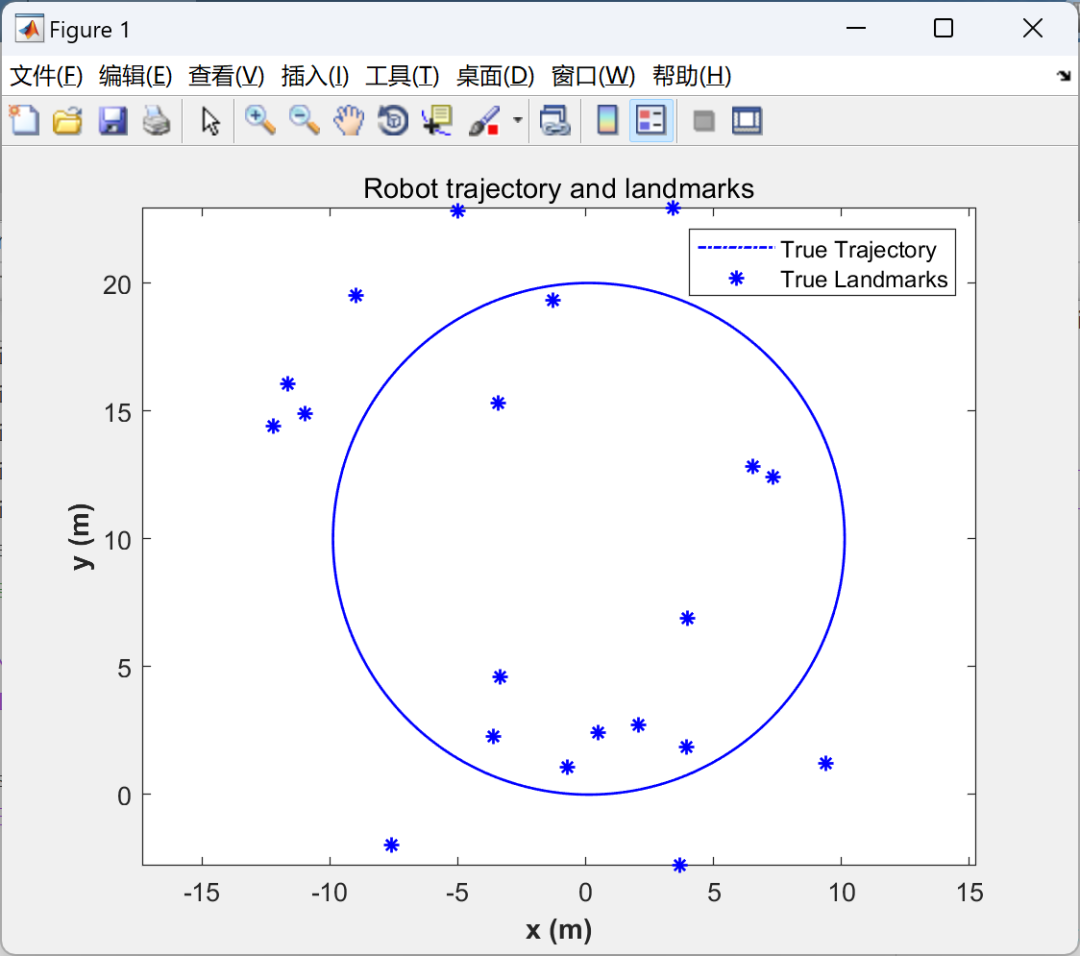

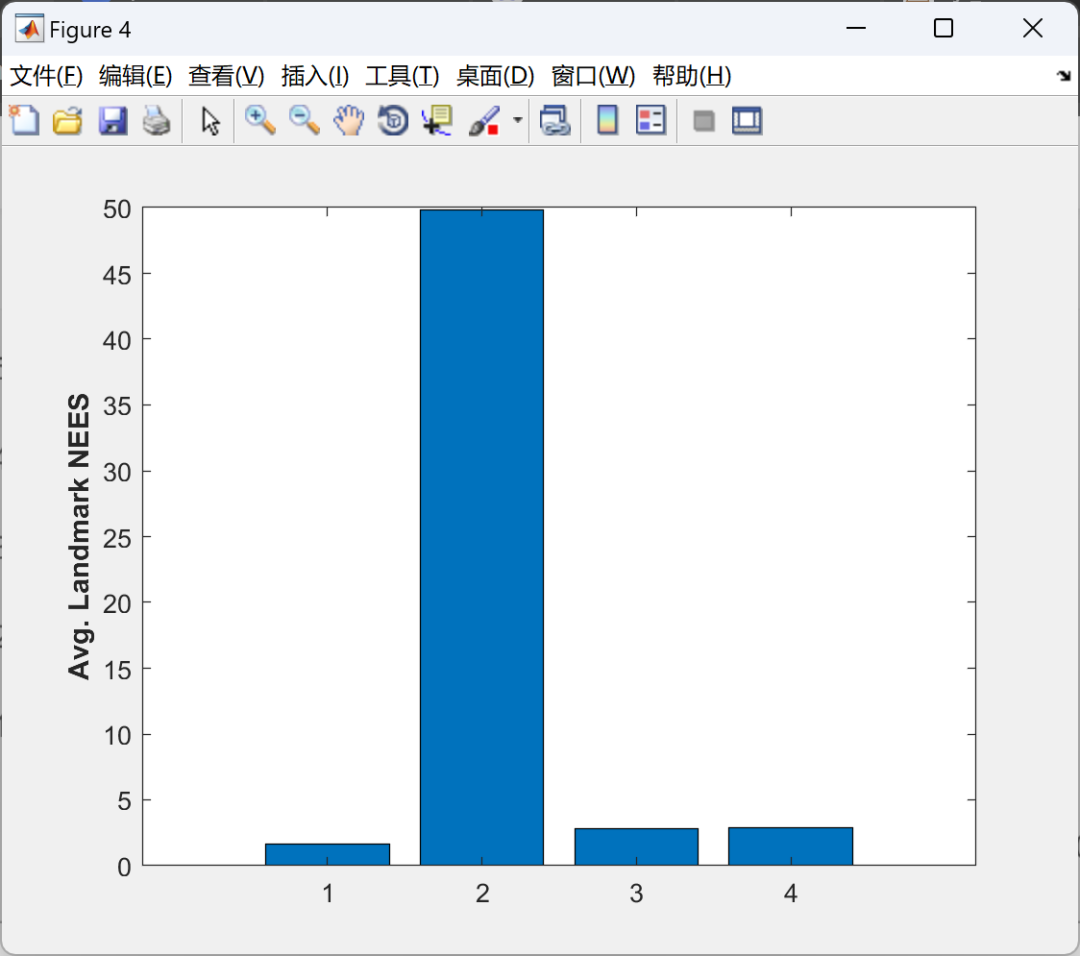

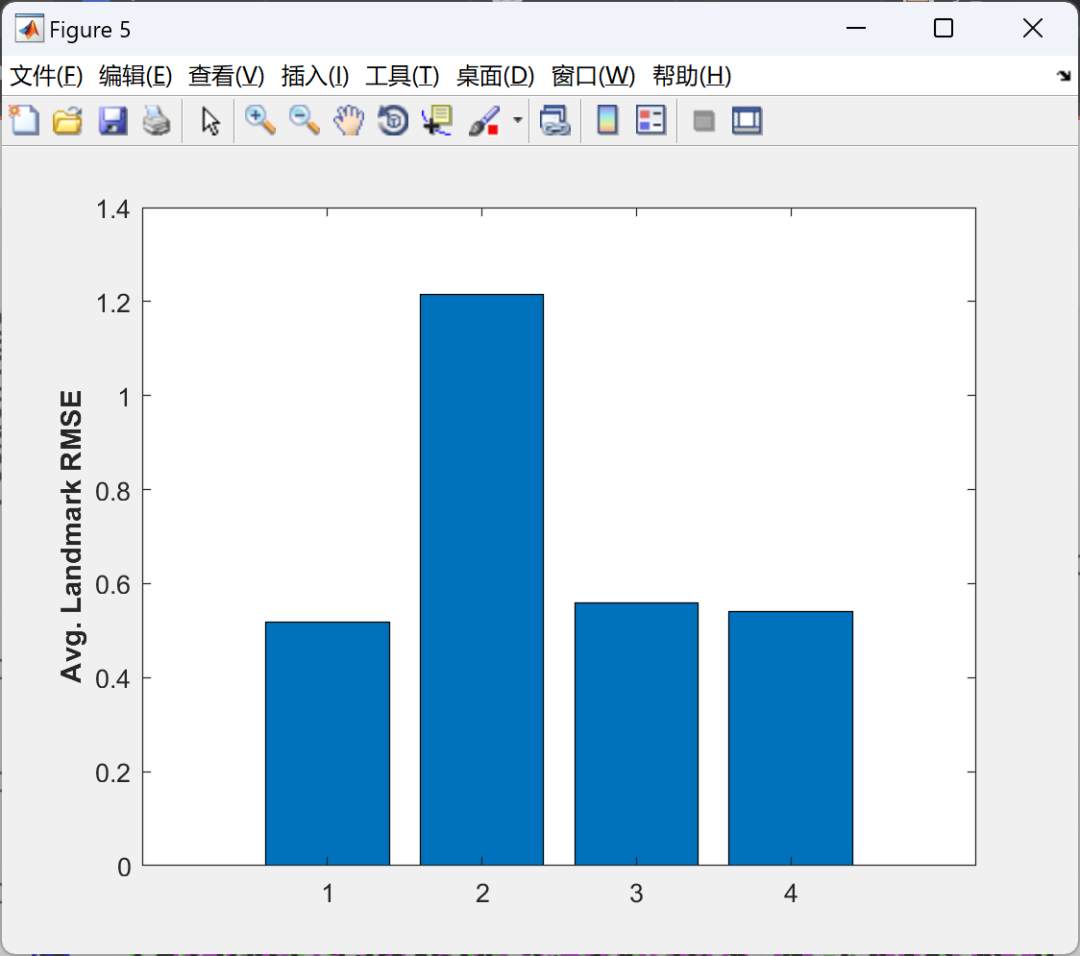

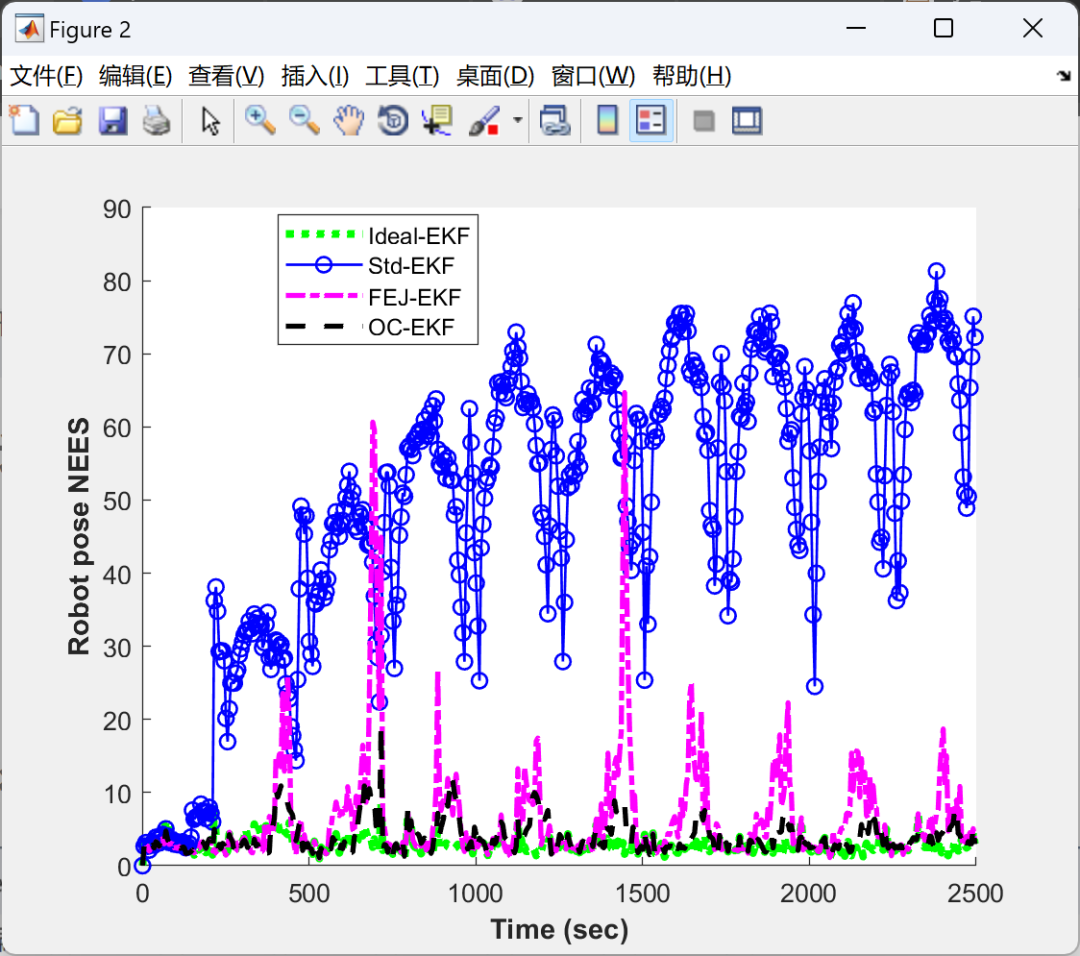

Partial code: sigma_v = sigma/sqrt(2); %.1*v_true; %sigma_w = 2*sqrt(2)*sigma; %.1*omega_true; 1*pi/180; %Q = diag([sigma_v^2 sigma_w^2]);sigma_p = .1; %noise is the percentage of distance measurement, BUT double check rws.m since sometimes we use this as a constant absolute sigma sigma_r = 1; %range measurement noise sigma_th = 10*pi/180;%bearing measurement noise nL = 20; %number of landmarks nSteps = 2500; %number of time steps nRuns = 5; %number of Monte Carlo runs if nL==1 max_range = 200;%always observe this landmark else max_range = 5;%env_size/10;%.5*v_true/omega_true;%end min_range = .5; init_steps = 0;%3 max_delay = 10;%for delayed initial NIncr = 0; %increment number of incremental MAP: 0 - not running %% preallocate memory for saving results % Ideal EKF xRest_id = zeros(3,nSteps,nRuns); %estimated traj xRerr_id = zeros(3,nSteps,nRuns); %all err state Prr_id = zeros(3,nSteps,nRuns); %actually diag of Prr neesR_id = zeros(1,nSteps,nRuns); %nees (or Mahalanobis distance) rmsRp_id = zeros(1,nSteps,nRuns); %rms of robot position rmsRth_id = zeros(1,nSteps,nRuns); %rms of robot orientation xLest_id = zeros(2,nL,nSteps,nRuns); xLerr_id = zeros(2,nL,nSteps,nRuns); Pll_id = zeros(2,nL,nSteps,nRuns); neesL_id = zeros(1,nL,nSteps,nRuns); rmsL_id = zeros(1,nL,nSteps,nRuns); nees_id = zeros(1,nSteps,nRuns); %nees for the whole state % Standard EKF xRest_std = zeros(3,nSteps,nRuns); %estimated traj xRerr_std = zeros(3,nSteps,nRuns); %all err state Prr_std = zeros(3,nSteps,nRuns); %actually diag of Prr neesR_std = zeros(1,nSteps,nRuns); %nees (or Mahalanobis distance) rmsRp_std = zeros(1,nSteps,nRuns); %rms of robot position rmsRth_std = zeros(1,nSteps,nRuns); %rms of robot orientation xLest_std = zeros(2,nL,nSteps,nRuns); xLerr_std = zeros(2,nL,nSteps,nRuns); Pll_std = zeros(2,nL,nSteps,nRuns); neesL_std = zeros(1,nL,nSteps,nRuns); rmsL_std = zeros(1,nL,nSteps,nRuns); nees_std = zeros(1,nSteps,nRuns); %nees for the whole state kld_std = zeros(1,nSteps,nRuns); % KLD % FEJ-EKF xRest_fej = zeros(3,nSteps,nRuns); %estimated traj xRerr_fej = zeros(3,nSteps,nRuns); %all err state Prr_fej = zeros(3,nSteps,nRuns); %actually diag of Prr neesR_fej = zeros(1,nSteps,nRuns); %nees (or Mahalanobis distance) rmsRp_fej = zeros(1,nSteps,nRuns); %rms of robot position rmsRth_fej = zeros(1,nSteps,nRuns); %rms of robot orientation xLest_fej = zeros(2,nL,nSteps,nRuns); xLerr_fej = zeros(2,nL,nSteps,nRuns); Pll_fej = zeros(2,nL,nSteps,nRuns); neesL_fej = zeros(1,nL,nSteps,nRuns); rmsL_fej = zeros(1,nL,nSteps,nRuns); nees_fej = zeros(1,nSteps,nRuns); %nees for the whole state kld_fej = zeros(1,nSteps,nRuns); % KLD % OC-EKF xRest_ocekf_1 = zeros(3,nSteps,nRuns); %estimated traj xRerr_ocekf_1 = zeros(3,nSteps,nRuns); %all err state Prr_ocekf_1 = zeros(3,nSteps,nRuns); %actually diag of Prr neesR_ocekf_1 = zeros(1,nSteps,nRuns); %nees (or Mahalanobis distance) rmsRp_ocekf_1 = zeros(1,nSteps,nRuns); %rms of robot position rmsRth_ocekf_1 = zeros(1,nSteps,nRuns); %rms of robot orientation xLest_ocekf_1 = zeros(2,nL,nSteps,nRuns); xLerr_ocekf_1 = zeros(2,nL,nSteps,nRuns); Pll_ocekf_1 = zeros(2,nL,nSteps,nRuns); neesL_ocekf_1 = zeros(1,nL,nSteps,nRuns); rmsL_ocekf_1 = zeros(1,nL,nSteps,nRuns); nees_ocekf_1 = zeros(1,nSteps,nRuns); %nees for the whole state kld_ocekf_1 = zeros(1,nSteps,nRuns); % KLD %% LANDMARK GENERATION: same landmarks in each run if nL==1 xL_true_fixed = [0;v_true/omega_true]; elseif nL==2 xL_true_fixed = [5 -5; 5 15]; else xL_true_fixed = gen_map(nL,v_true,omega_true,min_range, max_range, nSteps,dt); %max_range=5 end %% Monte Carlo Simulations for kk = 1:nRuns kk % % real world simulation data % % xL_true(:,:,kk) = xL_true_fixed; [v_m,omega_m, v_true_all,omega_true_all, xR_true(:,:,kk), z,R] = rws(nSteps, dt,v_true,omega_true,sigma_v,sigma_w,sigma_r,sigma_th,sigma_p,xL_true(:,:,kk),max_range,min_range); % % INITIALIZATION x0 = zeros(3,1); if init_steps P0 = zeros(3); else P0 = diag([(.0001)^2,(.0001)^2,(.0001)^2]); end for k=1:init_steps [x0,P0] = propagate_std(x0,P0,dt,v_m(k),omega_m(k),sigma_v,sigma_w); end % Ideal EKF xe_id = x0; Pe_id = P0; V_id = []; % Standard EKF xe_std = x0; Pe_std = P0; V_std = []; % FEJ-EKF xe_fej = x0; Pe_fej = P0; xL_fej_1 = []; xR_fej_k_k1 = xe_fej(1:3,1); PHI_mult_fej = eye(1); %propagation jacobian product V_fej = []; % OC-EKF xe_ocekf_1 = x0; Pe_ocekf_1 = P0; xL_ocekf_1_1 = []; xR_oc_k_k1_1 = xe_ocekf_1(1:3,1); dpR_star_prev_1 = zeros(2,1); pR_star_prev = x0(1:2,1); dpR_ocekf_1 = zeros(2,1); V_ocekf_1 = []; PHI_mult_ocekf_1 = eye(1); lambda_1 = zeros(2,nL); % list of landmark ids that sequentially appear in the state vector lm_seq_id = []; lm_seq_std = []; lm_seq_fej = []; lm_seq_ocekf_1 = [];
