> The steps include: initializing the positions of the radar and UAV, generating the signal model, processing the received signals to estimate angles, and then calculating the position using TDOA/AOA fusion algorithms. The code structure may be divided into parameter settings, signal generation, signal processing, positioning algorithms, and result visualization.

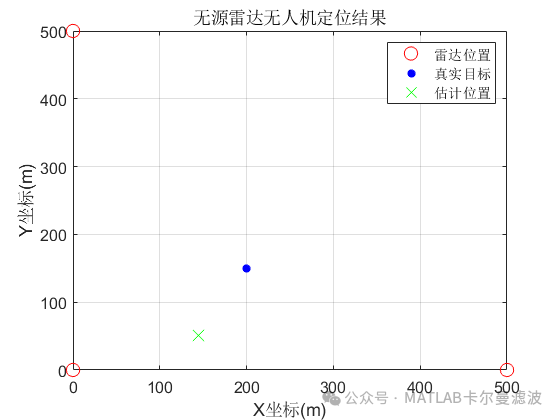

Running Results
# Source Code
%% Passive Radar UAV Positioning% Author: matlabfilter% 2025-03-08/Ver1clear; clc; close all;% Parameter settingsc = 3e8; % Speed of lightfc = 2.4e9; % Carrier frequencyfs = 10e6; % Sampling rateSNR = 50; % Signal-to-noise ratio (dB)N = 8; % Number of receiving array antennaslambda = c/fc; % Wavelengthd = lambda/2; % Element spacing% Initialize UAV and radar positions (example coordinates)radarPos = [0, 0; 500, 0; 0, 500]; % Three passive radar positions (2D)targetPos = [200, 150]; % True target positiontargetVel = [30, 20]; % Target velocity (m/s)% Generate signal model (based on opportunistic illumination sources)[signals, tdoa, fdoa] = generateSignal(radarPos, targetPos, targetVel, fc, fs, c, SNR);% Signal processing: angle estimation (MVDR algorithm)theta_est = zeros(size(radarPos,1),1);for i = 1:size(radarPos,1) R = signals{i} * signals{i}' / size(signals{i},2); % Covariance matrix theta_grid = 0:0.1:180; % Angle search range P_mvdr = mvdr_spectrum(R, d, lambda, theta_grid); [~, idx] = max(P_mvdr); theta_est(i) = theta_grid(idx); % Estimated arrival angleendComplete code:https://mbd.pub/o/bread/aJWakpxy
Code Explanation
Signal Generation Module:
* Simulates UAV reflected signal generation, considering TDOA (Time Difference of Arrival) and FDOA (Frequency Difference of Arrival) effects
* Adds Gaussian white noise to simulate real-world environments
Angle Estimation Module:
* Uses the MVDR (Minimum Variance Distortionless Response) beamforming algorithm for DOA estimation
* Achieves high-resolution angle measurement through covariance matrix calculations
Positioning Calculation Module:
* Constructs an overdetermined equation system using combined TDOA and AOA measurements
* Uses Weighted Least Squares (WLS) for position calculation
Visualization Module:
* Displays the geometric relationship between radar positions, true target, and estimated positions
* Positioning accuracy can be analyzed through error ellipses
Suggestions for Extension and Improvement:
* Multipath processing
* Add adaptive filtering modules (e.g., LMS algorithm) to suppress multipath interference
