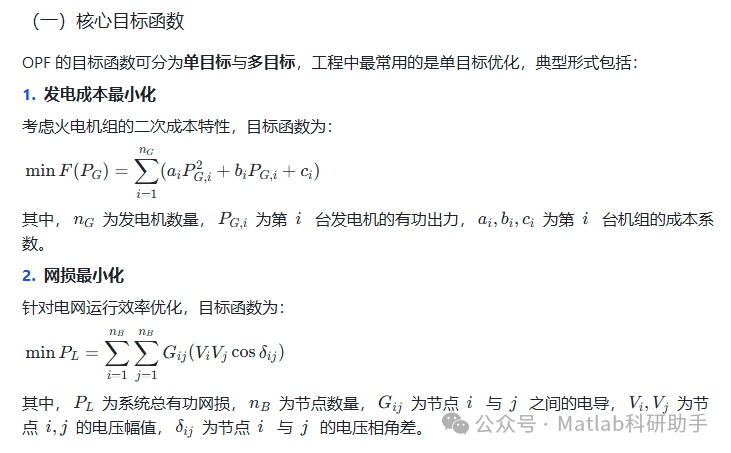

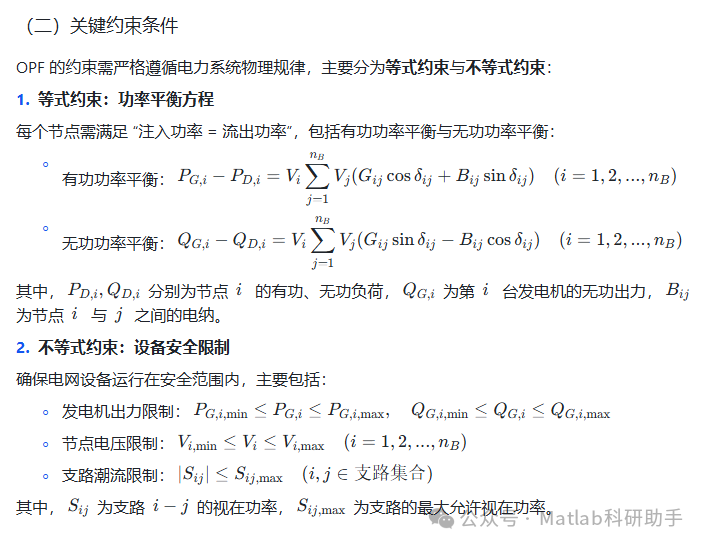

Optimal Power Flow (OPF) is the core issue of power system operation optimization. Its essence is to achieve the optimization of one or more economic/technical objectives (such as minimizing generation costs, minimizing network losses, maximizing voltage stability) by adjusting controllable variables (such as generator output, transformer tap settings, reactive power compensation device capacity) while satisfying the physical constraints of the power system (such as power balance and equipment capacity limits).

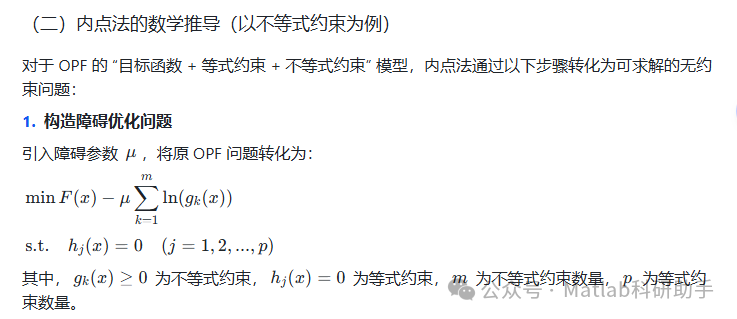

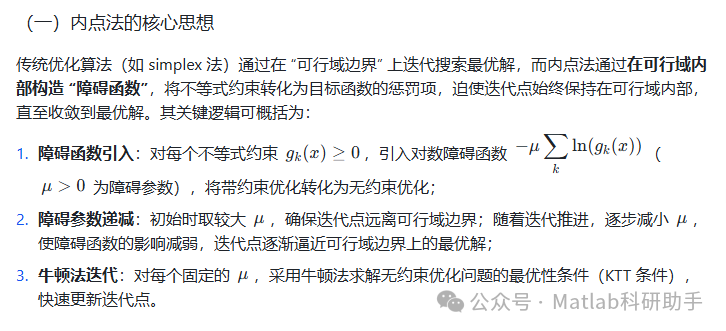

2. Core Principle of Interior Point Method: From “Feasible Region Boundary” to “Internal Search”
The Interior Point Method (IPM) is a nonlinear programming algorithm that emerged in the 1980s. Its core advantage lies innot relying on an initial feasible solution and being able to converge quickly to the optimal solution, making it particularly suitable for optimization problems like OPF that are “high-dimensional and strongly constrained”.
3. Specific Steps for Solving Optimal Power Flow Using Interior Point Method

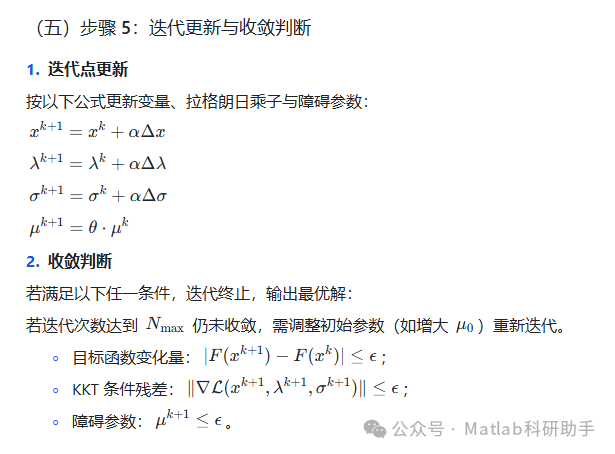

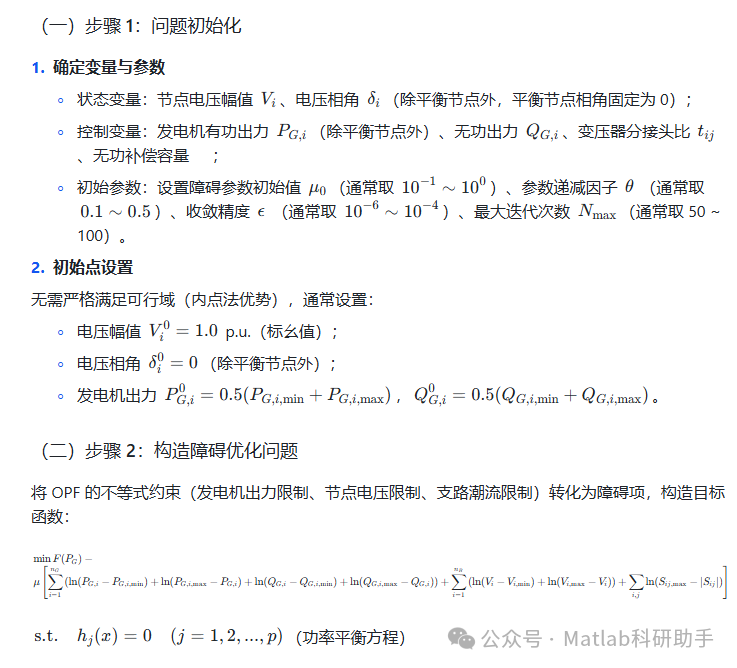

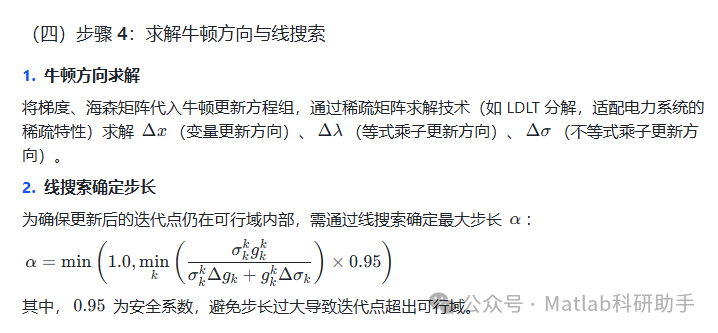

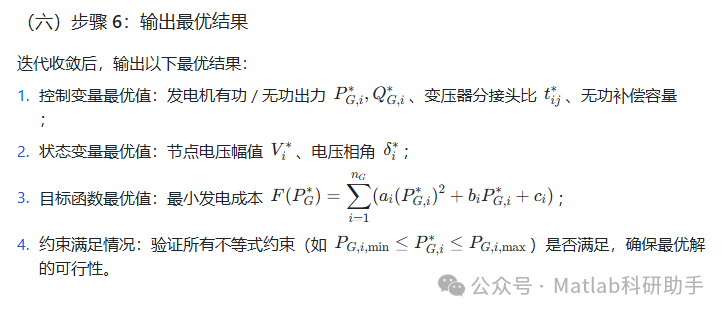

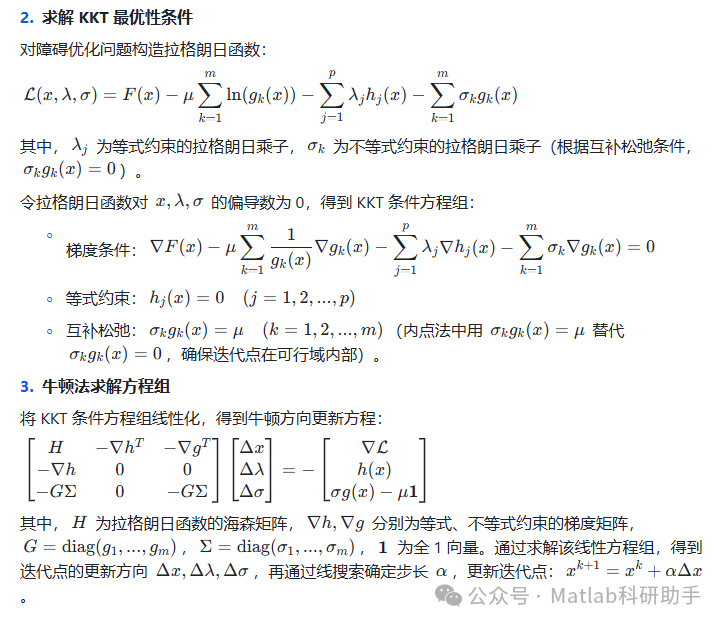

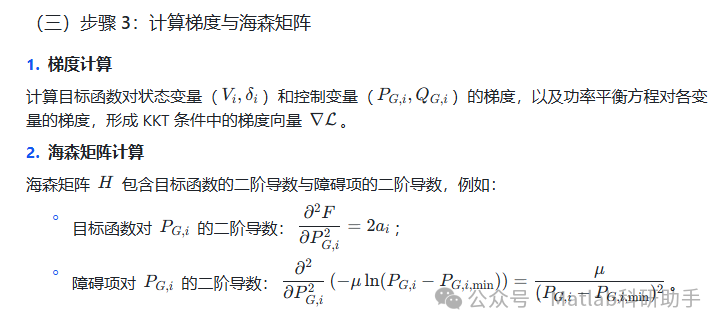

Taking the OPF problem of “minimizing generation costs” as an example, the specific process can be divided into 6 steps, optimizing key links in conjunction with the characteristics of the power system:
4. Improvement Directions and Engineering Applications of Interior Point Method
(1) Improvement Directions
- Distributed Interior Point Method
For large-scale interconnected power grids (such as regional grid collaborative optimization), transforming centralized interior point methods into distributed algorithms through information exchange between sub-regions (such as boundary node power) avoids the “curse of dimensionality” in centralized calculations, improving solution efficiency.
- Robust Interior Point Method
Considering the uncertainties in the power system (such as load fluctuations and random wind power output), introducing robust optimization theory, combining the interior point method with “worst-case analysis” to ensure that the optimal solution still meets constraints under uncertain scenarios, enhancing operational safety.
- Multi-objective Interior Point Method
For the multi-objective OPF problem of “minimizing cost + minimizing network loss + maximizing voltage stability”, combining traditional single-objective interior point methods with Pareto ranking, constructing multi-objective barrier functions to generate a uniformly distributed Pareto optimal solution set, providing multiple scenario choices for dispatchers.
(2) Engineering Application Scenarios
- Economic Dispatch of Power Systems
In daily operations, the dispatch center uses the interior point method to solve OPF, optimizing the output distribution of each generator while minimizing generation costs to meet load demands. For example, the day-ahead economic dispatch of provincial power grids in China uses the interior point method as the core algorithm.
- Real-time Security Correction of Power Grids
When an N-1 fault occurs in the power grid (such as a branch disconnection), the interior point method can quickly solve the “post-fault OPF”, adjusting generator output and transformer tap settings to eliminate branch flow limits and restore safe operation of the grid, with solution times typically controlled within 1 second to meet real-time requirements.
- Renewable Energy Grid Integration Optimization
After high proportions of wind and solar power are integrated, the interior point method can optimize the coordinated operation of energy storage and renewable energy by combining renewable output forecasts. For example, during periods of excess wind power output, the OPF can adjust the energy storage charging power while minimizing wind curtailment rates and generation costs.

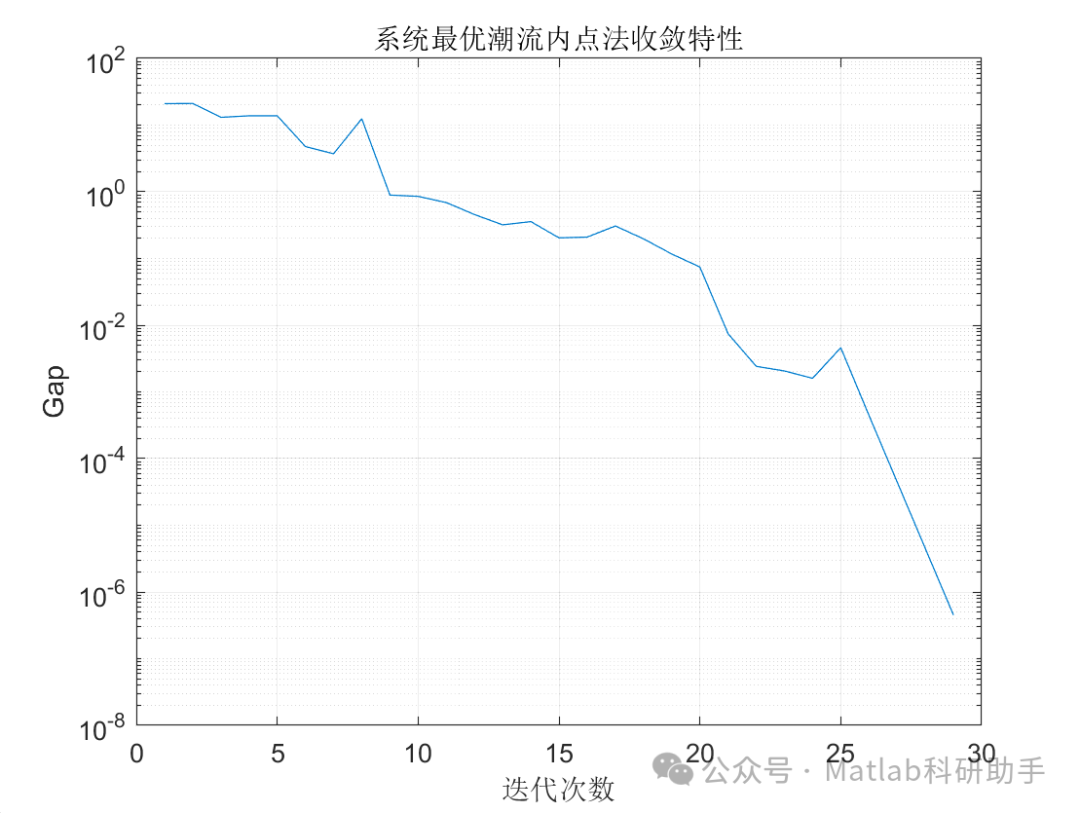

⛳️ Operational Results
